Cisco Catalyst C1300-16P-4X | 16-Port L3 Managed PoE+ Switch with 4x 10G SFP+
Brand: Cisco
C1300-16P-4X
Delivery
Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
Trusted Tech Choice
Buying Benefits
Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Please sign in so that we can notify you about a reply

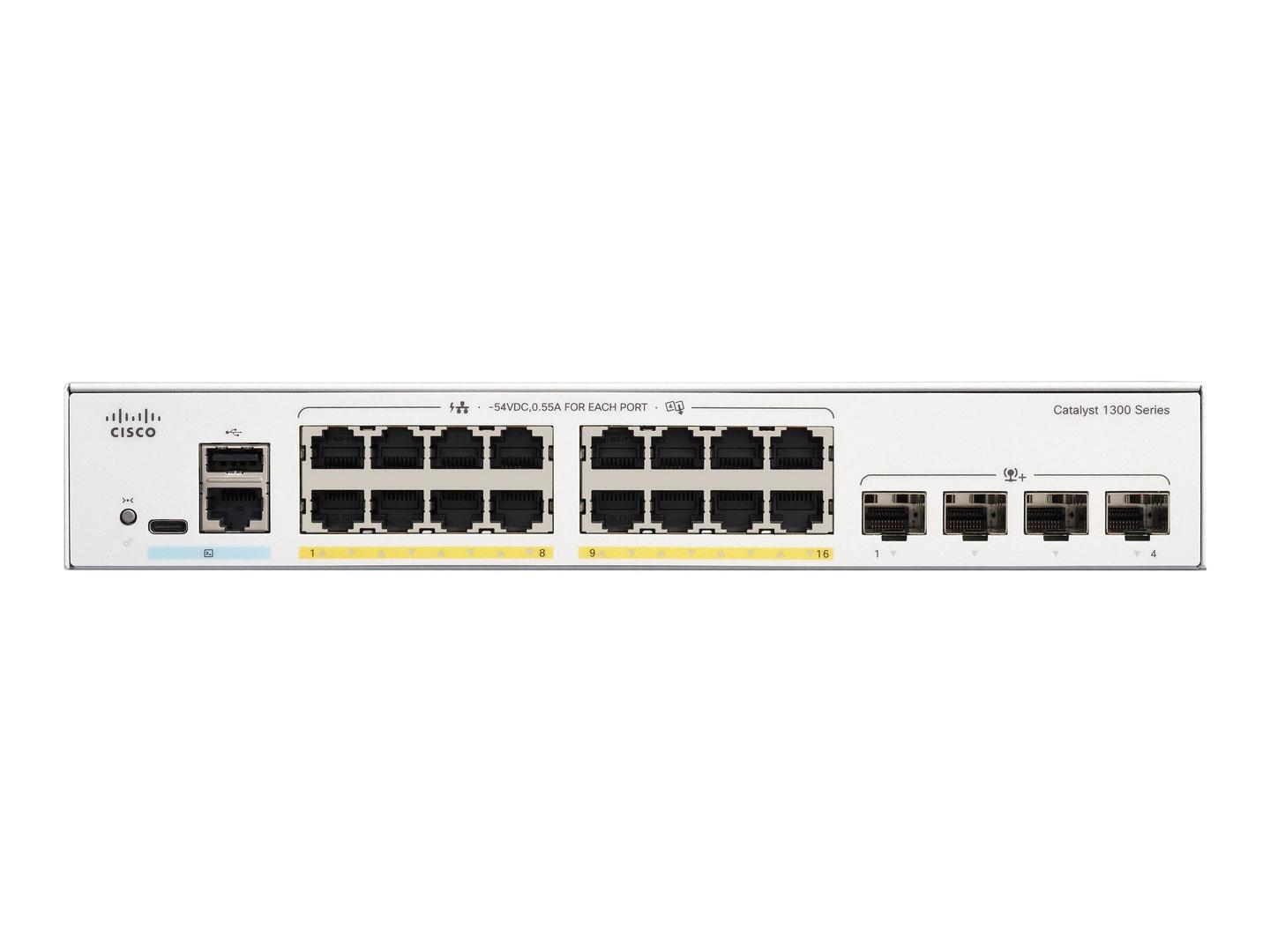

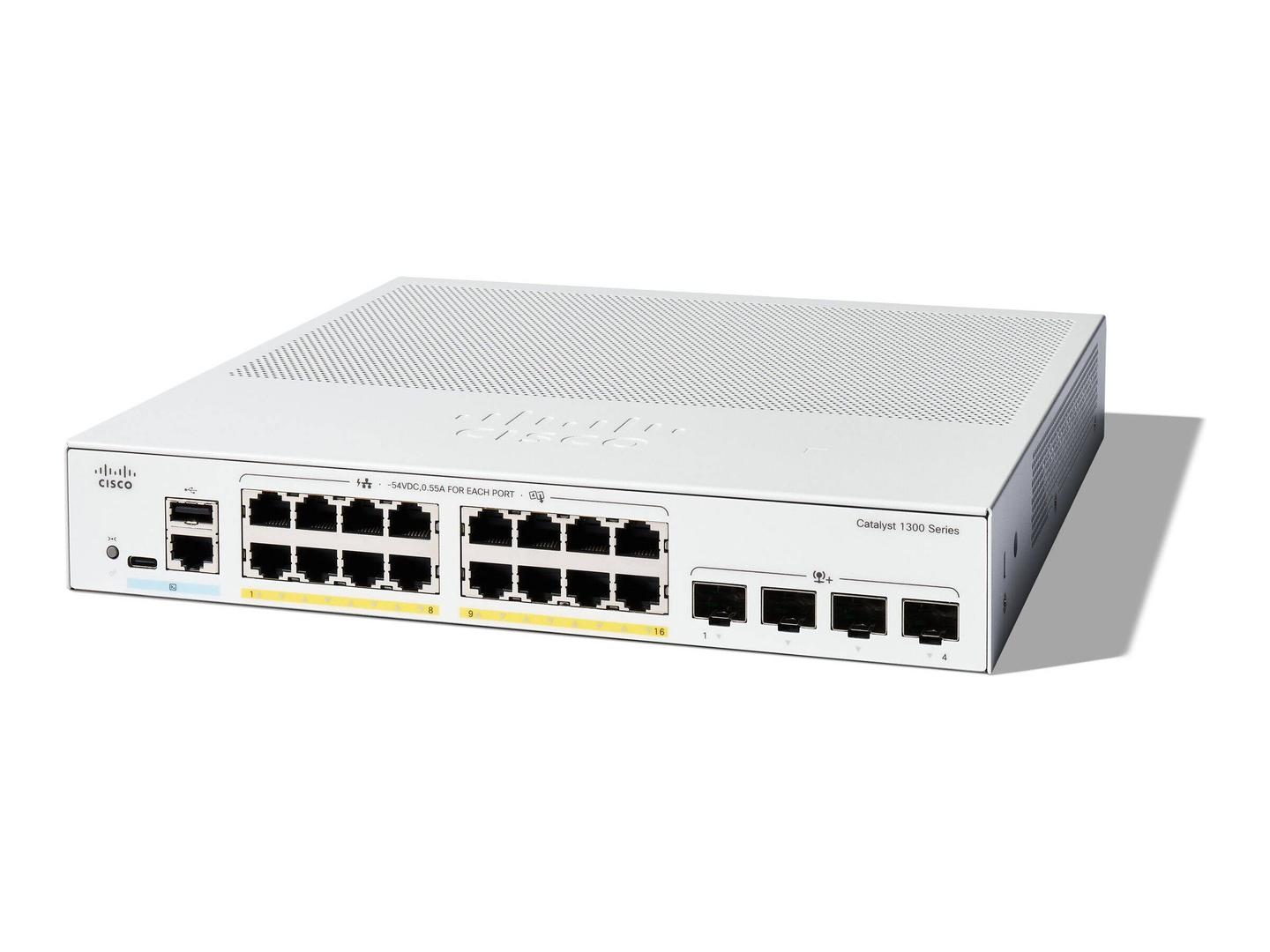

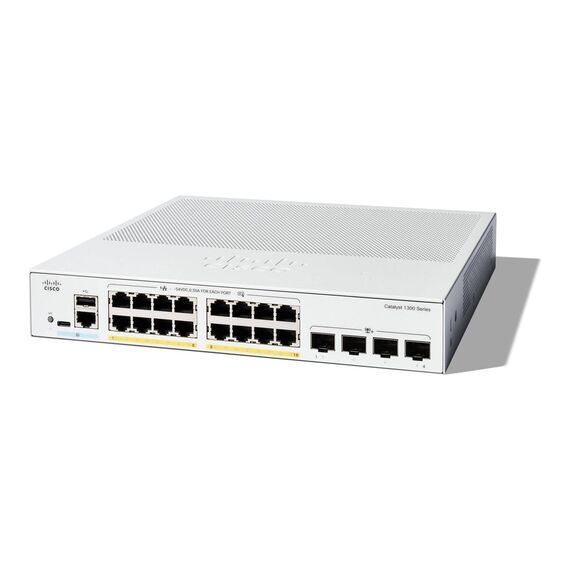

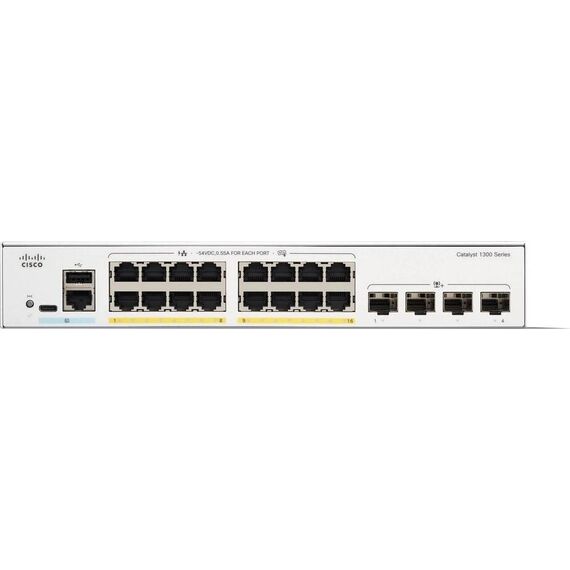

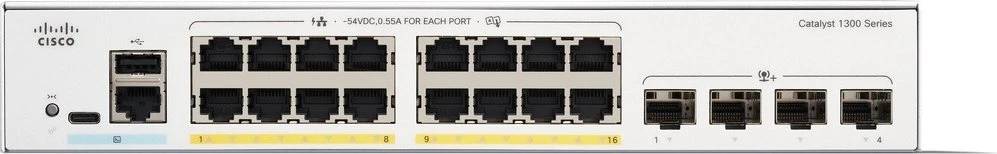

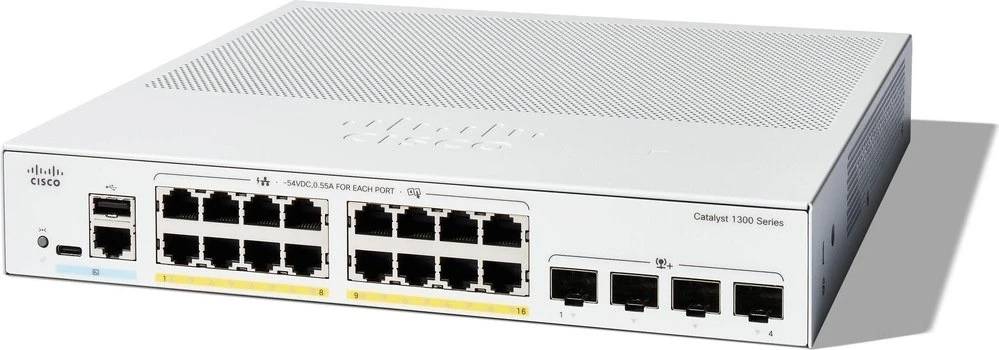

Cisco Catalyst C1300-16P-4X - 16-Port L3 Managed PoE+ Switch with 4x 10G SFP+
The Cisco Catalyst C1300-16P-4X is a rack-mountable, managed Layer 3 switch for small business networks that need Gigabit PoE+ access and 10G SFP+ uplinks. It combines 16 PoE+ RJ-45 ports, four 10Gb Ethernet SFP+ interfaces, stackability and Cisco management and security features in one compact unit.
Technical Specifications
| Specification | Detail |
|---|---|
| Product Type | Switch - 16 ports - L3 - Managed - stackable |
| Ports | 16 x 10/100/1000 (PoE+) + 4 x 10Gb Ethernet SFP+ |
| Interfaces | 16 x 10/100/1000 Base-T (PoE+) RJ-45 | 4 x 10GBase-X SFP+ | 1 x console RJ-45 | 1 x USB-C console |
| Subtype | Gigabit Ethernet |
| Enclosure Type | Rack-mountable |
| Power Over Ethernet (PoE) | PoE+ |
| PoE Budget | 120 W |
| Switching Capacity | 112 Gbps |
| Forwarding Rate | 83.32 Mpps |
| MAC Address Table Size | 16000 entries |
| Jumbo Frame Support | 9000 bytes |
| Max Units In A Stack | 8 |
| Processor | X ARM: 1.4 GHz |
| RAM | 1 GB DDR4 SDRAM |
| Flash Memory | 512 MB |
| Management Protocol | SNMP | RMON | Telnet | SNMP 3 | SNMP 2c | HTTP | HTTPS | TFTP | SSH | SSH-2 | CLI | SCP | ICMP | DHCP | RADIUS | Syslog | SNMP, RMON, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, SSH-2, CLI, SCP, ICMP, DHCP, RADIUS, Syslog |
| Security | MD5 | SSL |
| Authentication Method | RADIUS | TACACS+ |
| Remote Management Protocol | SNMP | RMON | Telnet | SNMP 3 | SNMP 2c | HTTP | HTTPS | TFTP | SSH | SSH-2 | CLI | SCP | ICMP | DHCP | RADIUS | Syslog |
| Features | VLAN support | IGMP snooping | Port mirroring | Broadcast Storm Control | DHCP snooping | DHCP server | MLD snooping | Port Security | IPv4 and IPv6 dual stack | Zero-Touch Deployment | layer 3 routing | dynamic routing | ACL support | QoS | LACP | LLDP | RSPAN |
| Compliant Standards | IEEE 802.3 | IEEE 802.3u | IEEE 802.3z | IEEE 802.1D | IEEE 802.1Q | IEEE 802.3ab | IEEE 802.1p | IEEE 802.3af | IEEE 802.3x | IEEE 802.3ad (LACP) | IEEE 802.1w | IEEE 802.1x | IEEE 802.3ae | IEEE 802.1s | IEEE 802.3an | IEEE 802.3at | IEEE 802.3az |
| Status Indicators | System | PoE | link/activity/speed |
| Power Device | Internal power supply |
| Voltage Required | AC 100-240 V (50 - 60 Hz) |
| Included Accessories | Mounting kit | pointer card |
| Weight | 2.49 kg |
| Width | 26.8 cm |
| Depth | 29.7 cm |
| Height | 4.4 cm |
| Service & Support | Limited warranty - lifetime - response time: next business day | Technical support - consulting - 1 year |
| Power | Internal power supply |
| Package Contents | Mounting kit, pointer card |
| SKU / EAN | C1300-16P-4X | 0889728521635 |
SINGULAR RECOMMENDS
For who
For small business networks that need managed Gigabit PoE+ switching with 10G uplinks, stack support and Layer 3 control.
Real reason to buy it
A compact Cisco managed switch with 16 PoE+ ports, 4x 10G SFP+ uplinks and a 120W PoE budget for access-layer deployments.
Know before
This model is rack-mountable and includes a mounting kit and pointer card. It has an internal power supply and requires AC 100-240 V input; the listed support includes a lifetime limited warranty with next-business-day response and 1 year of technical support.
Features - Cisco - C1300-16P-4X
Standard
16-Port
Port Speed
- 1 Gbps
- 10 Gbps
More Details
Product Code
CI52388
EAN Code
0889728521635
Manufacturer
Cisco
