Cisco Catalyst 9200 4 x 10GE Network Module, 4 x SFP+ 1G/10G Uplinks, Hot-Swappable, for Modular C9200 Switches
Brand:
Cisco
Cisco Catalyst 9200 4 x 10GE Network Module, 4 x SFP+ 1G/10G Uplinks, Hot-Swappable, for Modular C9200 Switches
€1495.24 inc. VAT
C9200-NM-4X=
Delivery
Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
Trusted Tech Choice
Buying Benefits
Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Please sign in so that we can notify you about a reply

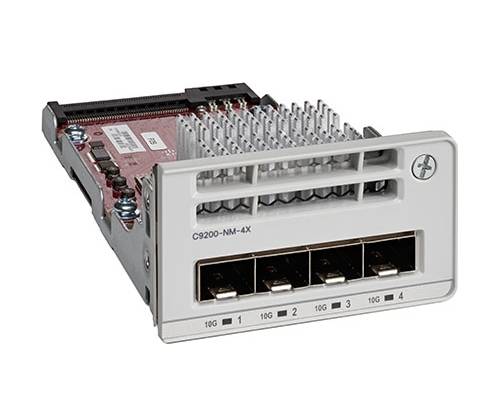

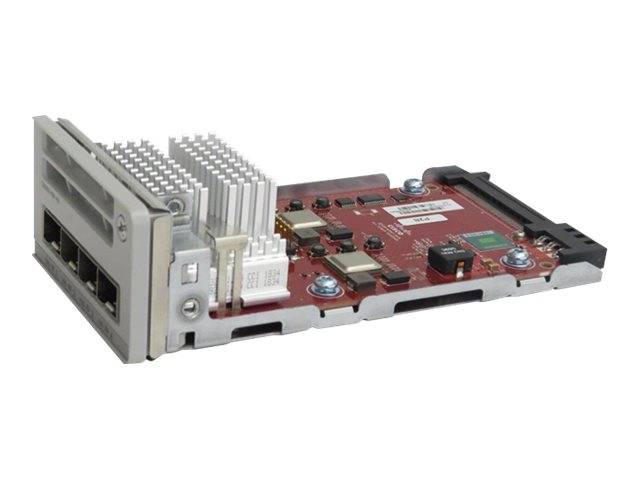

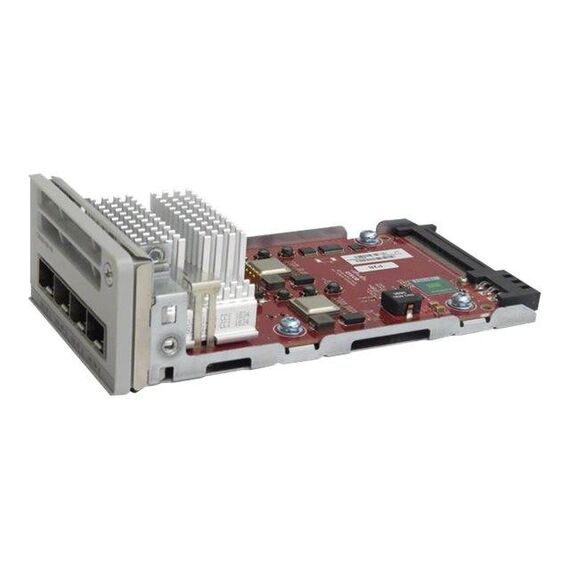

Cisco Catalyst 9200 4 x 10GE Network Module (C9200-NM-4X=)
4 × SFP+ 1G/10GHot-swappableModular C9200Spare part
The Cisco C9200-NM-4X= is the Catalyst 9200 4 x 10GE network module: four SFP+ slots that run at 1G or 10G and give a modular Catalyst 9200 switch its uplinks to the core, a firewall or a server.
It is the most common uplink choice for C9200 access switches in offices, schools and branches, and the spare part to replace a failed module or to upgrade from 1G uplinks.
Before you order: Cisco supports this module on both the 1G and the multigigabit modular C9200 models (for example C9200-24T, 48T, 24P, 48P, 24PB, 48PB, 24PXG, 48PXG). Catalyst 9200L and 9200CX have fixed uplinks and cannot take a module.
What's in the Box
- 1 × Cisco C9200-NM-4X network module
- No SFP/SFP+ transceivers or cables — order optics separately
What It Means in Practice
- Each port takes an SFP (1G) or SFP+ (10G) optic or DAC cable, so you can mix 1G and 10G uplinks on the same module.
- Four 10G ports allow redundant uplinks to two core switches, or an EtherChannel of up to 40 Gbps.
- Hot-swappable (OIR): wait 6–8 seconds between removal and insertion, and insert it without cables or transceivers attached.
- Use optics from Cisco’s transceiver compatibility matrix for the Catalyst 9200.
What Will Not Work
- It does not fit Catalyst 9200L or 9200CX switches (fixed uplinks).
- It is not a Catalyst 9300 / 9300X module and does not fit those switches.
- No 25G — for 25G uplinks on C9200-24PXG/48PXG use the C9200-NM-2Y=.
- Transceivers are not included.
Key Features
4 × 1G/10G SFP+
Four flexible uplink slots for SFP or SFP+ optics and DAC cables.
Hot-swappable
Online insertion and removal without powering down the switch.
Works on all modular C9200
Supported on both the 1G and multigigabit C9200 models.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight · Buyer's Guide
The standard 10G uplink module for any modular Catalyst 9200 — flexible enough to run 1G today and 10G later on the same ports. Check that your switch is a C9200 and not a C9200L before ordering. Browse our network switches.
✓ Buy it if you have a modular C9200 and need 1G/10G SFP+ uplinks or a replacement module.
✕ Skip it if your switch is a C9200L or C9200CX, or you need 25G.
→ Also consider C9200-NM-2Y= for 25G uplinks on C9200-24PXG/48PXG.
Not sure it fits your setup? Send us the model of your rack, switch or device and we will check compatibility before you order.
Features - Cisco - C9200-NM-4X=
More Details
Product Code
677QT95
EAN Code
0889728168359
Manufacturer
Cisco
