Cisco Catalyst 9200L 48-Port L3 Managed Switch | 48 x 1GbE | 4 x 10G SFP+ Uplink

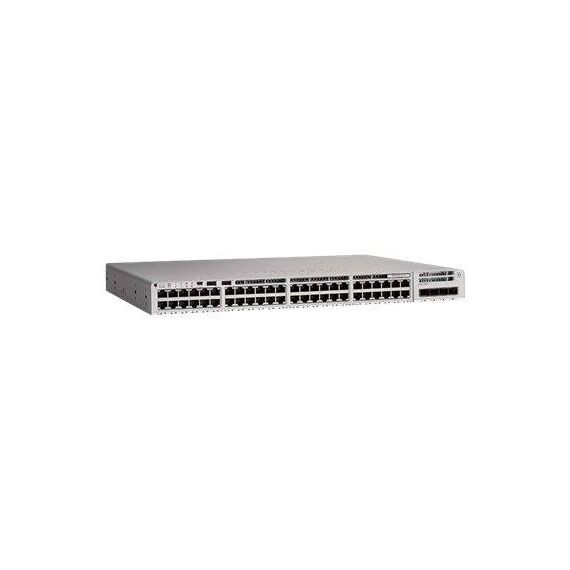

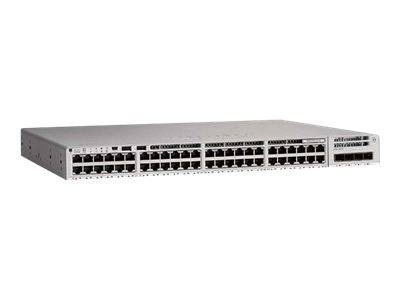

The Cisco Catalyst 9200L is a rack-mountable, stackable L3 managed switch with 48 Gigabit Ethernet ports and 4 x 10G SFP+ uplink ports. It is built for network environments that need managed switching, flexible uplinks and standard Cisco enterprise management support.
Technical Specifications
| Specification | Detail |
|---|---|
| Product Type | Switch - 48 ports - L3 - Managed - stackable |
| Enclosure Type | Rack-mountable |
| Subtype | Gigabit Ethernet |
| Interfaces | 48 x 1000Base-T RJ-45 |
| Uplink Interfaces | 4 x 10GBase-X SFP+ |
| Ports | 48 x 10/100/1000 + 4 x 10 Gigabit SFP+ (uplink) |
| Stacking Bandwidth | 80 Gbps |
| Switching Capacity | 176 Gbps |
| Forwarding Rate | 261.9 Mpps |
| Virtual Networks | 1 |
| IPv4 Routes | 11000 |
| IPv4 Routing Table Entries | 3000 |
| IPv6 Routing Table Entries | 1500 |
| Multicast Scale | 1000 |
| ACL Scale Entries | 1500 |
| FNF Entries | 16000 |
| VLANs Supported | 1024 |
| SVIs | 512 |
| QoS Hardware Queues per Port | 8 |
| MAC Address Table Size | 16000 entries |
| Jumbo Frame Support | 9198 bytes |
| Routing Protocols | OSPF, RIP-1, RIP-2, EIGRP, VRRP, PIM-SM, EIGRP for IPv6, PIM-SSM, policy-based routing (PBR), RIPng, MSTP |
| Management Protocols | SNMP 1, RMON 1, RMON 2, SNMP 3, SNMP 2c, CLI, NETCONF, RESTCONF |
| Features | QoS, Cisco StackWise Technology, Rapid PVST+, SRR, PXE support, RSPAN, NetFlow, Energy Efficient Ethernet, MIB, CoS, FNF, 802.1x authentication, DSCP support, MACsec support, 6MB packet buffer, CoPP, SPAN, EEM, PIM, FHS, PVLAN support, CIR |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3bz |
| RAM | 2 GB |
| Flash Memory | 4 GB |
| Management Port | 1 x management (LAN) RJ-45 |
| Console Port | 1 x console RJ-45 |
| Network Stack Port | 1 x network stack device |
| Power | Internal power supply - hot-plug |
| Max Supported Qty | 2 |
| Power Redundancy | Optional |
| Voltage Required | AC 100-240 V (50 - 60 Hz) |
| Dimensions | 44.5 cm x 4.4 cm x 28.8 cm |
| Weight | 5 kg |
| Service & Support | Limited warranty - advance parts replacement - lifetime - response time: next business day |
| Management Protocol | SNMP 1, RMON 1, RMON 2, SNMP 3, SNMP 2c, CLI, NETCONF, RESTCONF |
| SKU / EAN | C9200L-48T-4X-E | 0889728170154 |
SINGULAR RECOMMENDS
For who
Suitable for organisations that need a managed Cisco access switch with 48 Gigabit ports, 10G uplinks and rack-mountable deployment.
Real reason to buy it
A strong fit where Cisco managed switching, stackability and 10G uplinks are required in a compact 48-port design.
Know before
This model is a rack-mountable managed switch and does not include Wi-Fi or PoE details in the provided data. Power redundancy is optional.
