Cisco N20-BKVM= UCS Local Console KVM Cable with VGA, DB9 and 2 USB 2.0 Ports

Brand:
Cisco
Cisco N20-BKVM UCS KVM Cable VGA DB9 and Dual USB Port Diagram
Cisco N20-BKVM= UCS Local Console KVM Cable with VGA, DB9 and 2 USB 2.0 Ports
€75.64 inc. VAT
Buy
N20-BKVM=
€63.56
€75.64 inc. VAT
Ships from EU stock: 1 item(s)
+ −
Add to wish list Ask a question
Product Code
677H049
EAN Code
0882658251412
Manufacturer
Cisco

Quick Specs

Use
Local UCS console
Monitor
VGA DB-15
Serial
DB9
Keyboard / mouse
2 × USB 2.0
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

Cisco N20-BKVM= — Local Access to UCS

Local KVMVGADB92 × USB 2.0

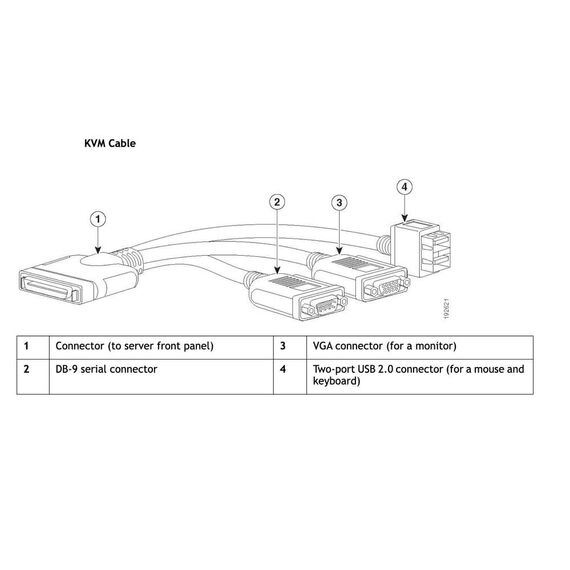

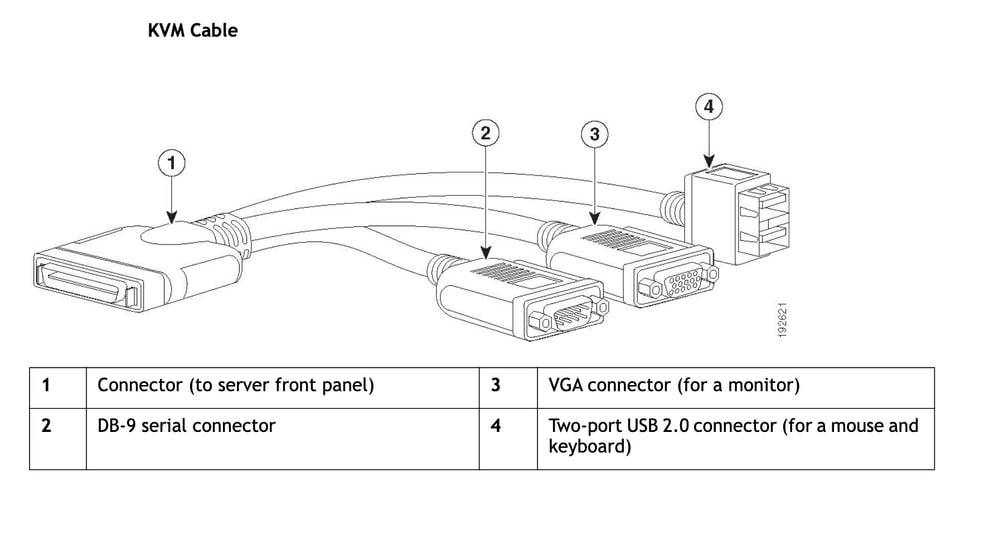

N20-BKVM= connects to the dedicated compatible UCS local-console port and provides VGA for a monitor, DB9 for serial access and two USB 2.0 ports for a keyboard and mouse. It supports direct operating-system and BIOS access during server setup or maintenance.

Compatibility — check before buying:
Check that the exact server supports N20-BKVM at the intended port. Cisco lists 19 March 2026 as the end-of-sale date for N20-BKVM=; confirm support arrangements for your installation.

Key Features


VGA and dual USB
Connect a VGA monitor and USB input devices to the breakout ports.

DB9 serial connection
A separate DB9 connector is part of the console arrangement.

Direct local access
The role is OS/BIOS access at the appliance through a supported UCS port.

Technical Specifications

Identification and local console
Manufacturer / orderable MPN Cisco / N20-BKVM=
Cable PID in installation guides N20-BKVM
EAN / GTIN 0882658251412
Product type KVM local I/O console breakout cable
Server-side connection Dedicated compatible Cisco UCS KVM / local-console connector
Monitor connection 1 × VGA DB-15 female
Serial connection 1 × DB9 male
Keyboard / mouse ports 2 × USB 2.0 Type A female
Access role Direct local access to server operating system and BIOS
Documented host references Cisco UCS blade local-console guide; C240 M5 used in Cisco rack-server example. Verify exact server port.
Lifecycle references
Cisco end-of-sale date 19 March 2026; EOL15817 explicitly lists N20-BKVM=
Cisco last ship date 19 June 2026, manufacturer lifecycle milestone

What's in the Box

1 Cisco N20-BKVM= local-console cable
Server, monitor, keyboard and mouse are not included.

What Will Not Work

Not a KVM switch, IP KVM or universal adapter for an arbitrary server port.
Does not provide HDMI, DisplayPort or USB-C.

Frequently Asked Questions

Are the USB connections plugs or ports?
They are two female Type A USB 2.0 ports for a keyboard and mouse.
Can it switch between multiple servers?
No. It is a local-console cable for one compatible server, not a KVM switch.
What does the end-of-sale date mean?
It is Cisco’s ordering milestone. It does not establish reseller stock or support terms; confirm those for your purchase.
Singular Expert Insight
Check the exact UCS guide and console-port position before ordering. Have a VGA monitor and USB keyboard available for local work. Check the UCS port with us

Buyer’s Guide

Buy it if

The exact UCS supports N20-BKVM and you need a local console.

Skip it if

You need remote KVM or a different physical port.

Also consider

The console methods supported by the exact server.
