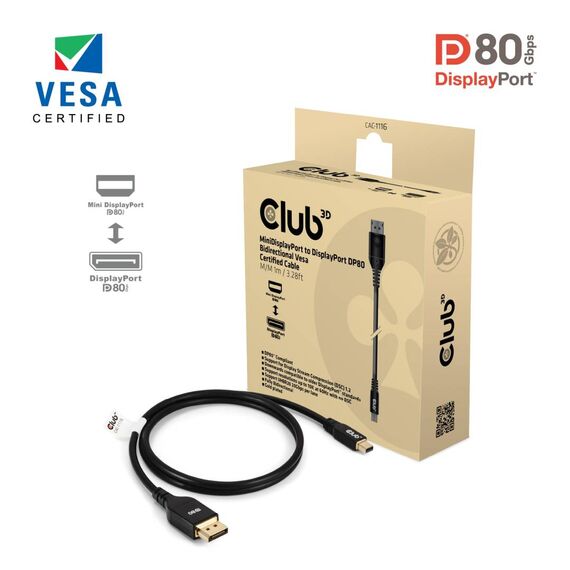

Club 3D CAC-1116 Mini DisplayPort to DisplayPort 2.1 DP80 Cable 1 m Black

Brand:
Club 3D
Club 3D CAC-1116 Mini DP to DP 2.1 DP80 Cable 1 m
Club 3D CAC-1116 Mini DisplayPort to DisplayPort 2.1 DP80 Cable 1 m Black
€31 inc. VAT
Buy
CAC-1116
€26.05
€31.00 inc. VAT
Ships from EU stock: 4 item(s)
+ −
Add to wish list Ask a question
Product Code
04:491505
EAN Code
8719214473105
Manufacturer
Club 3D
Type
DisplayPort to Mini DisplayPort
Quick Specs
Type
Mini DP to DisplayPort 2.1 cable
Connectors
Mini DP 2.1 male · DP 2.1 male (latching)
Key spec
DP80 · 80 Gbps · 4K240 / 8K60 / 10K60
Compatibility
Mini DP GPUs and workstations · 1 m
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Club 3D · DisplayPort 2.1 Cable

Club 3D CAC-1116 Mini DisplayPort to DisplayPort DP80 Cable 1 m

DP80 · UHBR20 80 GbpsVESA certified4K240 / 8K60 / 10K60

The Club 3D CAC-1116 is a 1 m VESA-certified Mini DisplayPort to DisplayPort 2.1 DP80 cable for graphics cards and workstations with Mini DP 2.1 outputs driving 4K240, 8K60 or 10K60 monitors. Part number CAC-1116 carries up to 80 Gbps (UHBR10/13.5/20) with DSC 1.2, Forward Error Correction and up to 32 audio channels.

The full-size DP end locks with a one-touch latch, both ends use new DP 2.1 contacts, and the UltraFlex coaxial jacket protects against bends; Club 3D specifies the cable as bidirectional.

Compatibility note: UHBR20 needs a Mini DP 2.1 source and a DP 2.1 display; on DP 1.4 hardware the cable falls back to DP 1.4 rates. Many older laptops label Mini DP ports as Thunderbolt 1/2 – those output DP 1.2 only.

Technical Specifications

Identification
Part Number CAC-1116
EAN / GTIN 8719214473105
UPC 841615103355
MPN CAC-1116
Brand Club 3D
Performance
Standard DisplayPort / Mini DisplayPort 2.1, DP80 certified (VESA)
Bandwidth Up to 80 Gbps (UHBR10 / UHBR13.5 / UHBR20)
Resolutions Up to 4K 240 Hz, 8K 60 Hz or 10K 60 Hz
Features DSC 1.2 · FEC · up to 32 audio channels · backwards compatible
Direction Bidirectional (per Club 3D)
Physical
Connectors Mini DisplayPort 2.1 male ↔ DisplayPort 2.1 male with latch
Length 1 m
Jacket UltraFlex, coaxial construction
Weight 49 g
Colour Black
Compliance RoHS, FCC, CE

Frequently Asked Questions

Does the Club 3D CAC-1116 work with an AMD Radeon PRO or NVIDIA workstation card with Mini DP outputs?
Yes. Any Mini DisplayPort output works; cards with Mini DP 2.1 (UHBR) outputs get the full DP80 bandwidth, while Mini DP 1.4 cards run at DP 1.4 speeds.
What is the difference between the CAC-1116 and the Club 3D CAC-1165?
The CAC-1116 has a full-size latching DisplayPort on the monitor end. The CAC-1165 has Mini DisplayPort on both ends, for the rarer case where the display or KVM also uses Mini DP.
Singular Expert Insight
Workstation GPUs with several Mini DP 2.1 ports are exactly where uncertified adapters and passive dongles fail at UHBR rates. The CAC-1116 keeps the link certified end to end, so it is the clean choice for high-refresh 4K or 8K displays on those cards.
✓ Buy it if your graphics card has Mini DisplayPort outputs and your monitor has a DisplayPort input, especially a DP 2.1 one.
✕ Skip it if you need more than 1 m of cable, or your source has USB-C video instead of Mini DP.
→ Also consider Club 3D CAC-1559 (USB-C to DP 2.1 DP80) or CAC-1165 (Mini DP to Mini DP DP80).

Features - Club 3D - CAC-1116

Colour
black
Length
1.0m
More Details
Product Code
04:491505
EAN Code
8719214473105
Manufacturer
Club 3D
