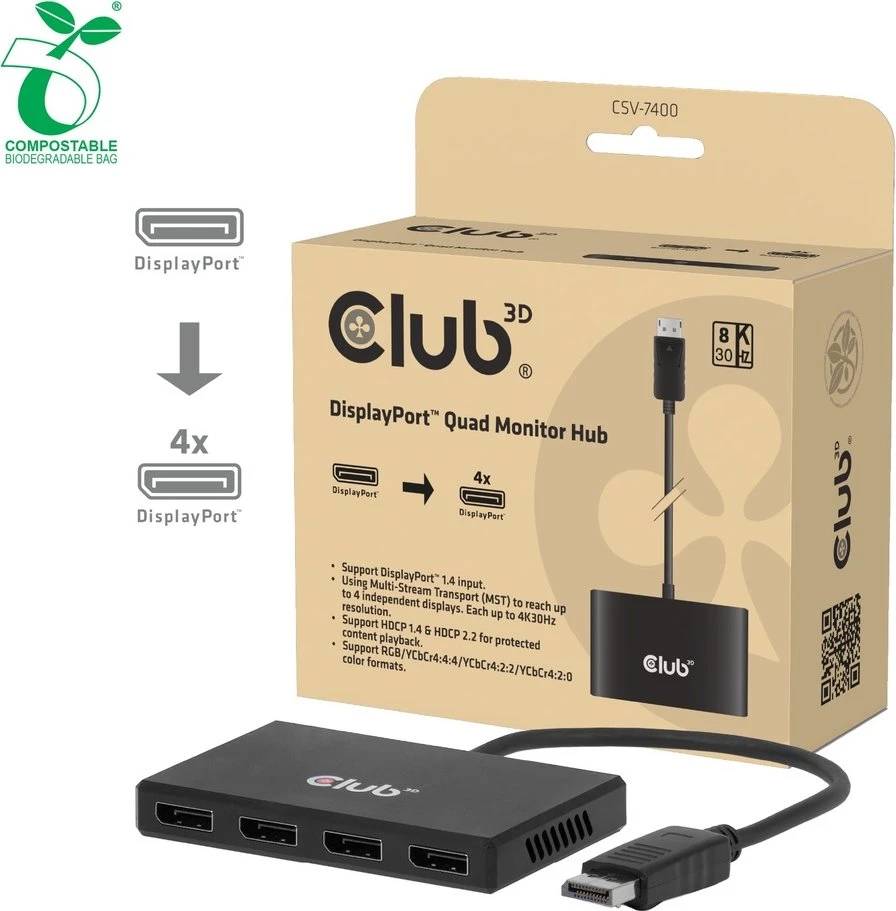

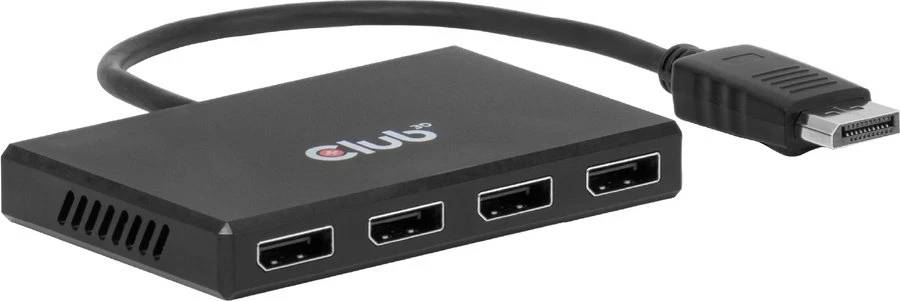

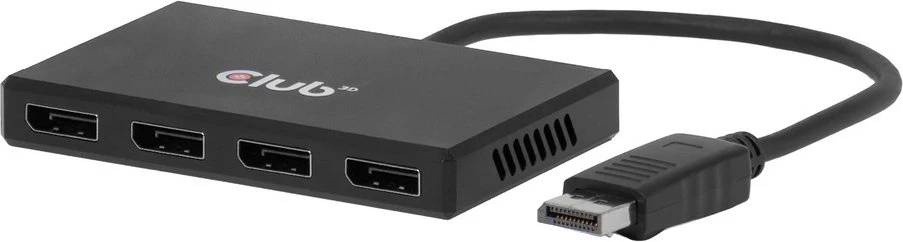

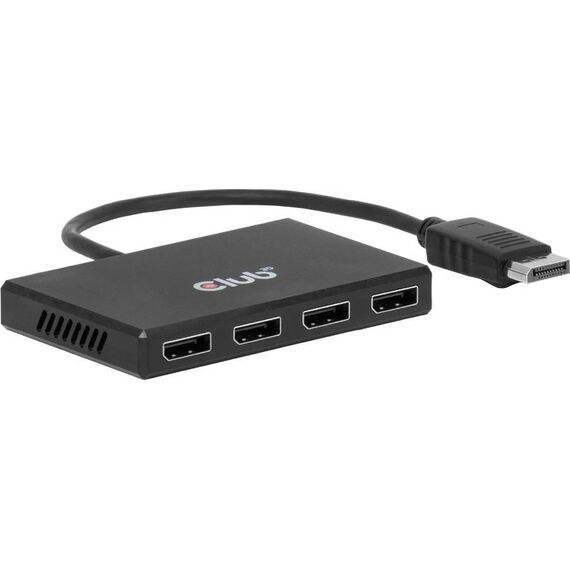

Club 3D CSV-7400 DisplayPort 1.4 Quad Monitor MST Hub, 4 × 4K30

Brand:
Club 3D
Club 3D CSV-7400 DisplayPort 1.4 Quad Monitor MST Hub, 4 × 4K30
Club 3D CSV-7400 DisplayPort 1.4 Quad Monitor MST Hub, 4 × 4K30
€98.71 inc. VAT
Buy
CSV-7400
€82.95
€98.71 inc. VAT
Ships from EU stock: 3 item(s)
+ −
Add to wish list Ask a question
Product Code
04:575113
EAN Code
8719214473679
Manufacturer
Club 3D

Quick Specs

Connection
DP male → 4 × DP female
Video reference
4 × 4K30
Length
25 cm attached
Key feature
Windows 11 · MST
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

Club 3D CSV-7400 DisplayPort 1.4 Quad Monitor MST Hub, 4 × 4K30

DP male → 4 × DP female4 × 4K3025 cm attached

The CSV-7400 turns one DisplayPort output into a 4-screen connection for applications that benefit from more desktop space. Its DP 1.4 MST design supports four independent 4K30 screens on a compatible Windows 11 system. Provide the recommended Micro-USB power for stable multi-screen operation, and check the GPU’s display-count limit.

Compatibility — check before buying:
Check the ports, video mode and available bandwidth at both devices. Listed features require support from the source and display.

Key Features


More screen space
Connect 4 screens using separate DisplayPort cables and a host that supports the requested display count.

Extend or mirror
Choose the display layout in your operating system after checking its support and the graphics bandwidth.

Check the complete setup
Resolution and refresh depend on the connected hardware; arrange cables and power before installing the hub.

Technical Specifications

Identity and connection
Brand Club 3D
Model / part number CSV-7400
EAN / GTIN 8719214473679
Colour Black
Connections DP male → 4 × DP female
Length 25 cm attached
Performance and requirements
Input / outputs 1 × DisplayPort male / 4 × DisplayPort female
DisplayPort input standard 1.4 MST
Simultaneous video reference 4 × 4K30 independent displays, host dependent
Single-display reference 8K30, dependent on host system
Chipset VMM5220 + 5330
OS listing Windows 11
Protection HDCP 1.4 / 2.2
Colour formats RGB, YCbCr 4:4:4 / 4:2:2 / 4:2:0; 8/10/12 bpc
Power DisplayPort-powered; Micro-USB auxiliary input. Recommended external source: 5 V, 2.4 A (12 W)
Installation Plug and play; no additional drivers
Attached cable / DP connector Approx. 25 cm / 47 × 20 × 13 mm
Dimensions and operating limits
Housing dimensions (L × W × H) 105 × 66 × 14.5 mm
Device weight 123 g
Compliance and packaging
Box dimensions 130 × 110 × 55 mm
Box / bag / total weight 40 / 1 / 184 g
Compliance RoHS, FCC, CE EMI
Manufacturer coverage
Manufacturer limited warranty 24 months from purchase through authorized partners, subject to Club 3D terms and proof of purchase
Included items

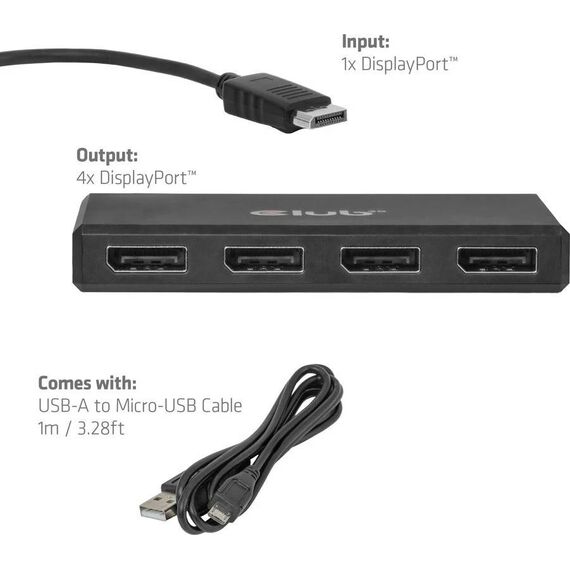

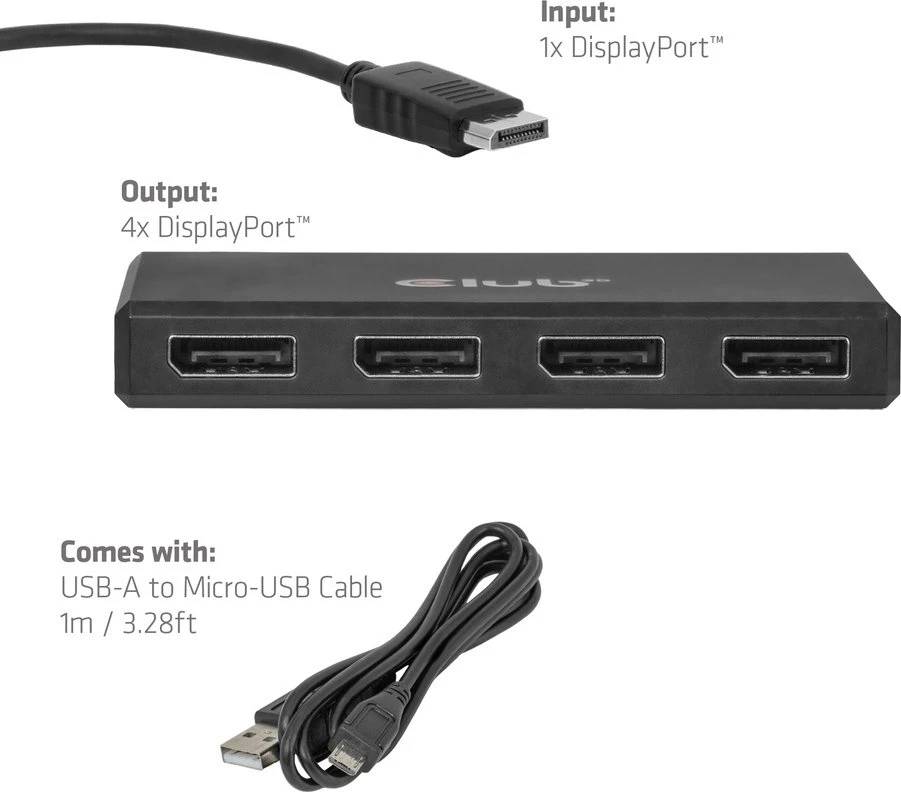

Package contains 1 CSV-7400 MST hub; 1 USB-A to Micro-USB cable, 1 m

What's in the Box

1 CSV-7400 MST hub
1 USB-A to Micro-USB cable, 1 m

What Will Not Work

Direct connection to different port types without suitable conversion

Frequently Asked Questions

Will it create 4 independent desktops on every computer?
No. The graphics output, supported monitor count, link bandwidth and operating system must support the requested configuration. Windows 11 is the manufacturer-listed OS.
Is the power adapter included?
The box lists the hub and a 1 m USB-A to Micro-USB cable, not a power adapter. Club 3D recommends a 5 V, 2.4 A source for best stability.
Singular Expert Insight
Choose this exact model around the ports, complete route and actual screen mode. For a repeated installation, test one configuration before ordering the full quantity. Compare the available DisplayPort options if the connector type or distance changes. Compare DisplayPort cables and adapters Tell us your source and display models for a compatibility check.

Buyer’s Guide

Buy it if

The specified ports, reach and video mode match your installation.

Skip it if

You need different conversion, more reach or a feature beyond the documented limits.

Also consider

Another length or connection technology matched to the actual equipment requirements.

Features - Club 3D - CSV-7400

Colour
black
Length
0.25m
More Details
Product Code
04:575113
EAN Code
8719214473679
Manufacturer
Club 3D
Technical specifications
Resolution
8K (UHD)
Resolution (raw)
7680×4320
