Club 3D CSV-2562 Thunderbolt 5 Dock 13-in-1 M.2 SSD Slot Dual HDMI 8K60 140W 2.5GbE

Brand:
Club 3D
Club 3D CSV-2562 Thunderbolt 5 Dock 13-in-1 M.2 140W
Club 3D CSV-2562 Thunderbolt 5 Dock 13-in-1 M.2 SSD Slot Dual HDMI 8K60 140W 2.5GbE
€390.52 inc. VAT
Buy
CSV-2562
€328.17
€390.52 inc. VAT
Ships from EU stock: 4 item(s)
+ −
Add to wish list Ask a question
Product Code
04:579098
EAN Code
8719214473570
Manufacturer
Club 3D
Quick Specs
Type
Thunderbolt 5 docking station 13-in-1
Connectors
TB5 · 2× HDMI · USB-C/A · 2.5GbE · SD · M.2
Key spec
80/120 Gbps · 140W · 2× 8K60
Compatibility
TB5 / TB4 / USB4 · Windows 11 · macOS
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Club 3D · Thunderbolt 5 Docking Station

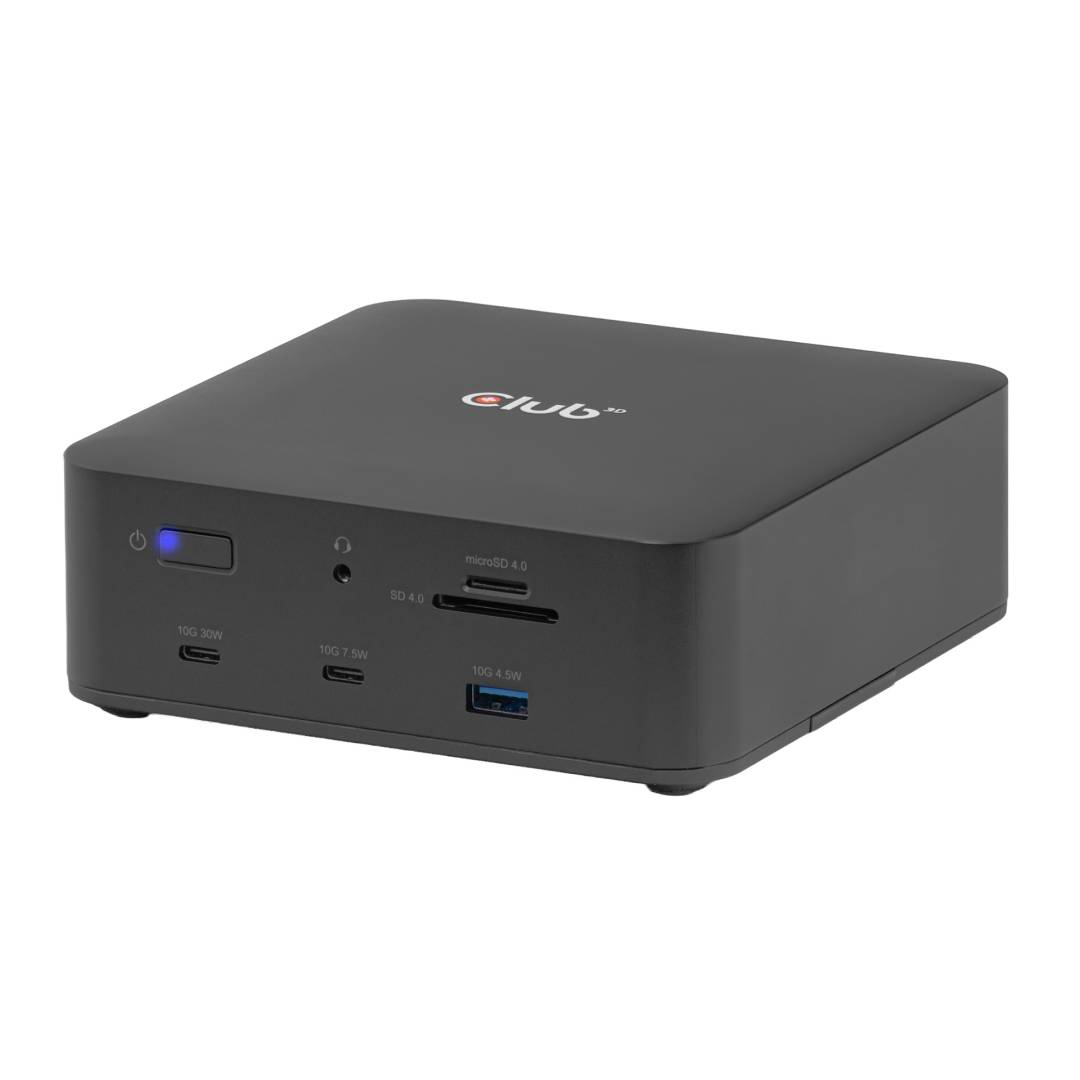

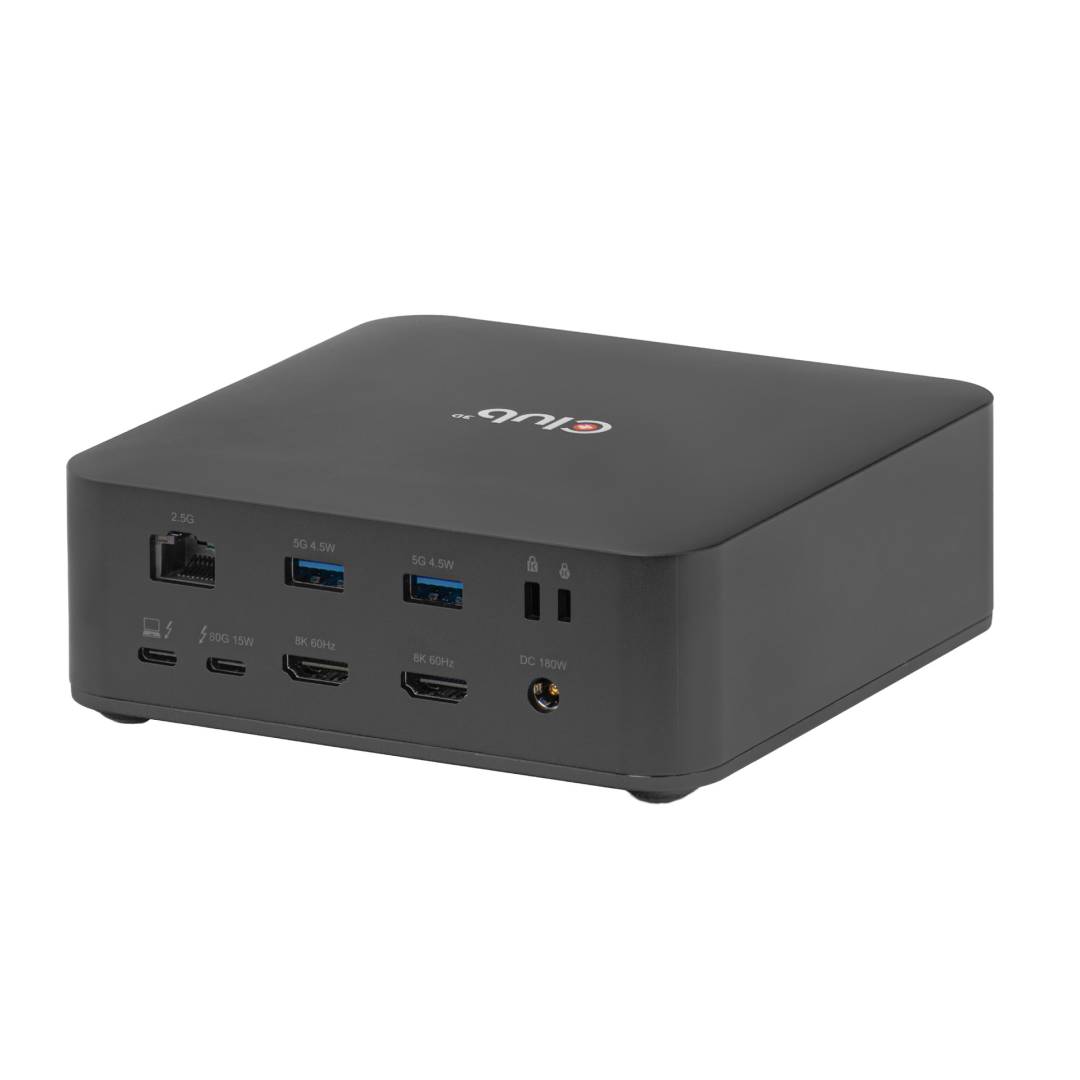

Club 3D CSV-2562 Thunderbolt 5 13-in-1 Docking Station with M.2 SSD Slot

Thunderbolt 5 certifiedM.2 NVMe SSD slot2× HDMI 8K60140W host charging

The Club 3D CSV-2562 is a certified Thunderbolt 5 13-in-1 docking station with a built-in M.2 NVMe SSD slot, two HDMI outputs up to 8K60, 140W laptop charging and 2.5 Gigabit Ethernet, for creators and engineers on Thunderbolt 5, Thunderbolt 4 or USB4 laptops. Part number CSV-2562 uses Intel’s Barlow Ridge controller at 80 Gbps, or 120 Gbps with Bandwidth Boost.

It includes a 180W power supply, a 1 m Club 3D CAC-2501 Thunderbolt 5 cable and a Thunderbolt Share licence for direct PC-to-PC file transfer and control. The housing is made from recycled (PCR) materials and has both standard and nano Kensington lock slots.

Compatibility note: Full 80/120 Gbps, triple displays and 140W charging need a Thunderbolt 5 host; on TB4/USB4 the dock works at 40 Gbps with fewer display options, and TB3/DP Alt Mode hosts are compatible with reduced features. Macs: only models that support two or more external displays can use both HDMI outputs as separate screens. The SSD slot accepts NVMe only (no SATA M.2).

Key Features

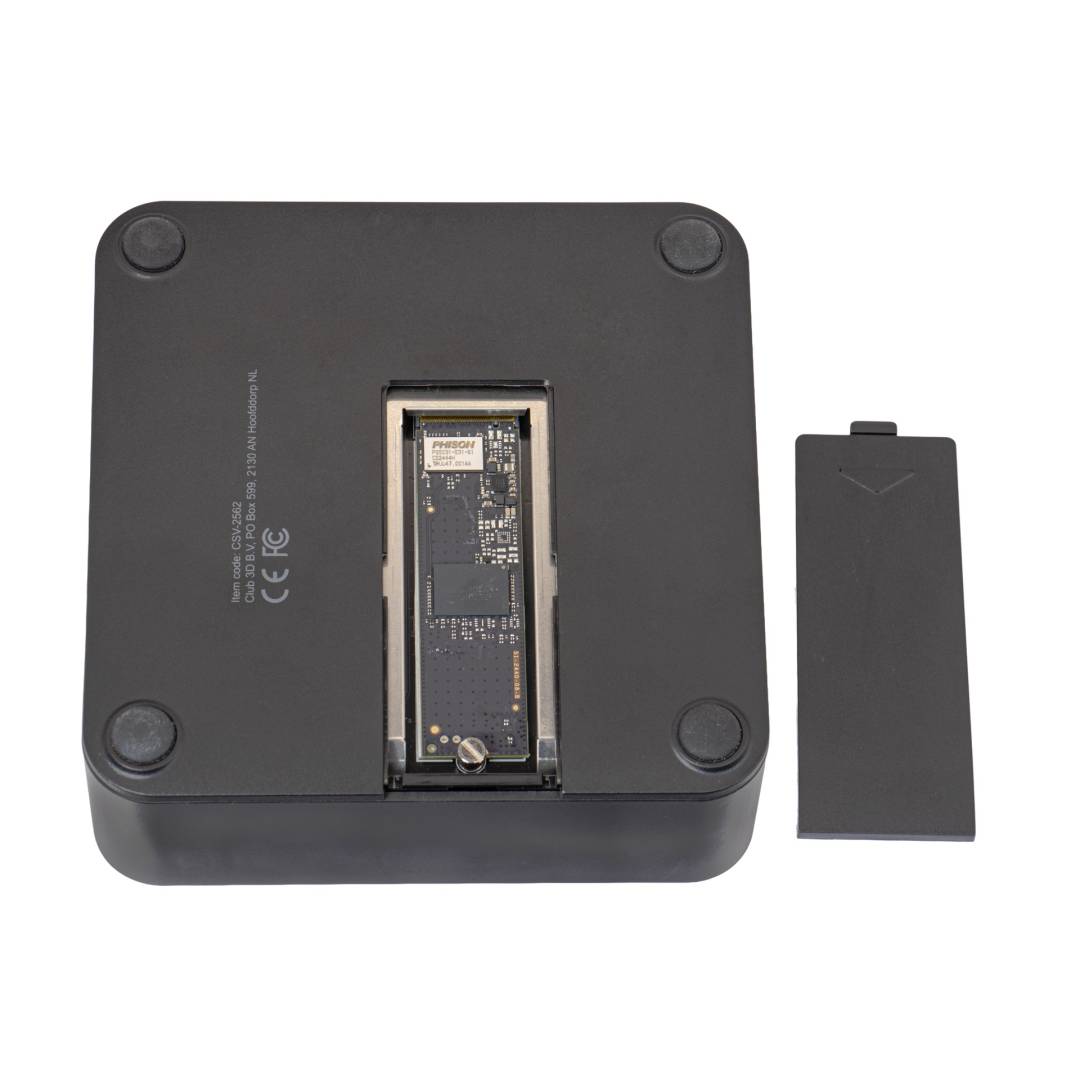

Internal NVMe storage
An M.2 slot for 2280/2260/2242/2230 PCIe Gen4 x4 SSDs with up to 6000 MB/s, so fast project storage lives inside the dock.

Multi-display power
Two HDMI outputs at up to 8K60 (4K240 with DSC) plus a Thunderbolt 5 downstream port for a third display at up to 5K60 or 4K144.

Charges the whole desk
140W to the laptop plus a front USB-C port with 30W for a phone or tablet, all from the included 180W adapter.

Technical Specifications

Identification
Part Number CSV-2562
EAN / GTIN 8719214473570
UPC 841615103829
MPN CSV-2562
Brand Club 3D
Certification Thunderbolt 5, Thunderbolt Share
Host & Performance
Host Thunderbolt 5 (USB-C), Intel Barlow Ridge
Bandwidth 80 Gbps; 120 Gbps Bandwidth Boost
Host charging Up to 140W
Compatibility TB5 / TB4 / USB4; TB3 and DP Alt Mode hosts with reduced features
Daisy chain Thunderbolt devices cascade up to 5 levels
Video
Outputs 2× HDMI + Thunderbolt 5 downstream
Supported modes Single up to 8K60 (10K60 per Club 3D) · 2× 8K60 or 4K240 (DSC) · 3× 5K60 or 3× 4K144

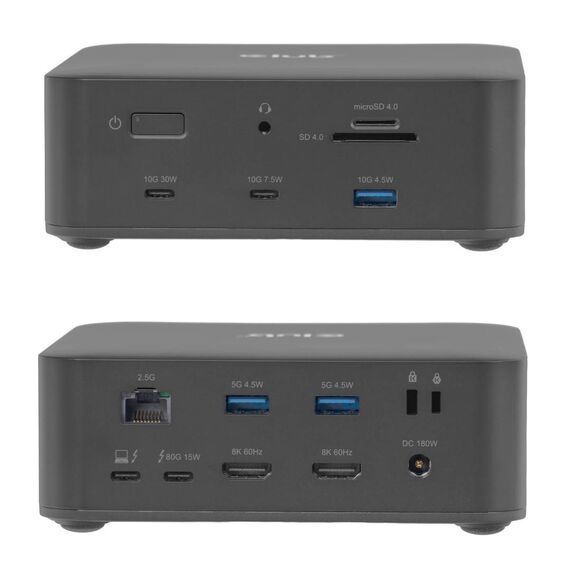

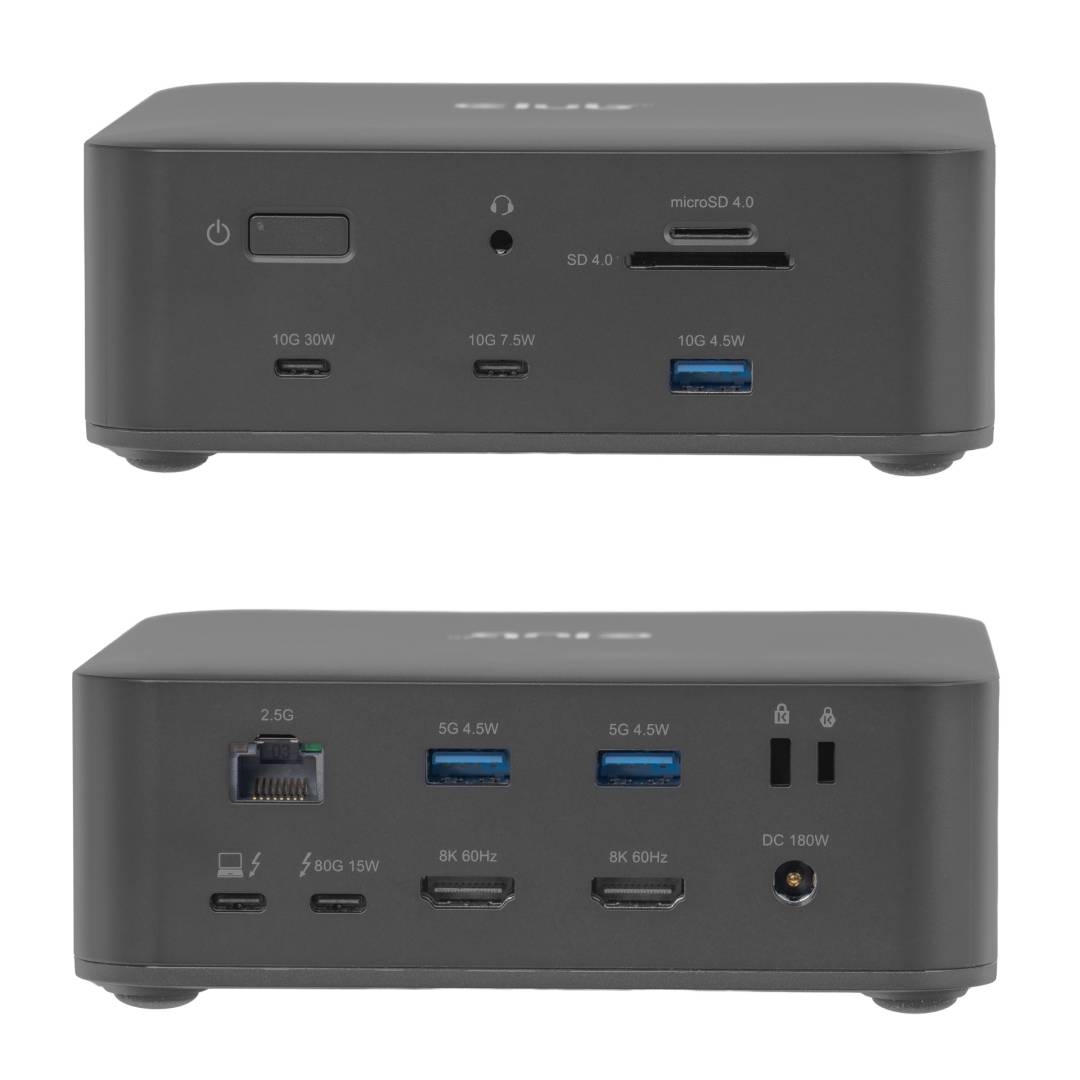

Ports
Thunderbolt 1× Thunderbolt 5 downstream (80/120 Gbps)
USB-C 2× USB-C 10 Gbps (one 30W, one 7.5W)
USB-A 1× USB-A 10 Gbps + 2× USB-A 5 Gbps (4.5W each)
Network 2.5 Gigabit Ethernet
Card reader SD / microSD 4.0
Audio Headset (audio/mic) jack
Storage M.2 NVMe 2280/2260/2242/2230, PCIe Gen4 x4, up to 6000 MB/s
Physical & Box

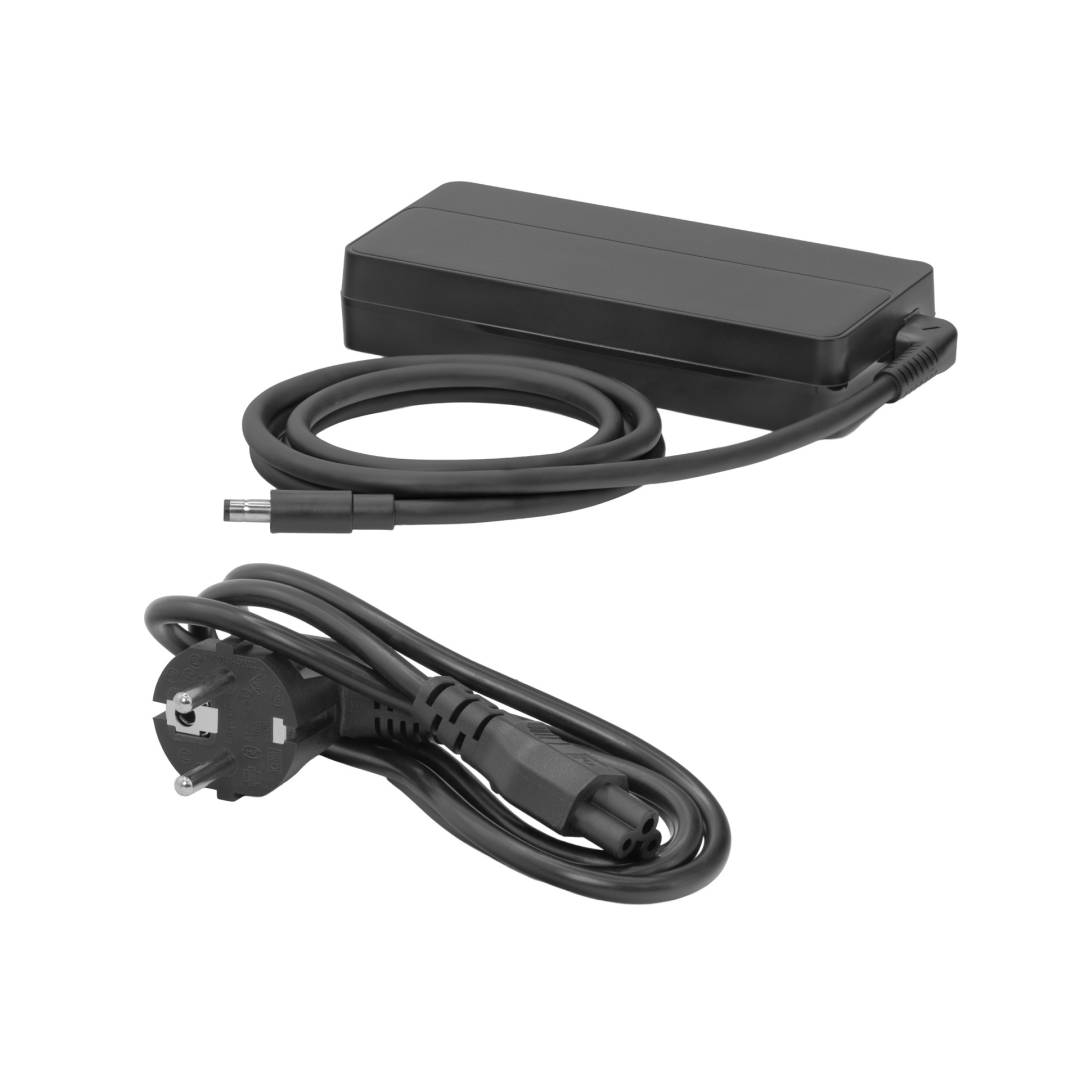

Power supply 180W external adapter (included)
In the box CSV-2562 · 180W PSU · CAC-2501 Thunderbolt 5 cable 1 m
Size 14 × 14 × 5 cm
Weight 794 g
Security Standard + nano Kensington slots
OS support Windows 11, macOS 15
Compliance RoHS, FCC, CE

Frequently Asked Questions

Can I use the Club 3D CSV-2562 with a MacBook Pro M4 or M5?
Yes. Thunderbolt 5 MacBook Pro models get full speed, and Macs with Thunderbolt 4 work at 40 Gbps. Multi-display use depends on the chip: base M-series chips support fewer external screens than Pro/Max chips.
Does the SSD in the dock appear as a normal drive?
Yes. An NVMe SSD installed in the M.2 slot appears as an external drive over Thunderbolt, and Club 3D quotes up to 6000 MB/s read/write with a PCIe Gen4 x4 SSD. SATA M.2 drives are not supported.
What is Thunderbolt Share and is it included?
Thunderbolt Share is Intel software that lets two Thunderbolt PCs share files, screen, keyboard and mouse over a direct Thunderbolt link. The CSV-2562 comes with a licence, so it works through the dock without buying one separately.
Singular Expert Insight
The CSV-2562 is Club 3D’s flagship dock and the main reason to pick it over other TB5 docks is the integrated NVMe slot: fast scratch or backup storage that stays on the desk and runs at near-internal speed. Combined with 140W charging, two HDMI 8K outputs and 2.5GbE, it suits video editors, CAD users and developers on Thunderbolt 5 laptops. Compare it with other models in our docking stations range.
✓ Buy it if you have a Thunderbolt 5 (or TB4) laptop and want one cable for displays, fast NVMe storage, 2.5GbE and 140W charging.
✕ Skip it if your laptop is USB-C without Thunderbolt/USB4, or you only need one monitor and a few ports.
→ Also consider Club 3D CSV-2552 9-in-1 USB-C hub for travel, or CAC-2501 Thunderbolt 5 cable as a spare.
