Conceptronic EMRICK05BS — NVMe on a PCIe Slot, With an Aluminium Heat Sink
1× M-Key NVMe socketPCIe 3.0 x4 · 32 GT/sIntegrated aluminium heat sink2230 / 2242 / 2260 / 2280
The Conceptronic EMRICK05BS turns a free PCI Express x4 slot into an M.2 NVMe socket, and adds the part that most adapter cards leave out: a proper aluminium heat sink built into the card. That matters on a drive that will be written to for minutes at a time, because an NVMe controller that gets too hot cuts its own speed to protect itself. The drive runs on four PCIe 3.0 lanes at up to 32 GT/s, and both a standard and a low-profile bracket are supplied.
Compatibility — check before buying:
This is an M-Key NVMe card only. An M.2 SATA SSD will not work in it — there is no SATA socket and no SATA cable; for a SATA M.2 drive you need the EMRICK04B. No SSD is included. You need a free PCIe x4 slot or larger, and the drive must be 2230, 2242, 2260 or 2280 — a 22110 (110 mm) drive does not fit. The aluminium heat sink stands taller than a flat thermal pad, so check clearance to the card in the adjacent slot. Conceptronic lists Windows support only.
Best For
✓ NVMe SSDs that see sustained writes, not just short bursts
✓ Desktops with no free M.2 slot on the motherboard
✓ Video editing and backup machines that write large files
✓ Reusing a high-end NVMe drive from another system
✓ Towers with room between the expansion slots
✓ Slim desktops, using the supplied low-profile bracket
Key Features
Aluminium heat sink, not a pad
The integrated aluminium heat sink is the reason to pick this card over the EMRICK05B. Metal moves far more heat away from the SSD controller than a silicone pad, which is what keeps a long file copy running at speed instead of dropping off partway through.
Straight x4 path to the slot
Four PCIe 3.0 lanes carry the drive directly, up to 32 GT/s — the same electrical route a motherboard M.2 slot uses, with no bridge chip in between to cap throughput or add latency.
Fits slim cases as well

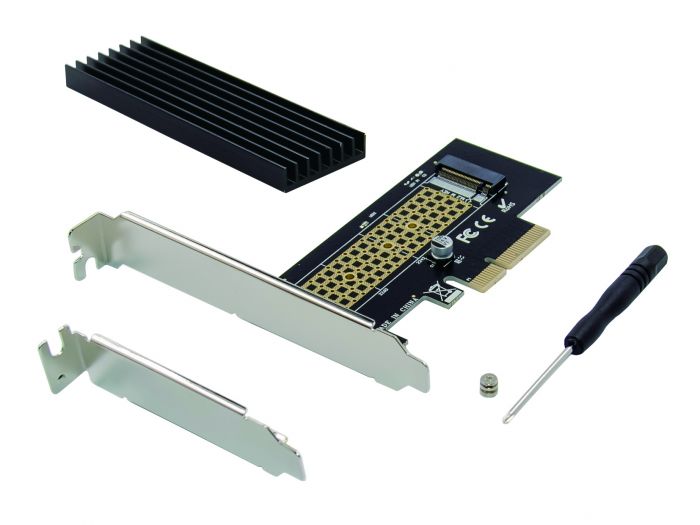

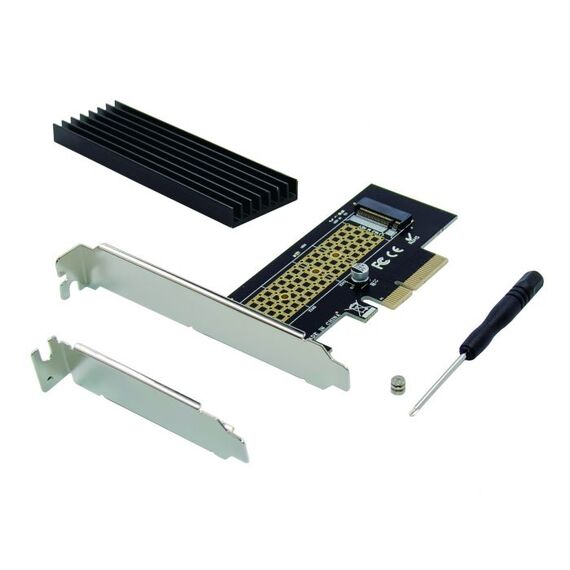

Conceptronic supplies a low-profile bracket next to the standard one, plus screws and a small screwdriver. The card is 40 × 18 × 102 mm and weighs 45 g, so it stays easy to handle in a cramped chassis.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight
Within the EMRICK family this is the card to buy when the SSD matters more than the slot. A drive that only ever holds documents and applications will never notice the difference; a drive that ingests video, runs backups or clones disks will — that is where an NVMe controller heats up and quietly halves its own write speed, and where aluminium beats a silicone pad. The one trade-off is height: the EMRICK05B lies flat and is the safer choice in a crowded slot. Neither card takes an M.2 SATA drive — the EMRICK04B does. Pair it with one of our internal SSDs, or compare the rest of our storage controllers and adapter cards.
Buyer’s Guide
Buy it if
You are fitting an NVMe SSD that will be written to hard — video, backups, disk imaging — into a desktop with no free M.2 slot, and there is room around the PCIe slot for a metal heat sink.
Skip it if
Your M.2 drive is a SATA one or is 110 mm long, you need two drives on one card, or the only free PCIe slot is tight under a large graphics card — the flat EMRICK05B suits that better.
Also consider
The EMRICK05B is the same card with a flat silicone heat sink for tight slots. For an NVMe and an M.2 SATA drive together, the EMRICK04B or the DIGITUS DS-33170. The ICY BOX IB-PCI214M2-HSL is a larger LED-lit alternative.
