CORSAIR FRAME 4000X RS CC-9011302-WW Mid-Tower PC Case E-ATX Glass RGB Flow Front 4x RS120 PWM Fans USB-C 20Gbps Black

Brand:
Corsair
CORSAIR Geh Midi FRAME 4000X RS Mid-Tower, Black (CC-9011302-WW)
CORSAIR FRAME 4000X RS CC-9011302-WW Mid-Tower PC Case E-ATX Glass RGB Flow Front 4x RS120 PWM Fans USB-C 20Gbps Black
€319.88 inc. VAT
Buy
CC-9011302-WW
€268.81
€319.88 inc. VAT
Ships from EU stock: 140 item(s)
+ −
Add to wish list Ask a question
Product Code
04:579422
EAN Code
0840440488828
Manufacturer
Corsair

Quick Specs

Form Factor
Mid-tower, up to E-ATX + back-connect
Included Fans
4 × RS120 PWM (no RGB)
GPU / CPU Cooler
430 mm / 170 mm
Radiator Support
360 mm front, top or side
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

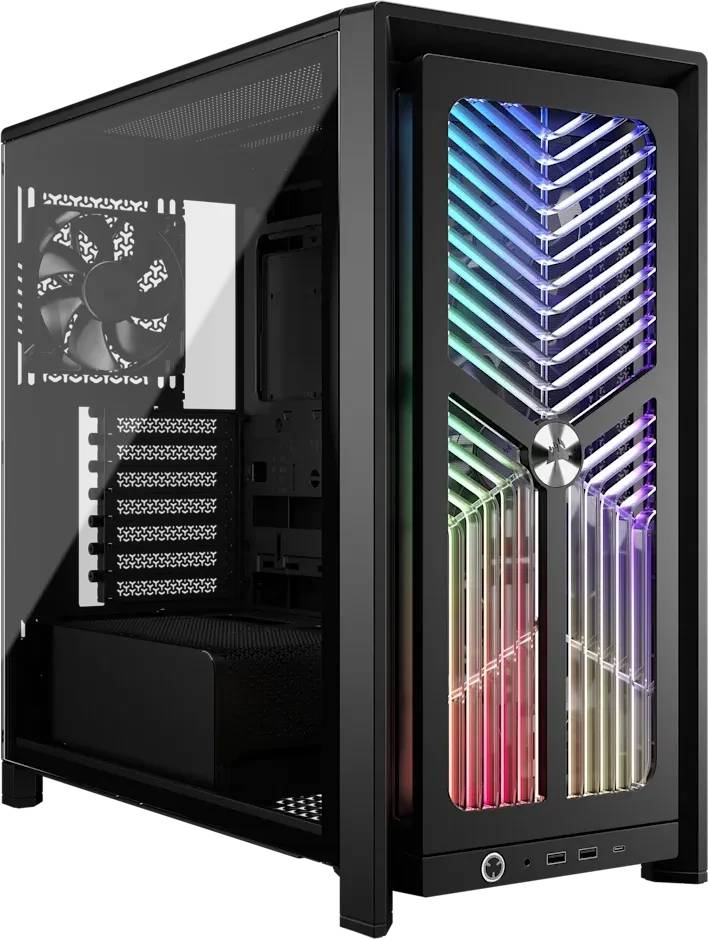

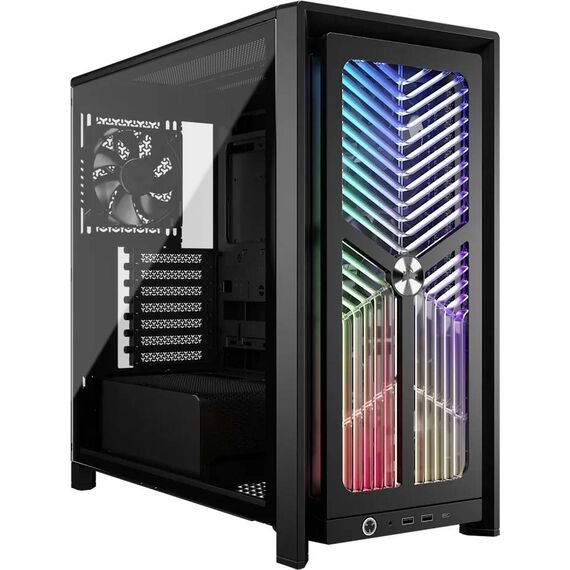

CORSAIR FRAME 4000X RS Mid-Tower PC Case – Black

RGB Flow front panel4 × RS120 PWM fans includedThree 360 mm radiator mounts20 Gbps front USB-C

The CORSAIR FRAME 4000X RS is a black modular mid-tower with an ARGB-lit RGB Flow front panel, a full tempered-glass side and four RS120 PWM fans already installed. Part number CC-9011302-WW takes Mini-ITX up to E-ATX motherboards, including back-connect boards, graphics cards up to 430 mm and 360 mm radiators on the front, top and side – a good fit for gamers who want a lit front without buying RGB fans. The four fans themselves are unlit; the lighting comes from the 64 LEDs in the front panel.

Compatibility — check before buying:
The front panel lighting needs a +5V 3-pin ARGB header on your motherboard – a 12 V RGB header will not work, and there is no controller in the box. The four RS120 fans are not RGB. The 20 Gbps front USB-C port needs a USB 3.2 Gen 2x2 Type-E header, and no adapter is included. GPU clearance falls from 430 to 405 mm with front fans fitted, and a vertical GPU needs a PCIe riser sold separately. Send us your motherboard and GPU models and we will check.

Best For

✓ Gaming builds with a lit front and a glass side
✓ Back-connect motherboards
✓ Dual 360 mm radiator setups
✓ Graphics cards up to 430 mm

Key Features


RGB Flow front panel
The front panel carries 64 built-in ARGB LEDs and connects to your motherboard’s 5V ARGB header, so it follows your board’s RGB software. The power button is ARGB-lit too.

Four fans fitted
Four daisy-chainable RS120 PWM fans come pre-installed, so the case moves air from day one with a single fan header. They are unlit, keeping the focus on the front panel.

InfiniRail and radiator room
Front and roof fans slide along InfiniRail steel rails, taking fans up to 200 mm at the front. Front, top and side each accept a 360, 280 or 240 mm radiator.

Modular FRAME design
Panels and parts can be swapped with Corsair FRAME accessories sold separately. A GPU anti-sag arm, a compact PSU shroud and back-connect board support are built in.

Technical Specifications

Identification
Brand CORSAIR
Series FRAME 4000X
Part Number CC-9011302-WW
EAN / GTIN 0840440488828
Colour Black
Chassis
Form Factor Modular mid-tower
Dimensions (H × L × W) 486 × 488 × 239 mm
Weight 11 kg
Materials Steel, plastic; RGB Flow front panel; tempered glass left side, steel right side
Compatibility
Motherboards Mini-ITX, Micro-ATX, ATX, E-ATX (up to 305 × 277 mm)
Back-Connect Boards Supported — reverse-connector magnetic strip included

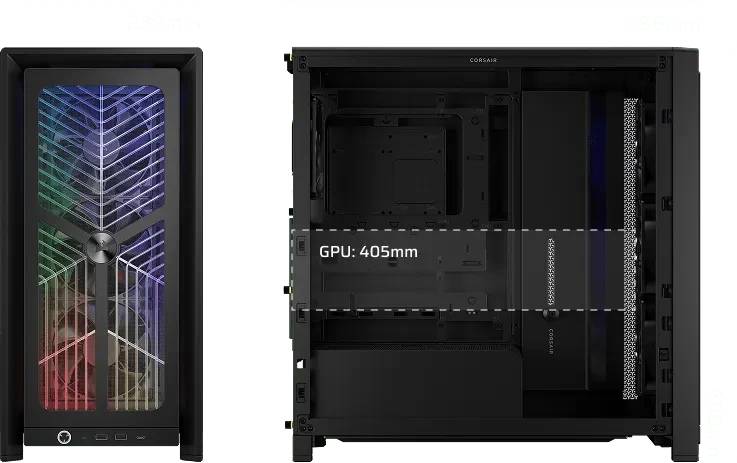

GPU Length Up to 430 mm; 405 mm with front fans fitted
CPU Cooler Height Up to 170 mm
Power Supply ATX, up to 220 mm long
Cable Space 37 mm
Cooling
Included Fans 4 × RS120 PWM 120 mm, daisy-chainable, pre-installed — no fan lighting
Front 3 × 120, 2 × 140 or 2 × 200 mm fans; radiator 360 / 280 / 240 mm
Top 3 × 120 or 2 × 140 mm fans; radiator 360 / 280 / 240 mm
Side 3 × 120 or 2 × 140 mm fans; radiator 360 / 280 / 240 mm
Rear 1 × 120 or 1 × 140 mm fan; radiator 140 / 120 mm
Bottom 3 × 120 mm fans; no radiator. Up to 13 × 120 mm fans in total
Lighting
Front Panel RGB Flow front with 64 built-in LEDs, 5V ARGB to the motherboard
Power Button ARGB-lit
Storage, Expansion & I/O
Drive Bays 1 × HDD + 2 × SSD
Expansion Slots 7 horizontal or 3 vertical (PCIe riser sold separately)
Front Ports 1 × USB 3.2 Gen 2x2 Type-C (20 Gbps), 2 × USB 3.2 Gen 1 Type-A, 1 × combo audio jack
Motherboard Headers Needed 1 × USB 3.2 Gen 2x2 Type-E, 1 × USB 3.2 Gen 1 20-pin, F_PANEL, HD Audio, 5V ARGB
In the Box
Included Case with 4 pre-installed RS120 PWM fans, side fan bracket, reverse-connector magnetic strip, 12 InfiniRail fan mounts, GPU anti-sag arm, fan, motherboard/HDD and SSD screws, standoffs incl. vertical-mount standoffs, front I/O adapter cable
Not Included PCIe riser for vertical GPU, fan hub or RGB controller, USB-C adapter, power supply, CPU cooler
Warranty
Warranty 1-Year Warranty (Singular)
Manufacturer Term Corsair publishes a 2-year warranty on this case on its EU product page. Singular’s direct warranty is 1 year; beyond that we assist you with the manufacturer’s warranty process for its full duration.

Frequently Asked Questions

Are the included fans RGB?
No. The four RS120 fans are PWM fans without lighting. The lighting comes from the RGB Flow front panel (64 LEDs) and the ARGB power button, both driven from a 5V ARGB motherboard header.
What is the difference from the FRAME 4000D RS?
The 4000X has the lit RGB Flow front, a full glass side and four RS120 fans. The 4000D uses a mesh airflow front, a glass-and-mesh side and three fans, and adds more drive bays.
How long a graphics card fits?
Up to 430 mm, or 405 mm with front fans installed. Vertical mounting uses three slots and needs a PCIe riser sold separately.
What does my motherboard need for the front ports?
A USB 3.2 Gen 2x2 Type-E header for the 20 Gbps USB-C port, a USB 3.2 Gen 1 20-pin header for the USB-A ports, F_PANEL, HD Audio and a 5V ARGB header. Tell us your board and we will check.
Singular Expert Insight
We point buyers to the FRAME 4000X RS when they want a lit front panel without paying for RGB fans: the light comes from the panel, and four plain RS120 fans handle airflow. If airflow matters more than the look, the FRAME 4000D RS with its mesh front is the alternative. The white twin is CC-9011303-WW. Pair it with a 360 mm AIO from our CPU coolers and an ATX unit up to 220 mm from our power supplies.

Buyer’s Guide

Buy it if

You want a lit front panel, a glass side, four fans included, 430 mm GPU room and three 360 mm radiator mounts.

Skip it if

You want RGB fans, maximum front airflow through mesh, or your motherboard has no +5V ARGB header.

Also consider

CORSAIR FRAME 5000D RS ARGB for 420 mm radiators and 450 mm GPUs. CORSAIR 3500X RS-R ARGB (CC-9011323-WW) for a glass-front showcase case.
