CORSAIR FRAME 5000D RS ARGB CC-9011309-WW High-Airflow Mid-Tower PC Case E-ATX 4x RS140 ARGB Fans 420mm Radiator Black

Brand:
Corsair
CORSAIR Geh Midi FRAME 5000D RS ARGB Airflow Case, Black (CC-9011309-WW)
CORSAIR FRAME 5000D RS ARGB CC-9011309-WW High-Airflow Mid-Tower PC Case E-ATX 4x RS140 ARGB Fans 420mm Radiator Black
€360.03 inc. VAT
Buy
CC-9011309-WW
€302.55
€360.03 inc. VAT
Ships from EU stock: 147 item(s)
+ −
Add to wish list Ask a question
Product Code
04:528802
EAN Code
0840440491293
Manufacturer
Corsair

Quick Specs

Form Factor
Mid-tower, up to E-ATX + back-connect
Included Fans
4 × RS140 ARGB
GPU / CPU Cooler
450 mm / 175 mm
Radiator Support
420 mm top, front or side
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

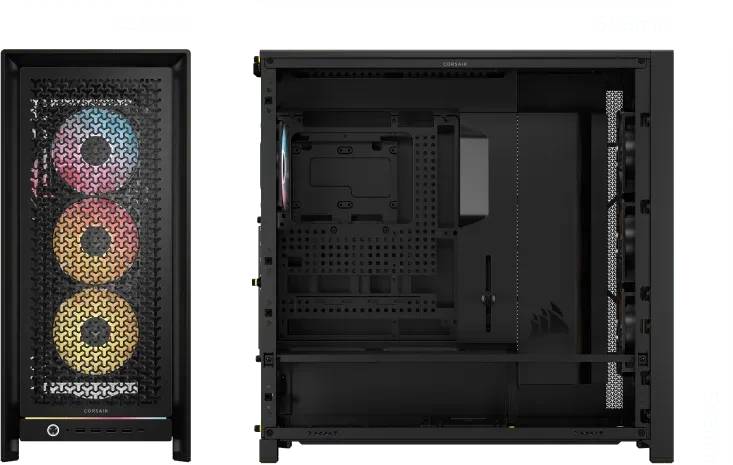

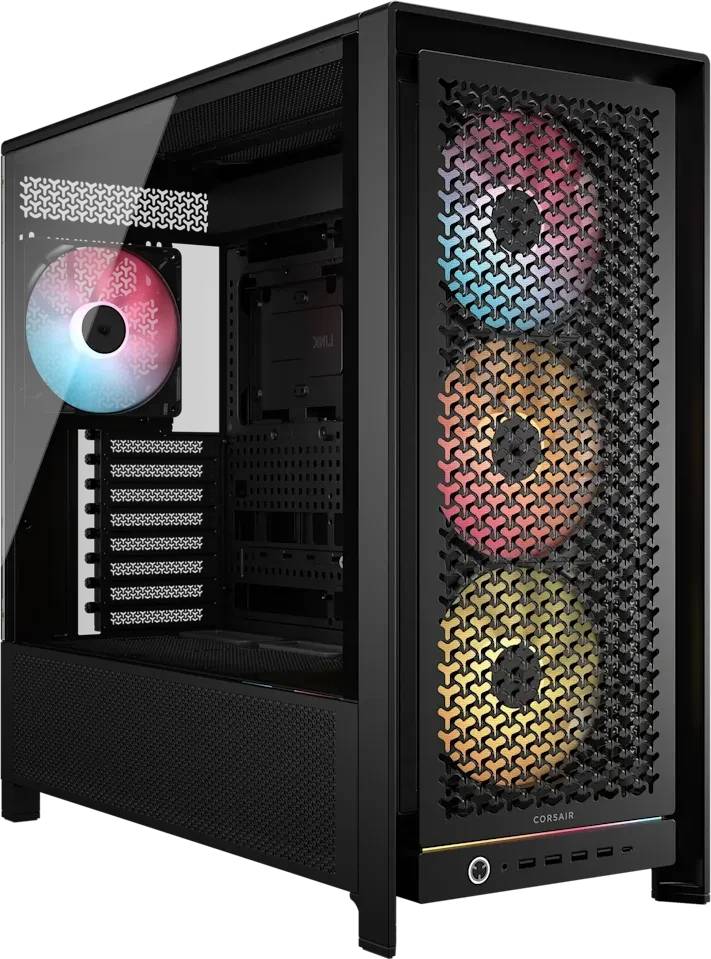

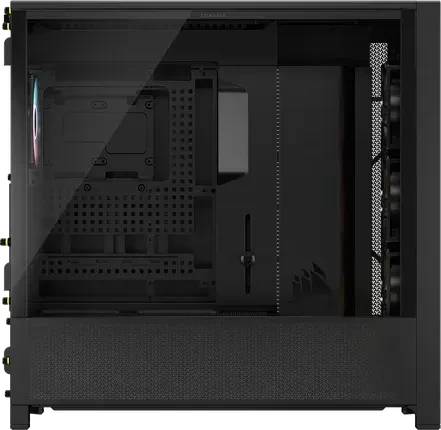

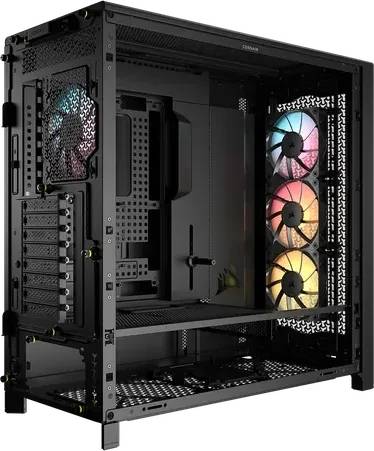

CORSAIR FRAME 5000D RS ARGB High-Airflow Mid-Tower PC Case – Black

4 × RS140 ARGB fans included420 mm radiators on three sides450 mm GPU clearanceModular FRAME design

The CORSAIR FRAME 5000D RS ARGB is a black high-airflow modular mid-tower for large E-ATX builds, with room for 450 mm graphics cards and 420 mm radiators on the top, front and side. Part number CC-9011309-WW ships with four RS140 ARGB PWM fans pre-installed – three front intake and one rear exhaust – with ARGB lighting run from your motherboard. It suits builders who want strong airflow, space for dual radiators and a case they can re-configure later with FRAME panels.

Compatibility — check before buying:
The four RS140 ARGB fans and the front light strip connect to your motherboard’s +5V ARGB header and 4-pin PWM header – no controller or hub is included, and a 12 V RGB header will not drive them. The front USB-C port needs a USB 3.2 Type-E header. GPU clearance falls from 450 to 425 mm with front fans fitted, and a vertical GPU needs a PCIe riser sold separately. At 542 × 556 × 250 mm and 15 kg, check your desk space. Send us your parts list and we will confirm the fit.

Best For

✓ Dual 360 or 420 mm radiator builds
✓ Long graphics cards up to 450 mm
✓ Back-connect boards: ASUS BTF, MSI Project Zero, GIGABYTE Project Stealth
✓ Builders who plan to upgrade panels later

Key Features


InfiniRail fan mounting
Front and roof fans sit on steel rails, so you slide 120, 140 or 200 mm fans and radiators to exactly the position you want instead of fixed holes. Twelve InfiniRail mounts come in the box.

Four ARGB 140 mm fans fitted
Four RS140 ARGB PWM fans with magnetic dome bearings are pre-installed and daisy-chained: three pull air in at the front and one exhausts at the rear. Their lighting follows your motherboard RGB software.

Room for serious cooling
Top, front and side each take a 420, 360, 280 or 240 mm radiator, the rear takes 140 or 120 mm, and the case holds up to 12 × 140 mm or 14 × 120 mm fans. Pre-punched fill and drain ports help custom loops.

Modular and easy to wire
FRAME panels, I/O and the motherboard tray can be swapped with Corsair parts sold separately. RapidRoute 2.0 cable buckles, a pocket for an iCUE LINK hub and a GPU anti-sag arm keep the build tidy.

Technical Specifications

Identification
Brand CORSAIR
Series FRAME 5000D
Part Number CC-9011309-WW
EAN / GTIN 0840440491293
Colour Black
Chassis
Form Factor High-airflow modular mid-tower
Dimensions (H × L × W) 542 × 556 × 250 mm
Weight 15 kg
Materials Steel, 3D-Y airflow steel front, plastic; tempered glass left side, steel right side
Compatibility
Motherboards Mini-ITX, Micro-ATX, ATX, E-ATX (up to 305 × 277 mm)
Back-Connect Boards Supported — ASUS BTF, MSI Project Zero, GIGABYTE Project Stealth
GPU Length Up to 450 mm; 425 mm with front fans fitted
CPU Cooler Height Up to 175 mm
Power Supply ATX (Corsair’s guide lists up to 250 mm)
Cable Space 42 mm
Cooling
Included Fans 4 × RS140 ARGB PWM 140 mm, magnetic dome bearings, daisy-chained: 3 front intake + 1 rear exhaust
Front 3 × 120, 3 × 140 or 2 × 200 mm fans; radiator 420 / 360 / 280 / 240 mm
Top 3 × 120 or 3 × 140 mm fans; radiator 420 / 360 / 280 / 240 mm
Side 3 × 120 or 3 × 140 mm fans; radiator 420 / 360 / 280 / 240 mm
Rear 1 × 120 or 1 × 140 mm fan; radiator 140 / 120 mm
Bottom 4 × 120 mm fans; no radiator. Maximum 12 × 140 or 14 × 120 mm fans
Storage & Expansion
Drive Bays 6 × 2.5″ + 2 × 3.5″ on removable trays
Expansion Slots 8 horizontal or 3 vertical (PCIe riser sold separately)
Front I/O
Ports 1 × USB 3.2 Gen 2 Type-C, 4 × USB 3.2 Gen 1 Type-A, 1 × combo audio jack, power button, RGB light strip
Motherboard Headers Needed 1 × USB 3.2 Gen 2 Type-E, 1 × USB 3.2 Gen 1, F_PANEL, HD Audio, 1 × 5V ARGB
In the Box
Included Case with 4 pre-installed RS140 ARGB PWM fans, GPU anti-sag arm, side fan bracket, reverse-connector magnetic strip, 12 InfiniRail fan mounts + lock screws, front I/O adapter, 16 QuikTurn and long fan screws, motherboard/HDD and SSD screws, spare standoff, 2 vertical-mount standoffs, 12 zip ties, panel inserts
Not Included PCIe riser for vertical GPU, iCUE LINK hub, fan or RGB controller, power supply, CPU cooler
Warranty
Warranty 1-Year Warranty (Singular)
Manufacturer Term Corsair publishes a 2-year warranty on this case on its EU product page. Singular’s direct warranty is 1 year; beyond that we assist you with the manufacturer’s warranty process for its full duration.

Frequently Asked Questions

Is a fan or RGB controller included?
No. The RS140 ARGB fans and the light strip connect to your motherboard’s 5V ARGB and PWM headers and are controlled from the motherboard software.
What radiators fit?
Up to 420 mm on the top, the front and the side, and 140 or 120 mm at the rear. The bottom takes fans only. Air coolers up to 175 mm tall also fit.
How long a graphics card fits?
Up to 450 mm, or 425 mm with front fans installed. Vertical mounting is supported by rotating the rear bracket, but the PCIe riser is sold separately.
What does my motherboard need for the front ports?
A USB 3.2 Type-E header for the USB-C port, a USB 3.2 Gen 1 header for the four USB-A ports, F_PANEL, HD Audio and a 5V ARGB header for the lighting. Tell us your board and we will check.
Singular Expert Insight
We suggest the FRAME 5000D when a build needs airflow and space more than a compact footprint: 420 mm radiators on three sides and 450 mm GPU clearance cover the largest current parts. Choose this RS ARGB version for lit fans; the RS version without fan lighting is CC-9011308-WW (white) or CC-9011307-WW (black). The white twin is CC-9011310-WW. Pair it with a large AIO from our CPU coolers and a quality ATX unit from our power supplies.

Buyer’s Guide

Buy it if

You want a large airflow case with four 140 mm ARGB fans included, 420 mm radiator support and room for a 450 mm GPU.

Skip it if

You need a compact case, or your motherboard has no +5V ARGB header.

Also consider

CORSAIR FRAME 5000D RS (CC-9011308-WW) with unlit fans. CORSAIR FRAME 4000X RS for a smaller glass-front mid-tower.
