COUGAR UNITY 240 ARGB Unity240-FW Single-Frame PWM ARGB Fan Unit Forward Blade 700-2500 rpm 78.2 CFM Two Cables White

Brand:
Cougar
COUGAR UNITY 240 ARGB Single-Frame Fan Unit White
COUGAR UNITY 240 ARGB Unity240-FW Single-Frame PWM ARGB Fan Unit Forward Blade 700-2500 rpm 78.2 CFM Two Cables White
€29.6 inc. VAT
Buy
CF-UN240FW-RGB
€24.87
€29.60 inc. VAT
Ships from EU stock: 25 item(s)
+ −
Add to wish list Ask a question
Product Code
04:569411
EAN Code
4710483779626
Manufacturer
Cougar

Quick Specs

Size
240 mm single-frame unit
Blade
Forward blade
Speed & Airflow
700–2500 rpm · 78.2 CFM
Lighting
ARGB 5 V 3-pin · PWM
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

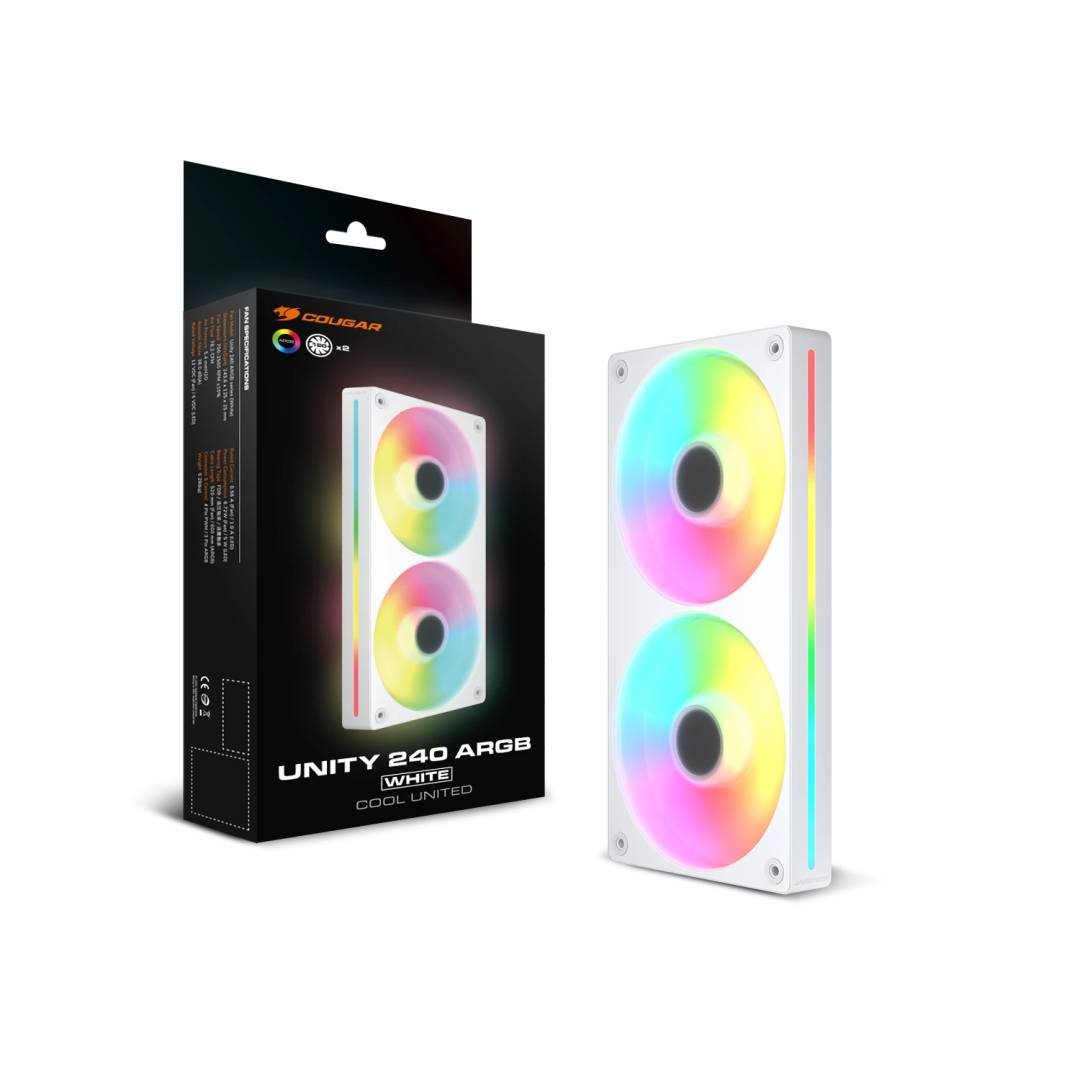

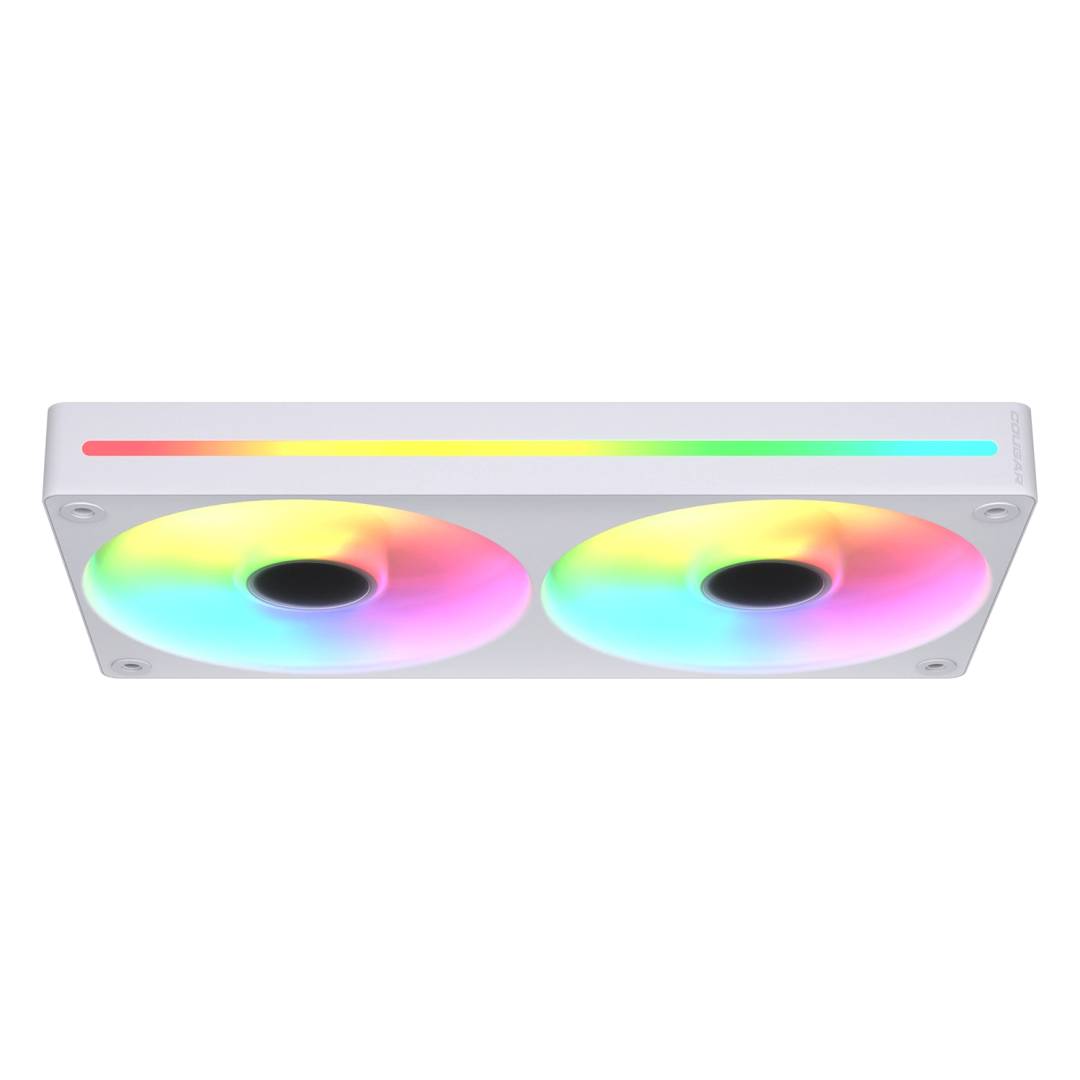

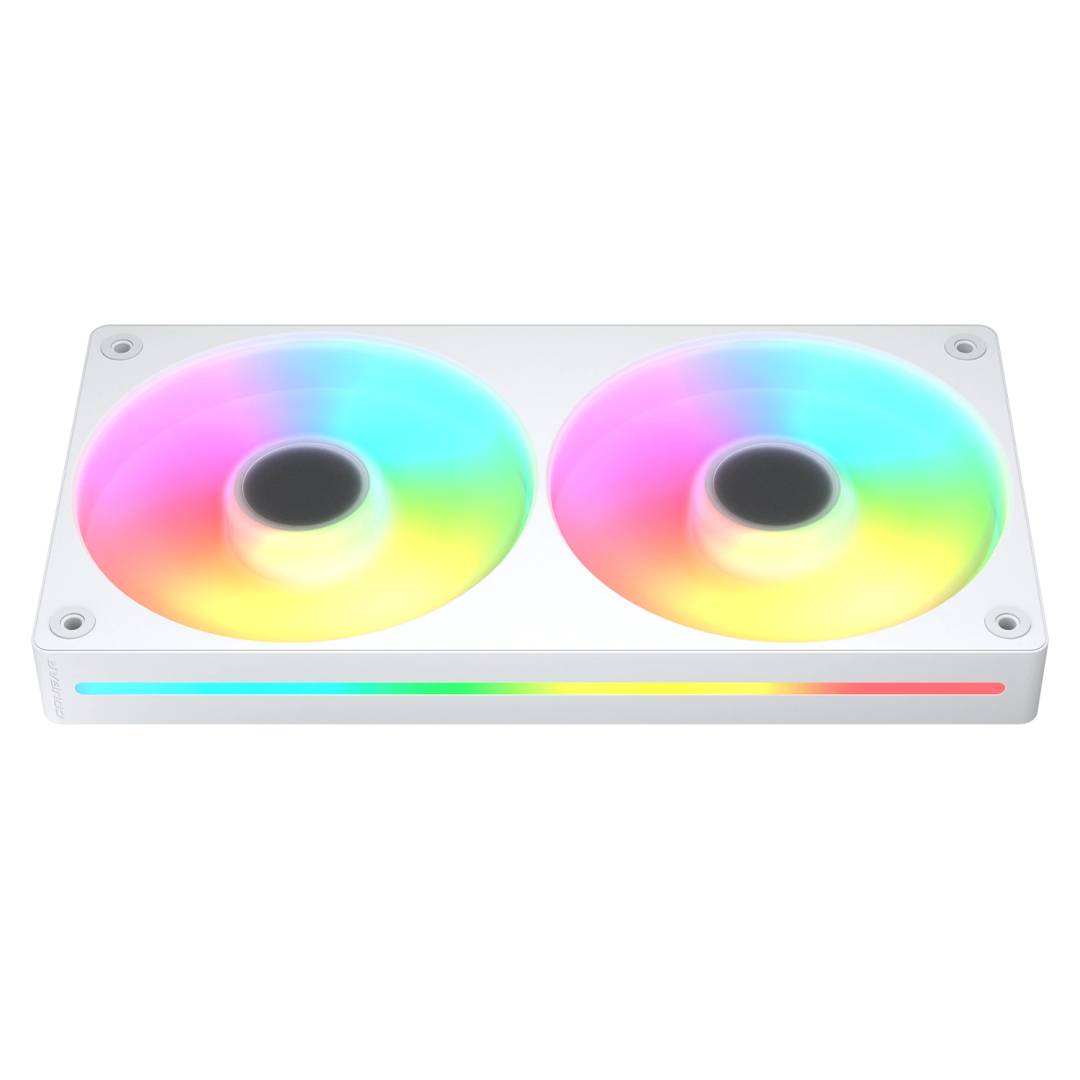

COUGAR UNITY 240 ARGB — Single-Frame PWM ARGB Fan Unit, White

240 mm single frameForward bladeOnly two cablesWhite ARGB

The COUGAR UNITY 240 ARGB (Unity240-FW ARGB) is a single-frame PWM ARGB fan unit: instead of separate 120 mm fans, the fan positions of a 240 mm mount sit in one rigid 243.6 × 125 × 25 mm frame that is installed, powered and lit as one part, with only two cables — a 4-pin PWM lead and a 5 V 3-pin ARGB lead. This is the forward-blade version with standard airflow, running at 700–2500 rpm with 78.2 CFM, 5.4 mmH2O and 38 dB(A). It uses fluid dynamic bearings, shock-absorbing corners and ARGB side strips that sync with the motherboard. In practice it makes a 240 mm radiator or fan position in a white build quicker to install and tidier, with far fewer cables.

Compatibility — check before buying:
240 mm position only: the unit is one rigid frame and cannot be split into single 120 mm fans — your case or radiator needs a free 240 mm mount. Forward blade: standard airflow; if your build plan calls for reversed airflow, the reverse-blade Unity240-RW is the one. The lighting needs a 5 V 3-pin ARGB header — a 12 V 4-pin RGB header can damage the LEDs — and the fans need a 4-pin PWM header. Tell us your case and motherboard and we confirm the fit.

Best For

✓ 240/360 mm radiators
✓ Front intake in gaming cases
✓ ARGB showcase builds
✓ Fewer cables to route
✓ Replacing AIO fans
✓ Quick case upgrades

Key Features


Single frame, two cables
Several fan positions in one frame, wired with one PWM and one ARGB lead.

Forward blade
Standard airflow with up to 78.2 CFM and 5.4 mmH2O for radiators.

Motherboard sync
PWM speed control and ARGB lighting sync through the motherboard.

Quiet and durable
Fluid dynamic bearings and shock-absorbent corners, 38.0 dB(A).

Technical Specifications

Identification
Brand COUGAR
Product COUGAR UNITY 240 ARGB — Unity240-FW ARGB, white
Part Number CF-UN240FW-RGB
EAN / GTIN 4710483779626
Blade Direction Forward (standard) blade
Performance
Speed 700–2500 rpm ±10 %
Airflow 78.2 CFM
Static Pressure 5.4 mmH2O
Noise 38.0 dB(A)
Bearing Fluid dynamic bearing (FDB)
Electrical & Connection
Rated Voltage 12 V DC (fan) · 5 V DC (LED)
Rated Current (fan / LED) 0.56 A / 1.0 A
Power (fan / LED) 6.72 W / 5 W
Connectors 4-pin PWM + 3-pin 5 V ARGB
Cable Length 520 mm (fan) · 600 mm (ARGB)
Physical
Frame Size 243.6 × 125 × 25 mm
Weight 0.28 kg
Colour White
Lighting ARGB side strips
In the Box
Included UNITY 240 ARGB fan unit
Not Included ARGB controller hub, radiator. The screw set and accessory list are not published by COUGAR — ask us
Warranty
Warranty 1-Year Warranty (Singular)
Manufacturer Term COUGAR lists a 3-year warranty for the UNITY series on its global product and warranty pages; terms vary by region. Singular’s direct warranty is 1 year; beyond that we assist you with the manufacturer’s warranty process for its full duration.

Frequently Asked Questions

Can I use it as three separate fans?
No. The UNITY is one rigid 240 mm frame. It fits a 240 mm fan or radiator position only.
What is the reverse-blade version?
A mirrored blade design that moves air in the opposite direction to the forward version. This unit is the forward version; the reverse one runs slower, at 1600 rpm.
Which headers do I need?
One 4-pin PWM fan header and one 5 V 3-pin ARGB header. Do not use a 12 V 4-pin RGB header.
Is it the same fan used on the Poseidon Vistek coolers?
The Poseidon Vistek AIO coolers use the forward-blade Unity 240 ARGB fan unit, per COUGAR.
Singular Expert Insight
We suggest the Unity240-FW ARGB for white builds with a 240 mm radiator or fan position that want standard airflow and simple wiring. See our case fans for single fans and our CPU coolers for complete AIO kits.

Buyer’s Guide

Buy it if

You have a free 240 mm position and want white ARGB fans with minimal cabling.

Skip it if

You need separate fans, or reverse airflow (Unity240-RW).

Also consider

COUGAR Unity240-RW, the reverse-blade white version.
