COUGAR UNITY 240 ARGB Reverse Blade Unity240-RW Single-Frame PWM ARGB Fan Unit 700-1600 rpm 49 CFM Two Cables White

Brand:
Cougar
COUGAR UNITY 240 ARGB Reverse Blade Fan Unit White
COUGAR UNITY 240 ARGB Reverse Blade Unity240-RW Single-Frame PWM ARGB Fan Unit 700-1600 rpm 49 CFM Two Cables White
€28.44 inc. VAT
Buy
CF-UN240RW-RGB
€23.90
€28.44 inc. VAT
Ships from EU stock: 71 item(s)
+ −
Add to wish list Ask a question
Product Code
04:569417
EAN Code
4710483779633
Manufacturer
Cougar

Quick Specs

Size
240 mm single-frame unit
Blade
Reverse blade
Speed & Airflow
700–1600 rpm · 49.01 CFM
Lighting
ARGB 5 V 3-pin · PWM
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

COUGAR UNITY 240 ARGB Reverse Blade — Single-Frame PWM ARGB Fan Unit, White

240 mm single frameReverse bladeOnly two cablesWhite ARGB

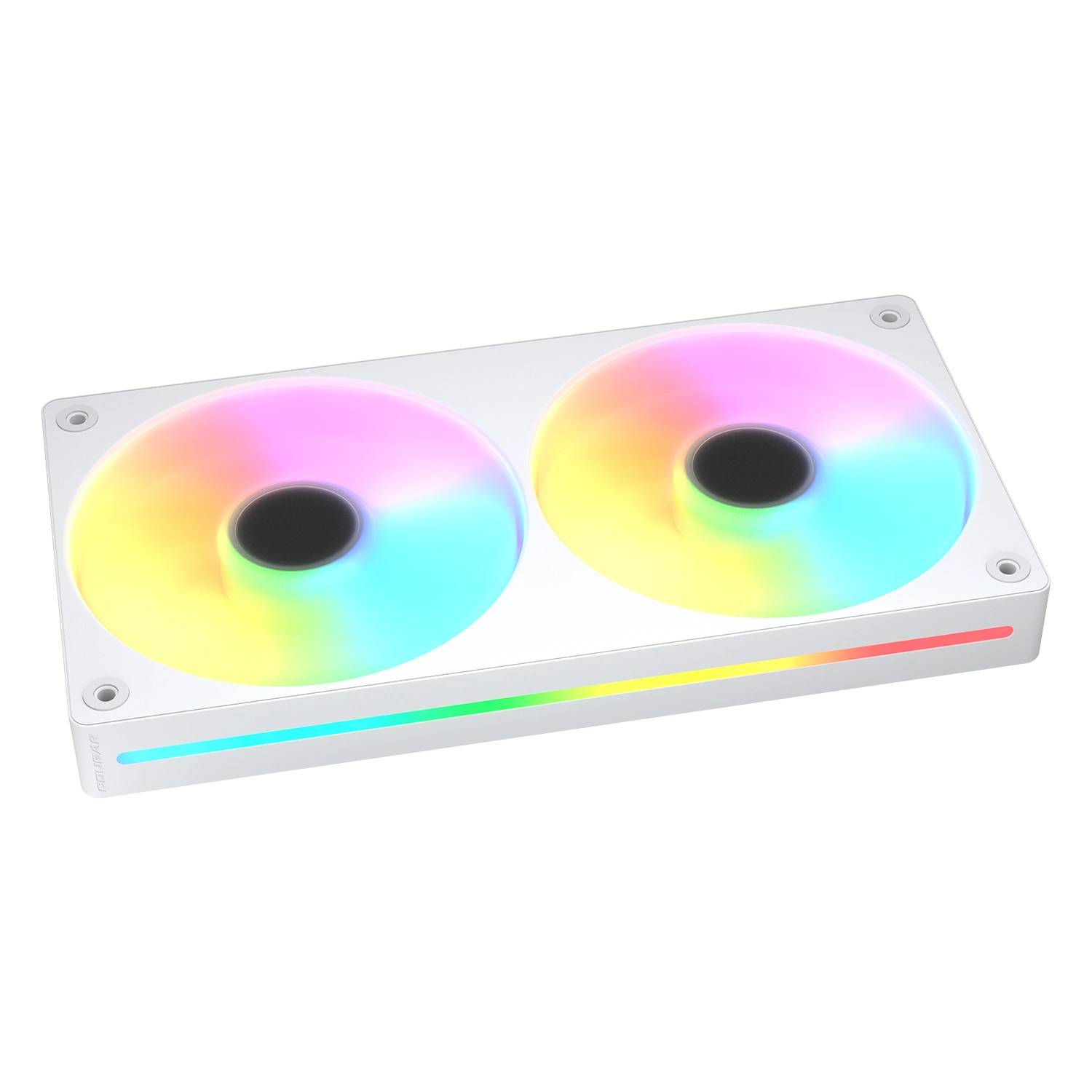

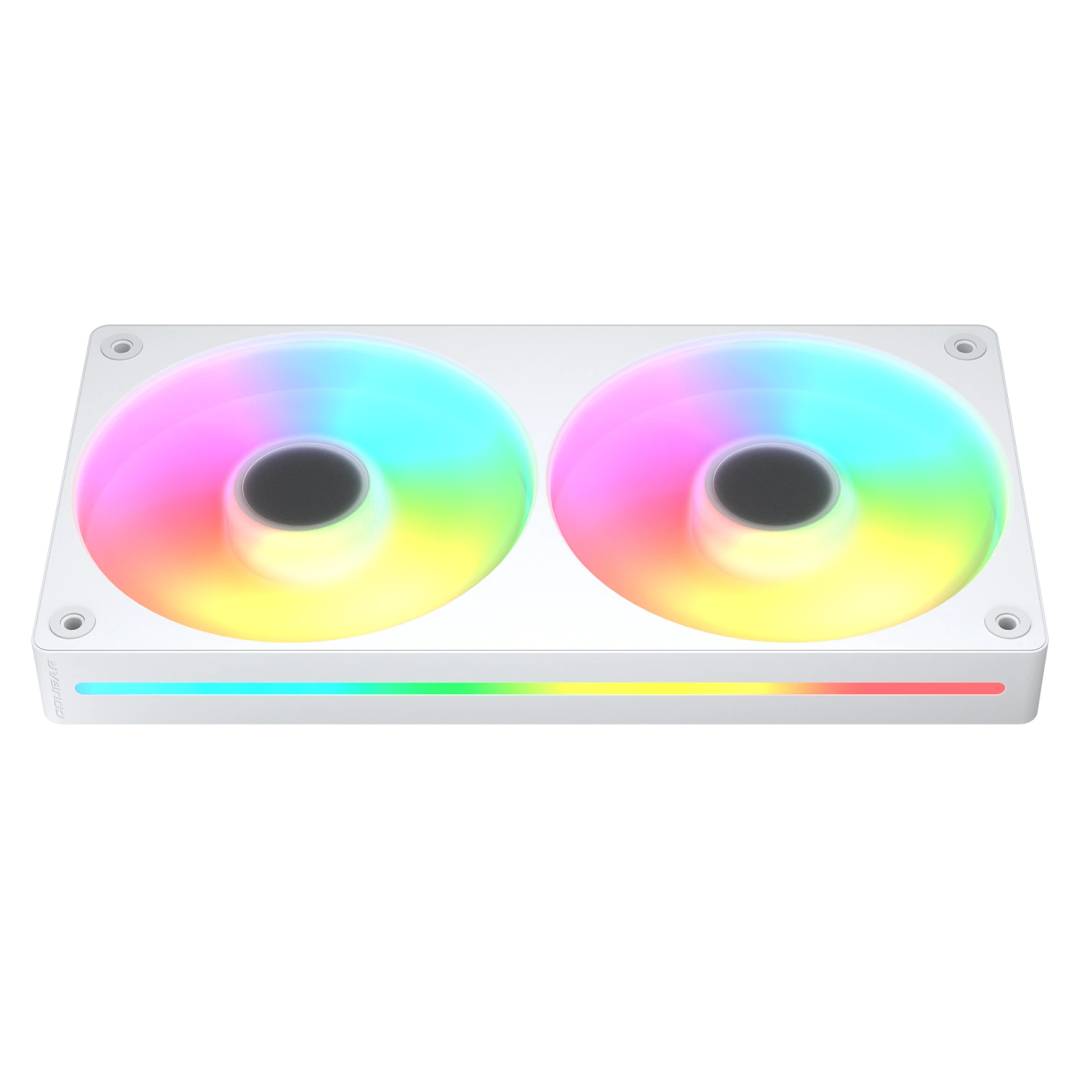

The COUGAR UNITY 240 ARGB Reverse Blade (Unity240-RW ARGB) is a single-frame PWM ARGB fan unit: instead of separate 120 mm fans, the fan positions of a 240 mm mount sit in one rigid 243.6 × 125 × 25 mm frame that is installed, powered and lit as one part, with only two cables — a 4-pin PWM lead and a 5 V 3-pin ARGB lead. This is the reverse-blade version: the blades are mirrored, so the air flows in the opposite direction to the forward-blade version. It runs at 700–1600 rpm with 49.01 CFM, 2.31 mmH2O and 33.5 dB(A). It uses fluid dynamic bearings, shock-absorbing corners and ARGB side strips that sync with the motherboard. In practice it makes a 240 mm radiator or fan position in a white build quicker to install and tidier, with far fewer cables.

Compatibility — check before buying:
240 mm position only: the unit is one rigid frame and cannot be split into single 120 mm fans — your case or radiator needs a free 240 mm mount. Reverse blade: choose it only when your build plan calls for reverse-blade fans; it is also slower and moves less air (1600 rpm, 49 CFM) than the forward Unity240-FW. The lighting needs a 5 V 3-pin ARGB header — a 12 V 4-pin RGB header can damage the LEDs — and the fans need a 4-pin PWM header. Tell us your case and motherboard and we confirm the fit.

Best For

✓ Glass showcase cases
✓ Reverse-airflow positions
✓ Matching forward/reverse pairs
✓ Clean cable management
✓ Quiet ARGB builds
✓ Mirror-matched fan walls

Key Features


Single frame, two cables
Several fan positions in one frame, wired with one PWM and one ARGB lead.

Reverse blade
Mirrored blades move air in the opposite direction to the forward-blade version.

Motherboard sync
PWM speed control and ARGB lighting sync through the motherboard.

Quiet and durable
Fluid dynamic bearings and shock-absorbent corners, 33.5 dB(A).

Technical Specifications

Identification
Brand COUGAR
Product COUGAR UNITY 240 ARGB Reverse Blade — Unity240-RW ARGB, white
Part Number CF-UN240RW-RGB
EAN / GTIN 4710483779633
Blade Direction Reverse blade
Performance
Speed 700–1600 rpm ±10 %
Airflow 49.01 CFM
Static Pressure 2.31 mmH2O
Noise 33.5 dB(A)
Bearing Fluid dynamic bearing (FDB)
Electrical & Connection
Rated Voltage 12 V DC (fan) · 5 V DC (LED)
Rated Current (fan / LED) 0.56 A / 1.0 A
Power (fan / LED) 6.72 W / 5 W
Connectors 4-pin PWM + 3-pin 5 V ARGB
Cable Length 520 mm (fan) · 600 mm (ARGB)
Physical
Frame Size 243.6 × 125 × 25 mm
Weight 0.28 kg
Colour White
Lighting ARGB side strips
In the Box
Included UNITY 240 ARGB Reverse Blade fan unit
Not Included ARGB controller hub, radiator. The screw set and accessory list are not published by COUGAR — ask us
Warranty
Warranty 1-Year Warranty (Singular)
Manufacturer Term COUGAR lists a 3-year warranty for the UNITY series on its global product and warranty pages; terms vary by region. Singular’s direct warranty is 1 year; beyond that we assist you with the manufacturer’s warranty process for its full duration.

Frequently Asked Questions

Can I use it as three separate fans?
No. The UNITY is one rigid 240 mm frame. It fits a 240 mm fan or radiator position only.
What is the reverse-blade version?
A mirrored blade design that moves air in the opposite direction to the forward version. This unit is the reverse version; it runs slower (1600 rpm) than the forward one.
Which headers do I need?
One 4-pin PWM fan header and one 5 V 3-pin ARGB header. Do not use a 12 V 4-pin RGB header.
Is it the same fan used on the Poseidon Vistek coolers?
The Poseidon Vistek AIO coolers use the forward-blade Unity 240 ARGB fan unit, per COUGAR.
Singular Expert Insight
We suggest the Unity240-RW ARGB for white glass-case builds where a 240 mm position needs reverse-blade fans to match the airflow plan. See our case fans for single fans and our CPU coolers for complete AIO kits.

Buyer’s Guide

Buy it if

Your build needs reverse-blade fans on a 240 mm position, in white.

Skip it if

You want maximum airflow for a radiator (Unity240-FW is faster).

Also consider

COUGAR Unity240-FW, the forward-blade white version.
