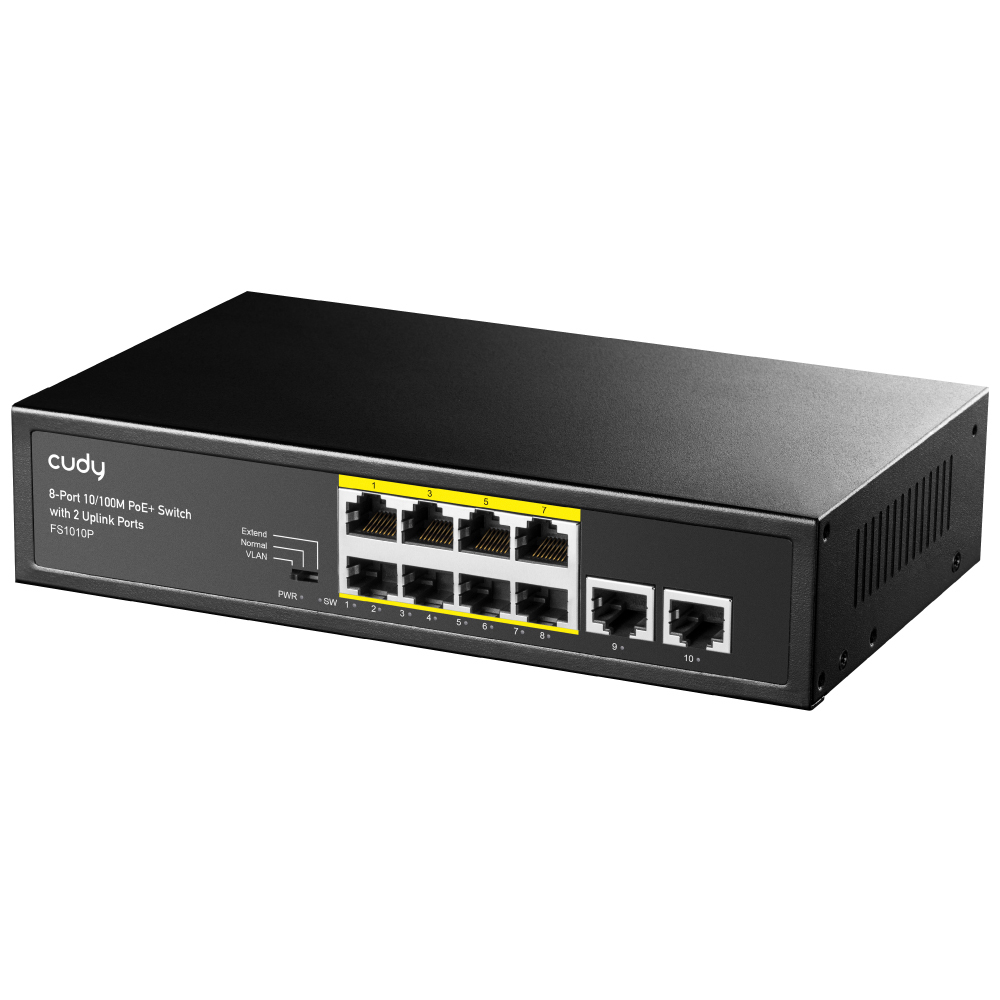

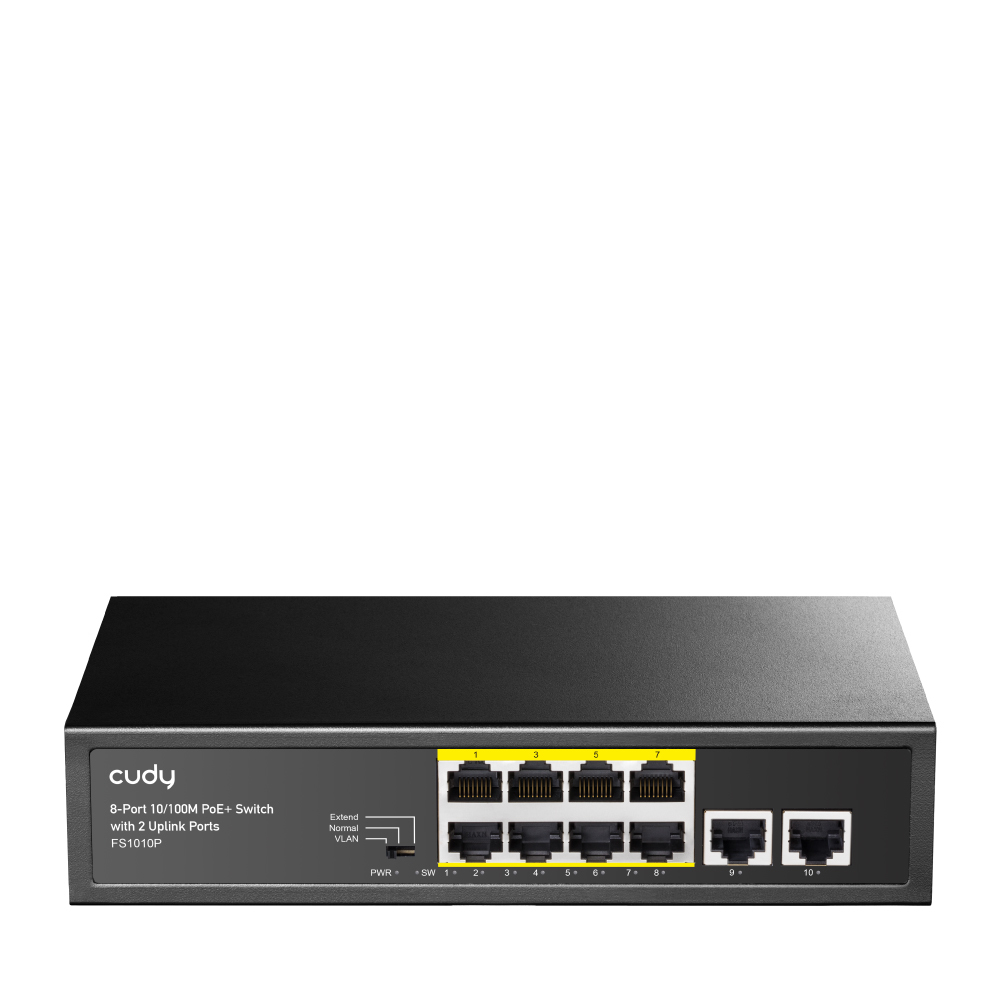

Cudy FS1010P 8-Port Fast Ethernet PoE+ Switch | 120W PoE Budget
The Cudy FS1010P is an 8-port Fast Ethernet PoE+ switch with 2 uplink ports, designed for simple network expansion and powered device connections. It supports plug-and-play installation, fanless silent operation and a metal housing for everyday use.
Technical Specifications
| Specification | Detail |
|---|---|
| Brand | Cudy |
| Model | FS1010P |
| Switch Type | 8-Port Fast Ethernet PoE+ Switch |
| Ethernet Ports | 8 x RJ-45 10/100 Mbps |
| Uplink Ports | 2 |
| PoE Ports | 8 |
| PoE+ Ports | 2 |
| PoE Power per Port | 30 W |
| Total PoE Budget | 120 W |
| Networking Standards | IEEE 802.3af | IEEE 802.3at | IEEE 802.3az | IEEE 802.3x |
| Ethernet Data Rates | 10 | 100 Mbit/s |
| Copper Cabling | 10BASE-T | 100BASE-TX |
| Supported Cable Types | Cat3 | Cat4 | Cat5 | Cat5e |
| Full Duplex | Yes |
| Half Duplex | Yes |
| Flow Control | Yes |
| VLAN Support | Yes |
| Store-and-Forward | Yes |
| Jumbo Frames | 1528 |
| Forwarding Rate | 1.48 Mpps |
| Bandwidth | 2 Gbit/s |
| MAC Address Table | 8000 entries |
| Packet Buffer Memory | 0.25 MB |
| Power Source | AC |
| Power Supply Included | Yes |
| AC Input Voltage | 100 - 240 V |
| AC Input Frequency | 50 - 60 Hz |

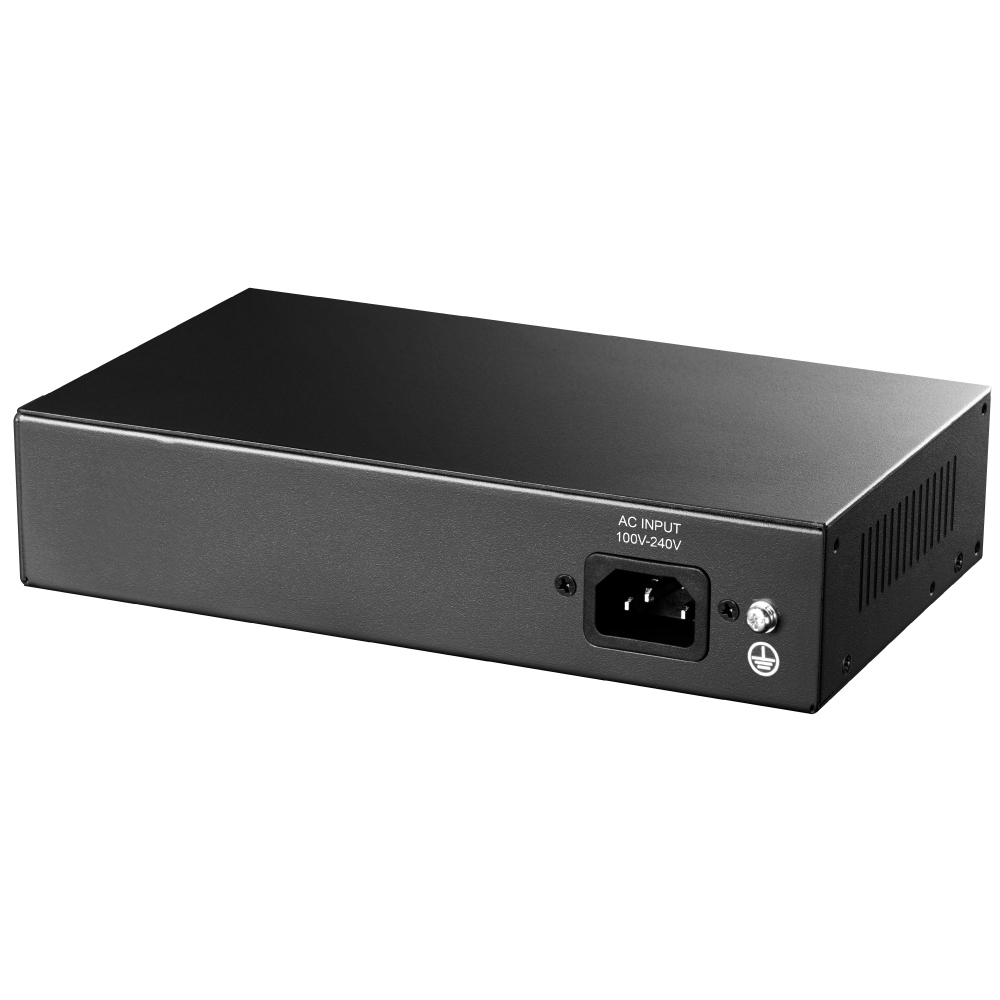

| Power Connector | AC-in jack |
| Plug and Play | Yes |
| Fanless | Yes |
| Surge Protection | Yes |
| Surge Protection Voltage | 4 kV |
| LED Indicators | Activity | Link | PoE | Power |
| Housing Material | Metal |
| Colour | Black |
| Dimensions | 220 x 150 x 44 mm |
| MTBF | 50000 h |

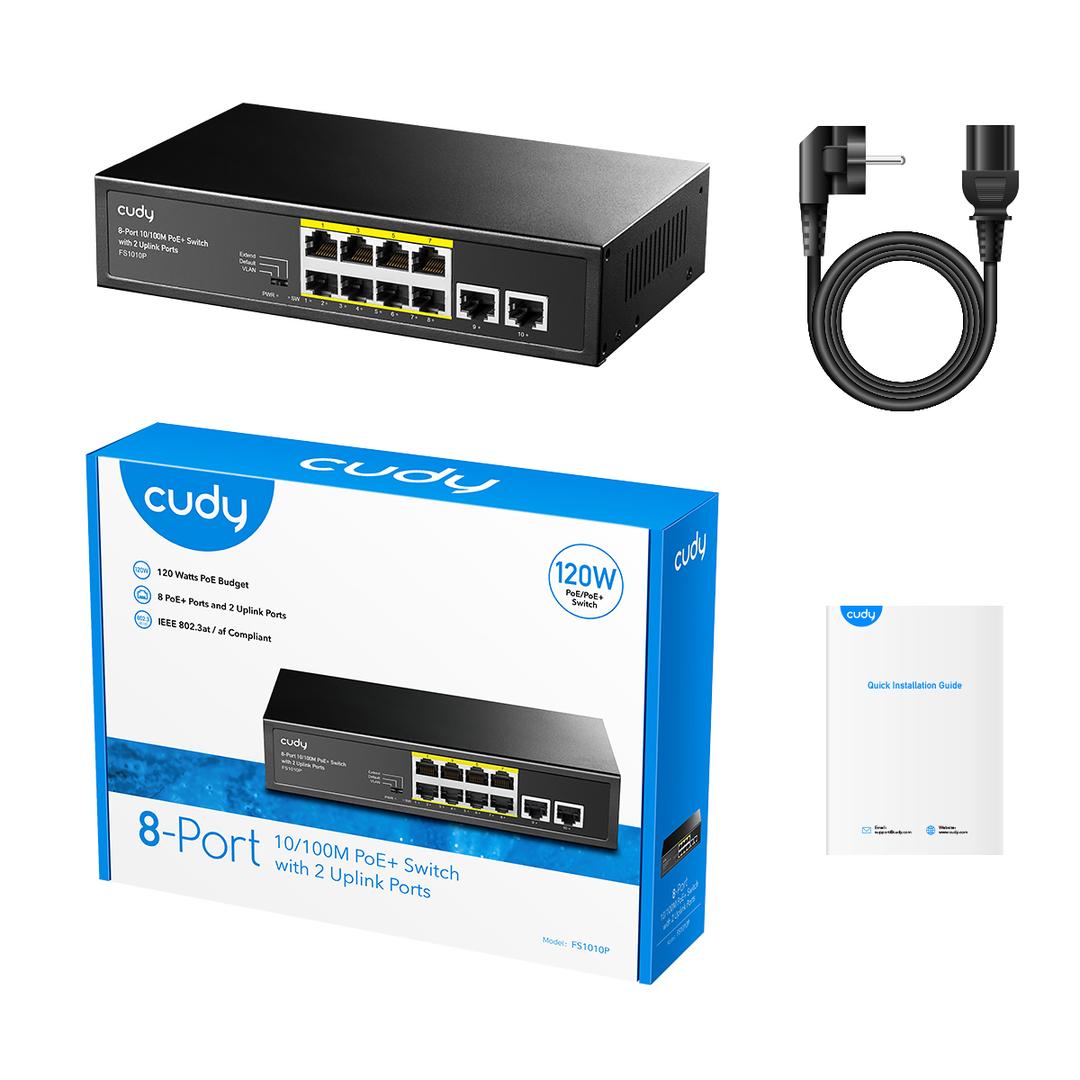

| Package Contents | AC cable | Quick start guide |
| SKU / EAN | FS1010P | 6971690790974 |
SINGULAR RECOMMENDS
For who
Suitable for users who need a simple 8-port PoE+ switch for small network setups and powered devices, with easy plug-and-play installation.
Real reason to buy it
The main appeal is the 120W PoE budget with 2 uplink ports, making it practical for adding multiple PoE devices in a compact fanless switch.
Know before
This is a Fast Ethernet switch with 10/100 Mbps ports, so it is not a Gigabit model. It includes 8 PoE ports and 2 uplink ports.
Features - Cudy - FS1010P V4.0
Standard
8-Port
Port Speed
- 10/100 Mbps
More Details
Product Code
03:280603
EAN Code
6971690790974
Manufacturer
Cudy
