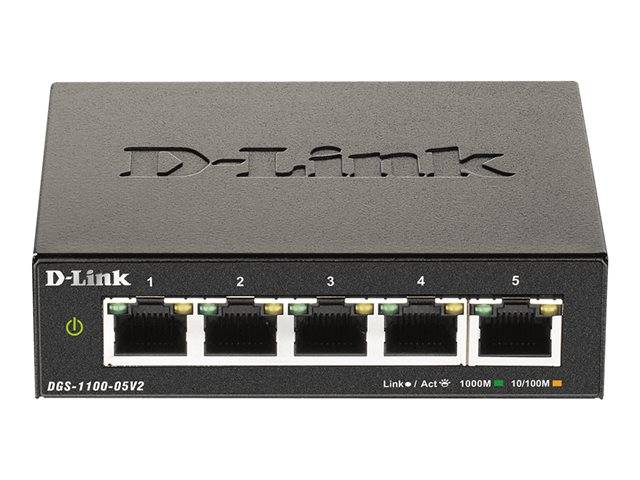

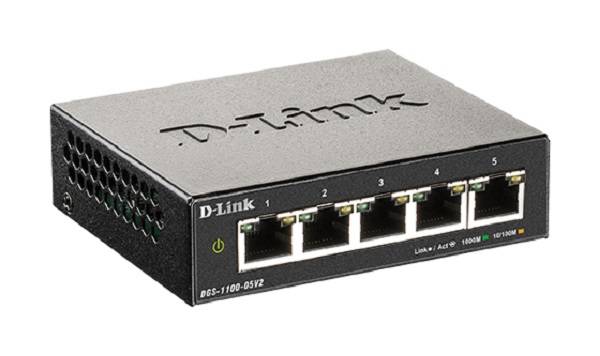

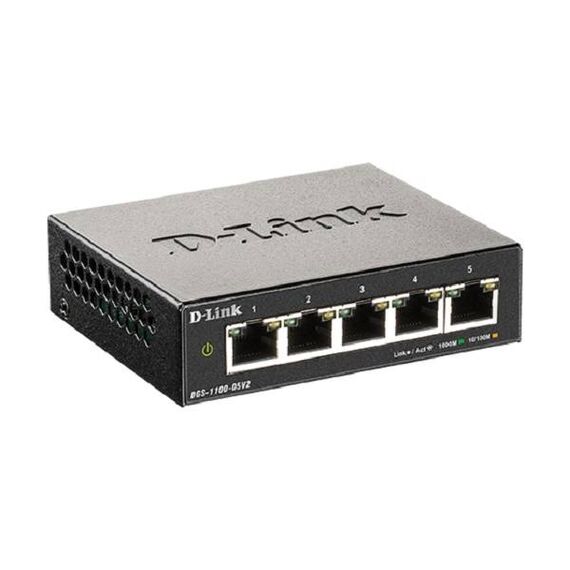

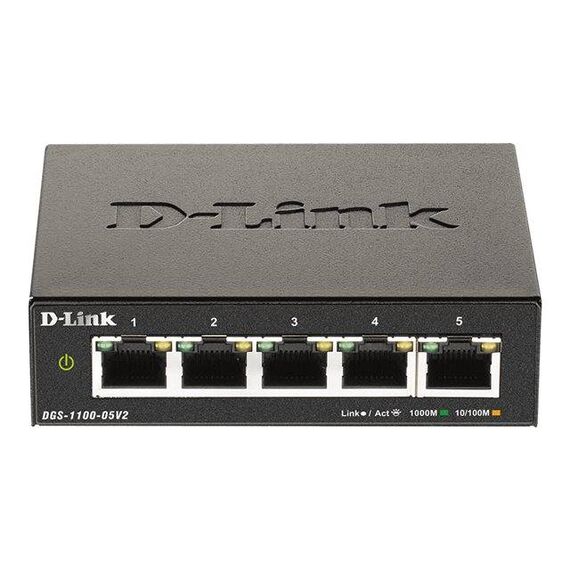

D-Link DGS-1100-05V2/E 5-Port Gigabit Smart Switch
The D-Link DGS-1100-05V2/E is a compact desktop smart managed switch for simple Gigabit network expansion. It offers 5 x 10/100/1000 RJ-45 ports, web-based management, VLAN support, QoS, and a fanless design for quiet operation.
Technical Specifications
| Specification | Detail |
|---|---|
| Product Type | Switch - 5 ports - smart |
| Switch Layer | L2 |
| Enclosure Type | Desktop |
| Ports | 5 x 10/100/1000 |
| Interfaces | 5 x 1000Base-T RJ-45 |
| Switching Capacity | 10 Gbps |
| Forwarding Rate | 7.4 Mpps |
| MAC Address Table | 2K entries |
| VLAN Capacity | 128 VLAN groups | 4094 VLAN IDs |
| IGMP Groups | 128 |
| Management | Web-based management | Cloud-managed | SNMP 2 | ICMP |
| Security | SSL |
| Features | VLAN support | IGMP snooping | STP support | RSTP support | QoS | Port mirroring | Port security | Storm control | Loopback detection | Auto MDI/MDI-X | Fanless |
| Jumbo Frames | Yes | 9216 |
| Packet Buffer Memory | 1 MB |
| Power | External power adapter | AC 100/240 V | 50/60 Hz | 3.42 W max | 3.42 W |
| Power over Ethernet (PoE) | No |
| Status Indicators | Power | status | link/activity/speed |
| Software Included | D-Link Network Assistant |
| Dimensions | 100.5 x 28 x 82 mm |
| Weight | 230 g |
| Noise Level | 0 dB |
| Operating Temperature | 0 - 40 °C |
| Operating Humidity | 0 - 90% (non-condensing) |
| Storage Temperature | -40 - 70 °C |
| Storage Humidity | 0 - 95% (non-condensing) |
| Compliance | IEEE 802.3 | IEEE 802.3u | IEEE 802.3z | IEEE 802.1D | IEEE 802.1Q | IEEE 802.3ab | IEEE 802.1p | IEEE 802.3x | IEEE 802.3ad (LACP) | IEEE 802.1w | IEEE 802.1ab (LLDP) | IEEE 802.3az |
| Certifications | FCC Class A certified | C-Tick | BSMI | cUL | CB | CCC | RoHS | LVD | VCCI Class A |
| Flash Memory | 2 MB |
| Management Protocol | SNMP 2, ICMP |
| SKU / EAN | DGS-1100-05V2/E | 0790069453403 |
SINGULAR RECOMMENDS
For who
Suitable for small offices or home networks that need a simple 5-port Gigabit switch with smart management and quiet desktop placement.
Real reason to buy it
It combines easy web-based management with core Layer 2 features such as VLANs, QoS, and IGMP snooping in a compact fanless desktop switch.
Know before
This model has 5 Gigabit Ethernet ports and no PoE. Management is smart managed rather than a fully featured enterprise switch, and an external power adapter is used.
