D-Link DGS-1100-16V2/E 16-Port Smart Gigabit Switch | 1U Rack-Mountable
Brand:
D-Link
DGS-1100-16V2/E
Delivery
Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
Trusted Tech Choice
Buying Benefits
Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Please sign in so that we can notify you about a reply

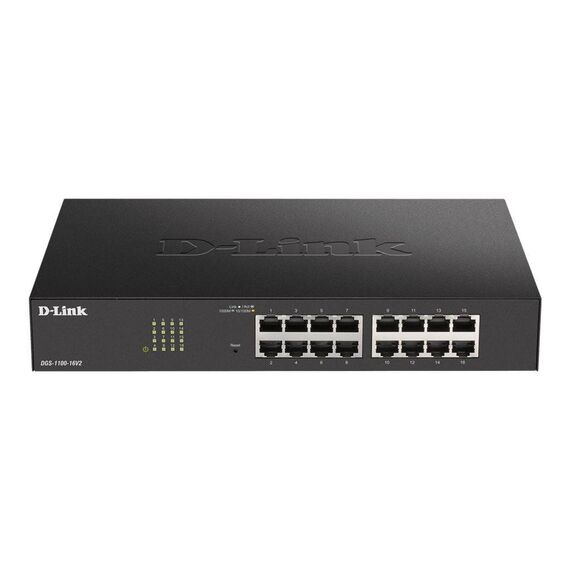

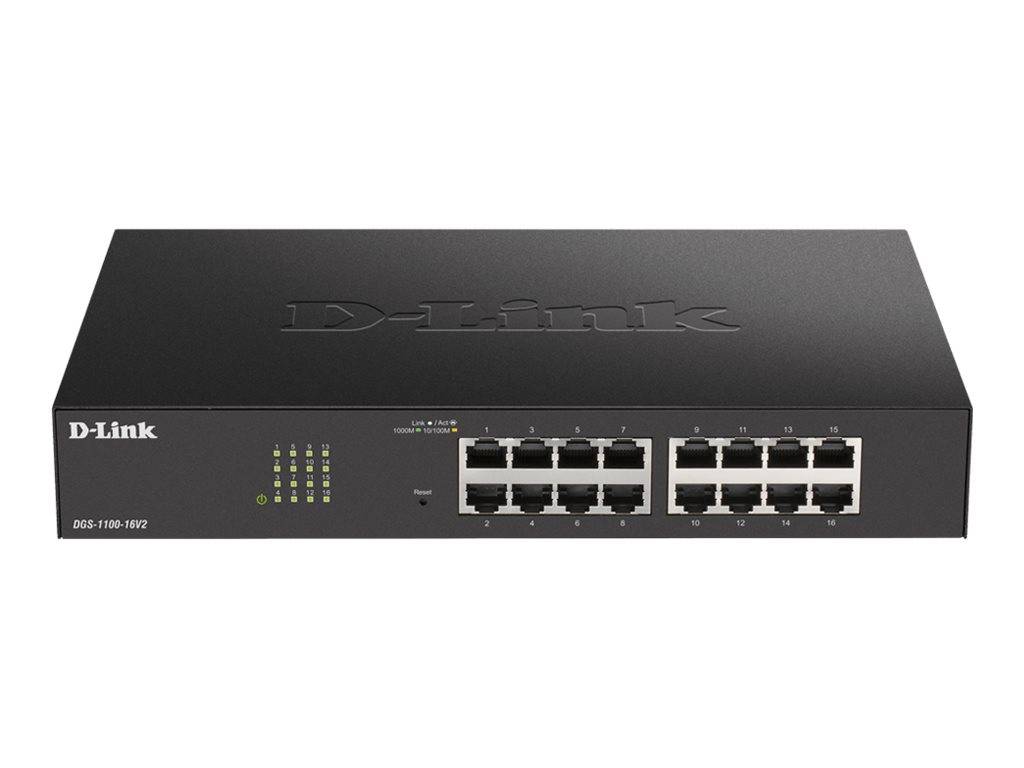

D-Link DGS-1100-16V2/E 16-Port Smart Gigabit Switch
The D-Link DGS-1100-16V2/E is a 16-port smart Gigabit Ethernet switch for desktop or 1U rack-mount installation. It offers managed networking features, Gigabit connectivity, and a fanless design, making it a practical choice for business networks that need flexible control and straightforward deployment.
Technical Specifications
| Specification | Detail |
|---|---|
| Device Type | Switch - 16 ports - smart |
| Enclosure Type | Desktop, rack-mountable 1U |
| Subtype | Gigabit Ethernet |
| Ports | 16 x 10/100/1000 |
| Interfaces | 16 x 1000Base-T RJ-45 |
| Switching Capacity | 32 Gbps |
| Forwarding Performance | 23.81 Mpps |
| VLAN Groups | 128 |
| VLAN IDs | 4094 |
| IGMP Groups | 128 |
| MAC Address Table Size | 8K entries |
| Jumbo Frame Support | 10240 bytes |
| Routing Protocol | IGMPv2, IGMP, IGMPv3 |
| Remote Management Protocol | SNMP 2, ICMP |
| Encryption Algorithm | SSL |
| Features | Flow control | auto-negotiation | BOOTP support | ARP support | VLAN support | auto-uplink (auto MDI/MDI-X) | IGMP snooping | DoS attack prevention | port mirroring | Broadcast Storm Control | half duplex mode | full duplex mode | Multicast Storm Control | Unicast Storm Control | STP support | RSTP support | QoS | Cable Diagnostics Function | bandwidth control | fanless | LLDP support | Port Security | DHCP client | tagged VLAN | DSCP support | IGMP querier | Voice VLAN | VLAN management | VLAN group | EEE | WRR | HOL Blocking Prevention | loopback detection | port-based VLAN | port-based QoS | Unknown Storm Control | DNA support | 4.1Mbit packet buffer | Asymmetric VLAN |
| Compliant Standards | IEEE 802.3 | IEEE 802.3u | IEEE 802.3z | IEEE 802.1D | IEEE 802.1Q | IEEE 802.3ab | IEEE 802.1p | IEEE 802.3x | IEEE 802.3ad (LACP) | IEEE 802.1w | IEEE 802.1ab (LLDP) | IEEE 802.3az |
| RAM | 128 MB |
| Flash Memory | 16 MB |
| Status Indicators | Power, status, link/activity/speed |
| Power Device | Internal power supply |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Power Consumption Operational | 10.1 Watt |
| Power Consumption Stand by | 3.4 Watt |
| Rack Mounting Kit | Included |
| Service & Support | Limited warranty - lifetime |
| Dimensions | 28 cm x 18 cm x 4.4 cm |
| Weight | 1.21 kg |
| Software Included | D-Link Network Assistant |
| SKU / EAN | DGS-1100-16V2/E | 790069467820 |
SINGULAR RECOMMENDS
For who
For small to medium business networks that need 16 Gigabit ports, smart management, and rack or desktop placement in one unit.
Real reason to buy it
It combines 16 Gigabit ports with smart management features and a fanless, rack-mountable design for flexible business deployment.
Know before
This is a smart switch, not an unmanaged model. It is listed as rack-mountable with a rack kit included, and it uses an internal power supply for AC 120/230 V input.
Features - D-Link - DGS-1100-16V2/E
Standard
16-Port
Port Speed
- 1 Gbps
More Details
Product Code
04:361843
EAN Code
790069467820
Manufacturer
D-Link
