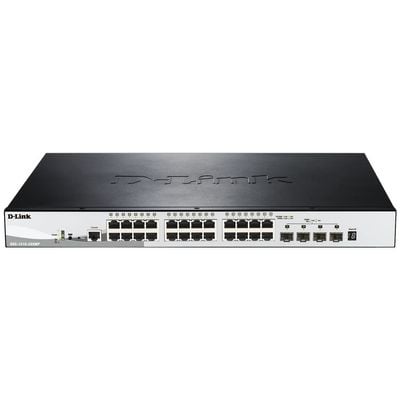

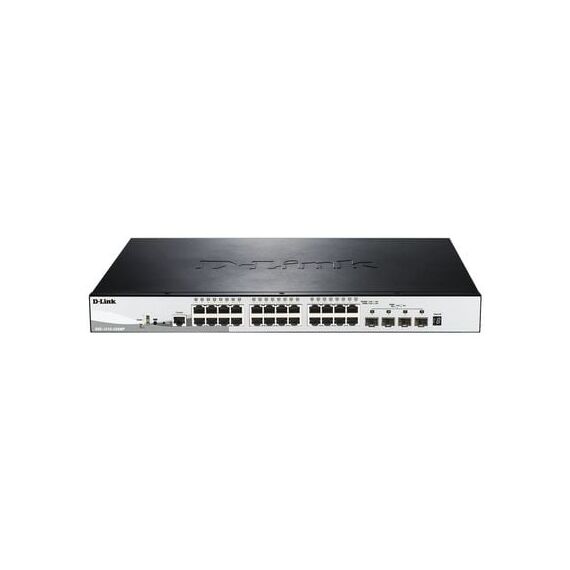

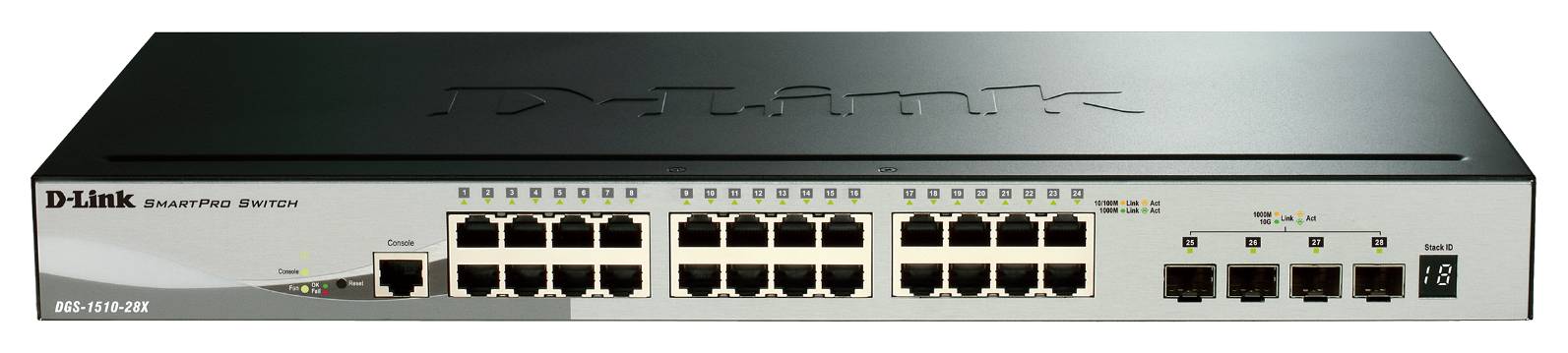

D-Link DGS 1510-28X / Switch / L3 / smart / 24 x 10/100/1000 + 4 x 10 Gigabit SFP+ / desktop, rack-mountable | DGS-1510-28X/E
Please sign in so that we can notify you about a reply
Product Specification
| Device Type | Switch - 28 ports - L3 - smart - stackable |
| Enclosure Type | Desktop, rack-mountable |
| Subtype | Gigabit Ethernet |
| Ports | 24 x 10/100/1000 + 4 x 10 Gigabit SFP+ |
| Performance | Switching capacity: 128 Gbps ¦ Forwarding rate (64-byte packets): 95.24 Mpps ¦ Stacking bandwidth: 40 Gbps |
| Capacity | Static MAC entries: 512 ¦ Packet buffer size: 1.5 MB ¦ IGMP groups: 512 ¦ Layer 2 multicast addresses: 128 ¦ VLAN IDs: 4094 ¦ MLD groups: 512 ¦ ACL rules: 768 |
| MAC Address Table Size | 16384 entries |
| Jumbo Frame Support | 9216 bytes |
| Max Units In A Stack | 6 |
| Routing Protocol | IGMPv2, IGMP, IGMPv3, static IPv4 routing, static IPv6 routing, MLDv2, MLD, MSTP, RSTP, STP |
| Remote Management Protocol | SNMP 1, RMON 1, Telnet, SNMP 3, SNMP 2c, TFTP, SSH-2, CLI, ICMP, DHCP |
| Encryption Algorithm | SSL, TLS, SSL 3.0, SSL 2.0, PEAP, TTLS |
| Authentication Method | RADIUS, TACACS+, Extensible Authentication Protocol (EAP) |
| Features | Flow control, auto-negotiation, auto-uplink (auto MDI/MDI-X), IGMP snooping, DoS attack prevention, port mirroring, store and forward, Broadcast Storm Control, full duplex mode, Multicast Storm Control, Unicast Storm Control, sFlow, Access Control List (ACL) support, DHCP server, MLD snooping, Dynamic ARP Inspection (DAI), Cable Diagnostics Function, bandwidth control, Port Security, DHCP client, Strict Priority Queuing (SPQ), Multicast filtering function, Class of Service (CoS), tagged VLAN, Generic VLAN Registration Protocol (GVRP), D-Link Single IP Management (SIM), Ethernet Ring Protection Switching (ERPS), Protocol-based VLANs support, Deficit Round Robin (DRR), dual image support, IP/Mac/Port Binding (IPMB), Guest VLAN, Weighted Round Robin (WRR), MAC based VLAN, Head-of-line (HOL) Blocking Prevention, loopback detection, Green Technology, Asymmetric VLAN, BPDU protection, Smart Fan, auto voice VLAN |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ab (LLDP) |
| Status Indicators | Power, fan, link/activity/speed, stack |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | 24 x 1000Base-T RJ-45 ¦ 4 x 10GBase-X SFP+ ¦ 1 x console RJ-45 management |
| Power | Power |
| Power Device | Internal power supply |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Power Consumption Operational | 22.3 Watt |
| Power Consumption Stand by | 15.2 Watt |
| Miscellaneous | Miscellaneous |
| MTBF | 516,593 hours |
| Compliant Standards | VCCI, C-Tick, BSMI, cUL, CB, CCC, FCC, IPv6 Ready |
| Localisation | Europe |
| Dimensions & Weight | Dimensions & Weight |
| Width | 44 cm |
| Depth | 21 cm |
| Height | 4.4 cm |
| Weight | 2 kg |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - lifetime |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | -5 °C |
| Max Operating Temperature | 50 °C |
| Humidity Range Operating | 0 - 95% (non-condensing) |
| Min Storage Temperature | -20 °C |
| Max Storage Temperature | 70 °C |
| Humidity Range Storage | 0 - 95% (non-condensing) |
Features - D-Link - DGS-1510-28X/E
General
24-Port
More Details
Product Code
04:445875
EAN Code
0790069467974
Manufacturer
D-Link
