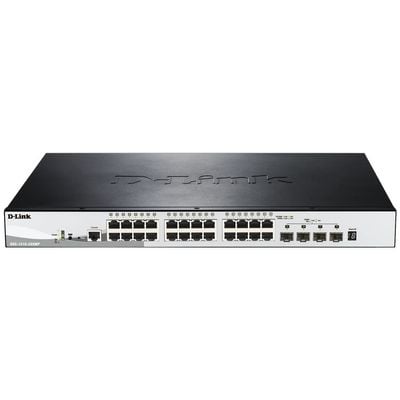

D-Link DGS 1510-28XMP / Switch / L3 / smart / 24 x 10/100/1000 (PoE+) + 4 x 10 Gigabit SFP+ / desktop, rack-mountable / PoE+ (370 W) | DGS-1510-28XMP/E
Please sign in so that we can notify you about a reply
Product Features
- 10G SFP+ stacking/uplink ports
Depending on whether linear or fault-tolerant ring stacking is implemented, users can use one or two 10-Gigabit SFP+ ports to create a physical stack. Six units or 288 Gigabit ports can be configured as a stack using optional direct attach cables to provide high bandwidth on the DGS-1510 Series with cost efficiency. Users can mix from any of the DGS-1510 SmartPro series in a single stack to allow simultaneous and easy configuration, management and troubleshooting. - Flexibility and scalability
The DGS-1510 Series supports virtual stacking via D-Link's Single IP Management (SIM), allowing up to 32 devices to be managed via a single IP. This simplifies management of small workgroups or wiring closets while allowing the network to be scaled to handle increased bandwidth demand. SIM reduces the number of IP address needed in the network and allows switches to be stacked together over Ethernet instead of using physical uplink or stacking ports. This eliminates the need for specialized stacking cables and removes distance barriers that can limit topology options when using other stacking technology. - Extensive layer 2 features
The DGS-1510 Series switches are equipped with a complete lineup of Layer 2 features including IGMP snooping, port mirroring, spanning tree, and Link Layer Discovery Protocol (LLDP). The IEEE 802.3x Flow Control function allows servers to directly connect to the switch for fast, reliable data transfer. At 2000 Mbps Full Duplex, the Gigabit ports provide high-speed data pipes to servers with minimum data transfer loss. Network maintenance features include loopback detection and cable diagnostics. Loopback Detection is used to detect loops created by a specific port or VLAN and automatically shut down the affected port or VLAN. The Cable Diagnostics feature, designed primarily for administrators and customer service representatives, can quickly discover the type of error on cables and determine the cable quality.
Special Features
- 10G SFP+ stacking/uplink ports
- Flexibility and scalability
- Extensive layer 2 features
Product Specification
| Device Type | Switch - 28 ports - L3 - smart - stackable |
| Enclosure Type | Desktop, rack-mountable |
| Subtype | Gigabit Ethernet |
| Ports | 24 x 10/100/1000 (PoE+) + 4 x 10 Gigabit SFP+ |
| Power Over Ethernet (PoE) | PoE+ |
| PoE Budget | 370 W |
| Performance | Switching capacity: 128 Gbps ¦ Forwarding performance (64-byte packet size): 95.24 Mpps ¦ Stacking bandwidth: 40 Gbps |
| Capacity | Static MAC entries: 512 ¦ IGMP groups: 512 ¦ Layer 2 multicast addresses: 128 ¦ MLD groups: 512 ¦ ACL entries: 256 ¦ ACL rules: 768 |
| MAC Address Table Size | 16384 entries |
| Jumbo Frame Support | 9216 bytes |
| Max Units In A Stack | 6 |
| Routing Protocol | IGMPv2, IGMP, IGMPv3, MLDv2, MLD |
| Remote Management Protocol | SNMP 1, RMON 1, Telnet, SNMP 3, SNMP 2c, HTTP, TFTP, CLI, ICMP |
| Encryption Algorithm | SSL, TLS, SSL 3.0, SSL 2.0, PEAP, TTLS |
| Authentication Method | RADIUS, TACACS+, Secure Shell v.2 (SSH2), Extensible Authentication Protocol (EAP) |
| Features | Flow control, full duplex capability, auto-negotiation, ARP support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, DoS attack prevention, port mirroring, Weighted Round Robin (WRR) queuing, store and forward, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, sFlow, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, Access Control List (ACL) support, Quality of Service (QoS), DHCP server, MLD snooping, Dynamic ARP Inspection (DAI), Cable Diagnostics Function, bandwidth control, D-Link Green Technology, LLDP support, DHCP client, Strict Priority Queuing (SPQ), Multicast filtering function, D-Link Single IP Management (SIM), DiffServ Code Point (DSCP) support, Ethernet Ring Protection Switching (ERPS), 2 fans, 1.5MB packet buffer, Deficit Round Robin (DRR), LLDP-MED, Weighted Round Robin (WRR), Head-of-line (HOL) Blocking Prevention, loopback detection, ARP spoofing |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.3at, IEEE 802.3az |
| Status Indicators | Power, error, fan, link/activity/speed, stack |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | 24 x 1000Base-T RJ-45 PoE+ - 30 W ¦ 4 x 10GBase-X SFP+ ¦ 1 x console RJ-45 management |
| Power | Power |
| Power Device | Internal power supply |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Power Consumption Stand by | 28.3 Watt |
| Miscellaneous | Miscellaneous |
| MTBF | 274,796 hours |
| Compliant Standards | VCCI, C-Tick, BSMI, cUL, CB, CCC, FCC |
| Localisation | Europe |
| Dimensions & Weight | Dimensions & Weight |
| Width | 44 cm |
| Depth | 30.8 cm |
| Height | 4.4 cm |
| Weight | 4.25 kg |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - lifetime |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | -5 °C |
| Max Operating Temperature | 50 °C |
| Humidity Range Operating | 0 - 95% (non-condensing) |
| Min Storage Temperature | -20 °C |
| Max Storage Temperature | 70 °C |
| Humidity Range Storage | 0 - 95% (non-condensing) |
Features - D-Link - DGS-1510-28XMP/E
General
24-Port
More Details
Product Code
CE80058
EAN Code
0790069467943
Manufacturer
D-Link
No posts found
