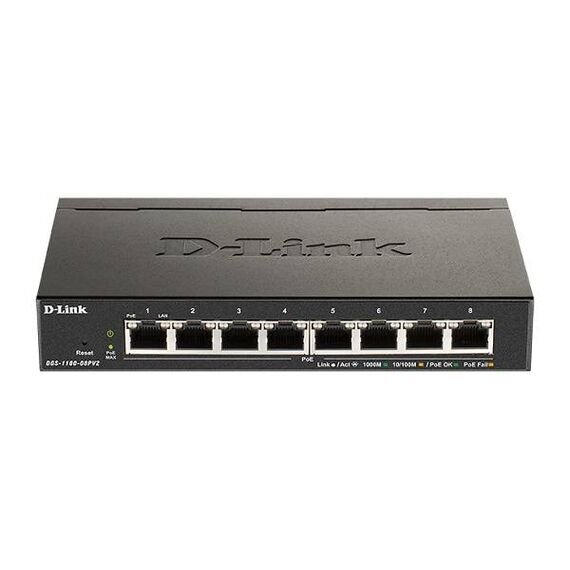

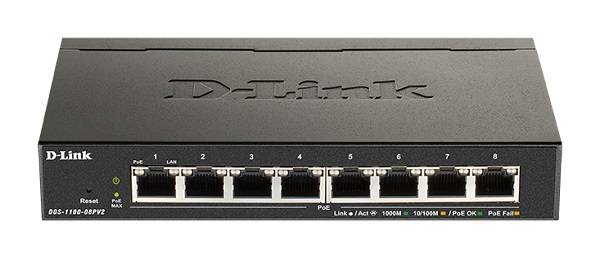

D-Link EasySmart Switch DGS-1100-08P / V2 / switch / smart / 8 x 10/100/1000 (PoE) / desktop / PoE (64 W) | DGS-1100-08PV2
Product Specification
| Device Type | Switch - 8 ports - smart |
| Enclosure Type | Desktop |
| Subtype | Gigabit Ethernet |
| Ports | 8 x 10/100/1000 (PoE) |
| Power Over Ethernet (PoE) | PoE |
| PoE Budget | 64 W |
| Performance | Switching capacity: 16 Gbps ¦ Forwarding performance: 11.9 Mpps |
| MAC Address Table Size | 4K entries |
| Remote Management Protocol | HTTP |
| Features | Flow control, Layer 2 switching, auto-negotiation, BOOTP support, ARP support, trunking, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, port mirroring, Weighted Round Robin (WRR) queuing, store and forward, Broadcast Storm Control, half duplex mode, full duplex mode, Multicast Storm Control, Unicast Storm Control, Quality of Service (QoS), Cable Diagnostics Function, bandwidth control, D-Link Green Technology, fanless, DHCP client, 1.5MB packet buffer, Weighted Round Robin (WRR) |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3at, IEEE 802.3az |
| Flash Memory | 2 MB |
| Status Indicators | Port transmission speed, power, link/activity |
| Interfaces | 8 x 1000Base-T RJ-45 PoE |

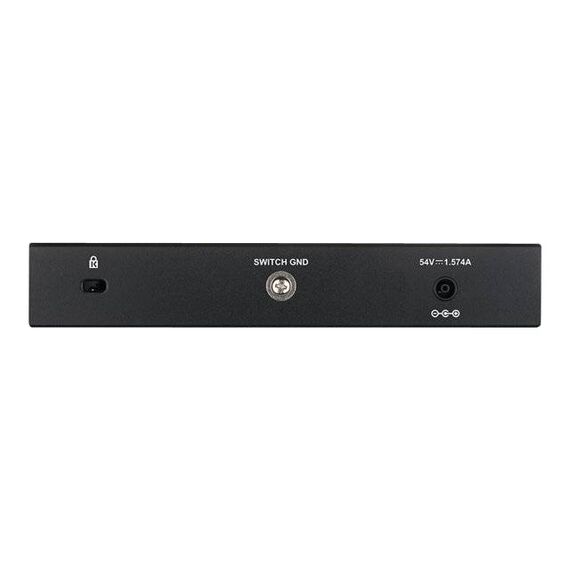

| Power Device | External power adapter |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Power Consumption Operational | 77.9 Watt |
| MTBF | 786,841 hours |
| Compliant Standards | FCC Class A certified, UL, BSMI, cUL, VCCI Class A ITE, LVD |
| Width | 17.1 cm |
| Depth | 9.78 cm |
| Height | 2.86 cm |
| Weight | 430 g |
| Service & Support | Limited warranty - lifetime |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 0 - 90% (non-condensing) |
| Min Storage Temperature | -40 °C |
| Max Storage Temperature | 70 °C |
| Humidity Range Storage | 0 - 95% (non-condensing) |
Features - D-Link - DGS-1100-08PV2/E
General
8-Port
More Details
Product Code
07:127761
EAN Code
0790069467813
Manufacturer
D-Link
