Datalogic BC9030 Base Station / Charger, 433 MHz STAR Radio, RS-232, USB and Keyboard Wedge, for PowerScan PM9500

Brand:
Datalogic
Datalogic V382486
Datalogic BC9030 Base Station / Charger, 433 MHz STAR Radio, RS-232, USB and Keyboard Wedge, for PowerScan PM9500
€348.18 inc. VAT
Buy
BC9030-433
€292.59
€348.18 inc. VAT
Ships from EU stock: 18 item(s)
+ −
Add to wish list Ask a question
Product Code
V382486
EAN Code
5052184362349
Manufacturer
Datalogic

Quick Specs

Type
Base station / charger
Interface
RS-232, USB, Keyboard Wedge
Key spec
433 MHz STAR radio, up to 100 m
Compatibility
PowerScan PM9500 series 433 MHz
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

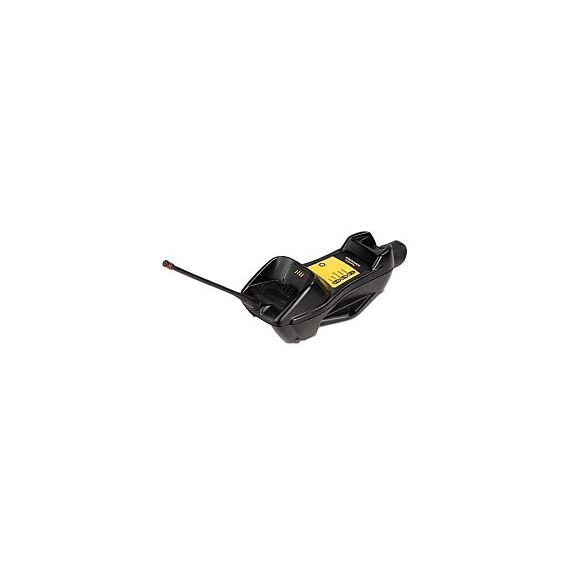

Datalogic BC9030-433 Base Station / Charger (433 MHz, Multi-Interface)

Datalogic STAR 433 MHzRS-232 / USB / KBWUp to 100 m rangeUp to 16 readers

The Datalogic BC9030-433 is the base station and charger for Datalogic PowerScan PM9500-series cordless scanners on the 433 MHz STAR radio, with RS-232, USB and keyboard wedge host interfaces in one unit. Datalogic lists it as "BC9030 Base Station/Charger, 433 MHz, Multi-Interface (RS-232, USB and KBD Wedge)".

STAR is Datalogic's narrow-band radio system: it does not interfere with Wi-Fi or Bluetooth, reaches around 100 m in open air and lets up to 16 readers work with one base, which suits warehouses, production lines and goods-in areas.

Before you order: The base only works with 433 MHz STAR scanners (current Datalogic list: PowerScan PM9501-DPM433RB and PM9501-DDPM433RB). 910 MHz and Bluetooth PowerScan versions are not compatible. The host interface cable and power supply are not included.

What's in the Box

  • 1 x Datalogic BC9030-433 base station / charger with desktop bracket
  • Metal mounting plate and wall mounting bracket
  • Quick Reference Guide
  • Interface cable and power supply are not included

What It Means in Practice

  • Charges the scanner and links it to the host by radio in one desktop or wall-mounted unit
  • Choose USB, RS-232 or keyboard wedge by ordering the right Datalogic cable (e.g. CAB-438 USB, CAB-433 RS-232)
  • Up to 16 PowerScan 433 MHz readers can work with one base
  • Power from the host port (5 V) or from an external 10–30 VDC supply for faster charging

What Will Not Work

  • 910 MHz STAR or Bluetooth PowerScan scanners
  • Ethernet networks (Datalogic offers the BC9180-433 for Ethernet)
  • Gryphon or QuickScan cordless scanners
  • Use without the matching Datalogic interface cable

Technical Specifications

Identification
Part Number BC9030-433
EAN / GTIN 5052184362349
MPN BC9030-433
Brand Datalogic
Radio
Radio Datalogic STAR, 433 MHz narrow band
Range Up to 100 m open air (50 m at 500 kb/s, 100 m at 19.2 kb/s)
Readers per base Up to 16
Interface and power
Host interfaces RS-232, USB, Keyboard Wedge
Power 10–30 VDC external (max 10 W charging) or 5 VDC from host (max 500 mA)
Cables (separate) CAB-438 USB, CAB-433 / CAB-434 RS-232, CAB-436 / CAB-437 KBW
Physical
Dimensions 235 x 108 x 80 mm (without antenna)
Weight approx. 390 g
Operating temperature -20 to +50 °C
Charging temperature 0 to 40 °C
Warranty
Warranty 1-Year Warranty (Singular)
Manufacturer Term Not published by the manufacturer — claims handled through Singular

Frequently Asked Questions

Will it work with my PowerScan PM9500 910 MHz scanner?
No. The frequency must match: this is the 433 MHz base, for 433 MHz STAR scanners only.
Is a USB cable included?
No. Order the Datalogic interface cable for your host: CAB-438 for USB, CAB-433 or CAB-434 for RS-232.
Do I need a power supply?
The base can run from the host port at 5 V, but for full-speed charging Datalogic pairs it with an external 12 V power adapter.
Singular Expert Insight · Buyer's Guide
With Datalogic cordless scanners the base, scanner frequency and cable must all match. Tell us the scanner model printed on its label and the host connection, and we will quote the complete set. More barcode scanner accessories.
✓ Buy it if you run Datalogic PowerScan PM9500-series scanners on 433 MHz and need a replacement or extra base.
✕ Skip it if your scanners are 910 MHz or Bluetooth, or you need an Ethernet base.
→ Also consider Datalogic BC9180-433 Ethernet base station.
Not sure which base and cable fit your scanners? Send us the scanner label model and your host connection and we will check before you order.
