Datalogic Heron HD3130-BK 1D Barcode Scanner with Stand, Cable Separate, Black

Brand:
Datalogic

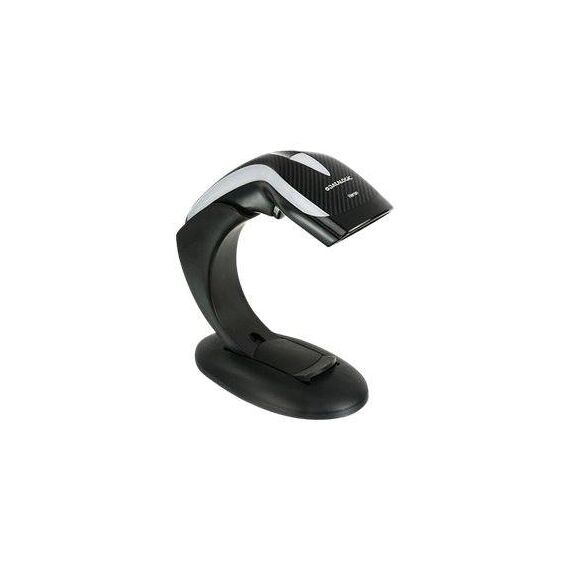

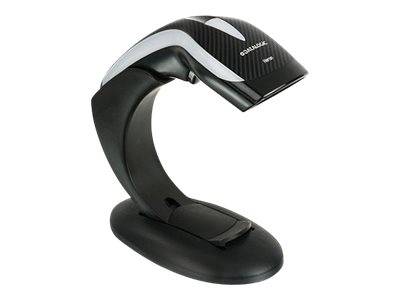

Datalogic Heron HD3130-BK black 1D linear barcode scanner with stand
Datalogic Heron HD3130-BK 1D Barcode Scanner with Stand, Cable Separate, Black
€166.41 inc. VAT
Buy
HD3130-BK
€139.84
€166.41 inc. VAT
Ships from EU stock: 7 item(s)
+ −
Add to wish list Ask a question
Product Code
V382820
EAN Code
5712505456767
Manufacturer
Datalogic

Quick Specs

Reading
1D linear CCD
Read rate
Up to 270 reads/s
Stand
Included
Cable
Sold separately
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

A styled 1D checkout reader with its stand

1D onlyStand includedCable separate

The black Heron HD3130-BK is a corded linear imager for a customer-facing checkout. It combines a 2500-pixel CCD engine, configurable light and sound feedback and Datalogic Green Spot confirmation. The stand is included; the host interface cable must be selected separately.

Before you order:
HD3130-BK is not the BKK1B USB kit. Choose the correct USB, RS232 or keyboard-wedge cable for your POS before ordering. It reads 1D codes, not QR or Data Matrix.

What's in the Box

  • Heron HD3130-BK black 1D scanner
  • Stand
  • Interface cable not included

What It Means in Practice

  • Automatic switching between handheld and hands-free operation.
  • Green Spot projects good-read feedback on the code.
  • Adjustable beeper and side/top lights support visible and audible confirmation.

What Will Not Work

  • No 2D QR/Data Matrix decoding.
  • No Bluetooth or battery operation.
  • IP40 provides no rated water protection.

Key Features


Purpose-built linear reading
Supports standard 1D formats, GS1 DataBar and listed GS1 stacked formats with up to 270 reads/s.

Visual checkout presence
The curved body, decorated top and configurable lighting make the Heron suitable when counter appearance matters. Custom branding options require separate arrangements.

Stand supplied, cable chosen by host
The included stand supports presentation use. Multi-interface electronics support USB, RS232 and keyboard wedge, with the appropriate separately purchased cable.

Technical Specifications

Identification
Manufacturer SKU HD3130-BK
EAN / GTIN 5712505456767
Configuration
Included stand Yes
Interface cable Not included
Scanning
Engine Linear CCD, 2500 pixels
Maximum read rate 270 reads/s
Resolution 0.100 mm / 4 mil
Minimum contrast 15%
Linear formats Standard 1D including GS1 DataBar
Postal China Post
Stacked formats GS1 DataBar Expanded Stacked / Stacked / Stacked Omnidirectional
Reading feedback Green Spot, good-read LED, side/top illumination, adjustable beeper
Typical reading depth
5 mil 5–15 cm
10 mil 2–35 cm
13 mil 2–40 cm
20 mil 2–60 cm
Range conditions Symbol length, angle, print resolution, contrast and ambient light dependent
Interfaces and power
Interfaces RS232 / USB / Keyboard Wedge
Input voltage 5 VDC ±5%
Typical operating current Below 300 mA @ 5 VDC
Maximum operating current Below 500 mA @ 5 VDC
Physical and environmental
Colour Black
Dimensions 152 × 153 × 68 mm
Weight 150 g
Protection IP40
Repeated drops 1.5 m to concrete
Ambient light 0–100000 lux
ESD air discharge 16 kV
Humidity 5–90%, non-condensing
Operating temperature 0–50 °C
Storage / transport temperature −20–70 °C
Tools Datalogic Aladdin, OPOS, JavaPOS

Frequently Asked Questions

Is a USB cable included?
No. The manufacturer lists HD3130-BK as a scanner with stand. USB-cable kits have different part numbers such as HD3130-BKK1B.
Does 60 cm apply to every label?
No. The datasheet lists 2–60 cm for 20 mil codes but 5–15 cm for 5 mil codes; print quality, symbol length, angle and lighting affect the result.
Singular Expert Insight
Choose the Heron for a styled counter and visible Green Spot feedback when your codes are linear. Its included stand does not make this a complete USB kit; budget the correct cable, or compare an explicitly bundled USB version. Compare barcode scanners

Buyer’s Guide

✓

Buy it if

 You scan 1D labels and value checkout appearance and hands-free use.
✕

Skip it if

 You need QR, Data Matrix, cordless use or water resistance.
→

Also consider

 Compare Heron USB kits for cable inclusion and 2D imagers for QR.
Tell us your POS model, application and barcode examples so we can check the connection requirements.
