Datalogic Heron HD3130 Barcode Scanner | 1D CCD Linear Imager | USB Kit | Black

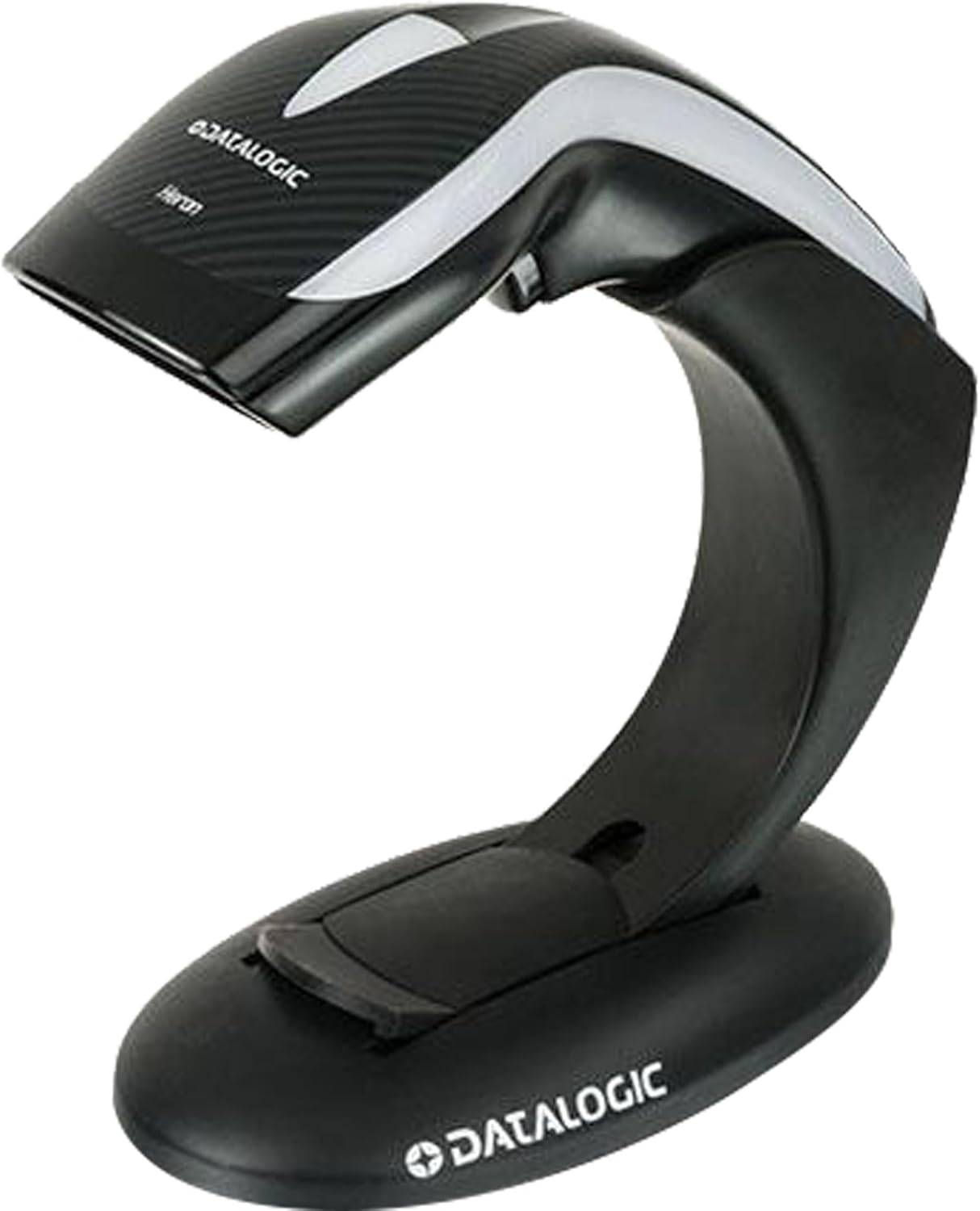

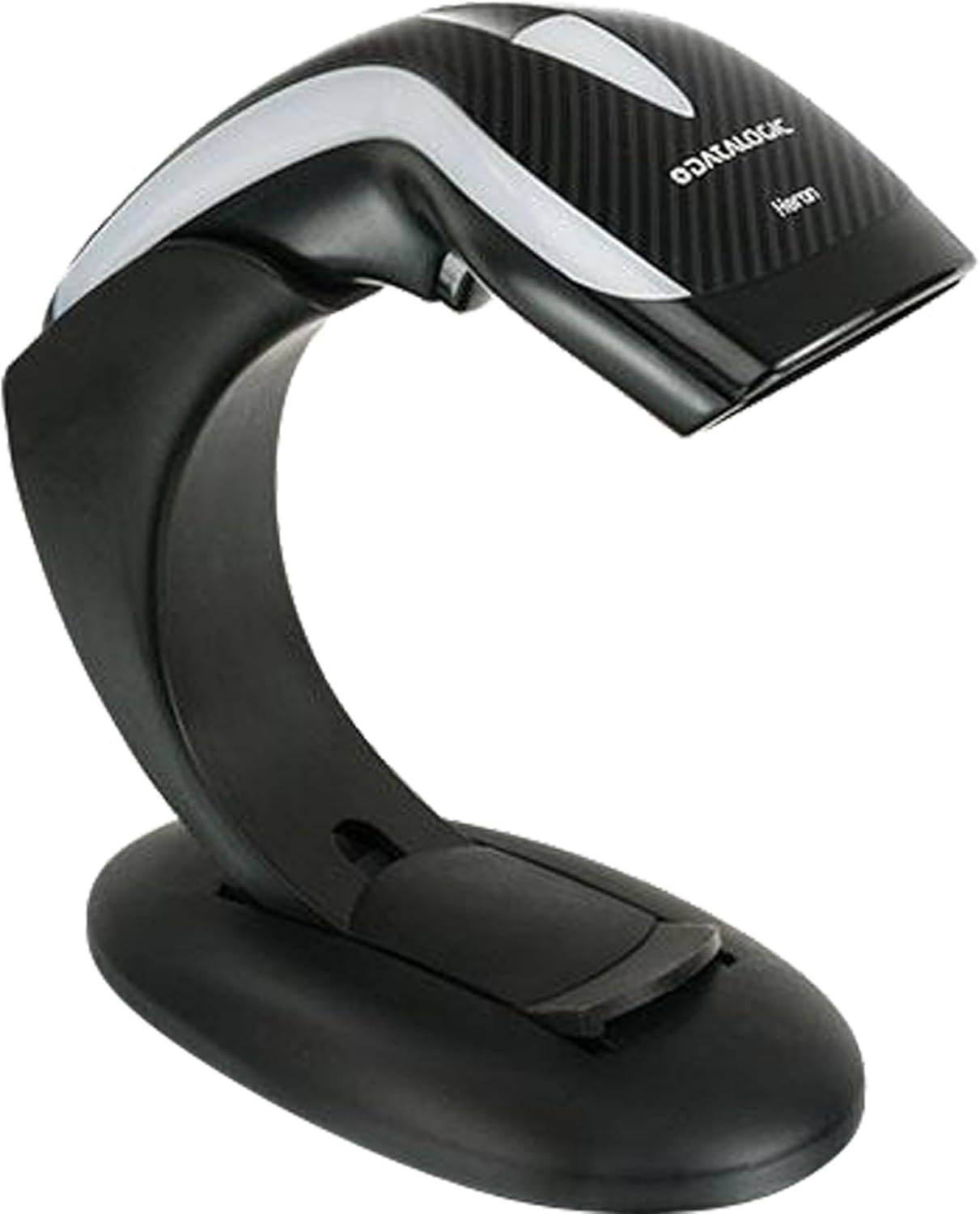

Datalogic Heron HD3130 Barcode Scanner
1D CCD Linear Imager · USB Kit · Green Spot · Stand Included · Black
The Datalogic Heron HD3130 is a premium 1D linear CCD barcode scanner designed to elevate the point-of-sale experience in retail and boutique environments. Where most 1D scanners are purely functional, the HD3130 is designed to impress — with an elegant silhouette, customizable polychromatic LED lighting, and a polyphonic speaker that can be programmed to match your brand identity. Datalogic's patented Green Spot technology confirms each successful scan with a visible green dot on the barcode, eliminating missed scans and reducing operator errors. This USB kit includes the scanner, stand, and USB cable.
| SKU | HD3130-BKK1B |
| EAN | 5712505336786 |
| Scanner Type | 1D Linear CCD Imager |
| Scan Rate | 270 scans/sec |
| Scan Range | Contact to 60 cm (0–23.6 in) |
| Barcodes | All standard 1D linear codes · GS1 DataBar · Stacked codes · China Post |
| Green Spot | Datalogic patented Green Spot technology — projects green dot on barcode to confirm good decode |
| Audio Feedback | Polyphonic speaker · Programmable tones |
| LED Lighting | Programmable polychromatic LEDs (sides & top) · Customizable per brand |
| Interfaces | USB · RS-232 · Keyboard Wedge (KBW) · Multi-interface |
| Scanning Modes | Handheld · Hands-free presentation (auto-switches in stand) |
| IP Rating | IP40 |
| Drop Resistance | 1.5 m to concrete |
| Dimensions | 152 × 69 × 153 mm |
| Weight | 150 g |
| Colour | Black |
| Top Cover Design | Carbon Fiber or Silver in-mold decoration (customizable) |
| Warranty | 5 years |
| In the Box | HD3130 Scanner · USB Cable (90A052065) · Stand |
BUYER'S GUIDE
Best For: Retail boutiques, fashion stores, pharmacies, and premium POS environments where aesthetics matter as much as performance. The HD3130 is the scanner to choose when you want a device that enhances your brand image at the final customer touchpoint.
1D Only — Know Before You Buy: The HD3130 reads 1D barcodes exclusively. If your workflow involves QR codes on loyalty apps, 2D coupons, or product Data Matrix codes, you will need a 2D imager such as the Datalogic Gryphon GD4520 or the Zebra DS2208.
5-Year Warranty: The HD3130 comes with a 5-year warranty — significantly longer than most scanners in this category — reducing total cost of ownership for high-traffic POS deployments.
Kit Contents: This BKK1B kit includes the scanner, USB cable, and stand. If you need RS-232 connectivity, purchase the appropriate Datalogic RS-232 cable separately (90A051230 or 90A051330).
