Datalogic RS-232 Serial Cable 4.5 m, 9-Pin D-Sub, for Magellan 9800i, 9550i, 3400VSi, 3600VSi and 3700HSi Scanners
Brand:
Datalogic
Datalogic RS-232 Serial Cable 4.5 m, 9-Pin D-Sub, for Magellan 9800i, 9550i, 3400VSi, 3600VSi and 3700HSi Scanners
€27.86 inc. VAT
90A052121
Delivery
Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
Trusted Tech Choice
Buying Benefits
Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Please sign in so that we can notify you about a reply

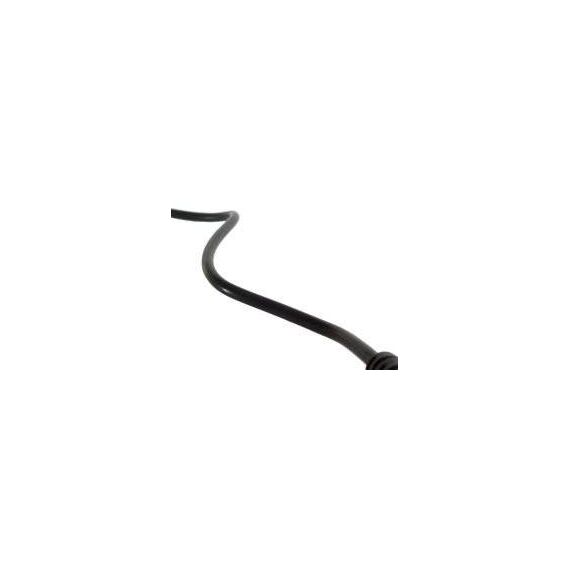

Datalogic RS-232 Serial Cable, ICL/PC, 9-Pin D-Sub, 4.5 m
RS-232 serial9-pin D-sub4.5 m / 15 ftMagellan in-counter
The Datalogic 90A052121 is a 4.5 m RS-232 serial interface cable with a 9-pin D-sub (DB9) host connector, ICL/PC type, that links Magellan 9800i, 9550i, 3400VSi, 3600VSi and 3700HSi in-counter scanners to the COM port of a PC, POS terminal or ICL-compatible host.
Serial connection is still common on older POS systems, scale integrations and industrial PCs. This cable lets a current Magellan scanner work with that legacy host without converters, at the 15 ft length Datalogic uses for its in-counter cables.
Before you order: Datalogic offers several RS-232 variants for Magellan scanners (PC 25-pin, Wincor/Beetle, SASI Super Star, PC Scale). This one is the ICL/PC 9-pin version. If your host is a Wincor Nixdorf Beetle or needs a scale cable, tell us the POS model and we will match the correct part.
What's in the Box
- 1 × Datalogic RS-232 cable, ICL/PC, 9-pin D-sub, 4.5 m (90A052121)
What It Means in Practice
- Connects a Magellan scanner to a standard 9-pin COM port on a PC or POS.
- 4.5 m allows the host to sit under or behind the checkout.
- Keeps legacy serial POS software working when you upgrade to a newer Magellan scanner.
- The scanner must be set to RS-232 mode; Datalogic provides the programming barcodes in the scanner's guide.
What Will Not Work
- Will not connect to a USB port; for USB use 90A052135 (Magellan 9800i/9550i) or the USB cable listed for your model.
- Not the Wincor/Beetle, 25-pin, SASI or PC Scale RS-232 variant.
- Not listed for the Magellan 3500HSi or for handheld scanners.
- Does not supply power to the scanner; the scanner keeps its own power supply.
Key Features
ICL/PC wiring
Datalogic's 9-pin variant for PC COM ports and ICL hosts, so standard serial POS software receives scanner data without adapters.
One cable, five Magellan models
Listed for both bi-optic (9800i, 9550i) and single-plane (3400VSi, 3600VSi, 3700HSi) Magellan scanners, which simplifies spares across lanes.
15 ft reach
The same 4.5 m length Datalogic uses for its in-counter host cables, so a replacement follows the original routing.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight · Buyer's Guide
When a site upgrades scanners but keeps an older serial POS, the RS-232 variant is what decides whether the lane works on day one. Check the host type first (PC/ICL, Beetle or scale), then order the matching cable. For other cabling around the checkout, see our cables range.
✓ Buy it if Buy it if you connect a Magellan 9800i, 9550i, 3400VSi, 3600VSi or 3700HSi to a 9-pin PC or ICL serial port.
✕ Skip it if Skip it if your POS uses USB, a Wincor Beetle port, a 25-pin serial port or needs a scale cable.
→ Also consider Also consider 90A052125 (RS-232, PC, 25-pin, 4.5 m) or 90A052129 (RS-232, 9-pin, Beetle, 4.5 m) for those hosts.
Not sure it fits your setup? Send us the model of your rack, switch or device and we will check compatibility before you order.
Features - Datalogic - 90A052121
Length
5m
More Details
Product Code
V383017
EAN Code
5711783317661
Manufacturer
Datalogic
