Datalogic Gryphon GBT4200 1D Bluetooth Scanner USB Kit, Inductive Charging Base, Black

Brand:
Datalogic
Datalogic Gryphon GBT4200 Black Bluetooth 1D Scanner with WLC4190 Charging Base
Datalogic Gryphon GBT4200 1D Bluetooth Scanner USB Kit, Inductive Charging Base, Black
€315.3 inc. VAT
Buy
GBT4200-BK-BTK1
€264.96
€315.30 inc. VAT
Ships from EU stock: 18 item(s)
+ −
Add to wish list Ask a question
Product Code
04:518408
EAN Code
5704174282846
Manufacturer
Datalogic
Features
Bluetooth, Wireless

Quick Specs

Barcode type
1D linear · not QR
Wireless
Bluetooth 5.0 · up to 100 m open air
Charging
Inductive · 2550 mAh
Package
Scanner + WLC4190 base + USB
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

Cordless 1D scanning with contact-free charging

1D onlyBluetooth 5.0Inductive chargingUSB kit

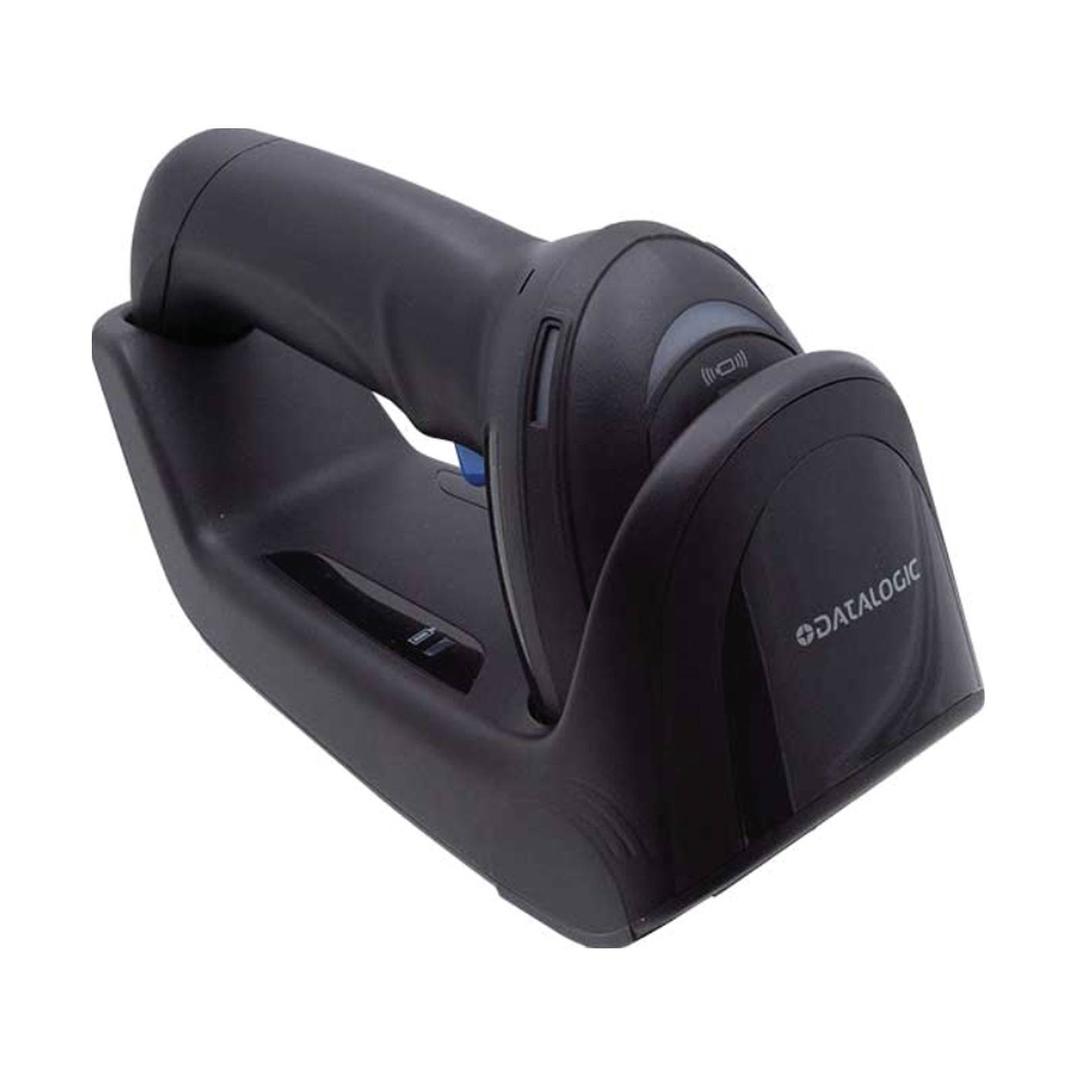

This black Gryphon GBT4200 kit supplies the 1D scanner, WLC4190-BK-BT base and USB host cable 90A052258. Scan a linear label away from the counter; the Bluetooth link carries the data to the base and connected host application. Put the scanner back in the inductive cradle to recharge without metal charging contacts. It reads 1D codes on paper and screens, but does not decode QR or other 2D codes.

Before you order:
Choose GBT4200 for Bluetooth 1D operation. GM4200 uses the separate STAR radio system; neither is a 2D imager. The 4 h charge reference requires external 12 V power, which is not listed in this USB kit.

What's in the Box

  • Black GBT4200 scanner
  • WLC4190-BK-BT inductive charging/radio base
  • USB cable 90A052258

What Will Not Work

  • QR, Data Matrix and PDF417 require a suitable2D reader.
  • Radio range is not guaranteed indoors; 100 m is an open-air base-station reference.

Key Features


Inductive cradle
No exposed charging contacts need mating for recharge. Use the approved power arrangement; wireless charging does not mean charging from any Qi pad.

Visible good-read feedback
Green Spot projects a successful-read indication on the code, supported by 3GL and sound. Motionix helps switch to a ready-to-read state when picked up.

Bluetooth versus STAR
GBT uses Bluetooth with HID/SPP; the GM alternative uses proprietary narrow-band STAR. Choose according to host architecture and actual site coverage, not only product appearance.

Technical Specifications

Identity & kit
MPN GBT4200-BK-BTK1
EAN 5704174282846
Colour / type Black cordless 1D linear imager
Included Scanner, WLC4190-BK-BT inductive base, USB cable 90A052258
Dimensions / weight 16.6 × 6.8 × 10.9 cm / 235 g with battery
Radio & power
Radio Bluetooth 5.0 certified Class1/2/3; 2.4 GHz; HID, SPP
Range Up to 100 m open air using base; other Bluetooth hosts may differ
Piconet / security Up to 7 readers per receiver; encryption, scanner authentication
Base host interfaces WLC4190: USB Type-C / USB / RS232
Battery Replaceable Li-ion 2550 mAh
Charging / capacity Inductive; 4 h with external 12 V DC; manufacturer 80000 reads per charge
Base input 4.5–14 V DC ±5%
Current WLC4190 charging below 1200 mA maximum; scanner 750 mA max from battery; cradle 80 mA at 5 V operative
Base LEDs Flashing orange charging / steady green complete
Reading
Engine / codes CCD solid-state; all standard 1D including GS1 DataBar; printed and mobile-screen 1D
Maximum rate 1,000,000 pixels/s / 400 reads/s
Light / contrast Dual LED 612–630 nm / 15% minimum
Reading angles Pitch ±65° / roll ±45° / skew ±65°
Resolution 0.077 mm / 3 mil
Feedback / activation Green Spot, dual good-read LEDs, 3GL, adjustable beeper; Motionix soft-line viewfinder
Typical ranges
Conditions Minimum distance depends on symbol length/angle; print resolution, contrast and ambient light affect range
Code39 5 mil 5.0–37 cm
Code39 7.5 mil 5.0–54 cm
Code39 10 mil 5.0–73.5 cm
Code39 20 mil 2.5–147 cm
EAN/UPC 13 mil 3.5–90 cm
Environment & support
Housing Disinfectant-ready; follow approved cleaning instructions
Protection / drops IP52; repeated 1.8 m drops to concrete
ESD / ambient light 16 kV air / 0–130,000 lux
Operating / storage 0–50 °C / −20–70 °C
Humidity 0–95% RH, non-condensing
Utilities Datalogic Aladdin, OPOS, JavaPOS; remote host download
Compliance EU/China RoHS; LED exempt IEC62471
Manufacturer term 3-year factory warranty for cordless models

Frequently Asked Questions

Can it scan a QR coupon from a phone?
No. Screen reading applies to supported linear 1D codes, not QR or other 2D formats.
Is 80,000 a runtime in hours?
It is the manufacturer number of reads per charge. It must not be presented as 80 hours of guaranteed use.
What is included in BTK1?
The black scanner, WLC4190-BK-BT base and 90A052258 USB cable. External12 V power is not listed.
Singular Expert Insight
Choose this kit when the work consists of linear product labels and operators move away from a fixed counter. Its inductive cradle reduces charging-contact maintenance, but it does not add 2D reading. If QR tickets or Data Matrix labels are expected, change the reading class before comparing wireless range. Compare 1D and 2D cordless scanners

Buyer’s Guide

✓

Buy it if

 You need cordless linear-code scanning and an inductive USB base kit.
✕

Skip it if

 You need QR, Data Matrix or guaranteed indoor 100 m coverage.
→

Also consider

 A 2D cordless imager for mixed code types, or GM4200 STAR for a narrow-band radio installation.
Confirm host application, actual barcode samples, site coverage and power arrangement before deployment.
