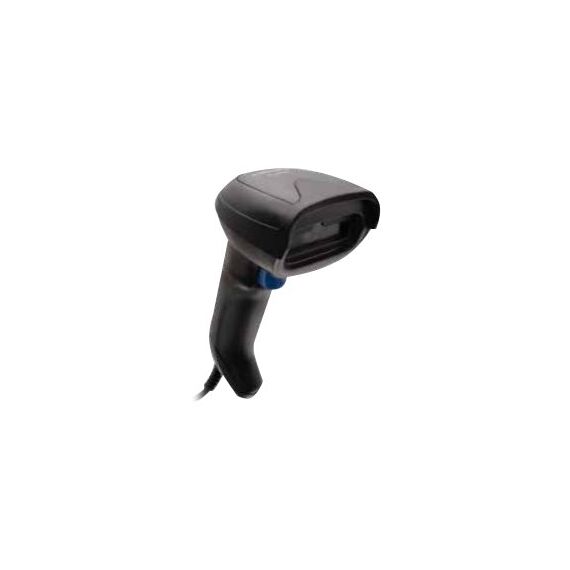

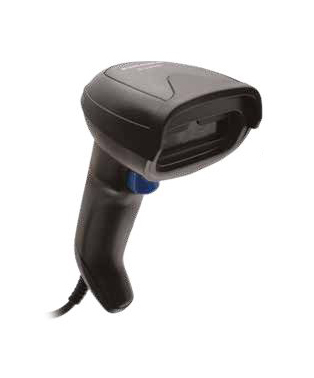

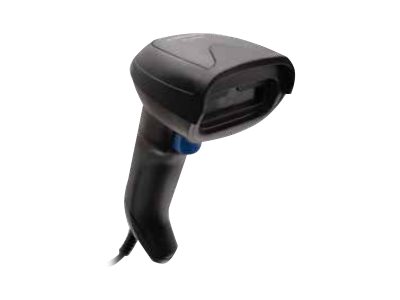

Datalogic Gryphon GD4290 1D Linear Imager Barcode Scanner, USB / RS-232, Black, Scanner Only

Brand:
Datalogic

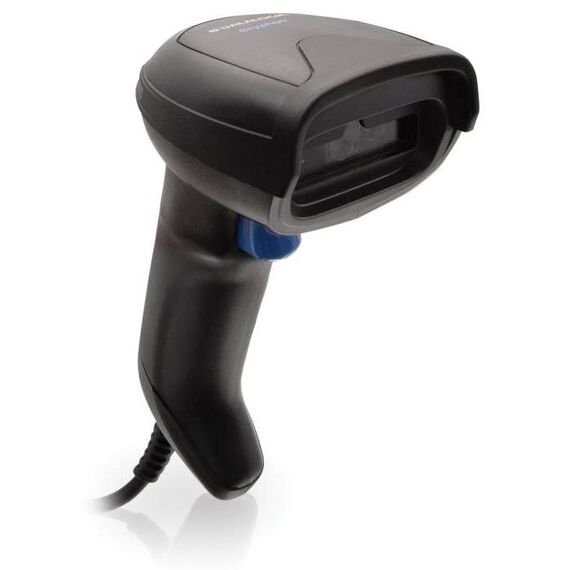

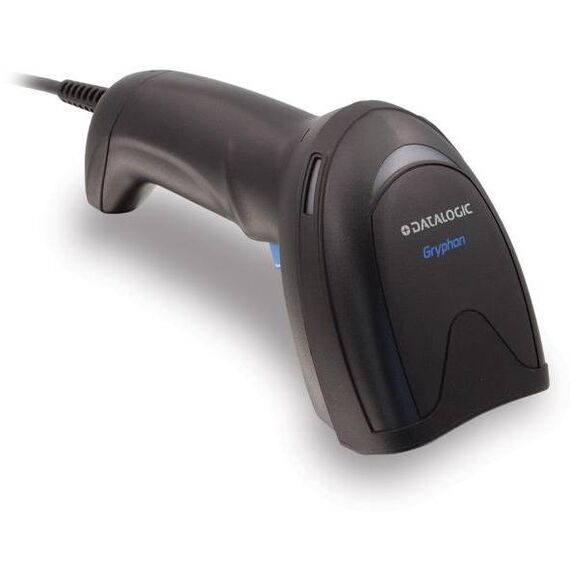

Datalogic Gryphon GD4290 Black Corded 1D Barcode Reader
Datalogic Gryphon GD4290 1D Linear Imager Barcode Scanner, USB / RS-232, Black, Scanner Only
€113.15 inc. VAT
Buy
GD4290-BK
€95.08
€113.15 inc. VAT
Ships from EU stock: 63 item(s)
+ −
Add to wish list Ask a question
Product Code
CA25157
EAN Code
5059902033499
Manufacturer
Datalogic

Quick Specs

Reading
1D CCD · paper and screens
Connection
USB / RS-232 multi-interface
Protection / weight
IP52 · 163 g
Package
Black scanner only · cable separate
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

GD4290: Corded 1D imaging with Green Spot feedback

1D CCDScreen readingMotionixCable separate

The GD4290 is the corded, multi-interface member of the Gryphon 4200 family. It reads linear barcodes on labels and mobile screens, with a soft aiming line and Green Spot confirmation. It is a 1D reader, so QR workflows require a different 2D model.

Before you order:
GD4290-BK is scanner only. Choose the interface cable separately; no wireless base, battery or Bluetooth is included. Wireless charging claims for other Gryphon 4200 models do not apply to this wired unit.

What's in the Box

  • GD4290-BK black scanner

What It Means in Practice

  • Read linear phone codes as well as printed labels.
  • Green Spot and dual LEDs confirm a successful read.
  • Motionix supports transitions between handheld and stand use with an optional stand.

What Will Not Work

  • No QR, Data Matrix or PDF417 decoding.
  • No wireless operation; a suitable interface cable is required.

Key Features


Linear CCD capture
Supports standard 1D formats including GS1 DataBar and can read linear barcodes from screens.

Targeted feedback
The soft aiming line helps select a code; Green Spot, dual good-read LEDs and an adjustable beeper confirm capture.

Daily deployment
IP52 sealing and a disinfectant-ready housing support routine work and cleaning according to manufacturer instructions.

Technical Specifications

Identification
Manufacturer SKU GD4290-BK
EAN / GTIN 5059902033499
Reading
Sensor / light CCD solid-state · dual LED 612–630 nm
Decode / resolution Standard 1D including GS1 DataBar · 0.077 mm / 3 mil
Read rate maximum 400 reads/s · 1000000 pixels/s
Minimum contrast 15%
Angles Pitch ±65° / roll ±45° / skew ±65°
Feedback 3GL / Green Spot / dual LEDs / adjustable beeper
Typical depth of field
Code 39 5 mil: 5–37 cm · 7.5 mil: 5–54 cm · 10 mil: 5–73.5 cm · 20 mil: 2.5–147 cm
EAN / UPC 13 mil: 3.5–90 cm
Range conditions Dependent on symbol length, angle, printing resolution, contrast and light
Host / power
Interfaces USB Type-C / USB / RS-232; appropriate cable required
Input voltage 4.5–14 V DC
Operating typical current Below 350 mA @ 5 V / 150 mA @ 12 V
Idle typical current Below 60 mA @ 5 V / 30 mA @ 12 V
Utilities Datalogic Aladdin / OPOS / JavaPOS / remote host download
Physical / environment
Dimensions / weight 166 × 68 × 109 mm · 163 g
Colour / housing Black · disinfectant-ready
Sealing / drops IP52 · repeated 1.8 m drops on concrete
Operating / storage 0–50°C / −20–70°C
Humidity / ambient light 0–95% non-condensing · 0–130000 lux
ESD air discharge 16 kV
LED / environmental compliance IEC 62471 exempt group · EU / China RoHS

Frequently Asked Questions

Is this a wireless Gryphon?
No. GD4290 is wired; GBT and GM models are different configurations.
Can it read QR on a phone?
No. Screen reading applies to supported linear 1D codes, not 2D QR codes.
Singular Expert Insight
Choose GD4290 for linear-code POS work where wired reliability, screen reading and visible feedback matter. Include the correct host cable in your installation plan. Compare barcode scanners

Buyer’s Guide

✓

Buy it if

 You need a corded 1D imager with clear feedback.
✕

Skip it if

 You need 2D codes or a complete USB bundle.
→

Also consider

 A 2D area imager for QR and Data Matrix.
Tell us your POS model, application and barcode examples so we can check the connection requirements.
