Datalogic Gryphon GD4620-BKK1-HD Wired USB 2D HD Scanner Kit

Brand:
Datalogic

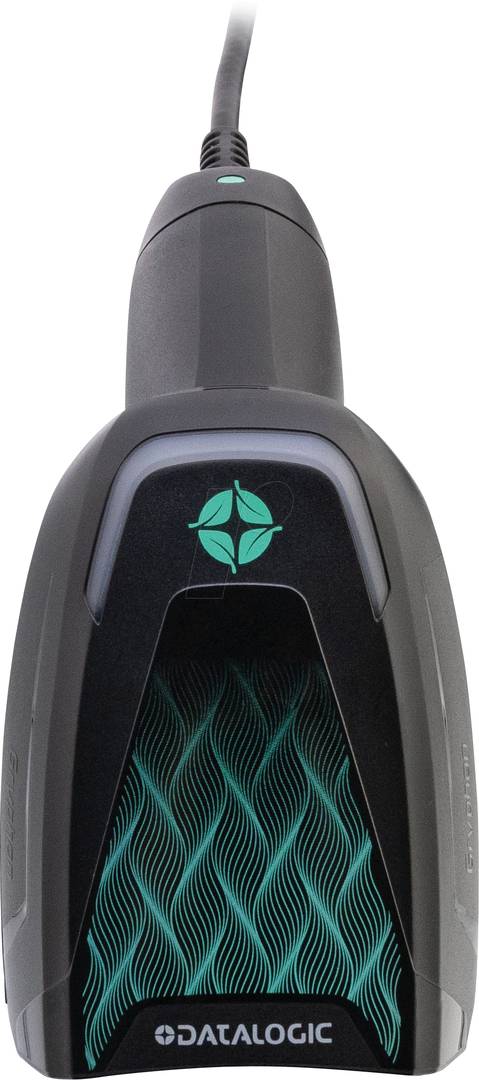

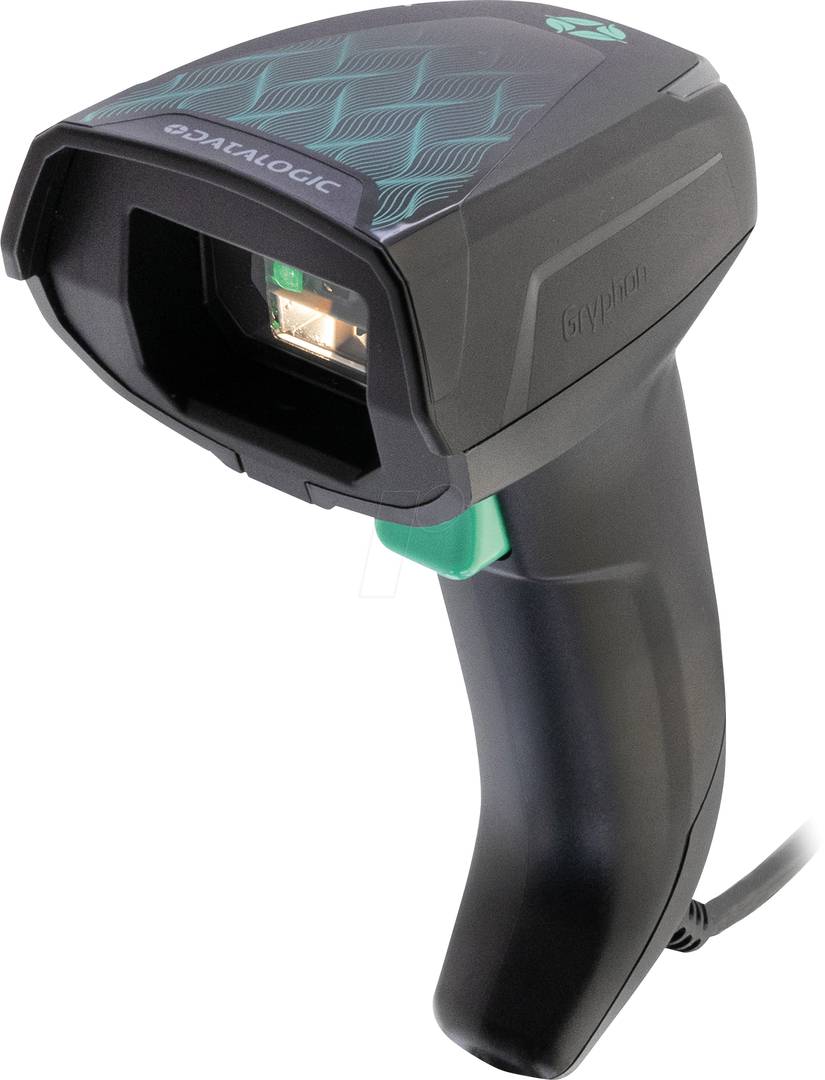

Datalogic Gryphon GD4620-BKK1-HD black wired scanner front-angle view, exact-SKU Reichelt distributor image; USB cable included, stand separate
Datalogic Gryphon GD4620-BKK1-HD Wired USB 2D HD Scanner Kit
€265.92 inc. VAT
Buy
GD4620-BKK1-HD
€223.46
€265.92 inc. VAT
Ships from EU stock: 10 item(s)
+ −
Add to wish list Ask a question
Product Code
04:591780
EAN Code
9900004236553
Manufacturer
Datalogic
Quick Specs
Optics
HD single sensor
Connection
Wired USB-only
Colour
Black
Cable
90A052258 included
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

High Density USB scanning with the correct cable included

HD single sensor1D + 2DWired USB-onlyUSB cable kit

The Datalogic Gryphon GD4620-BKK1-HD is a black wired High Density scanner supplied with USB cable 90A052258. Its single-sensor imaging engine reads supported 1D and 2D labels and screen codes, with green crosshair aiming, adaptable illumination and Green Spot good-read feedback. This is the cable kit, without a stand or presentation base.

Best For: Retail, service and light-industry workstations reading compact or dense barcodes through a wired USB POS connection.
Before you order: The exact BKK1-HD kit includes the scanner and USB cable 90A052258. A stand or presentation base is separate; BKK1S and BKK1B are different kits. Confirm host input mode and test the smallest actual labels before installation.

What's in the Box

  • Black Datalogic Gryphon GD4620 HD scanner.
  • Datalogic USB cable 90A052258.
  • Stand, presentation base and host computer are separate.

What It Means in Practice

  • Connect to a compatible USB host using the supplied Datalogic 90A052258 cable.
  • Aim at dense labels using the green crosshair and confirm the read with Green Spot/LED or the beeper.
  • Read supported product labels and screen barcodes at distances appropriate to their size and contrast.
  • Configure symbologies and host input settings for the actual application.

What Will Not Work

  • No stand or presentation base is included in the exact BKK1-HD kit.
  • No Bluetooth, battery or cordless charging in this wired model.
  • The HD engine is single-sensor; HP dual-sensor optics and longer read ranges belong to other models.
  • USB-only does not provide the RS-232 multi-interface capability of GD4690.
  • IP52 is not a waterproof or immersion rating.

Key Features


High Density imaging
1.5 MP single sensor for compact 1D and 2D code reading.

Included USB cable
Datalogic cable 90A052258 is supplied for the wired 5 V USB workflow.

Comfortable targeting
Green crosshair aimer and dual-colour warm white/red illumination.

Clear read feedback
Green Spot, good-read LED and adjustable beeper help confirm scans.

Technical Specifications

Exact modelGD4620-BKK1-HD, black USB cable kit
ConditionNew
EngineHigh Density single sensor
Imager resolution1.5 MP, 1360 × 1120 pixels
Barcode capability1D, 2D, stacked, supported postal formats and GS1 Digital Link
InterfaceUSB Type-C / USB-only with compatible host cable
Input voltage5 V DC ±5%
Current at 5 VOperating below 300 mA; standby/idle below 70 mA
AimingGreen central cross LED
IlluminationDual-colour warm white and red LED
Good-read feedbackGreen Spot, good-read LED and adjustable beeper
Example HD range13 mil EAN/UPC up to 50 cm under specified test conditions
Minimum contrast15%
Maximum resolution1D/PDF417 3 mil; Data Matrix 4 mil
Dimensions180 × 65 × 79 mm
Scanner weight144 g, cable additional
Sealing / drop ratingIP52 / manufacturer-rated repeated 1.8 m concrete drops
Operating conditions0–50°C, 0–95% RH non-condensing
Included cableUSB 90A052258

Frequently Asked Questions

Is the USB cable supplied?
Yes. GD4620-BKK1-HD includes USB cable 90A052258 with the scanner.
Is a stand included?
No. A stand or presentation base is separate. BKK1S and BKK1B identify different kits.
Is it wireless?
No. It is a 5 V wired USB-only scanner without Bluetooth, a battery or wireless charging.
Is HD the HP dual-sensor engine?
No. HD uses one 1.5 MP sensor with its own reading-distance specifications.
Singular Expert Insight

Choose BKK1-HD when the installation needs a wired HD scanner and the correct host cable, with freedom to select a stand separately. Confirm the actual label size and POS input mode. The kit suffix controls supplied accessories, while the HD engine remains distinct from HP dual-sensor models.

Buyer’s Guide

✓ Buy it if You need wired USB High Density scanning and an included USB cable, without a supplied stand.
✕ Skip it if You need a stand in the kit, cordless mobility, RS-232 or HP dual-sensor optics.
→ Also consider POS input settings, smallest labels, screen-code use and an optional stand or base.
