Datalogic Gryphon GD4620-BKK1B-HD USB 2D Scanner Kit with Presentation Base

Brand:
Datalogic

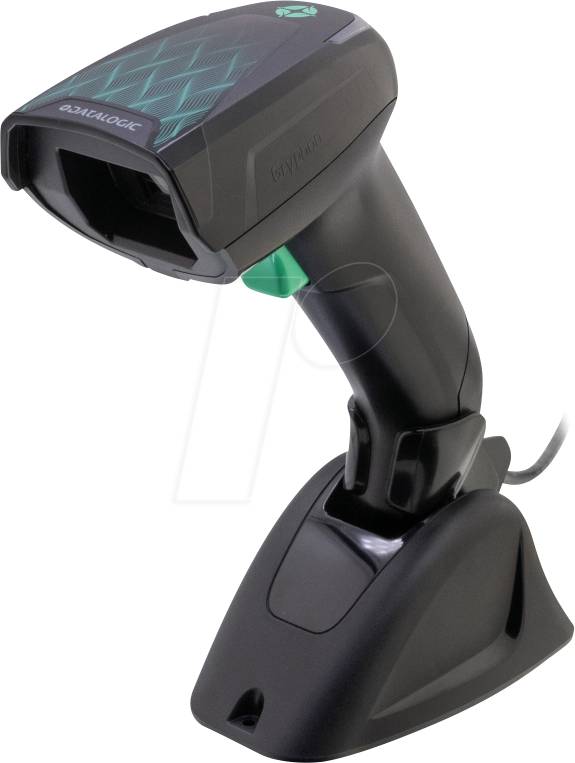

Datalogic Gryphon GD4620-BKK1B-HD black wired scanner on included PM-BASE-GD46-BK presentation base, exact-SKU Reichelt distributor image
Datalogic Gryphon GD4620-BKK1B-HD USB 2D Scanner Kit with Presentation Base
€276.09 inc. VAT
Buy
GD4620-BKK1B-HD
€232.01
€276.09 inc. VAT
Ships from EU stock: 5 item(s)
+ −
Add to wish list Ask a question
Product Code
04:591783
Manufacturer
Datalogic
Quick Specs
Optics
HD single sensor
Connection
Wired USB-only
Base
PM-BASE-GD46-BK
Cable
90A052258 included
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

Wired HD barcode scanning with an included presentation base

HD single sensor1D + 2DUSB-onlyPresentation base kit

The black Datalogic Gryphon GD4620-BKK1B-HD is a wired High Density scanner kit with the PM-BASE-GD46-BK presentation base and USB cable 90A052258. Its single-sensor imager reads supported 1D/2D labels and screen codes, while green crosshair aiming and Green Spot feedback support clear operator confirmation.

Best For: Retail, service and light-industry workstations reading compact or dense barcodes through a wired USB POS connection.
Before you order: This exact BKK1B-HD configuration includes the PM-BASE-GD46-BK presentation base. It differs from the cable-only BKK1 and STD-G041-BK stand kit BKK1S. The base is for the wired scanner, not a cordless charging cradle. Confirm host input settings and the actual labels before installation.

What's in the Box

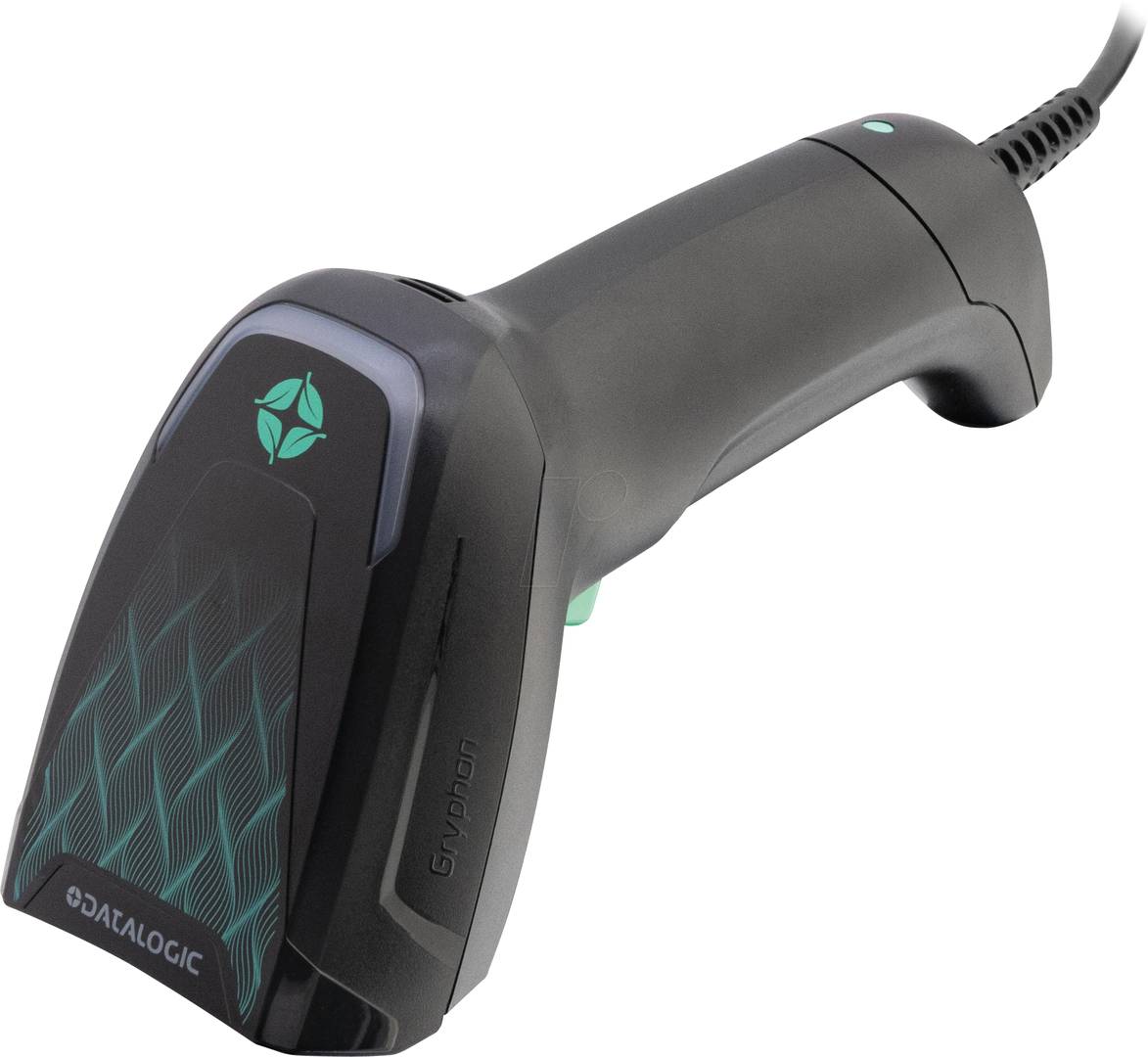

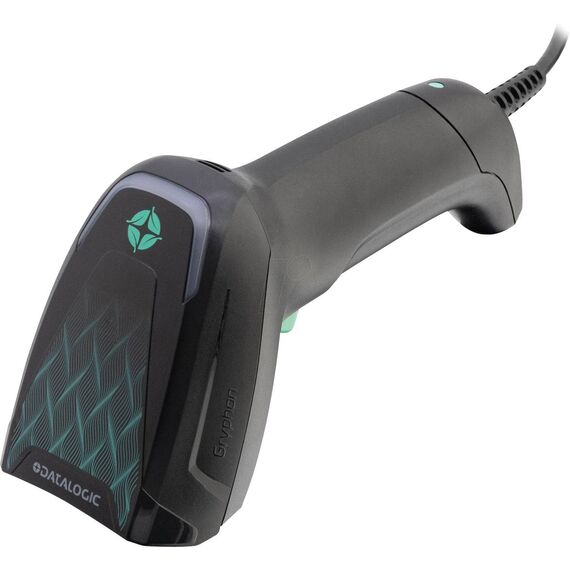

  • Black Datalogic Gryphon GD4620 HD scanner.
  • PM-BASE-GD46-BK presentation base.
  • USB cable Datalogic 90A052258.
  • Host computer is separate.

What It Means in Practice

  • Connect the supplied USB cable to a compatible host and position the scanner in its presentation base as required.
  • Aim at dense labels using the green crosshair and confirm the read with Green Spot/LED or the beeper.
  • Read supported product labels and screen barcodes at distances appropriate to their size and contrast.
  • Configure symbologies and host input settings for the actual application.

What Will Not Work

  • The included presentation base is not the STD-G041-BK stand or a cordless charging cradle.
  • No Bluetooth, battery or cordless charging in this wired model.
  • The HD engine is single-sensor; HP dual-sensor optics and longer read ranges belong to other models.
  • USB-only does not provide the RS-232 multi-interface capability of GD4690.
  • IP52 is not a waterproof or immersion rating.

Key Features


High Density imaging
1.5 MP single sensor for compact 1D and 2D code reading.

Presentation setup
PM-BASE-GD46-BK and USB cable 90A052258 are included in this exact kit.

Comfortable targeting
Green crosshair aimer and dual-colour warm white/red illumination.

Clear read feedback
Green Spot, good-read LED and adjustable beeper help confirm scans.

Technical Specifications

Exact modelGD4620-BKK1B-HD, black presentation-base-and-cable kit
ConditionNew
EngineHigh Density single sensor
Imager resolution1.5 MP, 1360 × 1120 pixels
Barcode capability1D, 2D, stacked, supported postal formats and GS1 Digital Link
InterfaceUSB Type-C / USB-only with compatible host cable
Input voltage5 V DC ±5%
Current at 5 VOperating below 300 mA; standby/idle below 70 mA
AimingGreen central cross LED
IlluminationDual-colour warm white and red LED
Good-read feedbackGreen Spot, good-read LED and adjustable beeper
Example HD range13 mil EAN/UPC up to 50 cm under specified test conditions
Minimum contrast15%
Maximum resolution1D/PDF417 3 mil; Data Matrix 4 mil
Dimensions with presentation base210 × 75 × 109 mm
Weight with presentation base426 g
Sealing / drop ratingIP52 / manufacturer-rated repeated 1.8 m concrete drops
Operating conditions0–50°C, 0–95% RH non-condensing
Included base and cablePM-BASE-GD46-BK and USB 90A052258
Scanner alone180 × 65 × 79 mm, 144 g

Frequently Asked Questions

What does BKK1B-HD include?
The black GD4620 HD scanner, PM-BASE-GD46-BK presentation base and USB cable 90A052258.
Is the base a wireless charger?
No. This is a wired USB-only scanner with a presentation holder, without a rechargeable battery or Bluetooth.
Is this the STD-G041-BK stand kit?
No. That is the different BKK1S configuration. This exact kit has PM-BASE-GD46-BK.
Does 426 g refer to the handheld scanner?
No. It is the manufacturer’s corded configuration with presentation base. The scanner alone weighs 144 g.
Singular Expert Insight

Choose the exact BKK1B-HD kit when a presentation base is part of the counter setup. Distinguish its 426 g assembled configuration from the 144 g handheld scanner. Test labels and host settings, and do not confuse the wired holder with a cordless charging base.

Buyer’s Guide

✓ Buy it if You need wired HD scanning with the PM-BASE-GD46-BK presentation base and USB cable included.
✕ Skip it if You need a different desk stand, cordless mobility, RS-232 or HP dual-sensor optics.
→ Also consider Counter space, presentation position, actual labels and host input configuration.
