Datalogic Gryphon GD4620-BKK1S-HD USB 2D HD Scanner Kit with Stand

Brand:
Datalogic

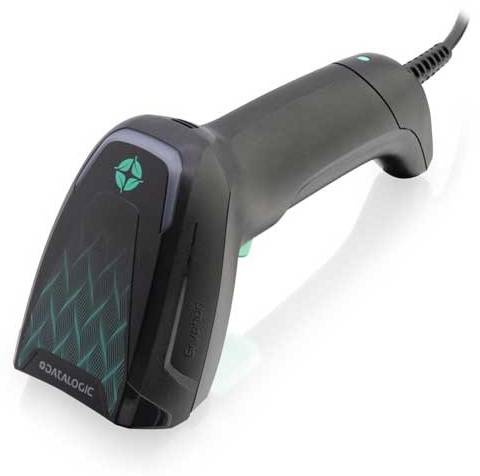

Datalogic Gryphon GD4620-BKK1S-HD black wired HD scanner from exact-SKU distributor listing; kit includes STD-G041-BK stand and USB cable, stand not shown
Datalogic Gryphon GD4620-BKK1S-HD USB 2D HD Scanner Kit with Stand
€270.37 inc. VAT
Buy
GD4620-BKK1S-HD
€227.20
€270.37 inc. VAT
Ships from EU stock: 1 item(s)
+ −
Add to wish list Ask a question
Product Code
04:591787
Manufacturer
Datalogic
Quick Specs
Optics
HD single sensor
Connection
Wired USB-only
Stand
STD-G041-BK included
Cable
90A052258 included
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

Wired HD scanning, supplied with a desk stand and USB cable

HD single sensor1D + 2DUSB-onlyStand + cable kit

The black Datalogic Gryphon GD4620-BKK1S-HD is a High Density wired barcode scanner kit for compatible USB workstations. Its single-sensor imager reads supported 1D and 2D labels and screen codes, while Green Spot feedback confirms successful reads. This exact kit includes the STD-G041-BK stand and USB cable 90A052258.

Best For: Retail, service and light-industry workstations reading compact or dense barcodes through a wired USB POS connection.
Before you order: The BKK1S-HD kit includes the scanner, STD-G041-BK stand and USB cable 90A052258. It differs from cable-only BKK1 and presentation-base BKK1B configurations. Confirm POS input mode and actual label density; the phone and computer in the application image are not supplied.

What's in the Box

  • Black Datalogic Gryphon GD4620 HD scanner.
  • STD-G041-BK stand.
  • Datalogic USB cable 90A052258.
  • Host computer and illustrative phone are separate.

What It Means in Practice

  • Connect the included USB cable to a compatible host and keep the scanner ready in the supplied desk stand.
  • Aim at dense labels using the green crosshair and confirm the read with Green Spot/LED or the beeper.
  • Read supported product labels and screen barcodes at distances appropriate to their size and contrast.
  • Configure symbologies and host input settings for the actual application.

What Will Not Work

  • This is the specific STD-G041-BK stand kit, not the BKK1B presentation-base configuration.
  • No Bluetooth, battery or cordless charging in this wired model.
  • The HD engine is single-sensor; HP dual-sensor optics and longer read ranges belong to other models.
  • USB-only does not provide the RS-232 multi-interface capability of GD4690.
  • IP52 is not a waterproof or immersion rating.

Key Features


High Density imaging
1.5 MP single sensor for compact 1D and 2D code reading.

Desk-ready kit
The supplied STD-G041-BK stand and 90A052258 USB cable simplify a fixed workstation setup.

Comfortable targeting
Green crosshair aimer and dual-colour warm white/red illumination.

Clear read feedback
Green Spot, good-read LED and adjustable beeper help confirm scans.

Technical Specifications

Exact modelGD4620-BKK1S-HD, black stand-and-cable kit
ConditionNew
EngineHigh Density single sensor
Imager resolution1.5 MP, 1360 × 1120 pixels
Barcode capability1D, 2D, stacked, supported postal formats and GS1 Digital Link
InterfaceUSB Type-C / USB-only with compatible host cable
Input voltage5 V DC ±5%
Current at 5 VOperating below 300 mA; standby/idle below 70 mA
AimingGreen central cross LED
IlluminationDual-colour warm white and red LED
Good-read feedbackGreen Spot, good-read LED and adjustable beeper
Example HD range13 mil EAN/UPC up to 50 cm under specified test conditions
Minimum contrast15%
Maximum resolution1D/PDF417 3 mil; Data Matrix 4 mil
Dimensions180 × 65 × 79 mm
Weight144 g scanner only; stand and cable additional
Sealing / drop ratingIP52 / manufacturer-rated repeated 1.8 m concrete drops
Operating conditions0–50°C, 0–95% RH non-condensing
Included stand and cableSTD-G041-BK and USB cable 90A052258

Frequently Asked Questions

What does this exact kit include?
The GD4620 HD scanner, STD-G041-BK stand and USB cable 90A052258. It is not the cable-only or presentation-base kit.
Is it wireless?
No. This is a 5 V wired USB-only scanner, without Bluetooth or a battery.

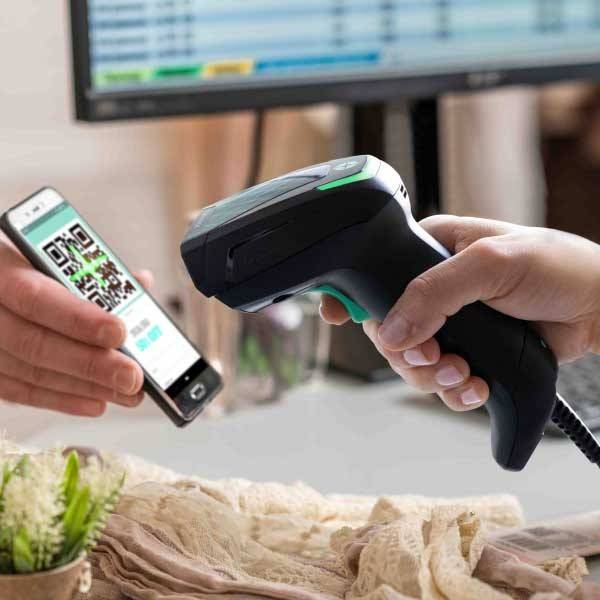

Does the application photo add a phone or computer?
No. They illustrate screen-code reading and are not supplied.
Is HD the HP dual-sensor engine?
No. HD uses one 1.5 MP sensor with its own reading-distance specifications.
Singular Expert Insight

Choose BKK1S-HD when you need both a wired HD scanner and a place to keep it at the desk. Verify actual labels and POS input mode first. The exact stand and cable suffix matters: a cable-only kit or a presentation-base kit has different contents.

Buyer’s Guide

✓ Buy it if You need wired HD barcode scanning with the STD-G041-BK stand and USB cable included.
✕ Skip it if You need cordless mobility, HP dual-sensor optics or the different presentation-base kit.
→ Also consider Host settings, smallest labels, counter space and the exact required stand configuration.
