Datalogic Gryphon GD4690-BKK1-HP Wired USB 2D Scanner Kit

Brand:
Datalogic

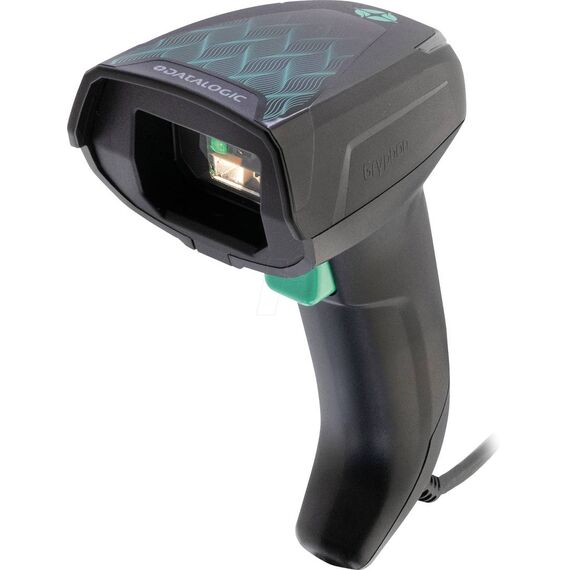

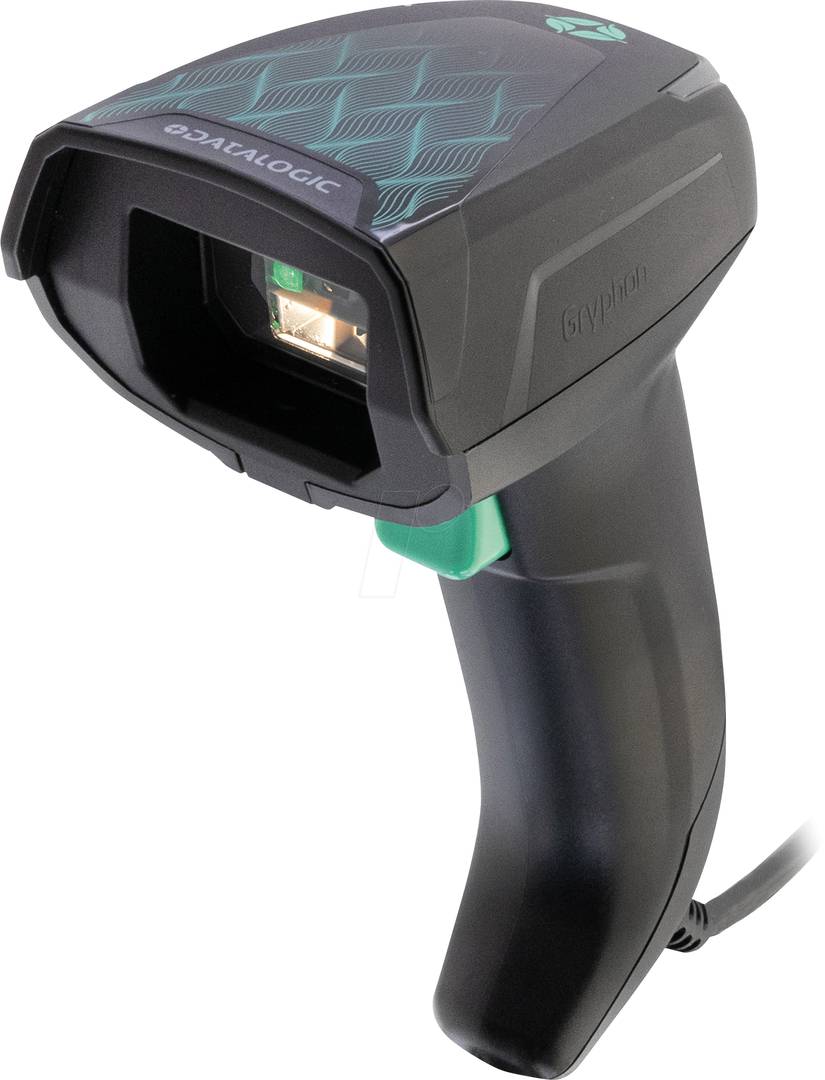

Datalogic Gryphon GD4690-BKK1-HP black wired scanner front-angle view from exact-SKU Reichelt distributor gallery; USB cable included, stand separate
Datalogic Gryphon GD4690-BKK1-HP Wired USB 2D Scanner Kit
€276.23 inc. VAT
Buy
GD4690-BKK1-HP
€232.13
€276.23 inc. VAT
Ships from EU stock: 15 item(s)
+ −
Add to wish list Ask a question
Product Code
04:591067
Manufacturer
Datalogic
Quick Specs
Optics
HP dual sensor
Interfaces
USB / RS-232
Connection
Wired
Cable
USB 90A052258 included
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

HP dual-sensor reading with USB and RS-232 flexibility

HP dual sensor1D + 2DUSB / RS-232USB cable included

The black Datalogic Gryphon GD4690-BKK1-HP is a wired High Performance dual-sensor scanner kit with USB/RS-232 multi-interface capability. Its 1.5 MP plus VGA optics read supported 1D/2D labels and screen codes, with green crosshair aiming and Green Spot confirmation. This exact kit includes USB cable 90A052258; a stand, RS-232 cable and any required external power supply are separate.

Best For: Retail, service and light-industry workstations reading compact or dense barcodes through a wired USB POS connection.
Before you order: The kit supplies a USB cable, while RS-232 operation requires suitable separate cabling and power arrangements. It is the wired HP GD4690, distinct from USB-only HD GD4620 and cordless GM/GBT models. Confirm host input mode and test actual labels before installation.

What's in the Box

  • Black Datalogic Gryphon GD4690 HP scanner.
  • Datalogic USB cable 90A052258.
  • Stand, presentation base, RS-232 cable, any required external power adapter and host computer separate.

What It Means in Practice

  • Connect to a compatible USB host using the supplied Datalogic 90A052258 cable.
  • Aim at dense labels using the green crosshair and confirm the read with Green Spot/LED or the beeper.
  • Read supported product labels and screen barcodes at distances appropriate to their size and contrast.
  • Configure symbologies and host input settings for the actual application.

What Will Not Work

  • No stand or presentation base is included in this cable kit.
  • No Bluetooth, battery, wireless charging or cordless vibration.
  • HP uses dual sensors; do not confuse it with GD4620 HD single-sensor configuration.
  • RS-232 cabling and any required external supply are separate despite multi-interface capability.
  • IP52 does not permit immersion.

Key Features


High Performance optics
1.5 MP plus VGA sensors support flexible reading across code sizes and distances.

Host interface choice
USB Type-C/USB and RS-232 multi-interface, with USB cable 90A052258 supplied.

Comfortable targeting
Green crosshair aimer and dual-colour warm white/red illumination.

Clear read feedback
Green Spot, good-read LED and adjustable beeper help confirm scans.

Technical Specifications

Exact modelGD4690-BKK1-HP, black USB cable kit
ConditionNew
Reading engineHigh Performance dual sensor
Imager1.5 MP plus VGA sensors
Barcode capability1D, 2D, stacked, supported postal formats and GS1 Digital Link
InterfacesUSB Type-C / USB / RS-232 multi-interface
Input voltage4.5–14 V DC +/-5%
Operating / idle currentAt 5 V: below 300/70 mA; at 12 V: below 150/40 mA
AimingGreen central cross LED
IlluminationDual-colour warm white and red LED
Good-read feedbackGreen Spot, good-read LED and adjustable beeper
Example HP read range13 mil EAN/UPC up to 100 cm under specified test conditions
Minimum contrast15%
Maximum resolution1D/PDF417 3 mil; Data Matrix 4 mil
Dimensions180 × 65 × 79 mm
Scanner weight144 g, cable additional
Sealing / drop ratingIP52 / manufacturer-rated repeated 1.8 m concrete drops
Operating conditions0–50°C, 0–95% RH non-condensing
Included cableUSB 90A052258

Frequently Asked Questions

Is the USB cable supplied?
Yes. This exact kit includes Datalogic 90A052258.
Does RS-232 capability mean an RS-232 cable is supplied?
No. The included cable is USB. Choose suitable RS-232 cabling and power separately as required.
Is it the same as GD4620 HD?
No. GD4690 HP has dual-sensor optics and USB/RS-232 multi-interface, while GD4620 HD is single-sensor and USB-only.
Is a stand included?
No. Choose the required stand or presentation base separately.
Singular Expert Insight

Choose GD4690 HP when dual-sensor optics and host-interface flexibility matter. The included USB cable supports the USB kit workflow, while an RS-232 installation still needs its correct cable and power plan. Test real labels instead of assuming one universal reading distance.

Buyer’s Guide

✓ Buy it if You need wired HP dual-sensor scanning with USB/RS-232 flexibility and a supplied USB cable.
✕ Skip it if You need cordless mobility, a stand in the kit or a healthcare housing configuration.
→ Also consider Exact host cable, RS-232 power needs, label sizes and optional stand.

Features - Datalogic - GD4690-BKK1-HP

Colour
black
Interface
  • USB Type-C
