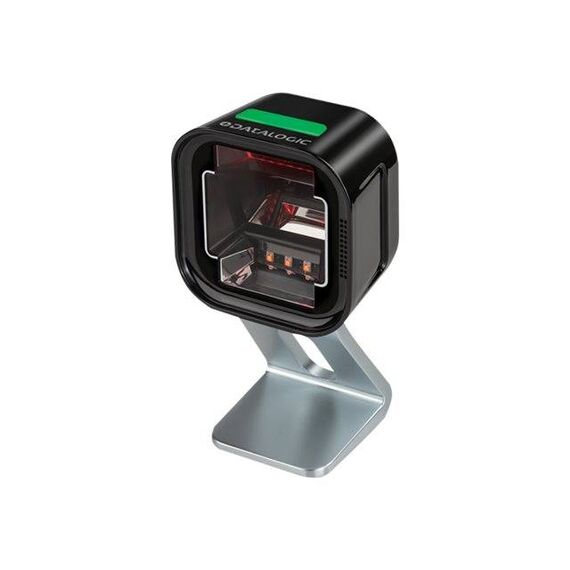

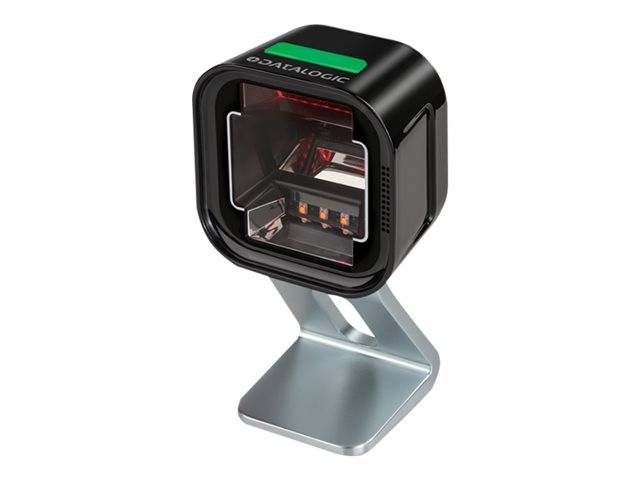

Datalogic Magellan 1500i | Omnidirectional 1D/2D Presentation Scanner | USB | Tilting Stand | Motion Sensing | Black
Overview
The Datalogic Magellan 1500i is a high-performance omnidirectional presentation scanner designed for point-of-sale environments where both speed and versatility are essential. Its 2D area imager reads 1D and 2D barcodes — including mobile coupons, digital loyalty cards, boarding passes, and QR codes on smartphone screens — as well as printed labels, at up to 59 in./sec (150 cm/sec).
The stand configuration (MG1501-10211-0200) includes the tilting stand with magnetic base for counter-top presentation scanning. Motion sensing technology automatically detects when the scanner is picked up and switches it from hands-free presentation mode to handheld trigger mode — and back again when placed in the stand. Recessed adaptive illumination reduces reflection and eliminates flickering that causes operator discomfort during extended use.
Note: The EAN provided by the distributor for this SKU is 5706998778789.
Key Specifications
| Scanning Technology | 2D Omnidirectional Area Imager | Standard Range |
| Scan Speed | 59.1 in./sec (150 cm/sec) |
| Symbologies | 1D & 2D: QR Code, DataMatrix, PDF417, Code 128, UPC/EAN, and all popular codes | Optional Digimarc |
| Scan Surface | Printed labels + mobile phone/tablet screens |
| Scanning Modes | Omnidirectional presentation (hands-free) + Handheld trigger | Motion-sensing auto-switch |
| Motion Sensing | Yes — automatically switches handheld ↔ presentation when picked up or placed in stand |
| Illumination | Recessed adaptive illumination — reduces reflection, eliminates flickering |
| Connectivity | USB 2.0 | RS-232, Keyboard Wedge also supported |
| Power | Host powered via USB — no external power supply required |
| Color | Black (also available in White) |
| In the Box | Magellan 1500i scanner, tilting stand with magnetic base, USB-A cable (4.5 m / 15 ft) |
| Warranty | 3-year manufacturer warranty | EASEOFCARE plans available |
| Part Number | MG1501-10211-0200 |
| EAN | 5706998778789 |
Use Cases
Retail POS Checkout: Omnidirectional presentation scanning keeps checkout moving — no need to orient products. Pick it up to scan large items or items that can't be placed on the counter. Motion sensing handles the mode switch automatically.
Mobile Payments & Loyalty: Reads QR codes and barcodes on dimly lit smartphone screens — digital coupons, loyalty cards, mobile wallets, and boarding passes at customer service counters.
Pharmacy & Healthcare: Reads DataMatrix codes on medication packaging (including GS1-128 and 2D pharmacy codes). Black enclosure suits clinical and pharmacy environments.
Post Office & Customer Service: The tilting stand with magnetic base allows flexible counter positioning. The 4.5 m USB cable provides generous reach from the host POS terminal.
Frequently Asked Questions
What is the difference between MG1501-10211-0200 and MG1501-10210-0200?
The MG1501-10211-0200 (this unit) includes a tilting stand with magnetic base and a 4.5 m USB cable. The MG1501-10210-0200 is the standard configuration without the tilting stand — it includes only the USB cable. Both scanners are functionally identical.
Can the Magellan 1500i be used as a handheld scanner?
Yes. The Magellan 1500i features motion sensing technology — when picked up from the stand, it automatically switches to handheld trigger mode. When placed back, it returns to hands-free presentation scanning. This makes it genuinely dual-mode without any manual configuration.
Does the Magellan 1500i read barcodes on mobile phones?
Yes. The 2D imager reads electronic barcodes displayed on smartphone and tablet screens — including QR codes for mobile payments, digital loyalty cards, and mobile coupons — even in low-light conditions.
What is Digimarc support on the Magellan 1500i?
Digimarc barcodes are invisible digital watermarks embedded across a product's entire label. The optional Digimarc decoding module allows the Magellan 1500i to read them even when the customer's hand covers the traditional barcode — eliminating the most common cause of checkout delays. Digimarc decoding is an optional feature that must be licensed separately.
