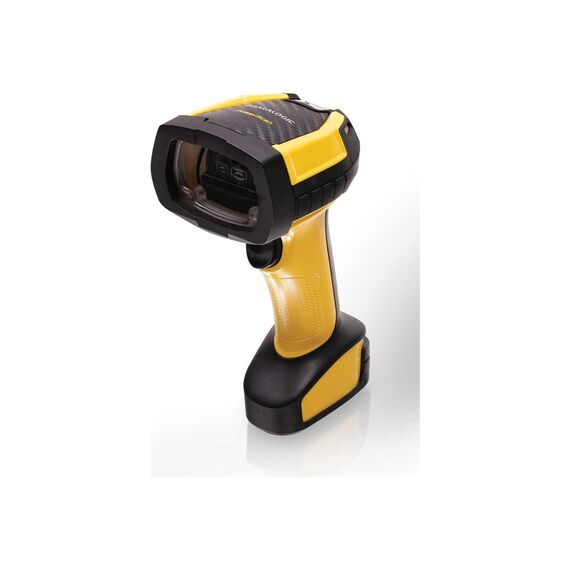

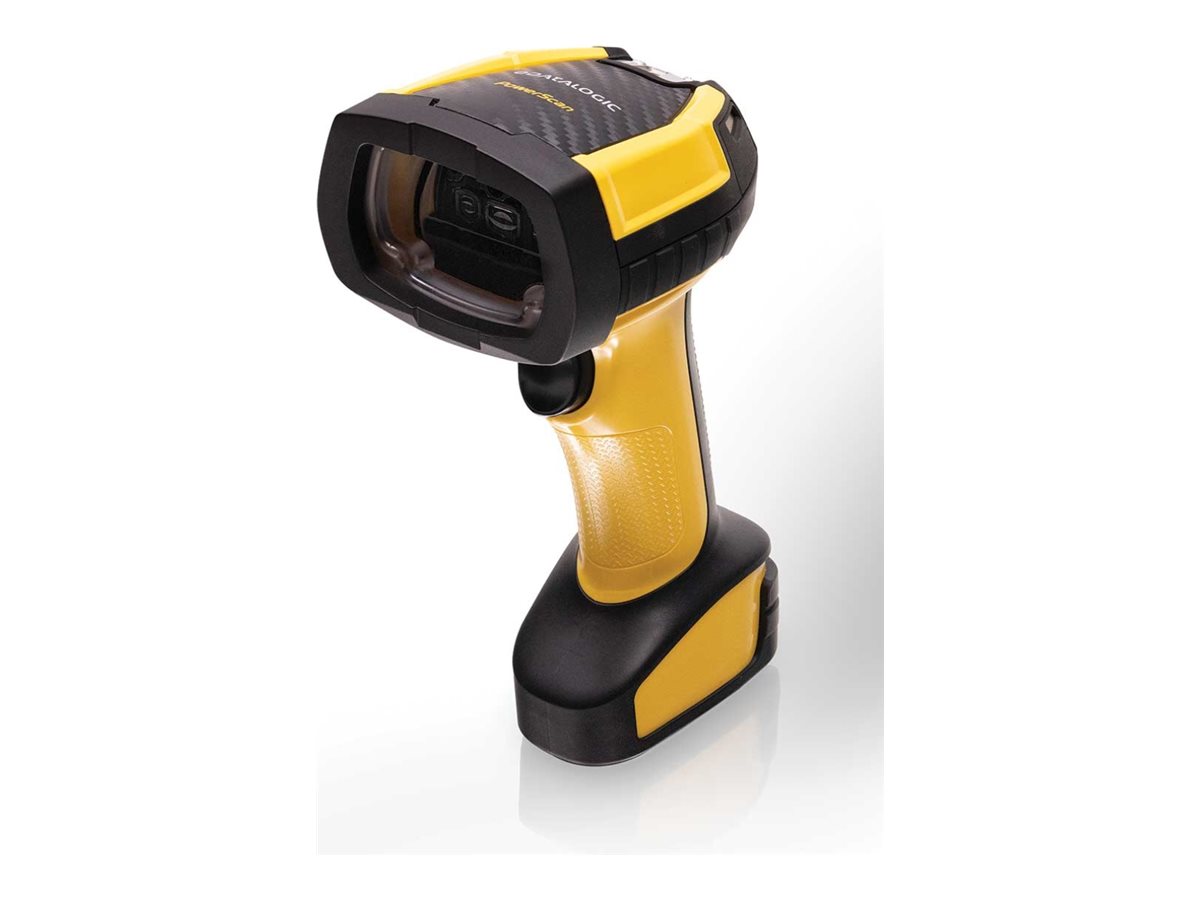

Datalogic PowerScan PBT9600-AR Auto Range Cordless 1D/2D Barcode Scanner Bluetooth 5.0 USB Kit with Removable Battery, Base and EU Power Cord

Brand:
Datalogic

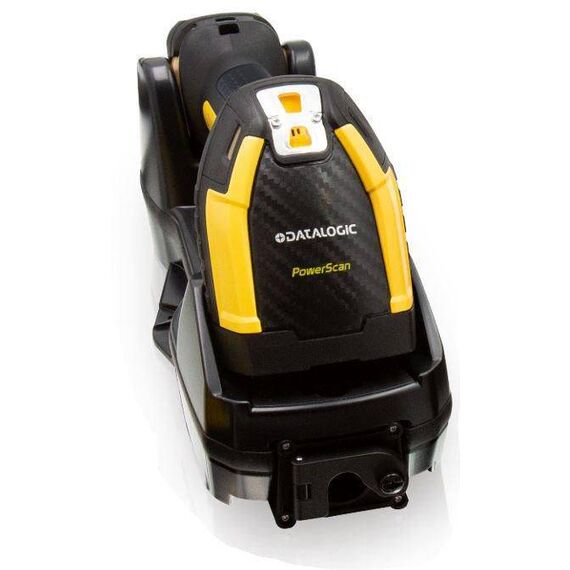

Datalogic PowerScan PBT9600-AR Bluetooth USB Kit Yellow Black
Datalogic PowerScan PBT9600-AR Auto Range Cordless 1D/2D Barcode Scanner Bluetooth 5.0 USB Kit with Removable Battery, Base and EU Power Cord
€1535.46 inc. VAT
Buy
PBT9600-ARRBK10EU
€1,290.30
€1,535.46 inc. VAT
Ships from EU stock: 7 item(s)
+ −
Add to wish list Ask a question
Product Code
CI20505
EAN Code
5715063272978
Manufacturer
Datalogic
Features
Bluetooth, Wireless

Quick Specs

Capture
Auto Range 1D / 2D
Radio
Bluetooth 5.0
Charging
Inductive base included
Scanner sealing
IP65 / IP67
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

Auto Range scanning with Bluetooth and inductive charging

Auto Range 1D / 2DBluetooth 5.0USB kitEU power cord

PBT9600-ARRBK10EU is one yellow/black cordless Auto Range scanner kit for warehouse and production labels at varying distances. It includes the PBT9600-ARRB scanner with removable battery, BC9630-BT charging/communication base, CAB-552 USB cable, 8-0935 power supply and 6003-0940 EU power cord. Connect the base and power equipment to a compatible host, pair the scanner and configure the receiving application. Autofocus adapts to near and distant 1D/2D codes; your software handles stock or traceability records.

Before you order:
This is Bluetooth PBT9600-AR, with no display/keypad. The 20 m typical far limit is for a large 100 mil Code 128 test code, not every small label. Bluetooth 100 m refers to open-air radio communication with the base. Inductive charging means contactless charging in the powered Datalogic base, not a claim of compatibility with arbitrary phone chargers. Industrial network modules are separate.

What's in the Box

  • 1 × PBT9600-ARRB scanner with removable battery.

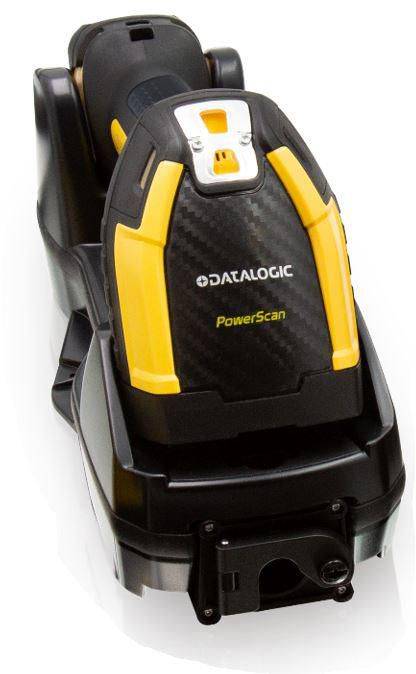

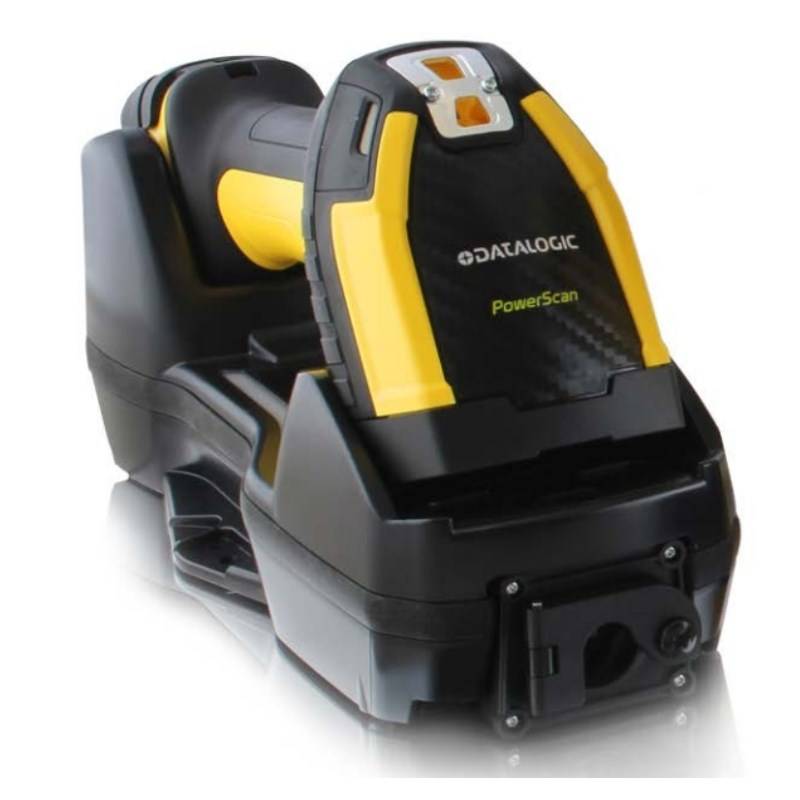

  • 1 × BC9630-BT base and CAB-552 USB cable.
  • 1 × 8-0935 power supply and 6003-0940 EU power cord.
  • Compatible host and receiving application separate.

What It Means in Practice

  • For picking, connect the base to the workstation by USB. Scan a nearby item and then a large rack label farther away; the receiving application links each code to the selected task.
  • Place the scanner in its powered base to charge without exposed charging contacts. Charging figures use 12 V external power.
  • Before deployment, test real labels at the highest rack and confirm radio coverage. Fine codes have shorter ranges than large rack labels.

What Will Not Work

  • It does not supply an independent inventory database or a display/keypad. A compatible host and application are required.
  • Do not apply scanner IP65/IP67 to the included base. Ethernet and industrial protocols require the appropriate separate module.

Key Features


Autofocus Auto Range
Read supported 1D/2D codes across distances with the full tested range table below.

Bluetooth 5.0
SPP and HID profiles, encryption and scanner authentication support appropriate host workflows.

Contactless charging
The included powered base charges inductively without exposed charging pins.

Industrial durability
Scanner IP65/IP67, condition-specific drop tests and a trigger tested to 10 million hits.

Technical Specifications

EXACT CONFIGURATION
MPN PBT9600-ARRBK10EU
EAN 5715063272978
Kit contents 1 × PBT9600-ARRB scanner with removable battery; BC9630-BT base; CAB-552 USB cable; 8-0935 PSU; 6003-0940 EU power cord
Colour Yellow / black
Kit host connection USB; base supports RS-232 with appropriate separate cable
Industrial connectivity Ethernet / industrial protocols require appropriate separate interface module; not included in this USB kit
BLUETOOTH
Radio / profiles Bluetooth 5.0 certified; 2.4 GHz; SPP / HID; Class 1, 2, 3
Radio range 100 m open air with base station; other hosts/environment affect range
Security Data encryption; scanner authentication
AUTO RANGE OPTICS
Engine Autofocus area imager, 1280 × 800 pixels
Aimer / illumination 650 nm VLD / red LED
Minimum contrast 20%
Pitch / roll / skew ±60° / 360° / ±60°
Maximum resolution 1D 2.5 mil; 2D 5 mil
1D codes Standard 1D including GS1 DataBar
2D codes Aztec; Han Xin; Data Matrix; MaxiCode; Micro QR; QR; DotCode
Stacked codes EAN/JAN and UPC A/E composites; GS1 DataBar composites / expanded stacked / stacked / stacked omnidirectional; MacroPDF; MicroPDF417; PDF417
Postal codes Australian; China; IMB; Japanese; KIX; Planet; Portuguese; Postnet; Royal Mail RM4SCC; Swedish
Feedback Adjustable beeper tone/volume; dual good-read LEDs; vibration
TYPICAL FAR READING LIMITS
Code 39, 3 mil Up to 95 cm
Code 39, 20 mil Up to 600 cm
EAN/UPC, 13 mil Up to 320 cm
Code 128, 40 mil Up to 1000 cm
Code 128, 100 mil Up to 2000 cm
Data Matrix, 10 mil Up to 110 cm
Data Matrix, 55 mil Up to 650 cm
Data Matrix, 100 mil Up to 1000 cm
Range conditions Minimum distance depends on symbol length and scan angle; print resolution, contrast and ambient light affect results. Not every barcode reads at 20 m
BATTERY AND POWER
Battery type / nominal reference Removable Li-ion; manufacturer AR family reference 3350 mAh
Reads per charge 80,000+ manufacturer reference, use dependent
Charge time at 12 V external power 2.5 h to 95%; 3.2 h to 100%
Charging method / power Inductive, typically less than 15 W
Operating current 480 mA at 3.7 V
Base current 150 mA at 5 V, operating
Cordless power input Host powered 5 VDC ±5% or 10–30 VDC; external supply 10–30 VDC ±5%
PHYSICAL AND ENVIRONMENT
Dimensions (H × L × W) 19.8 × 14.0 × 7.9 cm
PBT9600-AR weight 445 g
Scanner sealing IP65 / IP67; included BC9630-BT IP65 not established
Drop resistance 50 × 2.5 m at 20 °C; 50 × 2 m at −20 °C
Trigger life test 10 million hits
ESD air 20 kV
Ambient light 0–100,000 lux
Humidity 0–95% RH non-condensing
Cordless operating / storage temperature −20–50 °C / −40–70 °C
Charging temperature 0–40 °C; ideal up to 35 °C
Utilities Datalogic Aladdin configuration; OPOS / JavaPOS utilities, appropriate host integration required
Laser / LED safety CDRH Class II; IEC 60825 Class 2 / IEC 62471 Class 1 LED
Environmental compliance China RoHS; EU RoHS; REACH
Manufacturer warranty 3 years factory, subject to terms

Frequently Asked Questions

Is it a complete USB kit?
It includes one scanner with removable battery, BC9630-BT base, CAB-552 USB cable, 8-0935 PSU and 6003-0940 EU cord. Host and receiving software are separate.
Does every barcode read at 20 m?
No. The typical 20 m figure is for Code 128 at 100 mil. The table lists shorter limits for smaller codes; test your real labels.
Does it use STAR 433 MHz or have a keypad?
This PBT9600-AR uses Bluetooth 5.0 and has no display/keypad. STAR and keypad/display configurations belong to different models.
Singular Expert Insight
Choose Auto Range from actual rack height and barcode dimensions, then validate radio coverage and host integration. Compare scanners: Barcode scanners at Singular

Buyer’s Guide

✓

Buy it if

 you need cordless autofocus for near labels and large distant warehouse codes.
✕

Skip it if

 you need only close checkout labels or a built-in display/keypad.
→

Also consider

 a standard-range scanner for short distances or a verified PM display configuration.
Confirm label samples, host interface, installation and EU power requirements with Singular.
