Datalogic PowerScan PD9130 Industrial Corded 1D Linear Imager, USB/RS-232/Keyboard Wedge, Black/Yellow, Scanner Only

Brand:
Datalogic
Datalogic PowerScan PD9130 Corded 1D Scanner Yellow Black Scanner Only
Datalogic PowerScan PD9130 Industrial Corded 1D Linear Imager, USB/RS-232/Keyboard Wedge, Black/Yellow, Scanner Only
€481.27 inc. VAT
Buy
PD9130
€404.43
€481.27 inc. VAT
Ships from EU stock: 5 item(s)
+ −
Add to wish list Ask a question
Product Code
V383728
EAN Code
5704174216988
Manufacturer
Datalogic

Quick Specs

Capture
1D linear imager; no QR
Interfaces
USB · RS-232 · Keyboard Wedge
Package
Scanner only; cable separate
Protection / weight
IP65 · 340 g
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

Industrial 1D scanning with a clear green reading line

1D linearCorded3GL feedbackIP65

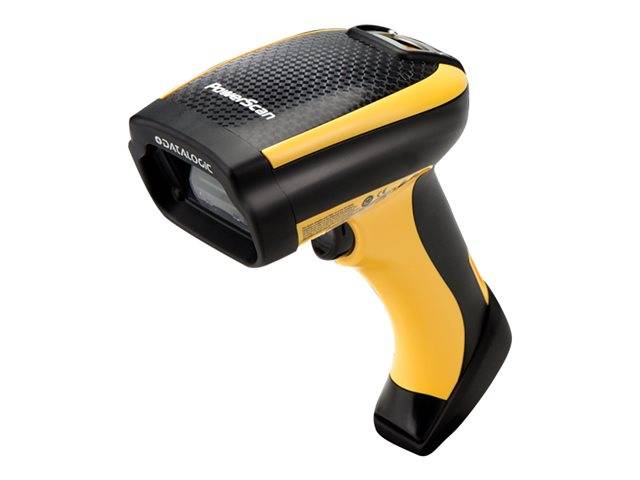

The black/yellow Datalogic PowerScan PD9130 is a corded industrial scanner for linear 1D labels in receiving, manufacturing and stock-control workstations. Its green LED scanning line helps you aim, while Green Spot and two LEDs confirm a good read. This listing supplies one scanner only: select the appropriate interface cable separately and connect it to a compatible host and receiving application. It does not read QR or other matrix 2D codes.

Before you order:
USB, RS-232 and Keyboard Wedge are supported interface options through the correct cable and configuration. They do not mean that three cables or a host computer are included. Check connector, power and application requirements before installation.

What's in the Box

  • 1 × PD9130 black/yellow corded scanner.
  • Interface cable and optional mounting accessories are separate.

What It Means in Practice

  • Fit the correct interface cable, configure the host mode and data format with Datalogic Aladdin or setup barcodes, then open the receiving field in your application.
  • For example, scan a carton’s 1D label at the receiving desk; the host software records the item. The green scan line aims at the label, whereas the Green Spot confirms decoding.
  • IP65 and the published drop test help when selecting for demanding workplaces; they do not remove the need to protect the cable and maintain the reading window.

What Will Not Work

  • No QR, Data Matrix or other matrix 2D reading. Choose an area imager for those codes.
  • No cordless operation or standalone inventory software; the scanner depends on the connected host/application.

Key Features


Green aiming line
LED linear imaging produces a sharply defined green line for targeting a 1D label.

Visible read confirmation
3GL combines Green Spot on the decoded code and dual LEDs with a beeper.

Industrial enclosure
IP65 sealing and a 50-drop test from 2.0 m to concrete support demanding fixed workstations.

Choice of host connection
USB, RS-232 and Keyboard Wedge options use the appropriate separately selected interface cable.

Technical Specifications

EXACT CONFIGURATION
Model / MPN PD9130
EAN 5704174216988
Package 1 × scanner; interface cable required separately
Colour Yellow / Black
SCANNING
Technology Corded 1D linear imaging
Scan line / light Green LED, laser-like line
Minimum element width 2.5 mil
Minimum print contrast 15%
Reading angles, current family sheet Pitch ±75°; roll ±45°; skew ±70°
Feedback 3GL: Green Spot on code and dual good-read LEDs; beeper
Supported formats GS1 DataBar, UPC/EAN, UPC/EAN P2/P5 add-ons, UPC/EAN Coupons, ISBN, Code 128, EAN 128, Code 39, Code 39 Full ASCII, Code 39 CIP, Code 32, Codabar, Interleaved 2 of 5, IATA, Industrial 2 of 5, Standard 2 of 5, Code 11, MSI, Plessey, Code 93, Follet 2/5, Code 4, Code 5, Datalogic 2 of 5, Codablock F
TYPICAL READING DISTANCES
Code 39, 5 mil 3–32 cm
Code 39, 7.5 mil 2–48 cm
Code 39, 10 mil 2–66 cm
Code 39, 20 mil 3–110 cm
Code 39, 40 mil 3–230 cm
EAN 13 2–61 cm
Distance conditions Typical; symbol length, scan angle, print resolution, contrast, ambient light and symbology dependent
CONNECTION AND POWER
Host interfaces RS-232; Keyboard Wedge; USB OEM / COM / HID Keyboard
Input voltage 4.5–30 VDC
Typical operating current 440 mA @ 4.5 V; 380 mA @ 5 V; 75 mA @ 30 V
PHYSICAL AND ENVIRONMENT
Dimensions 21.2 × 11.0 × 7.4 cm
Weight 340 g
Sealing IP65
Drop resistance 50 drops from 2.0 m to concrete
Operating temperature −20°C to 50°C
Storage / transport −40°C to 70°C
Humidity 0–95% RH, non-condensing
ESD, air discharge 20 kV
Ambient light Office/facility light and direct sunlight tolerance
SOFTWARE AND COMPLIANCE
Configuration Datalogic Aladdin
Host utilities OPOS / JavaPOS; remote host download on request
Environmental / LED EU RoHS; China RoHS; IEC 62471
Manufacturer warranty 3-year factory warranty, subject to Datalogic terms

Frequently Asked Questions

Is a USB cable included?
No. This is the scanner-only PD9130; choose the interface cable for your host separately.
Can it read QR codes?
No. PD9130 is a 1D linear imager. Select a verified 2D area imager for QR or Data Matrix.
Is the green line a laser?
The scan line comes from a green LED. It has a laser-like appearance but the reading technology is linear imaging.
Singular Expert Insight
Choose PD9130 when the workflow is built around linear labels and a fixed host. Check a sample of the smallest label and choose the cable before ordering. Compare other formats: Barcode scanners at Singular

Buyer’s Guide

✓

Buy it if

 you need a rugged corded 1D reader and will select the host cable.
✕

Skip it if

 you need QR/2D capture, wireless movement or a standalone terminal.
→

Also consider

 a verified industrial 2D imager if your label formats may change.
Confirm your label samples, interface cable, host and application with Singular.
