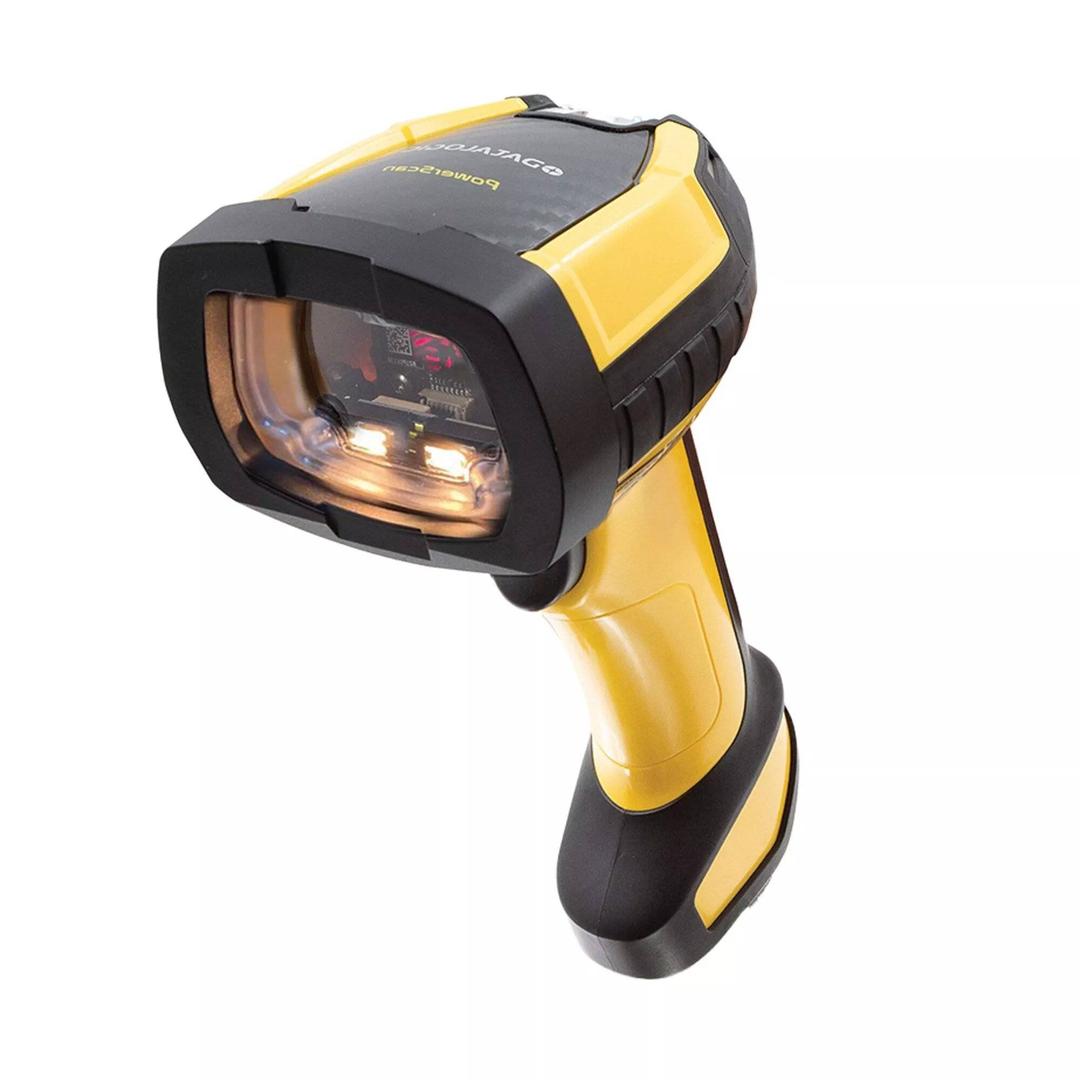

Datalogic PowerScan PM9600-SR 433 MHz Cordless 1D/2D Scanner USB Kit with Charging Base, Removable Battery and Power Supply

Brand:
Datalogic
Datalogic PowerScan PM9600 SR USB Kit PM9600-SR433RBK10
Datalogic PowerScan PM9600-SR 433 MHz Cordless 1D/2D Scanner USB Kit with Charging Base, Removable Battery and Power Supply
€1174.84 inc. VAT
Buy
PM9600-SR433RBK10
€987.26
€1,174.84 inc. VAT
Ships from EU stock: 99 item(s)
+ −
Add to wish list Ask a question
Product Code
CE78767
EAN Code
5715063727065
Manufacturer
Datalogic
Features
Wireless

Quick Specs

Optics
Standard Range 1D / 2D
Radio
STAR 433 MHz
Connection
USB kit
Charging
Inductive cradle included
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

Standard Range industrial 2D scanning in a USB kit

SR 1D / 2DSTAR 433 MHzUSB kitInductive charging

PM9600-SR433RBK10 is a yellow/black cordless Standard Range 1D/2D kit containing one PM9600-SR reader with removable battery, a charging/transmitter base, USB cable, power supply and mains cord. Connect the base to a compatible USB host, provide power and pair the reader. Scan labels around the workstation; the base forwards decoded codes to your application, which handles product records and transactions. The SR basic reader has no OLED display or keypad.

Before you order:
This is the SR USB kit, distinct from the HP dual-camera scanner, display/keypad models and RS-232 kits. STAR 433 MHz is not Bluetooth. Confirm the supplied regional mains plug and USB input profile. Industrial Ethernet requires appropriate separate base/module hardware.

What's in the Box

  • 1 × PM9600-SR scanner with removable rechargeable Li-ion battery.
  • Charging/transmitter base and USB cable.
  • Power supply and mains cord. Compatible receiving host/application separate.

What It Means in Practice

  • For receiving goods, connect and pair the kit, select the item-code field in your application and scan the package label. Your software updates the receiving record.
  • SR uses a single camera for standard label distances. Its published 175 cm far point applies to a 40 mil Code 128 test label, not all 2D codes.
  • Return the reader to the inductive base for charging. Charge-time figures require the specified 12 V external supply; radio coverage depends on the site.

What Will Not Work

  • No direct Bluetooth pairing, built-in Wi-Fi or standalone inventory application.
  • This SR kit does not provide HP high-density optics, OLED/keypad, colour Document Capture, Auto Range, DPX or RFID.

Key Features


Standard Range 2D
Single-camera imaging for standard 1D, 2D, stacked and postal codes.

USB kit
Base, cable and power equipment provide a complete connection path to a compatible host.

STAR and inductive charging
433 MHz radio supports mobile scanning; the cradle charges without exposed battery contacts.

Industrial feedback and housing
3GL, vibration and beeper complement IP65/IP67 protection and qualified drop tests.

Technical Specifications

EXACT CONFIGURATION
MPN PM9600-SR433RBK10
EAN 5715063727065
Included 1 × PM9600-SR scanner with removable battery; charging/transmitter base; USB cable; power supply and mains cord
Required separately Compatible USB host and receiving application; confirm regional mains plug
Optic Standard Range, single camera
Display / keypad Basic model without OLED/keypad
Weight 425 g
Minimum element SR: 1D 3 mil / 2D 6 mil
SCANNING
Sensor 1280 × 800 pixels
Illumination White LED
Aiming 630–680 nm VLD
Minimum contrast 15%
Field of view 38° H × 24° V
Pitch / roll / skew ±52° / 360° / ±52°
1D formats Standard 1D including GS1 DataBar
2D formats Aztec; Han Xin; Data Matrix; MaxiCode; MicroQR; QR; DotCode
Postal formats Australian/British/China/Japanese Post; IMB; KIX; Planet; Postnet; Royal Mail RM4SCC
Stacked formats EAN/JAN Composites; GS1 DataBar Composites/Expanded Stacked/Stacked/Stacked Omnidirectional; MacroPDF; MicroPDF417; PDF417; UPC A/E Composites
Feedback Adjustable beeper; Green Spot; dual good-read LEDs (3GL); vibration
Motion sensing Datalogic Motionix
RADIO AND POWER
Radio Datalogic STAR Cordless System, 433 MHz
Radiated power Under 10 mW
Topology Point-to-point / multipoint; up to 16 readers per receiver; two-way communication
Open-air radio range 150 m low speed / 100 m high speed; environment dependent
Battery Removable Li-ion; manufacturer family reference 3350 mAh
Reads per charge 80,000, manufacturer test reference; usage dependent
Charging Inductive; 12 VDC external power: 2.5 h to 95%, 3.2 h to 100%
Cordless operating current 480 mA @ 3.7 V
Charging load / base operating current Under 15 W typical / BC96xx: 150 mA @ 5 V
Base input Host: 5 VDC ±5% or 10–30 VDC; external: 10–30 VDC ±5%
Modular connectivity Compatible base/module dependent: RS-232, USB, Ethernet and industrial protocols
PHYSICAL AND ENVIRONMENT
Colour Yellow / Black
Dimensions (H × L × W) 19.7 × 14.9 × 7.9 cm
Sealing Scanner IP65 / IP67; cradle IP65 only on specific models
Drop test 50 × 2.5 m at 20 °C; 50 × 2.0 m at −20 °C, concrete
Trigger life 10 million actuations
Operating / storage temperature −20–50 °C / −40–70 °C
Charging temperature 0–40 °C nominal; 0–35 °C ideal
Humidity 0–95% RH, non-condensing
Ambient light 0–100,000 lux
ESD air discharge 20 kV
Laser / LED classification CDRH Class II; IEC60825 Class 2 / IEC62471 Exempt
Environmental compliance EU RoHS; China RoHS; REACH
Configuration and host utilities Datalogic Aladdin; OPOS / JavaPOS
Manufacturer warranty 3-year factory warranty
TYPICAL SR DECODE RANGES
Code 128, 5 mil 6.4–30.9 cm
Code 128, 20 mil 4–103.7 cm
Code 128, 40 mil 5.5–175 cm
EAN/UPC, 13 mil 4–67.5 cm
Data Matrix, 10 mil 6–30 cm
Range conditions Typical; symbol length, scan angle, print resolution, contrast and ambient light dependent

Frequently Asked Questions

Is the USB base included?
Yes. This K10 kit includes a charging/transmitter base, USB cable, power supply and mains cord.
Does it have a display?
No. This is the basic SR model without OLED display or keypad.
Can it pair directly with a phone?
It uses STAR 433 MHz through its compatible receiver, not native Bluetooth.
Singular Expert Insight
Choose SR for standard industrial labels when you want the base and USB connection supplied together. Validate actual codes, mains plug and site coverage. Compare scanners: Barcode scanners at Singular

Buyer’s Guide

✓

Buy it if

 you need an industrial Standard Range 1D/2D cordless USB kit.
✕

Skip it if

 you need high-density HP optics, a display or direct Bluetooth.
→

Also consider

 a verified HP or PBT9600 kit when label density or host connectivity differs.
Confirm the receiver, interface, charging equipment and application with Singular.
