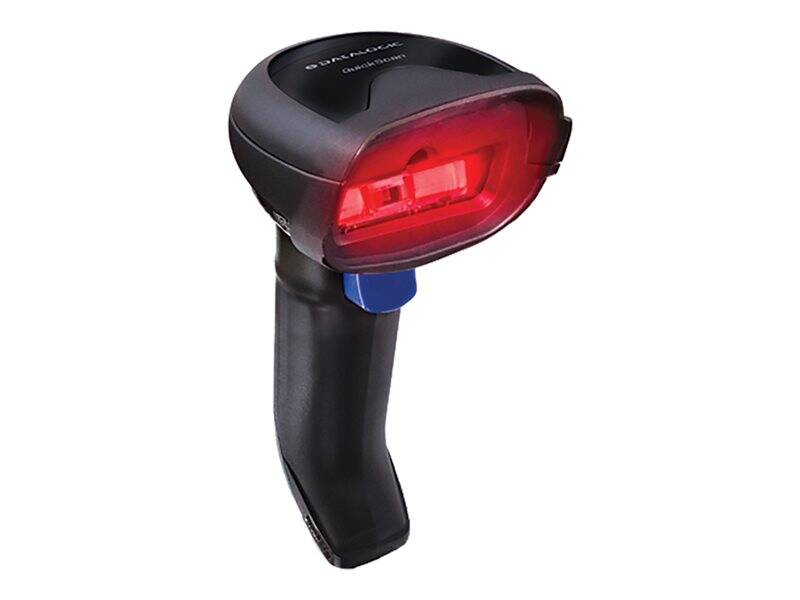

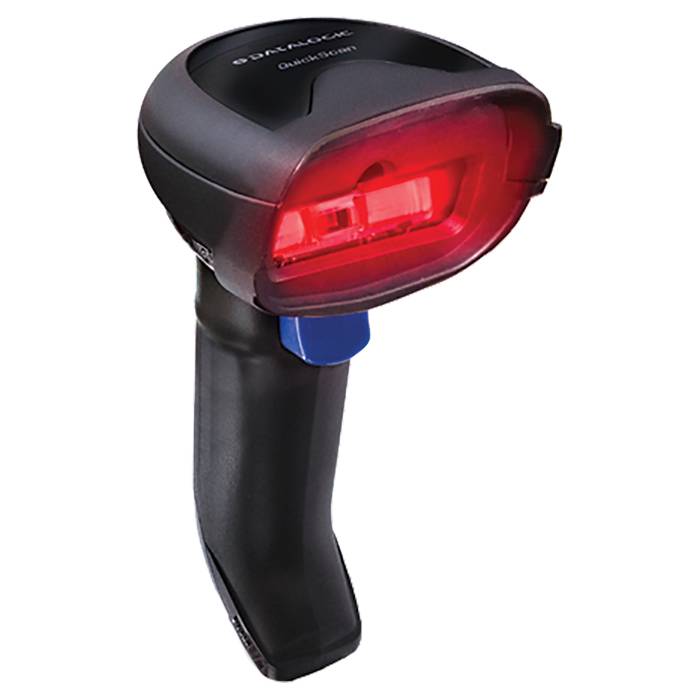

Datalogic QuickScan QD2220-BKK1 1D CCD USB Scanner Kit, 400 Reads/s, Green Spot, 2 m Cable, Black

Brand:
Datalogic
Datalogic QuickScan QD2220-BKK1 1D USB Barcode Scanner Kit Black
Datalogic QuickScan QD2220-BKK1 1D CCD USB Scanner Kit, 400 Reads/s, Green Spot, 2 m Cable, Black
€70.13 inc. VAT
Buy
QD2220-BKK1
€58.93
€70.13 inc. VAT
Ships from EU stock: 148 item(s)
+ −
Add to wish list Ask a question
Product Code
CG20319
EAN Code
5715063048054
Manufacturer
Datalogic

Quick Specs

Sensor
1D solid-state CCD
Rate
Up to 400 reads/s
Feedback
Green Spot, LED, beeper
Kit
2 m USB-A cable included
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

Linear scanning with visible confirmation on the code

1D CCDGreen SpotUSB kit

The QuickScan QD2220 uses a wide linear scan line for product labels, long document codes and electronic coupons. Green Spot projects successful-read feedback onto the code, complementing the sound and LED indicators. This kit supplies the scanner and USB cable.

Compatibility — check before buying:
Choose this model for supported linear 1D codes, including screen-displayed coupons. QR and Data Matrix require a 2D model. This BKK1 kit does not include the stand supplied with BKK1S.

Best For

✓ Fixed checkout stations
✓ Packing and stock identification desks

Key Features


Green Spot feedback
See confirmation at the label while audible and top LED signals provide additional feedback.

Printed or electronic labels
The manufacturer supports linear codes on smartphone screens and reading through plexiglass barriers.

Long-code handling
A wide scan line helps frame longer linear codes on packaging, documents and utility bills.

Technical Specifications

Scanning & identification
SKU / EAN QD2220-BKK1 / 5715063048054
Sensor / codes Solid-state CCD linear imager; standard 1D codes including GS1 DataBar
Read rate Maximum 1,000,000 pixels/s (400 reads/s)
Resolution / motion 0.077 mm / 3 mil; motion tolerance 40 IPS
Field of view / light 56° ±2°; red LED 617 nm
Contrast / angles Minimum 15%; pitch ±65°; roll ±45°; skew ±65°
Typical depth of field Code 39: 4 mil 2.5–22 cm; 5 mil 2–30 cm; 7.5 mil 1–45 cm; 10 mil 1–60 cm; 20 mil 3–103 cm; EAN/UPC-A 13 mil 1–68 cm
Range conditions Depends on printing resolution, contrast and ambient light; minimum distance depends on symbol length and scan angle
Media / feedback Reads linear codes on smartphone screens and through plexiglass; Green Spot on code, Good Read LED, adjustable-tone beeper
Connection & enclosure
USB kit USB-only; 90A052065 straight enhanced USB-A cable, 2 m; stand not included
Power 5 V DC ±5%; operating below 165 mA at 5 V; standby below 40 mA at 5 V
Dimensions / weight 156 × 67 × 107 mm; 123 g without cable
Colour / sealing Black; IP42
Durability Repeated 1.5 m drops onto concrete; trigger 3 million hits; ESD air discharge 16 kV
Ambient / humidity 0–120,000 lux; 0–95% RH non-condensing
Temperatures Operating 0–50 °C; storage/transport −40–70 °C
Compliance / tools EU/China RoHS; IEC 62471 exempt LED group; Aladdin, OPOS/JavaPOS, remote host download
Factory warranty 5 years; manufacturer terms apply

What's in the Box

QuickScan QD2220 USB scanner
90A052065 USB-A cable, 2 m

Frequently Asked Questions

Is a stand included?
No. QD2220-BKK1 includes the scanner and USB cable. The BKK1S kit adds a stand.
Can it read electronic coupons?
Yes, Datalogic supports linear codes displayed on smartphone screens. This does not add QR or other 2D decoding.
Singular Expert Insight
Start with a sample label and your checkout software. A matching connector alone does not establish that a barcode format or application workflow is supported. Compare barcode scanner types Check host USB connectivity, software input requirements and the barcode format before ordering.

Buyer’s Guide

Buy it if

You need USB reading of linear labels and visible good-read confirmation.

Skip it if

You require QR decoding or an included stand.

Also consider

The BKK1S kit for a stand, or a 2D imager for matrix formats.

Features - Datalogic - QD2220-BKK1

Colour
black
Length
2m
More Details
Product Code
CG20319
EAN Code
5715063048054
Manufacturer
Datalogic
