Datalogic QuickScan QM2500 1D/2D STAR 433 MHz Scanner, Base and USB Kit, Black

Brand:
Datalogic
Datalogic QuickScan QM2500 Black STAR 433 MHz 2D Scanner USB Base Kit

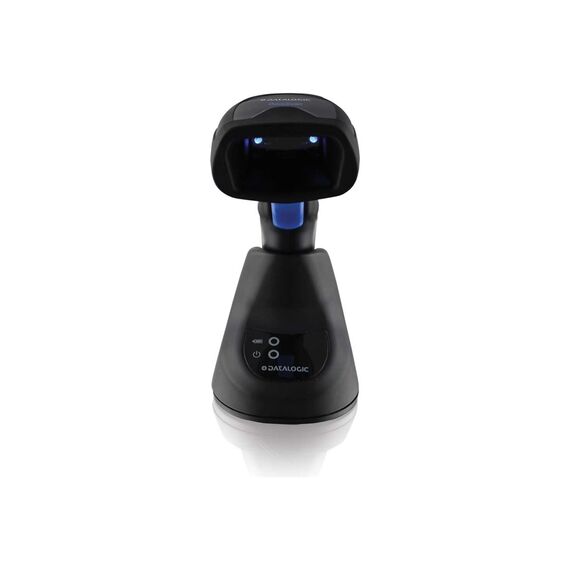

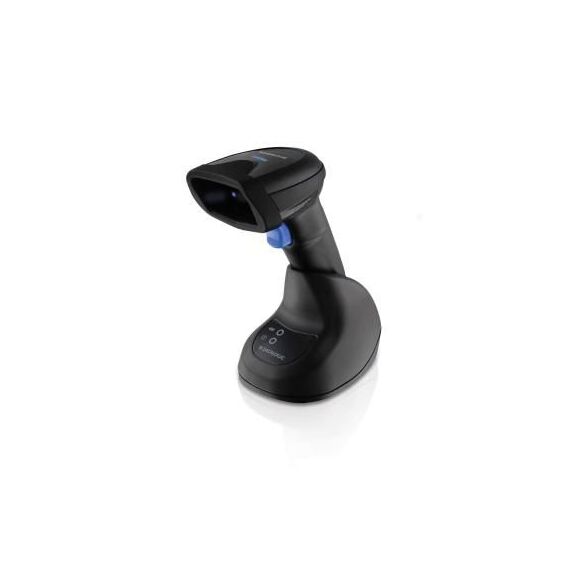

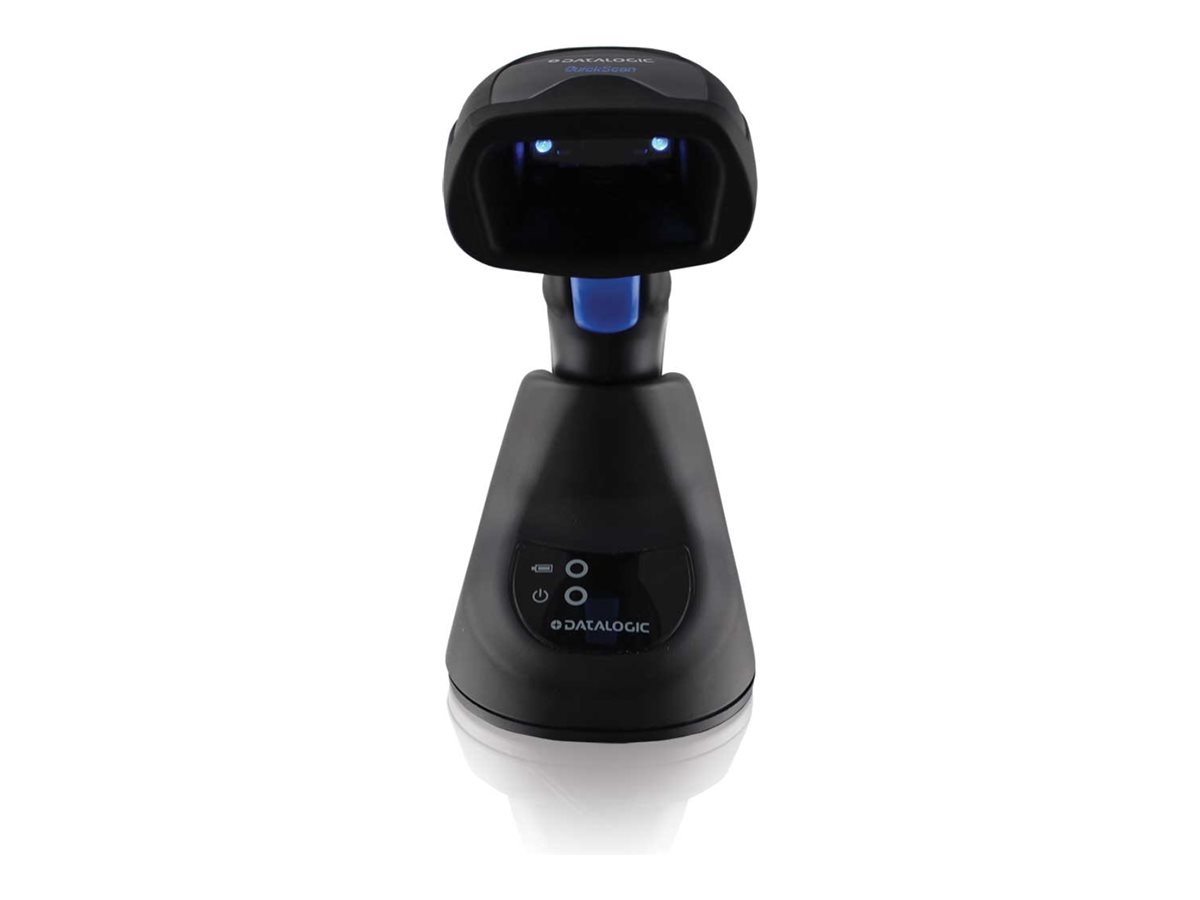

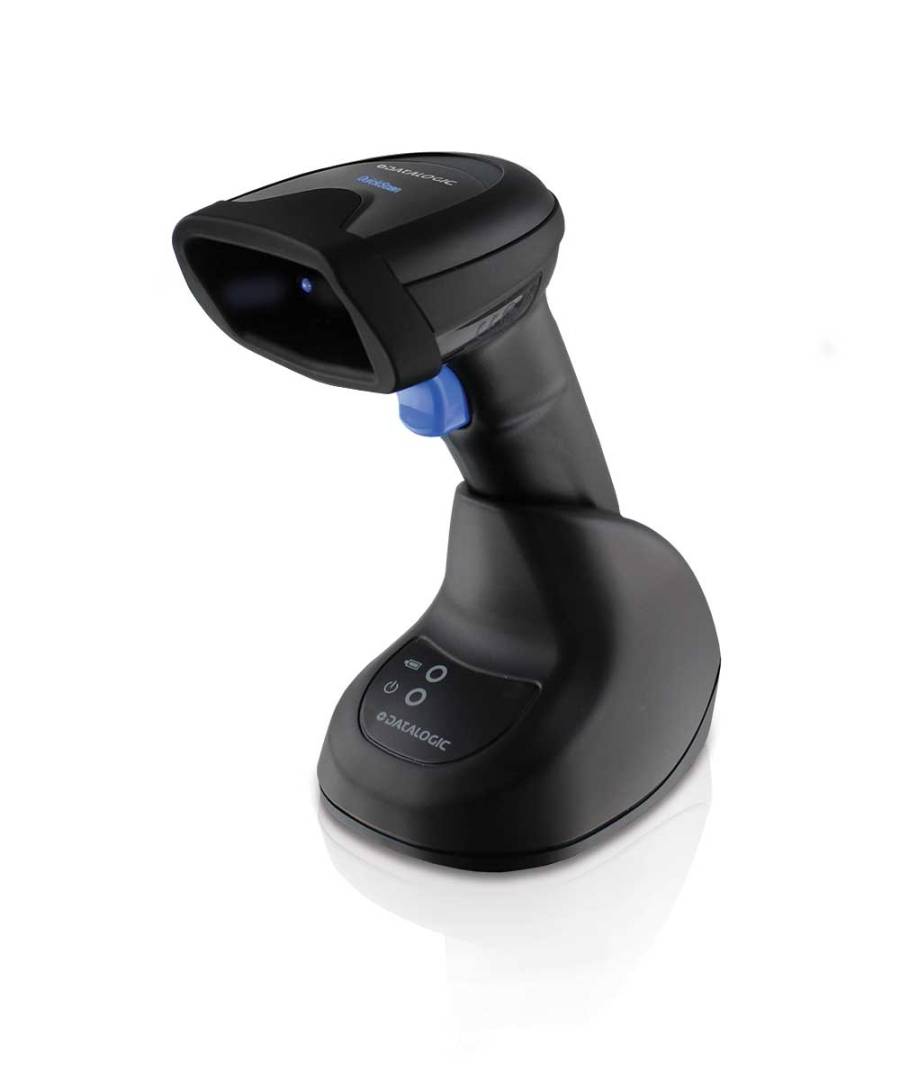

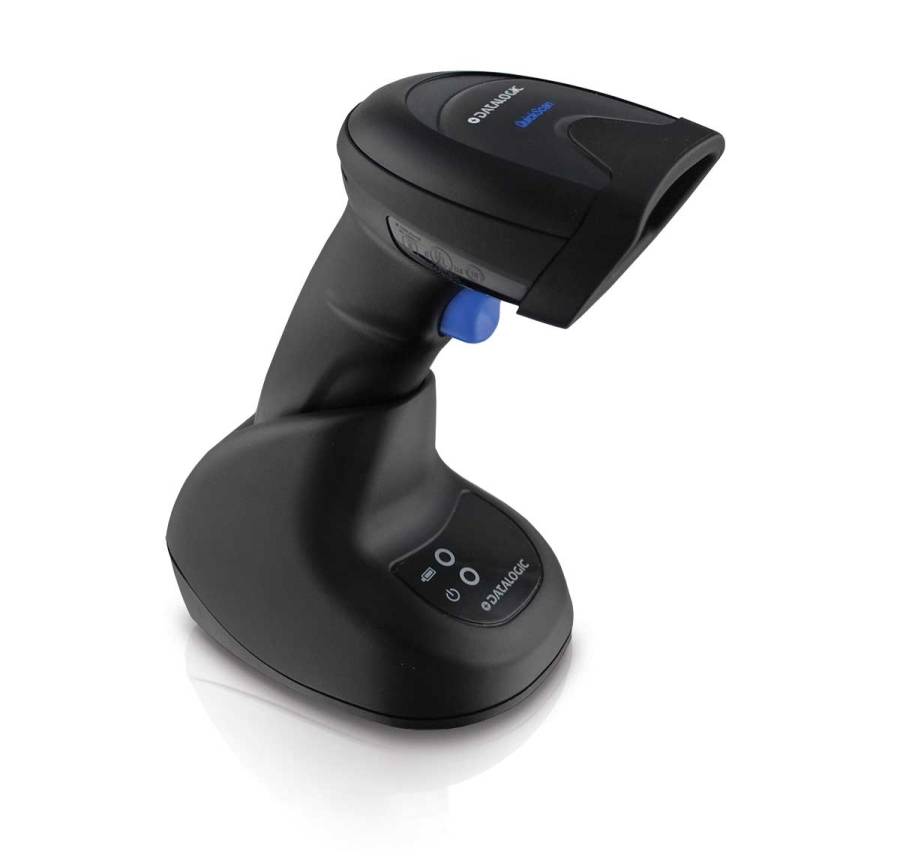

Datalogic QuickScan QM2500 1D/2D STAR 433 MHz Scanner, Base and USB Kit, Black
€277.35 inc. VAT
Buy
QM2500-BK-433K1
€233.07
€277.35 inc. VAT
Ships from EU stock: 33 item(s)
+ −
Add to wish list Ask a question
Product Code
04:518445
EAN Code
5715063258415
Manufacturer
Datalogic
Features
Wireless

Quick Specs

Wireless
Datalogic STAR · 433.92 MHz
Imaging
1MP · 1280 × 800
Battery
3250 mAh Li-ion
Included kit
Scanner + base + USB cable
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

STAR 433 MHz cordless scanning with base and USB cable

STAR 433.92 MHz1MP 2DBase + USB kit3250 mAh

QuickScan QM2500 uses Datalogic STAR narrowband radio between the scanner and its matching base. This black 433 MHz USB kit includes the 1MP 1D/2D reader, base station/charger and USB host cable. It gives the operator cordless handling while the base connects to the host.

Before you order:
QM2500-BK-433K1 is the STAR 433.92 MHz USB base kit. It is not the Bluetooth QBT2500 and does not pair directly with an ordinary Bluetooth host. The 910 MHz QM kit is a different radio version. Confirm the intended base, region and host connection.

What's in the Box

  • Black QM2500 433 MHz scanner
  • Matching STAR base station/charger
  • USB host cable 90A052258

What Will Not Work

  • No direct Bluetooth pairing: use the matching STAR base.
  • The 433 MHz kit is not the 910 MHz radio version. A suitable external source is needed for the specified fastest charge times.

Key Features


Target a code, confirm the read
Two blue aiming triangles guide the operator; Green Spot marks a successful decode on the barcode. A decoded code still needs the POS application to look up the product or validate the ticket.

STAR range is separate from barcode reach
The radio operates at 433.92 MHz with up to 30 m open-air range. UPC 13 mil decoding is typically 0.5–51.0 cm and QR 20 mil 0–37.0 cm. Radio range does not mean labels can be read from across the room.

Plan the charging source
The 3250 mAh battery supports up to 115,000 reads. The 3 h direct USB-C and 4 h cradle figures require the specified suitable power sources; the kit does not list an external 12 V supply.

Technical Specifications

Identity & kit
MPN QM2500-BK-433K1
EAN 5715063258415
Colour Black
Included Scanner, base station/charger, USB cable 90A052258
Radio
Technology Datalogic STAR Cordless System, 433.92 MHz, point-to-point, two-way communication
Effective radiated power Below 6.3 mW at 433.92 MHz
Radio range Up to 30 m in open air; obstacles and environment affect range
Scanning
Sensor 1MP · 1280 × 800 pixels
Image capture BMP, JPEG, TIFF; greyscale 256 / 16 / 2
Aimer / illumination Blue LED 468 nm, two triangles / red LED 617 nm
Motion tolerance 30 IPS
Minimum contrast 15%
Pitch / roll / skew ±65° / 360° / ±65°
Feedback Adjustable beeper, Green Spot on code, good-read LED
Motionix Motion sensing for scanning mode transitions
Minimum resolution 1D / PDF417: 0.077 mm (3 mil); Data Matrix: 0.127 mm (5 mil); QR: 0.17 mm (6.7 mil)
1D formats Standard linear codes including GS1 DataBar
2D formats Aztec, Han Xin, Data Matrix, MaxiCode, Micro QR, QR, DotCode
Stacked / composite EAN/JAN, UPC A/E and GS1 composites; GS1 DataBar Expanded Stacked / Stacked / Stacked Omnidirectional, MacroPDF, MicroPDF417, PDF417
Postal Australian, British, China, IMB, Japanese, KIX, Planet, Postnet, RM4SCC
Additional decoding Digimarc; OCR-A, OCR-B, MICR supported; configuration required
Typical reading distances
Code39 5 mil 0.5–25.0 cm
Code39 10 mil 0.5–38.0 cm
Data Matrix 10 mil 0.5–21.5 cm
EAN/UPC-A 13 mil 0.5–51.0 cm
PDF417 6.7 mil 0.5–21.0 cm
QR 20 mil 0–37.0 cm
Range conditions Symbol length, angle, print resolution, contrast and ambient light affect range
Battery & connection
Battery 3250 mAh Li-ion
Reads per charge Up to 115,000; actual use affects results
Direct charge 3 h via Type-C external power; suitable source required
Cradle charge 4 h with external 12 V DC; suitable source separate
Scanner input 5 V ±5% at Type-C port
Cradle input BC2090: 4.5–14 V DC ±5%
Typical current Scanner: 500 mA at 3.7 V; cradle: 45 mA at 5 V
Cradle status Flashing orange/green while charging; steady green when complete
Cradle interfaces BC2090: USB Type-C / USB / RS232 multi-interface; kit USB cable supplied
Physical & environmental
Scanner dimensions 159 × 68 × 107 mm
Weight with battery 206.5 g
Protection IP52
Drop resistance Repeated 1.5 m drops onto concrete
Trigger endurance 10 million actuations
ESD air 16 kV
Operating / storage 0–50 °C / −40–70 °C
Humidity 0–95%, non-condensing
Ambient light 0–110,000 lux
Compliance EU / China RoHS; IEC62471 illuminator exempt group, aimer Risk Group 1
Tools Datalogic Aladdin, OPOS / JavaPOS, Remote Host Download
Manufacturer warranty 5-year factory warranty; manufacturer terms apply

Frequently Asked Questions

How does QM differ from QBT?
QM uses Datalogic STAR radio with its matching base; QBT uses Bluetooth. This kit is the 433.92 MHz QM version with USB cable.
Is the base and USB cable included?
Yes. Datalogic lists scanner, base station and USB cable 90A052258 for QM2500-BK-433K1.
Does 30 m mean barcode reading distance?
No. It is the open-air scanner-to-base radio range. Barcode reading distance depends on code type, density, quality and lighting.
Singular Expert Insight
Choose QM when the installation calls for the STAR scanner-to-base system. Narrowband STAR operates separately from Bluetooth/Wi-Fi radio systems, but coverage still depends on the site; do not treat it as a guarantee of zero interference in every environment. Compare wireless barcode kits

Buyer’s Guide

✓

Buy it if

 You need a STAR 433 MHz 1D/2D scanner with matching base and USB host cable.
✕

Skip it if

 You require direct Bluetooth connection or a 910 MHz STAR system.
→

Also consider

 QBT2500 Bluetooth kits for a Bluetooth-based installation; verify exact base compatibility.
Confirm the STAR frequency, matching base, host cable, application and charging source.
