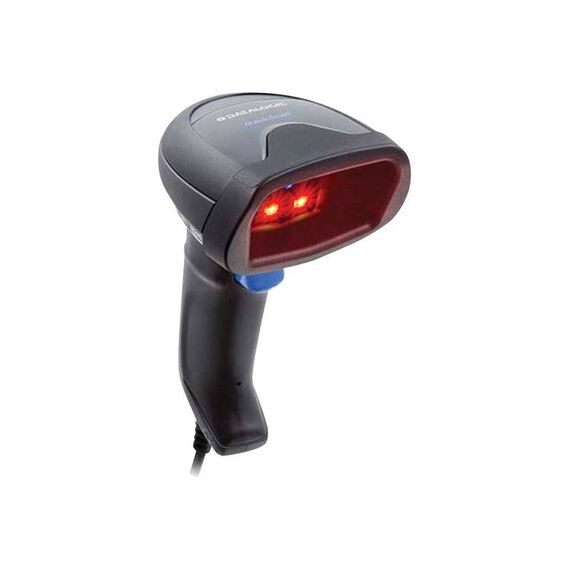

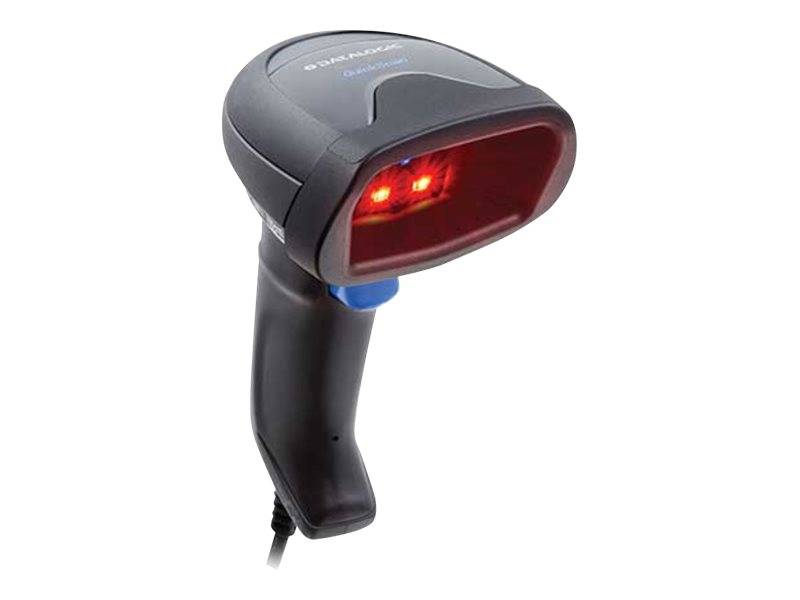

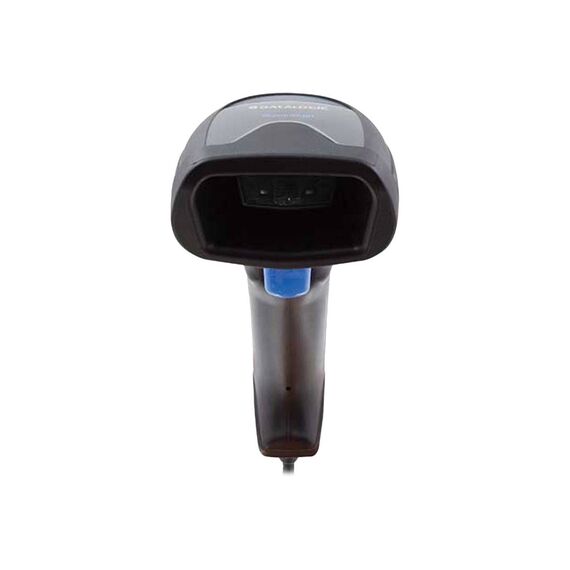

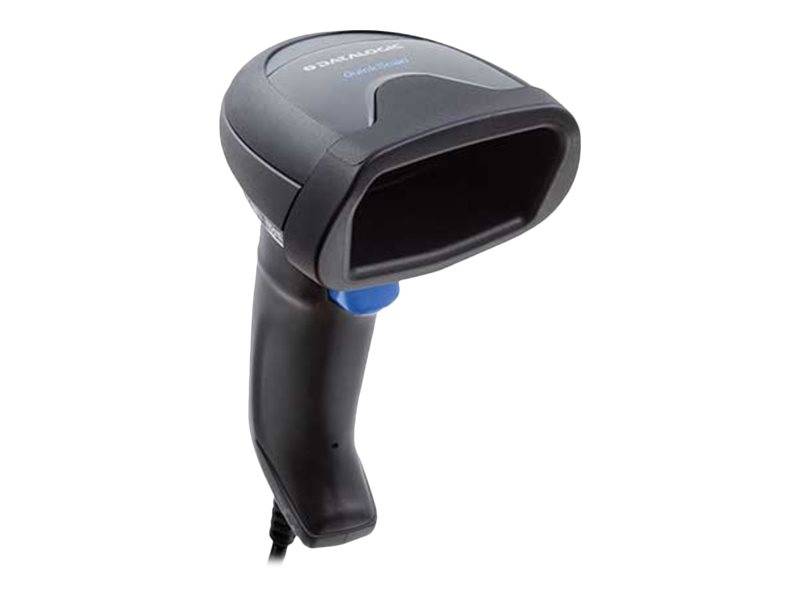

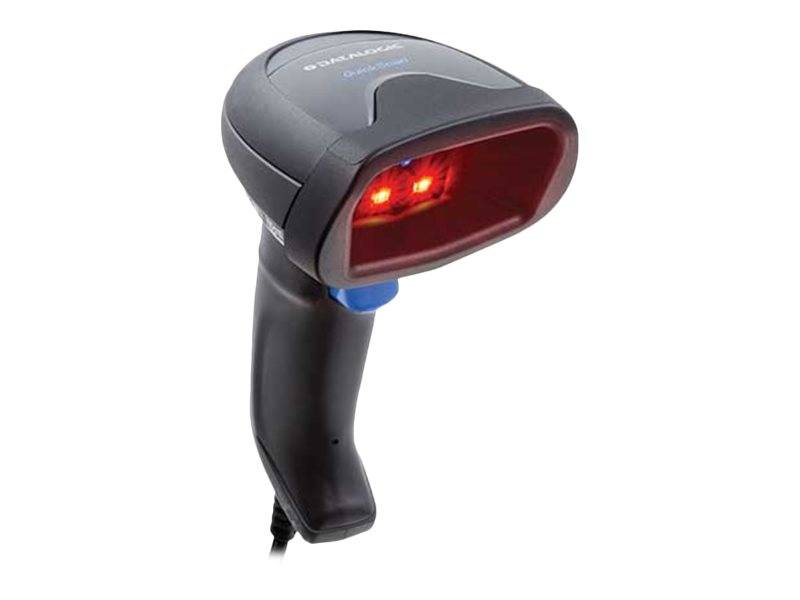

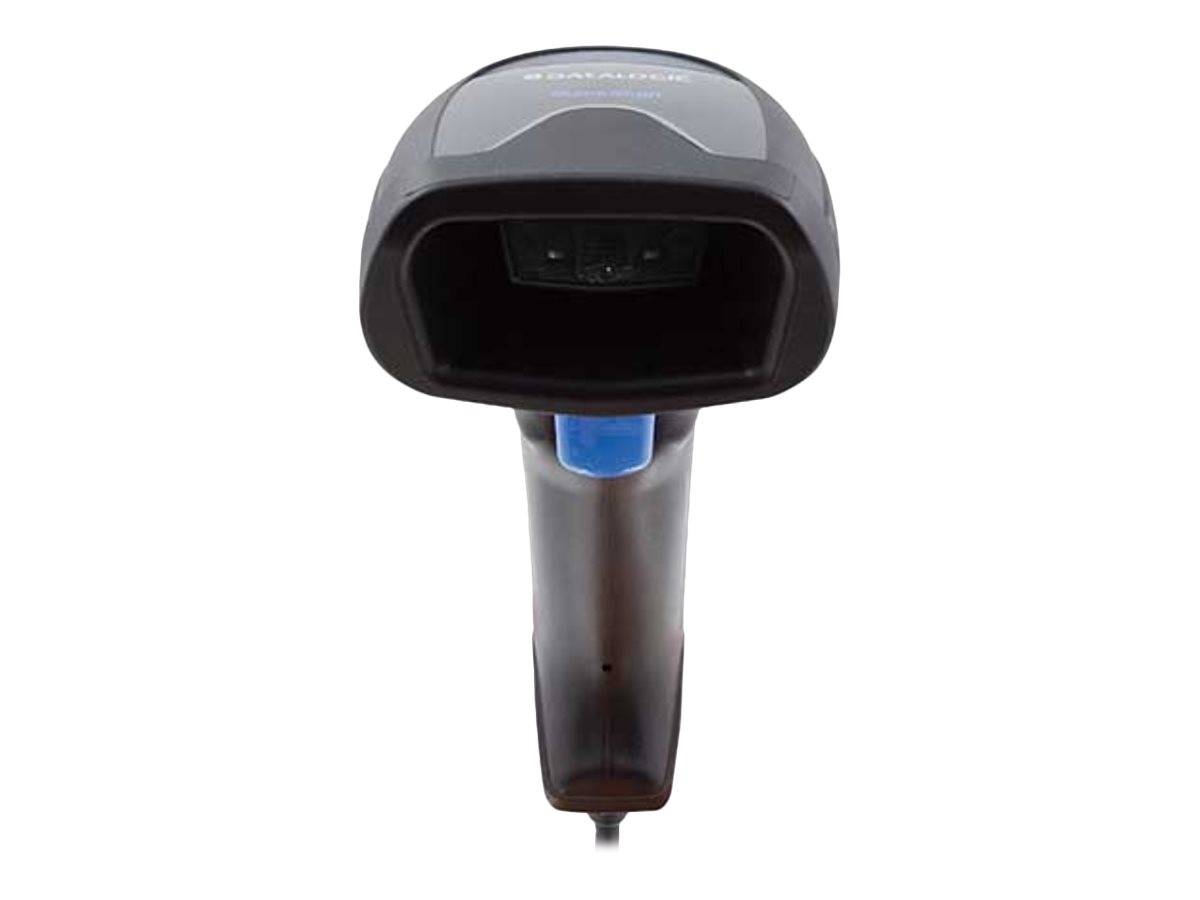

Datalogic QuickScan QW2520-BKK1 USB 1D/2D VGA Barcode Scanner Kit, Green Spot, USB Cable, Black

Brand:
Datalogic
Datalogic QuickScan QW2520-BKK1 Black USB 2D VGA Scanner Kit
Datalogic QuickScan QW2520-BKK1 USB 1D/2D VGA Barcode Scanner Kit, Green Spot, USB Cable, Black
€92.94 inc. VAT
Buy
QW2520-BKK1
€78.10
€92.94 inc. VAT
Ships from EU stock: 196 item(s)
+ −
Add to wish list Ask a question
Product Code
CD15780
EAN Code
5704174882244
Manufacturer
Datalogic

Quick Specs

Imaging
1D / 2D VGA, 640 × 480
Feedback
Green Spot, beeper, LED
Kit
USB cable 90A052258 included
Protection
IP52; repeated 1.5 m concrete drops
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

USB imaging for printed and screen barcodes

1D/2D VGAGreen SpotUSB kit

The QuickScan QW2520 kit combines a wired VGA imager with its USB cable for checkout and document workflows. A blue aiming dot helps position the reader, while Green Spot feedback confirms a successful read directly on the code.

Compatibility — check before buying:
This kit contains the scanner and USB cable only. A presentation stand is a separate accessory. Verify the barcode format and host software; OCR and Digimarc are not specified for the QW variant.

Best For

✓ Fixed checkout stations
✓ Packing and stock identification desks

Key Features


Aim with a dot
The QW model uses a blue aiming dot and red illumination to guide barcode placement.

Confirm on the code
Green Spot, LED and adjustable sound provide successful-read feedback.

Read screens
The area imager supports compatible codes on mobile displays and paper, useful for digital coupons and labels.

Technical Specifications

Reading & optics
SKU / EAN QW2520-BKK1 / 5704174882244
Sensor / media VGA 640 × 480 pixels; omnidirectional 1D/2D; paper and mobile displays
Linear codes Standard 1D codes including GS1 DataBar
Matrix codes Aztec, China Han Xin, Data Matrix, MaxiCode, Micro QR, QR, Dot Code
Postal codes Australian Post, British Post, China Post, IMB, Japanese Post, KIX Post, Planet, Postnet, Royal Mail RM4SCC
Stacked / composite EAN/JAN Composites, GS1 DataBar Composites, Expanded Stacked, Stacked, Stacked Omnidirectional, MacroPDF, MicroPDF417, PDF417, UPC A/E Composites
Resolution 1D: 0.077 mm / 3 mil; PDF417: 0.127 mm / 5 mil; Data Matrix: 0.152 mm / 6 mil; QR: 0.17 mm / 6.7 mil
Lighting / aiming Red LED 617 nm; blue dot LED 468 nm
Motion / contrast / angles 30 IPS; minimum contrast 15% with specific configuration; pitch ±65°, roll 360°, skew ±65°
Read feedback / image capture Green Spot on code, adjustable beeper tone/volume, Good-read LED; BMP/JPEG/TIFF, greyscale 256/16/2
Typical depth of field Code 39 5 mil: 0.5–23 cm; 10 mil: 0.5–37 cm; Data Matrix 10 mil: 1–15.5 cm; EAN/UPCA 13 mil: 1–40 cm; PDF417 6.7 mil: 0.5–13.5 cm; QR 20 mil: 1–33 cm
Range conditions Minimum distance depends on symbol length and angle; results depend on printing resolution, contrast and ambient light
Host & body
Interface / kit Wired USB; kit includes USB cable 90A052258; stand excluded. Family also supports USB Type C via appropriate cable
Power 5 V DC; operating below 400 mA at 5 V; idle below 90 mA at 5 V
Dimensions / weight 148 × 68 × 126 mm; 145 g; black
Protection / trigger IP52; repeated 1.5 m concrete drops; trigger rated for 10 million activations; ESD air 16 kV
Environment Light 0–110,000 lux; humidity 0–95% non-condensing; operation 0–50 °C; storage/transport -40–70 °C
Utilities / compliance Datalogic Aladdin, OPOS/JavaPOS, remote host download; EU/China RoHS; LED illuminator Exempt Group / aiming Risk Group 1 under IEC 62471
Factory warranty 5 years, manufacturer terms apply

What's in the Box

Black QuickScan QW2520 scanner
USB cable 90A052258

Frequently Asked Questions

Is a stand included?
No. QW2520-BKK1 includes the scanner and USB cable; stand kits have a different SKU.
Does it read QR from a phone?
Yes, supported screen barcodes can be read. Test your code size and screen brightness.
Singular Expert Insight
Start with a sample label and your checkout software. A matching connector alone does not establish that a barcode format or application workflow is supported. Compare barcode scanner types Check host USB connectivity, software input requirements and the barcode format before ordering.

Buyer’s Guide

Buy it if

You need USB image scanning for supported linear, matrix and screen codes.

Skip it if

You need cordless mobility, OCR or a stand included.

Also consider

A stand kit for presentation use, or a wireless model for mobile work.
