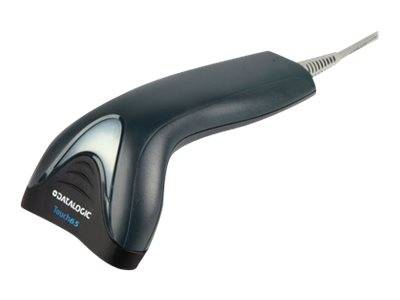

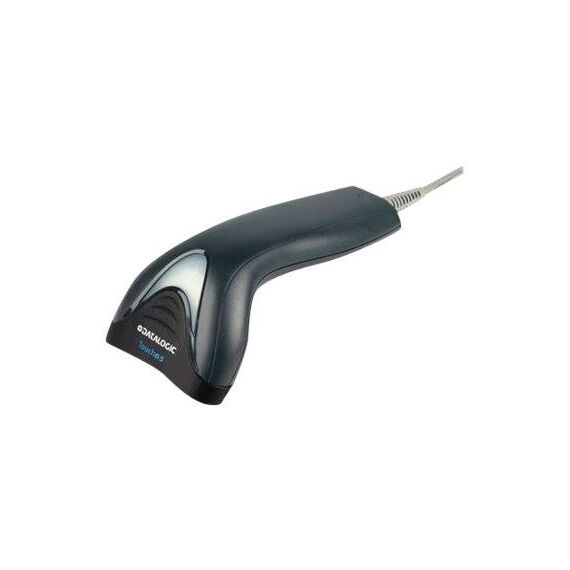

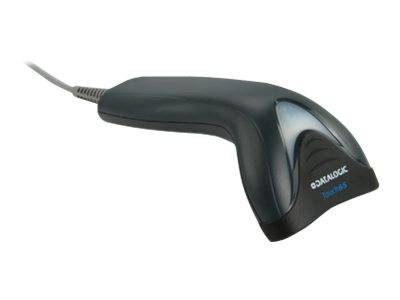

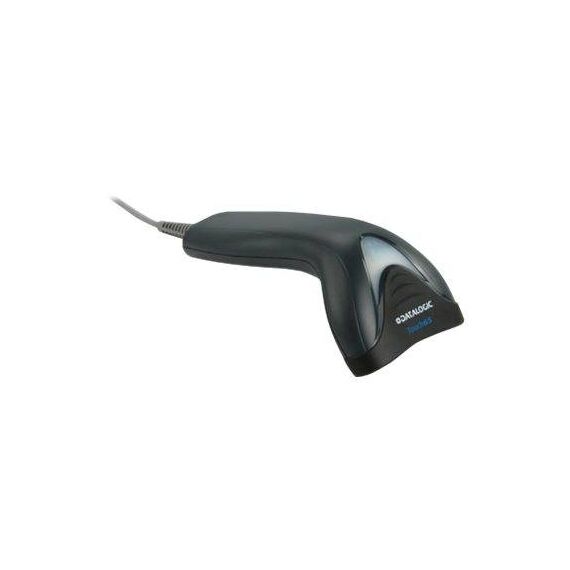

Datalogic Touch 65 Lite — Compact 1D USB Barcode Scanner for Reliable Close-Range Reading
The Datalogic TD1120-BK-65 Touch 65 Lite is a compact corded 1D barcode scanner designed for dependable close-range reading in retail counters, office desks, document workflows and light stock-control environments. Built around a linear imager scan engine, it provides reliable performance on standard linear barcodes, including damaged or poorly printed labels, while keeping installation simple with a dedicated USB interface. Its 65 mm reading window is optimized for standard barcode sizes, making it a practical everyday scanner for lower-throughput business use.
Technical Specifications
| Specification | Detail |
|---|---|
| Product Type | Corded handheld 1D barcode scanner |
| Model | TD1120-BK-65 |
| Series | Touch TD1100 |
| Variant | Touch 65 Lite |
| Scan Technology | Linear imager |
| Barcode Support | 1D barcodes |
| Supported Symbologies | GS1 DataBar, Code 128, Code 39, Code 93, Code 11, Codabar, EAN/UPC, Interleaved 2 of 5, Standard 2 of 5, MSI, Plessey and other common linear barcode formats |
| Reading Window | 65 mm / 2.6 in |
| Working Distance | Up to 150 mm |
| Light Source | 640 nm |
| Resolution | 4 mil |
| Reading Angles | Tilt -45° to 45° | Pitch -65° to 65° | Yaw -70° to 70° |
| Interface | USB |
| Input Voltage | 5 V |
| Power Consumption | 100 mA |
| Indicators | Beeper, LED |
| Protection Rating | IP30 |
| Drop Resistance | 1.5 m / 5 ft |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -40°C to 70°C |
| Operating Humidity | 5% to 95% RH |
| Colour | Black |
| Dimensions | 160 x 84 x 58 mm |
| Weight | 130 g |
Optimized for Standard 1D Barcode Work
The Touch 65 Lite is designed for businesses that want reliable barcode capture without paying for features they do not need. Its 65 mm scan window is ideal for reading standard-size 1D labels in retail, administration and light stock-control environments. The scanner is also built to handle damaged or poorly printed barcodes more confidently than manual entry, helping improve data accuracy and reduce delays during routine workflows.
Compact, Light and Easy to Deploy
Datalogic designed this model for lower-throughput environments where simplicity, low power consumption and easy installation matter most. The compact lightweight body stays comfortable during extended use, while the durable housing and 1.5 m drop resistance support everyday reliability. With a dedicated USB interface, it fits well into checkout desks, office workstations and standard business systems that need straightforward plug-and-play barcode reading.
BUYER'S GUIDE
For who
Retail counters, office desks, light warehouse stations and business environments that need a compact scanner for standard 1D barcode reading with simple USB connectivity.
The real reason to buy it
It delivers dependable 1D linear imaging performance, a practical 65 mm reading window, and easy USB installation in a lightweight, cost-effective design for everyday barcode work.
Know before you buy
This is a 1D barcode scanner, so it does not support QR codes or other 2D formats. The TD1120-BK-65 is the USB interface version; accessories such as holder and cable are bundle-dependent and are included on the dedicated kit variant.
Features - Datalogic - TD1120-BK-65
More Details
Product Code
V382152
EAN Code
5656565656562
Manufacturer
Datalogic
