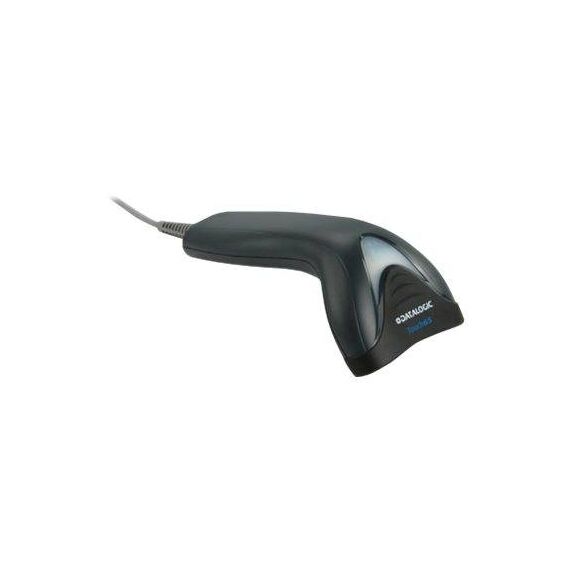

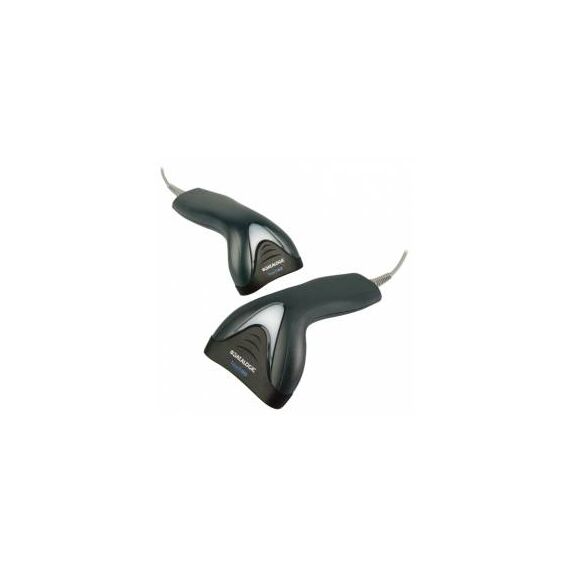

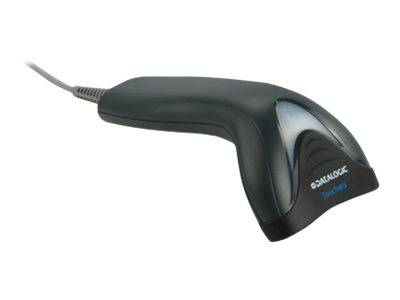

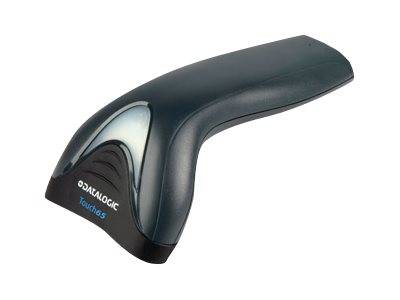

Datalogic Touch TD1170-BK-65 65 Lite 1D Contact Scanner, RS-232/Keyboard Wedge, 65 mm Window, Black

Brand:
Datalogic
Datalogic Touch TD1170-BK-65 65 Lite RS-232 Keyboard Wedge Scanner Black
Datalogic Touch TD1170-BK-65 65 Lite 1D Contact Scanner, RS-232/Keyboard Wedge, 65 mm Window, Black
€77.21 inc. VAT
Buy
TD1170-BK-65
€64.88
€77.21 inc. VAT
Ships from EU stock: 34 item(s)
+ −
Add to wish list Ask a question
Product Code
V382153
EAN Code
5711045619786
Manufacturer
Datalogic

Quick Specs

Reading
1D linear imager
Window
65 mm
Interfaces
RS-232 / Keyboard Wedge
Protection
IP30, 1.5 m concrete drop rating
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

Close-contact linear reading for serial or keyboard-wedge hosts

1D65 mm windowRS-232 / KBW

The Touch 65 Lite is a compact contact reader for supported linear barcodes in lower-throughput desk and document workflows. This version connects through RS-232 or Keyboard Wedge; select the appropriate cable for your host before installation.

Compatibility — check before buying:
This TD1170 variant is RS-232/Keyboard Wedge, not the USB Lite model. The interface cable must be ordered separately. QR and Data Matrix require a 2D reader.

Best For

✓ Fixed checkout stations
✓ Packing and stock identification desks

Key Features


Contact workflow
Bring the reader close to the linear label and match the symbol size to the reading window.

Read-thru holder support
The family supports a read-thru holder for documents and small items; confirm supplied accessories for the installation.

Configuration tools
Datalogic provides Aladdin and OPOS/JavaPOS utilities to help integrate and configure the reader.

Technical Specifications

Identity & performance
SKU / EAN TD1170-BK-65 / 5711045619786
Model / interface Touch TD1100 65 Lite; wired RS-232 / Keyboard Wedge
Reading window / resolution 65 mm; 0.102 mm / 4 mil
Codes Standard 1D linear codes including GS1 DataBar; GS1 DataBar Expanded Stacked, Stacked, Stacked Omnidirectional
Typical depth of field Code 39 7.5 mil: 0–8.1 cm; Code 39 10 mil: 0–12 cm; EAN-13 13 mil: 0–15 cm
Range conditions Depends on printing resolution, contrast and ambient light; minimum distance depends on symbol length and scan angle
Light / contrast 640 nm LED; minimum print contrast 25%
Angles Pitch ±65°; roll ±45°; skew ±70°
Indication Beeper with adjustable tone; Good Read LED
Electrical & physical
Power 5 V DC ±0.5 V; typical operating current below 100 mA at 5 V; typical idle 20 mA at 5 V
Dimensions / weight 160 × 84 × 58 mm; 130 g
Colour / sealing Black; IP30
Drop / ESD Repeated 1.5 m drops onto concrete; 16 kV air discharge
Ambient / humidity 0–20,000 lux; 5–95% RH non-condensing
Temperatures Operating 0–50 °C; storage/transport −20–70 °C
Software / compliance Datalogic Aladdin; OPOS/JavaPOS utilities; remote host download; EU/China RoHS
Connection requirements Order appropriate RS-232 or Keyboard Wedge interface cable separately
Factory warranty 5 years; manufacturer terms apply

Frequently Asked Questions

Does this version connect by USB?
No. TD1170-BK-65 is the RS-232/Keyboard Wedge variant; USB Lite uses a different SKU.
Is the interface cable included?
The interface cable is ordered separately. Select it for your host connector and power arrangement.
Singular Expert Insight
Start with a sample label and your checkout software. A matching connector alone does not establish that a barcode format or application workflow is supported. Compare barcode scanner types Check host USB connectivity, software input requirements and the barcode format before ordering.

Buyer’s Guide

Buy it if

Your installation needs close-contact 1D reading over RS-232 or Keyboard Wedge.

Skip it if

You need direct USB connectivity or matrix-code decoding.

Also consider

The USB Lite version for USB hosts, or Pro for broader interface options.
