Datalogic Touch TD1100 65 Lite TD1120-BK-65K1 1D Linear Imager Barcode Scanner USB Kit with Cable and Holder Black

Brand:
Datalogic
Datalogic Touch TD1100 65 Lite 1D Barcode Scanner USB Black
Datalogic Touch TD1100 65 Lite TD1120-BK-65K1 1D Linear Imager Barcode Scanner USB Kit with Cable and Holder Black
€88.9 inc. VAT
Buy
TD1120-BK-65K1
€74.71
€88.90 inc. VAT
Ships from EU stock: 114 item(s)
+ −
Add to wish list Ask a question
Product Code
V382144
EAN Code
5711045567810
Manufacturer
Datalogic
Quick Specs
Scanner Type
1D Linear Imager (contact)
Reading Window
6.5 cm / 2.6 in
Interface
USB — cable + holder included
Drop Resistance
1.5 m / 5.0 ft
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

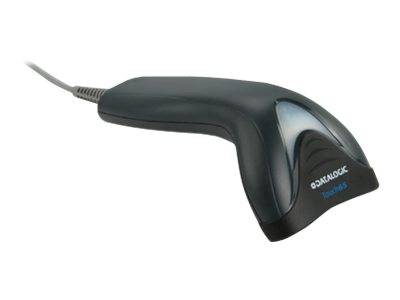

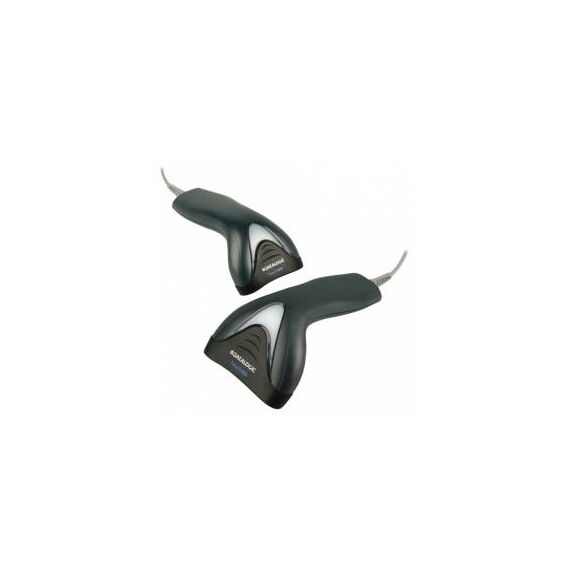

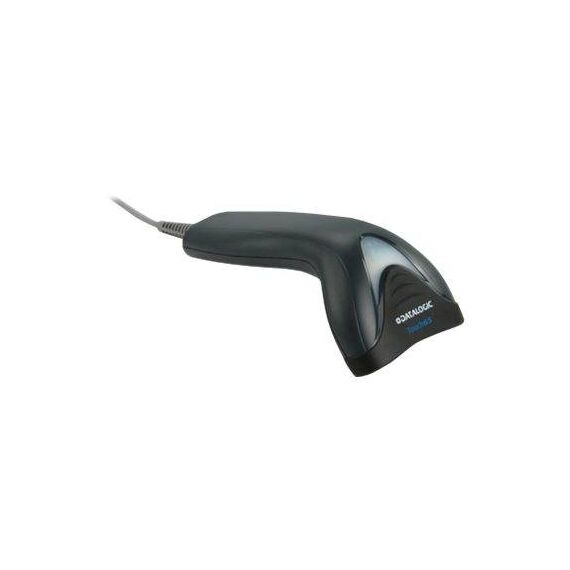

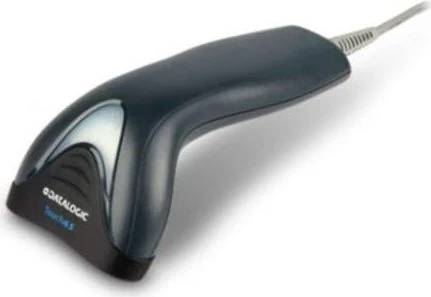

Datalogic Touch TD1100 65 Lite — Corded 1D Contact Barcode Scanner

6.5 cm Reading Window1D Linear ImagerUSB Kit — Cable + Holder1.5 m Drop Resistance

The Datalogic Touch TD1100 65 Lite (part number TD1120-BK-65K1, EAN 5711045567810) is a corded handheld 1D linear imager barcode scanner with a wide 6.5 cm / 2.6 in contact reading window, built for shops, pharmacies, offices and service desks that need reliable close-contact scanning at a low cost. It reads virtually all linear barcodes — including damaged or poorly printed codes — and this USB kit ships complete with a USB cable and the innovative read-thru holder for hands-free scanning of documents and small items. Typically in stock with fast delivery across Cyprus.

Compatibility & Usage Note
The Touch TD1100 reads 1D linear barcodes only — it does not read QR or other 2D codes. It is a contact reader: codes are scanned touching or within a few centimetres of the window (up to ~15 cm on large EAN-13 codes). The USB interface works plug-and-play as a keyboard emulation device with Windows POS and ERP software; no drivers required for basic use.

Best For

✓ Retail counters & kiosks with low scan volume
✓ Pharmacies scanning boxed medicine barcodes
✓ Offices — document & invoice barcode entry
✓ Libraries and small warehouses on a budget
✓ Hands-free document scanning via read-thru holder
✓ Reading damaged or poorly printed 1D codes

Key Features


Wide 6.5 cm Contact Window
The Touch 65 reading window covers standard retail barcodes in one touch — no aiming needed. Excellent performance on damaged, low-contrast (25% PCR) or poorly printed linear codes.

Complete USB Kit
TD1120-BK-65K1 includes the scanner, USB cable and the read-thru holder, which enables hands-free reading on documents or small items straight out of the box.

Durable Beyond Its Class
Withstands repeated 1.5 m / 5.0 ft drops onto concrete and 16 kV ESD — robustness typically found in higher-priced scanners — backed by a 5-year factory warranty.

Low Power, Simple Setup
Draws under 100 mA from the USB port, so no external power supply is needed. Free Datalogic Aladdin software plus OPOS/JavaPOS utilities simplify configuration.

Technical Specifications

Identification
Part Number TD1120-BK-65K1
EAN / GTIN 5711045567810
MPN TD1120-BK-65K1
Series Datalogic Touch TD1100 (Touch 65 Lite)
Reading Performance
Scanner Type 1D linear imager, contact reader — codes are read touching or near the window, not at a distance
Reading Window 6.5 cm / 2.6 in
Light Source Illumination: 640 nm LED
Max Resolution 0.102 mm / 4 mil — reads very fine, densely printed barcodes
Min Print Contrast 25%
Read Angles Pitch ±65° + Roll (Tilt) ±45° + Skew (Yaw) ±70°
Reading Indicators Beeper (adjustable tone) + good-read LED
Reading Ranges (Typical DOF)
Code 39 — 7.5 mils 0 to 8.1 cm / 0 to 3.2 in
Code 39 — 10 mils 0 to 12.0 cm / 0 to 4.7 in
EAN-13 — 13 mils 0 to 15.0 cm / 0 to 6.0 in
Decoding Capability
1D / Linear Codes Autodiscriminates all standard 1D codes including GS1 DataBar linear codes
Stacked Codes GS1 DataBar Composites + Expanded Stacked + Stacked + Stacked Omnidirectional
Postal Codes Australian Post, British Post, Canadian Post, China Post, Japanese Post, KIX, Korea Post, PlanetCode, Postnet, Royal Mail RM4SCC
Interface
Interface USB (Lite USB model) — keyboard emulation, plug-and-play
In the Box Scanner + USB cable + read-thru holder
Electrical
Input Voltage 5 VDC ± 0.5 V (USB bus-powered)
Current Operating <100 mA + standby/idle 20 mA (typical)
Environmental
Drop Resistance Withstands repeated drops from 1.5 m / 5.0 ft onto concrete
Sealing IP30 — protected against solid objects, no water protection; keep away from liquids
ESD Protection 16 kV (air discharge)
Operating Temperature 0 to 50 °C
Storage Temperature -40 to 70 °C
Humidity 5 – 95% non-condensing
Ambient Light 0 – 100,000 lux — works under direct sunlight
Physical
Dimensions 16.0 x 8.4 x 5.8 cm
Weight 130 g
Colour Black
Software & Warranty
Configuration Datalogic Aladdin (free) + OPOS / JavaPOS utilities + Remote Host Download
Warranty 5-year factory warranty

Frequently Asked Questions

Does the Datalogic Touch TD1100 65 Lite work with Windows POS software?
Yes. The USB kit (TD1120-BK-65K1) connects as a plug-and-play keyboard emulation device, so scanned barcodes type directly into any Windows POS, ERP or Excel field with no drivers. OPOS and JavaPOS utilities are also available free for POS integrations.
Can the Touch TD1100 read QR codes?
No. The Touch TD1100 is a 1D linear imager — it reads all standard linear barcodes (EAN, UPC, Code 39, Code 128, GS1 DataBar) plus postal codes, but not QR or other 2D matrix codes. If you need QR support, choose a 2D imager such as the Datalogic QuickScan QD2500 series.
What is the difference between the Touch 65 Lite and the Touch 90 or Pro models?
The Touch 65 Lite has a 6.5 cm reading window and a single interface (this model: USB). The Touch 90 versions have a wider 9.0 cm window for long barcodes, while Pro versions add multi-interface support (RS-232, USB and Keyboard Wedge in one unit).
What do I need to know before buying the Touch TD1100 65 Lite?
It is a contact reader designed for low-throughput scanning: you touch the window on (or hold it within a few centimetres of) the barcode. It is ideal for counters, pharmacies and offices, but for fast hands-free retail lanes or long-distance scanning a laser or area imager is a better fit. The included read-thru holder enables hands-free reading of documents.
Singular Expert Insight
The Touch 65 Lite is the most cost-effective way to add reliable 1D scanning to a counter or back office. Compared with the Touch 90 Lite, you give up the wider 9 cm window — only relevant if you scan very long logistics barcodes. Compared with the Touch Pro models, you lose RS-232/Keyboard Wedge flexibility, which modern USB-based POS systems rarely need. If your codes are on screens or you need QR/2D or distance scanning, step up to a 2D imager like the QuickScan series instead. For plain product barcodes at close range, the TD1100 punches above its price: 1.5 m drop rating, sunlight-readable performance and a 5-year warranty are specs normally reserved for dearer scanners.

Buyer’s Guide

Buy it if
You need dependable close-contact 1D scanning at the lowest cost + you scan damaged or poorly printed codes + you want hands-free document scanning with the included holder + a 1.5 m drop rating and 5-year warranty matter.
Skip it if
You must read QR/2D codes or barcodes from phone screens + you need distance or high-speed presentation scanning at a busy checkout + you require RS-232 or Keyboard Wedge (choose the Touch Pro instead).
Also consider
Datalogic Touch 90 Lite — 9 cm window for long logistics codes. Touch 65/90 Pro — multi-interface RS-232/USB/KBW. Datalogic QuickScan QW2100 — non-contact linear reading with greater range.
