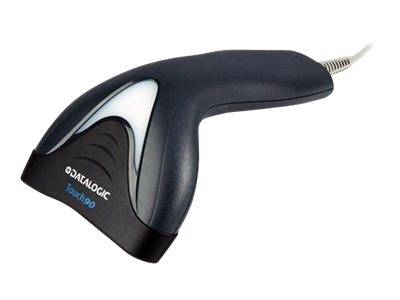

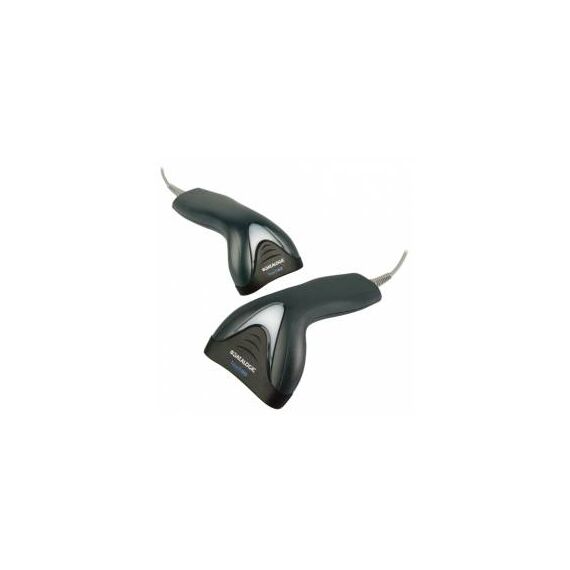

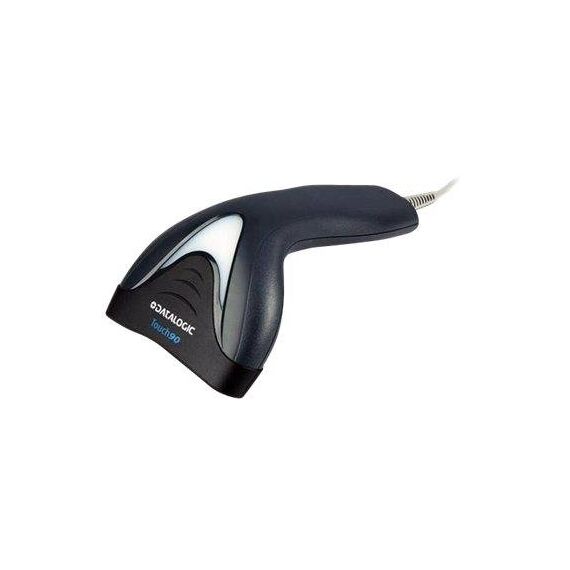

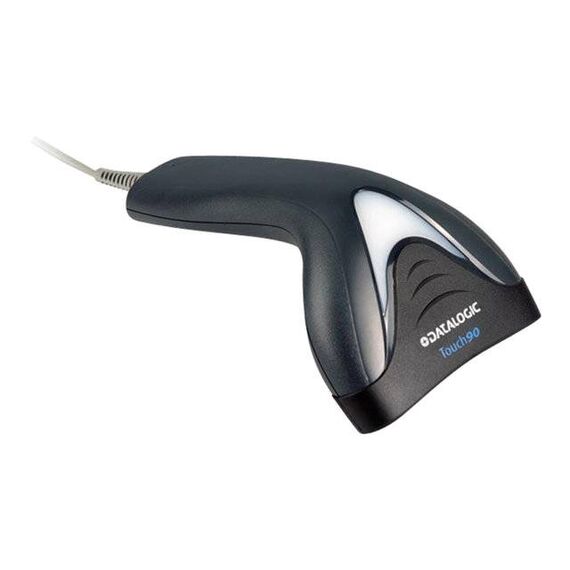

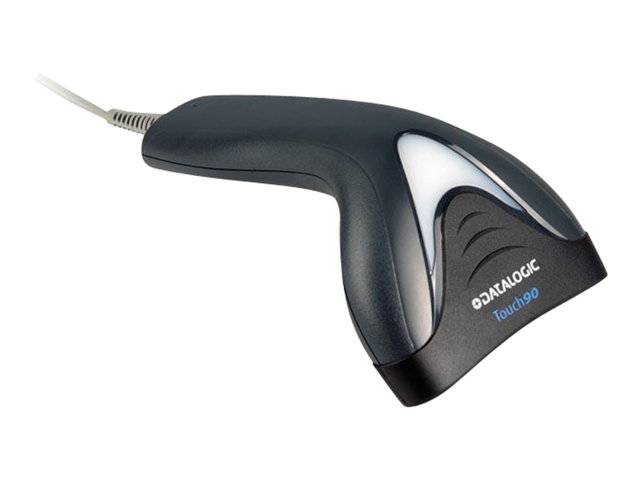

Datalogic Touch TD1130-BK-90 90 Pro 1D Contact Barcode Scanner, USB/RS-232/Keyboard Wedge/Wand, Black

Brand:
Datalogic
Datalogic Touch TD1130-BK-90 90 Pro Multi-Interface 1D Scanner Black
Datalogic Touch TD1130-BK-90 90 Pro 1D Contact Barcode Scanner, USB/RS-232/Keyboard Wedge/Wand, Black
€88.04 inc. VAT
Buy
TD1130-BK-90
€73.98
€88.04 inc. VAT
Ships from EU stock: 27 item(s)
+ −
Add to wish list Ask a question
Product Code
04:518453
EAN Code
4052923206379
Manufacturer
Datalogic

Quick Specs

Reading
1D linear imager
Window
90 mm
Interfaces
USB / RS-232 / Keyboard Wedge / Wand
Protection
IP30, 1.5 m concrete drop rating
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

Contact scanning with a choice of host interfaces

1D90 mm windowMulti-interface

The Touch 90 Pro reads supported linear labels at close range and offers multiple wired host interfaces. Select the cable and configuration that match your workstation before installation.

Compatibility — check before buying:
USB, RS-232, Keyboard Wedge and Wand are supported host interfaces. The host cable is ordered separately; choose the correct cable and power arrangement. QR and Data Matrix require a 2D reader.

Best For

✓ Fixed checkout stations
✓ Packing and stock identification desks

Key Features


Contact workflow
Bring the reader close to the linear label and match the symbol size to the reading window.

Read-thru holder support
The family supports a read-thru holder for documents and small items; confirm supplied accessories for the installation.

Configuration tools
Datalogic provides Aladdin and OPOS/JavaPOS utilities to help integrate and configure the reader.

Technical Specifications

Identity & performance
SKU / EAN TD1130-BK-90 / 4052923206379
Model / interface Touch TD1100 90 Pro; USB / RS-232 / Keyboard Wedge / Wand
Reading window / resolution 90 mm; 0.102 mm / 4 mil
Codes Standard 1D linear codes including GS1 DataBar; GS1 DataBar Expanded Stacked, Stacked, Stacked Omnidirectional
Typical depth of field Code 39 7.5 mil: 0–8.1 cm; Code 39 10 mil: 0–12 cm; EAN-13 13 mil: 0–15 cm
Range conditions Depends on printing resolution, contrast and ambient light; minimum distance depends on symbol length and scan angle
Light / contrast 640 nm LED; minimum print contrast 25%
Angles Pitch ±65°; roll ±45°; skew ±70°
Indication Beeper with adjustable tone; Good Read LED
Electrical & physical
Power 5 V DC ±0.5 V; typical operating current below 100 mA at 5 V; typical idle 20 mA at 5 V
Dimensions / weight 170 × 104 × 67 mm; 153 g
Colour / sealing Black; IP30
Drop / ESD Repeated 1.5 m drops onto concrete; 16 kV air discharge
Ambient / humidity 0–20,000 lux; 5–95% RH non-condensing
Temperatures Operating 0–50 °C; storage/transport −20–70 °C
Software / compliance Datalogic Aladdin; OPOS/JavaPOS utilities; remote host download; EU/China RoHS
Connection requirements Select and order the appropriate host interface cable separately
Factory warranty 5 years; manufacturer terms apply

Frequently Asked Questions

Which interfaces does the Pro support?
USB, RS-232, Keyboard Wedge and Wand; connection depends on the selected interface cable.
Is the interface cable included?
The interface cable is ordered separately. Select it for your host connector and power arrangement.
Singular Expert Insight
Start with a sample label and your checkout software. A matching connector alone does not establish that a barcode format or application workflow is supported. Compare barcode scanner types Check host USB connectivity, software input requirements and the barcode format before ordering.

Buyer’s Guide

Buy it if

You need close-contact linear reading with a choice of wired host interfaces.

Skip it if

You require wireless movement or matrix barcode reading.

Also consider

A USB kit when the required cable and holder must be included, or a 2D reader for QR.
