Kingston KSM32RS8/8MR 8GB DDR4-3200 ECC RDIMM

Brand:
Kingston

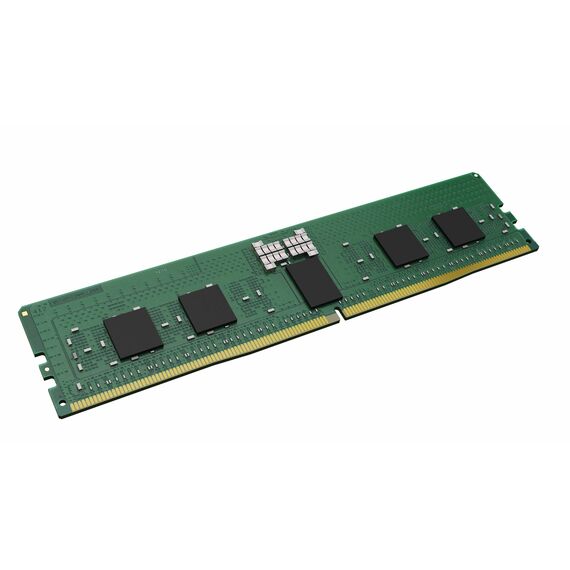

Kingston KSM32RS8/8MR DDR4 ECC Registered memory module
Kingston KSM32RS8/8MR 8GB DDR4-3200 ECC RDIMM
€454.71 inc. VAT
Buy
KSM32RS8/8MR
€382.11
€454.71 inc. VAT
Ships from EU stock: 2 item(s)
+ −
Add to wish list Ask a question
Product Code
04:581941
EAN Code
0740617354027
Manufacturer
Kingston
Quick Specs
Capacity
8GB single module
Memory
DDR4 3200MT/s
Type
ECC Registered DIMM
Timing / voltage
CL22 / 1.2V
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

8GB DDR4 ECC Registered memory for a verified server upgrade

8GBDDR4 3200MT/sECC Registered1Rx8 CL22

The Kingston KSM32RS8/8MR is an 8GB Server Premier DDR4 ECC Registered DIMM specified at 3200MT/s, CL22 and 1.2V. This single-rank 1Rx8 module uses Micron R-die 8Gbit DRAM and a 288-pin registered-with-parity design. Choose it for a server or workstation that explicitly supports this memory type and exact configuration.

Best For: IT teams expanding memory in a server whose manufacturer or Kingston compatibility list specifies this exact part.
Before you order: Check the exact server model, processor, firmware, slot population rules and installed modules before ordering. DDR4 alone does not establish compatibility: this is an ECC Registered DIMM, not desktop UDIMM or laptop SO-DIMM. Actual operating speed follows the supported system configuration. Kingston has issued a phase-out notice for this exact Micron R-die part; a replacement part can have a different capacity and DRAM density. Module images are illustrative; PCB and labels can differ.

What's in the Box

  • One 8GB Kingston KSM32RS8/8MR memory module.

What It Means in Practice

  • 8GB is the capacity of this single module; plan the total upgrade around existing memory and available slots.
  • Follow the server service manual for approved slot placement and supported module combinations.
  • Shut the system down and follow its maintenance and antistatic procedures during installation.

What Will Not Work

  • Do not select this registered module for a desktop or laptop solely because it uses DDR4.
  • 3200MT/s is the module specification, not a promise that every supported server configuration will run at that rate.
  • A matching pin count alone does not prove compatibility.

Key Features


8GB module capacity
A single 8GB module for a supported memory expansion plan.

ECC Registered design
Registered server memory with ECC; the host platform must support this memory class.

Defined electrical specification
DDR4-3200 with CL22 timing and a stated 1.2V operating voltage.

Micron R-die identity
Exact part KSM32RS8/8MR specifies Micron R-die 8Gbit DRAM; another suffix can identify a different build.

Technical Specifications

Manufacturer / series Kingston Server Premier
Part number KSM32RS8/8MR
Capacity / quantity 8GB / 1 module
Technology / data rate DDR4 SDRAM / 3200MT/s
Module type ECC Registered DIMM, registered with parity
Organisation 1Rx8; 1G × 72-bit module
DRAM build Nine 1G × 8-bit FBGA components, Micron R-die, 8Gbit
SPD timing JEDEC DDR4-3200, 22-22-22 at 1.2V
Contacts 288-pin, gold contact fingers
Power rails VDD 1.2V; VDDQ 1.2V; VPP 2.5V; VDDSPD 2.41–2.75V
Internal banks / prefetch 16 banks / 8-bit prefetch
Data-rate support 3200 / 2933 / 2666 / 2400 / 2133 / 1866 / 1600MT/s, host dependent
Burst modes BL8 or BC4, switchable on the fly
ECC / parity / CRC ECC error correction and detection; command/address parity; write CRC at all speed grades
Additional functions ODT; SPD-integrated temperature sensor; per-DRAM addressability; internal VrefDQ
Minimum timings tRC 45.75ns; tRFC 350ns; tRAS 32ns
Operating / storage temperature 0–85°C / −55–100°C
Compliance / flammability RoHS / UL94 V-0
Condition New

Frequently Asked Questions

Is this ordinary desktop DDR4 memory?
No. It is ECC Registered DIMM memory for systems that explicitly support this memory class and part.
Will it run at 3200MT/s in every server?
The module is specified at 3200MT/s. The actual operating rate depends on the server, processor and memory population.
What does 1Rx8 mean?
The manufacturer identifies a single-rank module using an x8 component organisation. Match it to the server’s supported memory configuration.
Is this a multi-module kit?
This listing is for one 8GB module. Confirm the number of modules required by your upgrade plan.
Singular Expert Insight

Start with the server’s compatibility list and population guide, then select the module. Capacity, generation and pin count are useful checks, but registered-memory support and the exact platform configuration decide whether the upgrade is suitable.

Buyer’s Guide

✓ Buy it if Your exact server configuration supports KSM32RS8/8MR and you need an additional 8GB ECC RDIMM.
✕ Skip it if Your system requires unbuffered desktop memory or laptop SO-DIMMs, or compatibility has not been established.
→ Also consider The server’s approved memory population plan and whether matched modules are needed for the intended configuration.
