Dell Pro Max Micro FCM2250 — Core Ultra 7 265, 32GB, 1TB, RTX A1000
RTX A1000 8GBCore Ultra 7 26532GB DDR5Micro workstation
The Dell Pro Max Micro (model FCM2250, G69HK) is a micro-size workstation with an Intel Core Ultra 7 265, 32GB of DDR5, a 1TB NVMe SSD and an NVIDIA RTX A1000 8GB professional graphics card, for CAD, BIM and engineering users who need professional graphics in a box about the size of a hardback book.

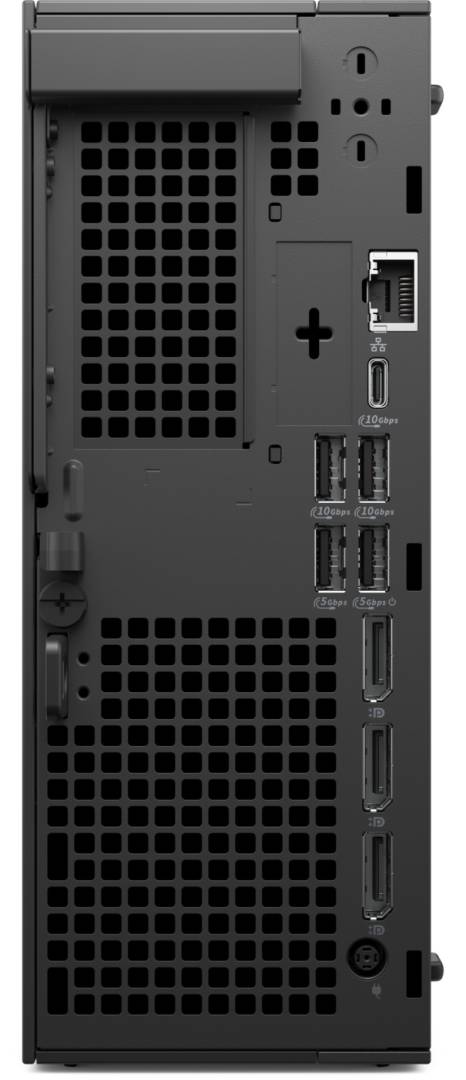

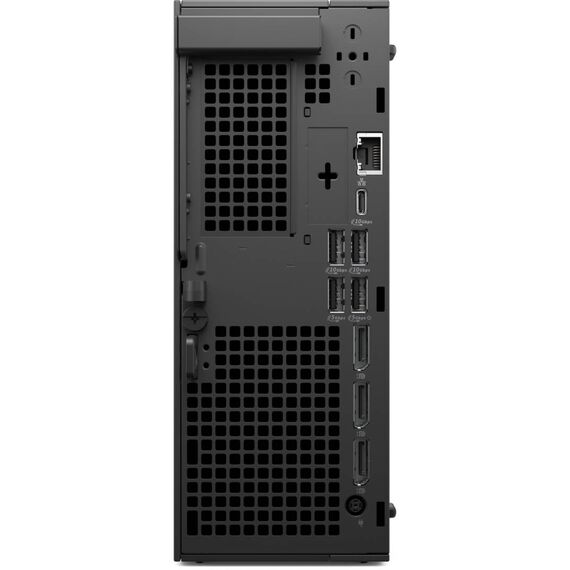

It is built on Intel's W880 workstation chipset with Windows 11 Pro, discrete TPM 2.0, chassis intrusion detection and Dell SafeBIOS. Between the three DisplayPort 1.4a outputs on the motherboard and the four mini DisplayPort outputs on the RTX A1000, it can drive a large multi-monitor desk.
Before you order: The 32GB is a single SODIMM, so memory runs single-channel until a second module is added. Dell does not list a keyboard, mouse or Wi-Fi card for this configuration — ask us if you need them.
What's in the Box
- Dell Pro Max Micro FCM2250 with NVIDIA RTX A1000 8GB installed
- External Dell AC power adapter and power cord
- Dell documentation
- Keyboard, mouse and Wi-Fi are not listed for this configuration — ask us
What It Means in Practice
- The 20-core Core Ultra 7 265 runs at 65W in this chassis, so you get full desktop CPU performance in a micro form factor.
- The NVIDIA RTX A1000 (8GB GDDR6, 50W) is an entry professional RTX card for 2D/3D CAD, BIM viewing and multi-monitor work.
- Adding a second 32GB SODIMM gives dual-channel memory; Dell's manual lists 64GB (2x 32GB) as the maximum.
- A second M.2 slot (2230 or 2280, PCIe Gen4) is available for more storage; matching pairs can run in RAID 0/1.

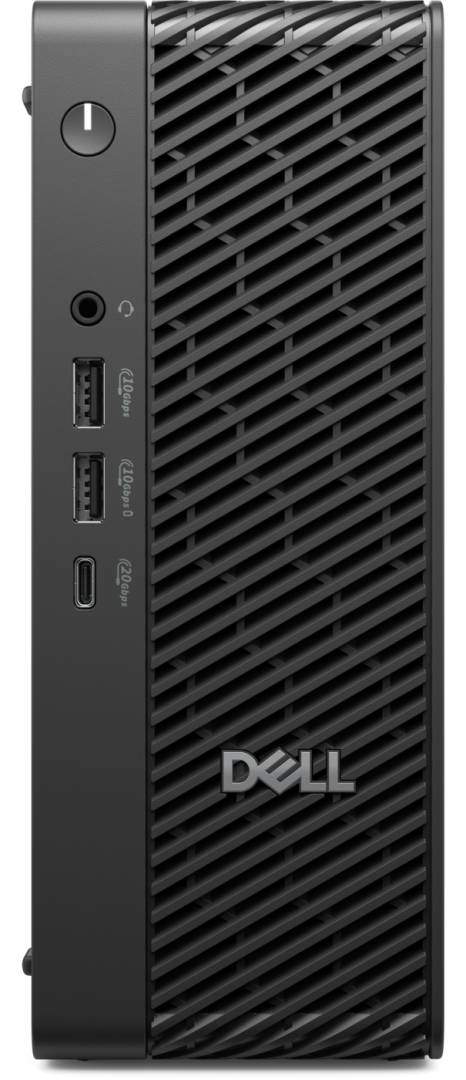

- Front 20Gbps USB-C and two 10Gbps USB-A ports keep fast connections within reach.
What Will Not Work
- Only half-height (low-profile) PCIe cards fit — no full-height GPU upgrades.
- No 2.5-inch or 3.5-inch drive bays; storage is M.2 only (two slots).
- The RTX A1000 is not meant for heavy GPU rendering or AI training.
- HDMI, USB-C video or Thunderbolt need Dell's optional rear module, which this configuration does not list.
- No Wi-Fi is listed for this configuration — use Ethernet or ask us for a Wi-Fi module.
Key Features
NVIDIA RTX A1000 8GB
Professional NVIDIA RTX GPU (Ampere), 8GB GDDR6, 50W, low-profile, 4x mini DisplayPort 1.4a, up to four 4K displays.
Core Ultra 7 265 at 65W
20 cores, 20 threads, 2.4–5.3GHz, 30MB cache, on the Intel W880 workstation chipset.

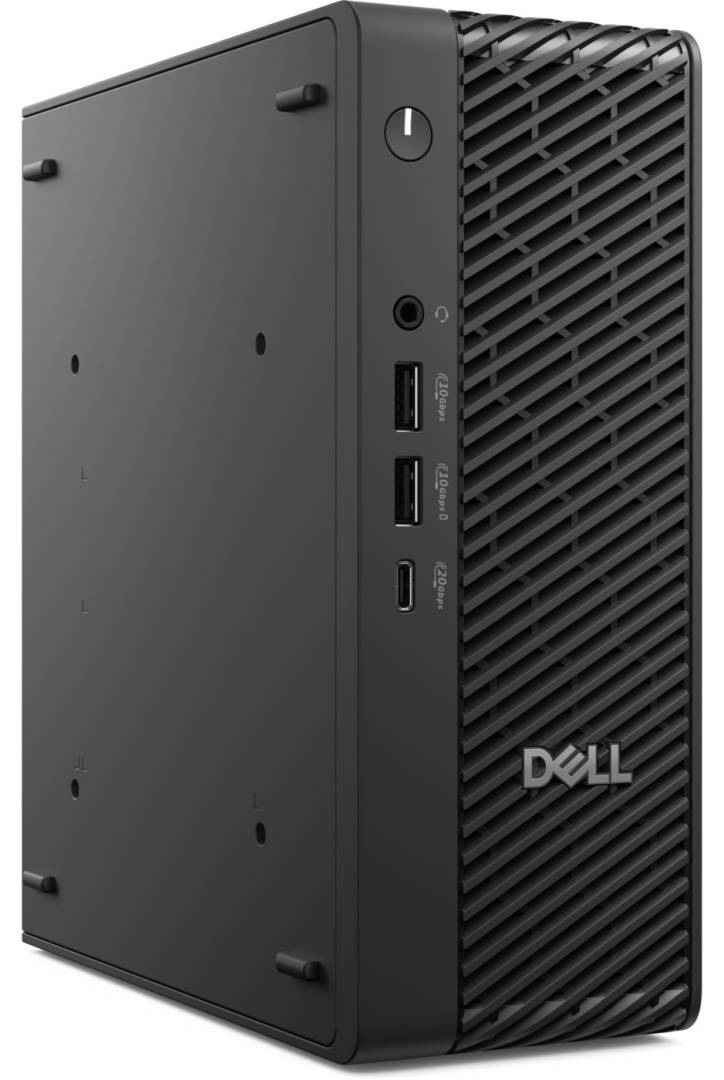

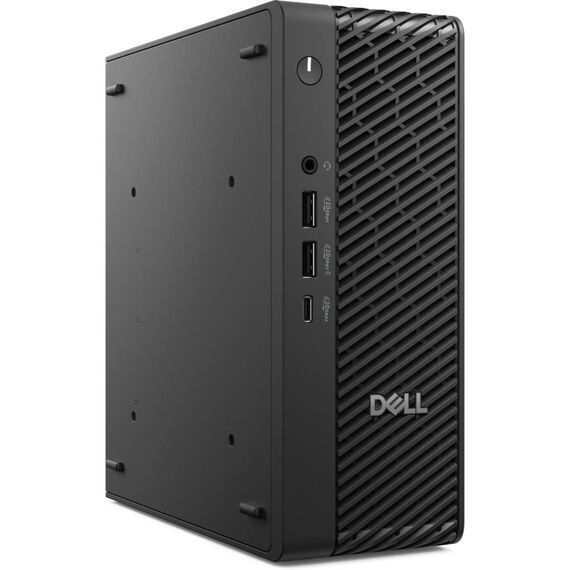

Micro chassis
About 206 x 79.3 x 178 mm (HxWxD) and from 1.89 kg, with an external power adapter.
Business security
Discrete TPM 2.0 plus Intel PTT, chassis intrusion switch, SafeBIOS, Kensington slot and padlock ring.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight · Buyer's Guide
The Dell Pro Max Micro is for engineers and designers who need professional NVIDIA graphics but have no room for a tower — at the counter, in a site office or behind a monitor. Plan your displays first: DisplayPort monitors from our PC monitors range connect to the A1000's mini DisplayPort outputs with a simple cable.
✓ Buy it if you need a tiny workstation with a professional NVIDIA GPU, a 20-core CPU and multi-monitor support.
✕ Skip it if you need full-height GPUs, 3.5-inch drives or more than 64GB of memory — choose the Dell Pro Precision 7 T1 tower.
→ Also consider Dell Pro Precision 7 T1 with RTX A1000 (PDW8Y) for a 15L tower, or Lenovo ThinkStation P3 Tiny Gen 2 with RTX A400.
Not sure it fits your setup? Send us your software and monitor list and we will check compatibility before you order.
