Dell Pro Precision 7 T1 — Core Ultra 7 265, 32GB, 1TB, RTX 5060
RTX 5060Core Ultra 7 26532GB DDR515L tower
The Dell Pro Precision 7 T1 (model PW7T1260, YVD95) is a 15-litre entry workstation tower with an Intel Core Ultra 7 265, 32GB of DDR5 memory, a 1TB NVMe SSD and an NVIDIA GeForce RTX 5060 8GB graphics card, built for designers, engineers and content creators who need strong GPU acceleration on a sensible budget.
It runs on the Intel Q870 chipset with Windows 11 Pro, Gigabit Ethernet, three DisplayPort 1.4a outputs and Dell SafeBIOS / TPM security, and offers four DDR5 slots, three M.2 SSD slots, a 3.5-inch bay and full-height PCIe slots for later upgrades.
Before you order: The memory is a single 32GB module, so it runs single-channel until you add a matching second DIMM. Dell does not list a keyboard, mouse or Wi-Fi card for this configuration — tell us if you need them and we will quote them with the PC.
What's in the Box
- Dell Pro Precision 7 T1 tower workstation with NVIDIA GeForce RTX 5060 8GB installed
- Power cable (internal power supply)
- Dell documentation
- Keyboard, mouse and Wi-Fi are not listed for this configuration — ask us
What It Means in Practice
- The 20-core Core Ultra 7 265 (8P + 12E, up to 5.3GHz) handles CAD modelling, compiling, photo editing and heavy multitasking smoothly.
- The GeForce RTX 5060 with 8GB GDDR7 accelerates rendering, video encoding, viewport performance and CUDA-based AI tools.
- Adding a second identical 32GB DIMM switches the memory to dual-channel, which noticeably helps integrated graphics, simulation and large datasets. Up to 128GB is supported.
- Storage grows easily: two more M.2 NVMe slots (one 2230-only, one 2230/2280) and a 3.5-inch bay for a hard drive up to 4TB.
- Front 20Gbps USB-C and 10Gbps USB-A ports make it quick to move large project files.
What Will Not Work
- The RTX 5060 is a GeForce card, not one of NVIDIA's professional RTX PRO / A-series cards — check your CAD vendor's certified-hardware list if ISV certification is required.
- The front 20Gbps USB-C port is for data only — it carries no video.
- No 2.5-inch drive bay; use M.2 SSDs or the 3.5-inch bay.
- Only one PCIe x16 slot, so a single full-size graphics card.
- HDMI is not built in on the motherboard — it needs Dell's optional rear module or a DisplayPort-to-HDMI adapter.
Key Features
RTX 5060
NVIDIA GeForce RTX 5060 with 8GB GDDR7 for GPU rendering, video editing and AI tools.
Core Ultra 7 265
20 cores, 20 threads, up to 5.3GHz, 30MB cache, 65W, with an NPU of up to 13 TOPS.
Upgrade-ready 15L tower
4x DDR5 UDIMM (up to 128GB), 3x M.2 PCIe Gen4 NVMe slots, 3.5-inch bay, full-height PCIe x16 + x4 + x1 slots.
Dell business security
Dell SafeID with TPM, SafeBIOS, chassis intrusion detection, lockable cable cover, padlock ring and Kensington slot.
Technical Specifications
| Identification |
| Part Number |
YVD95 |
| EAN / GTIN |
5397184903100 |
| MPN |
YVD95 |
| Brand |
Dell |
| Model |
Dell Pro Precision 7 T1 (PW7T1260) |
| Performance |
| Processor |
Intel Core Ultra 7 265, 20 cores (8P + 12E) / 20 threads, P-core 2.4GHz base / up to 5.3GHz, 30MB cache, 65W |
| NPU |
Up to 13 TOPS |
| Chipset |
Intel Q870 |
| Graphics |
NVIDIA GeForce RTX 5060 8GB GDDR7 + integrated Intel Graphics |
| Memory |
32GB (1x 32GB DDR5 UDIMM, non-ECC) |
| Memory slots |
4x DDR5 UDIMM, up to 128GB; up to 5600 MT/s with 1–2 DIMMs, 4800 MT/s with 4 |
| Storage |
1TB M.2 PCIe NVMe SSD |
| Storage expansion |
3x M.2 PCIe Gen4 x4 NVMe slots (1x 2230, 2x 2230/2280), 1x 3.5" SATA bay (up to 4TB), optional slim optical bay |
| Connectivity |
| Ethernet |
1x RJ-45 Gigabit |
| Wireless |
Optional on this platform (Intel Wi-Fi 6E AX211 or Wi-Fi 7 BE200) — not listed in this configuration |
| Front ports |

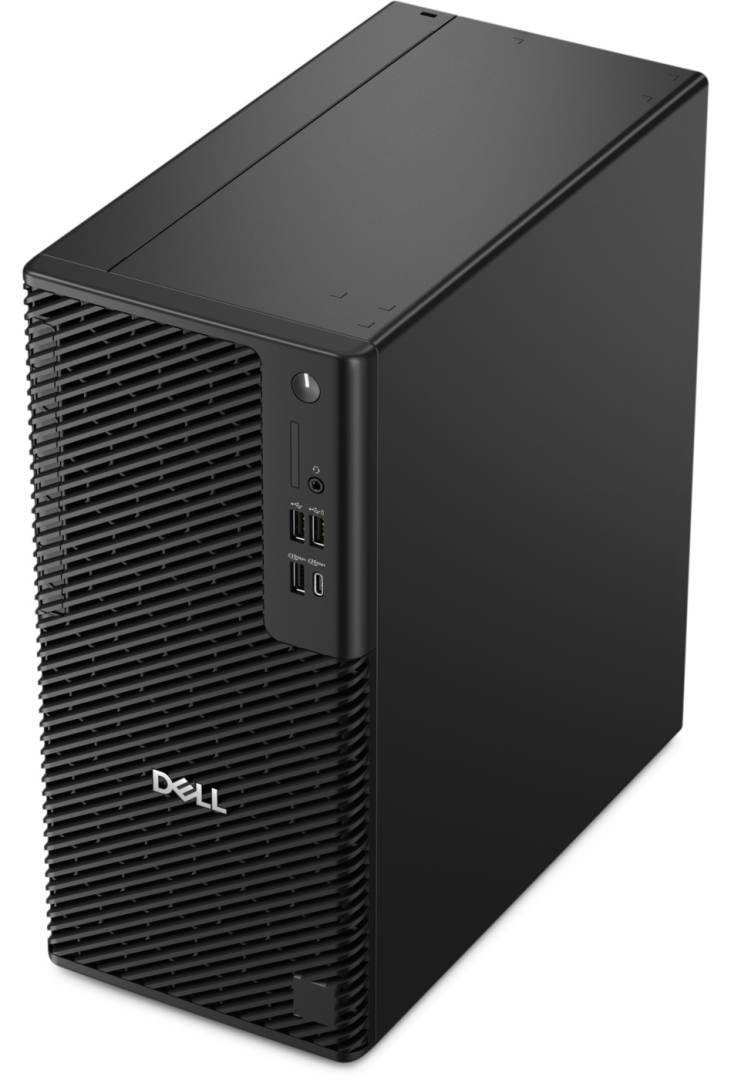

1x USB-C 20Gbps (USB 3.2 Gen 2x2, no video), 1x USB-A 10Gbps, 1x USB 2.0 with PowerShare, 1x USB 2.0, 1x global headset jack |
| Rear ports |

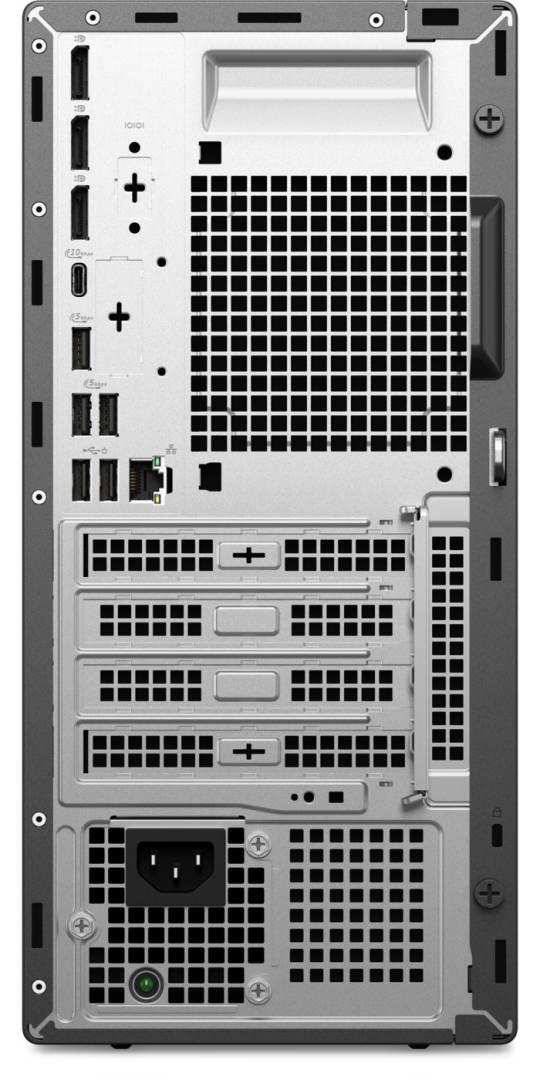

1x USB-C 10Gbps, 3x USB-A 5Gbps, 2x USB 2.0 (SmartPower On), 3x DisplayPort 1.4a (HBR3), 1x RJ-45, optional module bay (e.g. HDMI 2.1, DP 2.1, VGA, Thunderbolt 4); video outputs on the RTX 5060 card |
| Expansion & Power |
| PCIe slots |
1x PCIe Gen4 x16 full-height, 1x PCIe Gen3 x4 full-height (open-ended), 1x PCIe Gen3 x1 full-height |
| Power supply options |
260W Bronze, 360W Platinum or 500W Platinum (platform options) |
| Physical & Security |
| Form factor |
Tower, 15 litres |
| Dimensions (HxWxD) |
324.3 x 154 x 293 mm |
| Weight |
4.61–7.56 kg depending on configuration |
| Colour |
Black |
| Security |
Dell SafeID with TPM, SafeBIOS, chassis intrusion detection, lockable cable cover, padlock ring, Kensington slot |
| Operating system |
Windows 11 Pro |
| Warranty |
| Warranty |
1-Year Warranty (Singular) |
| Manufacturer Term |
Dell Basic Hardware Service with onsite support after remote diagnosis (Dell spec sheet: standard 1 year, extendable) — claims handled through Singular |
Frequently Asked Questions
Is the GeForce RTX 5060 suitable for professional work?
Yes for rendering, video, Adobe apps and AI tools. For applications that require ISV-certified graphics, the same tower is available with NVIDIA RTX A1000 or RTX PRO cards — ask us.
Can I add Wi-Fi?
Yes. The platform has an M.2 2230 Wi-Fi slot for Dell's Intel Wi-Fi 6E or Wi-Fi 7 modules; we can supply and fit one, or you can use a USB adapter.
How do I get dual-channel memory?
Add a second 32GB DDR5 UDIMM of the same speed. With two modules the memory runs dual-channel at up to 5600 MT/s.
Does it have HDMI?
Not on the motherboard. Use the three DisplayPort 1.4a outputs (or the graphics card outputs) with a DisplayPort monitor or a DP-to-HDMI adapter.
Singular Expert Insight · Buyer's Guide
The Dell Pro Precision 7 T1 is a compact, serviceable workstation tower that grows with you: start with this configuration and add memory, storage or a stronger GPU later. This version pairs the Core Ultra 7 with a GeForce RTX 5060, the best value GPU option for creative and visualisation work. The single-DIMM memory is the easiest win — add a matching module from our
memory range when you order.
✓ Buy it if you want a compact Dell workstation with a capable GeForce GPU for design, video and AI, plus room to upgrade.
✕ Skip it if your software requires ISV-certified professional graphics — choose the RTX A1000 version (PDW8Y) instead.
→ Also consider Dell Pro Precision 7 T1 with NVIDIA RTX A1000 (PDW8Y), or Lenovo ThinkStation P2 Tower Gen 2 with GeForce RTX 5060 Ti.
Not sure it fits your setup? Send us your software list and monitor models and we will check compatibility before you order.
