Delock 66484 19-inch 1U Cable Management Brush Strip with Cable Support Plate, Black
Brand:
DeLOCK
Delock 66484 19-inch 1U Cable Management Brush Strip with Cable Support Plate, Black
€25.2 inc. VAT
66484
Delivery
Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
Trusted Tech Choice
Buying Benefits
Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Please sign in so that we can notify you about a reply

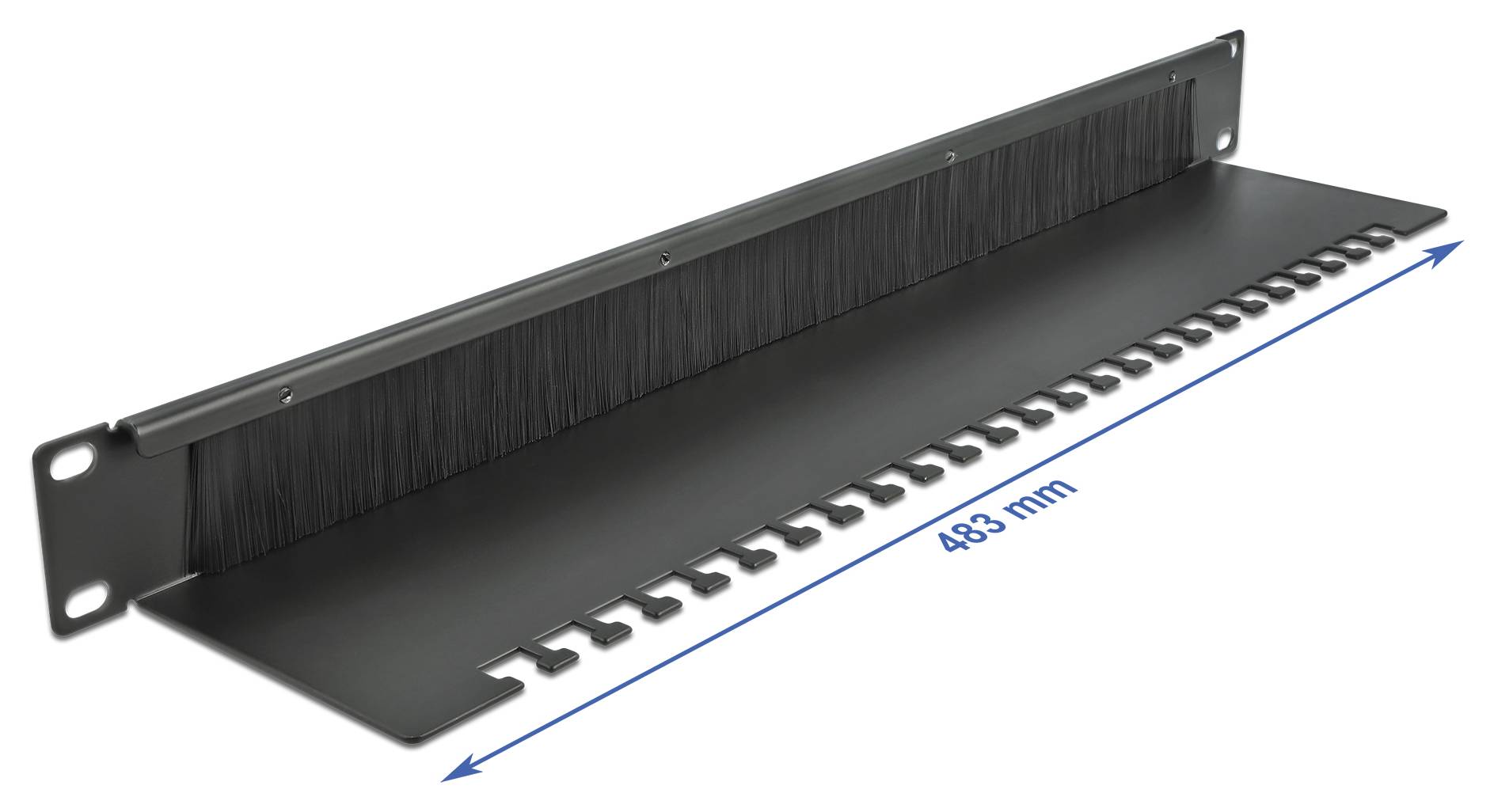

Route and support cables through a 1U brush panel
19-inch1URear supportNylon brushes

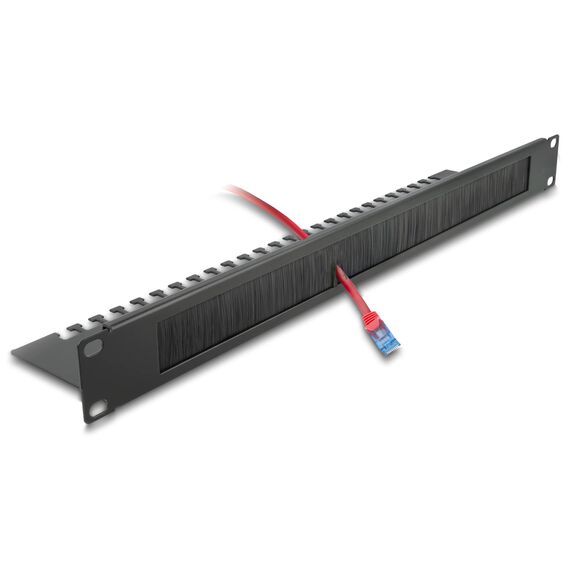

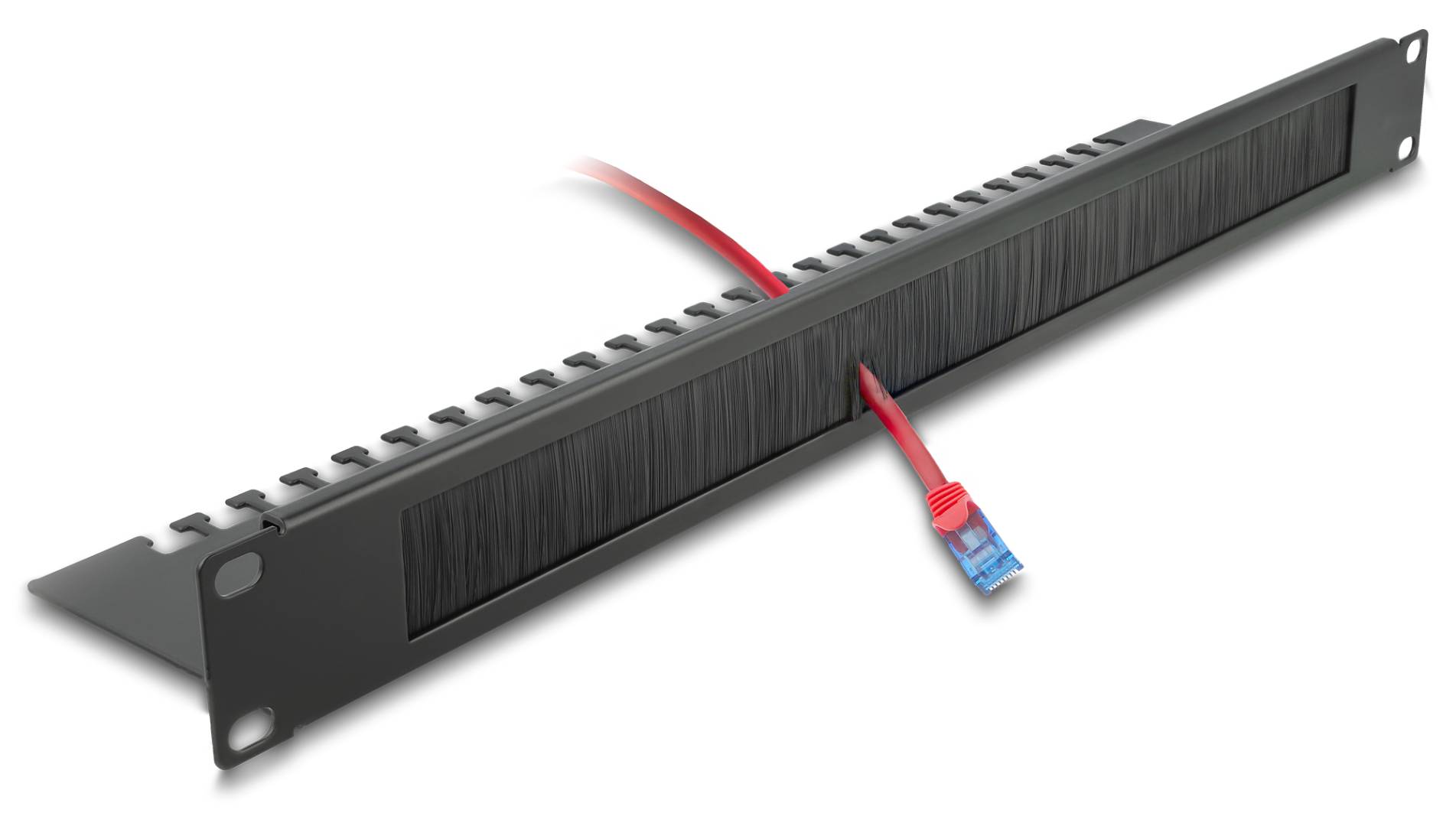

The Delock 66484 is a passive cable-management panel for a 19-inch network cabinet. Cables pass through the nylon brush opening from front to rear, while the rear support plate provides places to secure them so exposed cables do not slide back into the cabinet. The pack includes one 1U panel, four screws, four cage nuts, four washers and twelve zip ties. The cable shown in the application photo illustrates routing and is not listed as included.
Before you order:
Confirm a 19-inch mounting position, one free rack unit and sufficient rear clearance for the approximately 92mm-deep assembly and cable bends. The brush helps limit dust and dirt entry; it is not specified as a sealed or IP-rated barrier.
What It Means in Practice
- Mount the panel in a free 1U position, route patch leads through the brushes and use the rear plate and included ties to organise them without sharp bends or excessive tension.
What Will Not Work
- It has no RJ45 sockets or network electronics and does not terminate or switch a network connection. It is not the 10-inch or grey variant.
Key Features
Front-to-rear cable routing
The brush opening keeps the front view tidy while allowing cables to pass into the cabinet.
Rear cable retention
The rear plate gives cables support and fixing positions to reduce sliding back through the opening.
Metal 1U assembly with hardware
A black metal body, nylon brushes and supplied screws, cage nuts, washers and ties form the complete listed package.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight
Plan rear cable bends and access before filling the rack. The support plate is useful for retention, but cable bend-radius requirements still come from the cables themselves. Check rack size and rear cable clearance
Buyer’s Guide
✓
Buy it if
You need front-to-rear routing and rear cable retention in a black 19-inch 1U position.✕
Skip it if
You need electrical network ports, a sealed panel or a 10-inch rack part.→
Also consider
A cable manager matching your rack width, access direction and available rear depth.Check rack size and rear cable clearance
Features - DeLOCK - 66484
Colour
black
More Details
Product Code
04:511679
EAN Code
4043619664849
Manufacturer
DeLOCK
