Delock 64323 — 7-port USB 10 Gbps hub with 4K HDMI and 90W PD pass-through
7× USB 10 GbpsHDMI 4K 60HzPD 3.0 90WAluminium

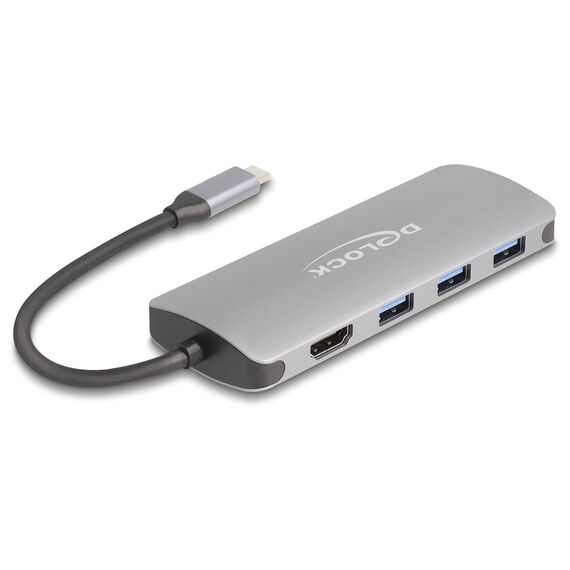

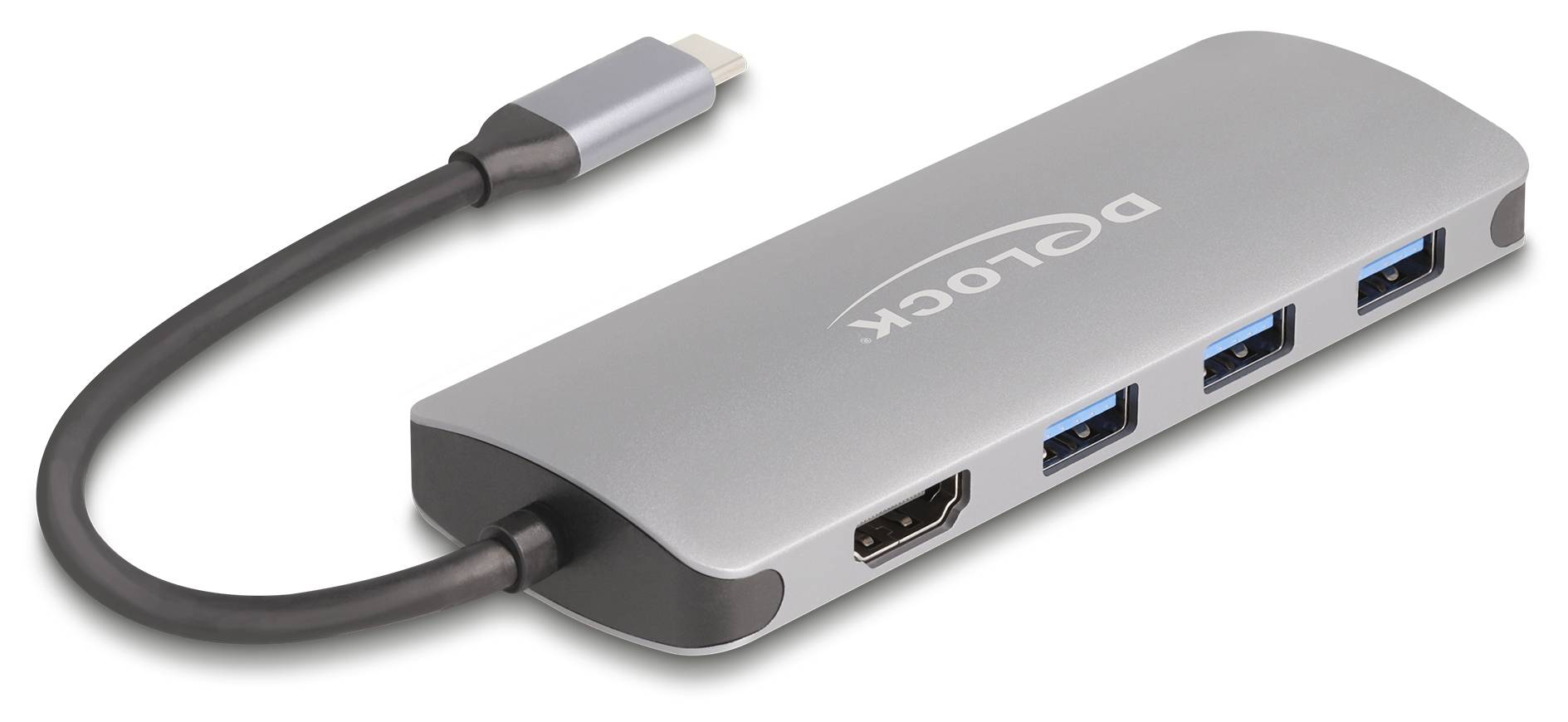

The Delock 64323 is a USB-C hub that turns one laptop port into seven USB 10 Gbps ports plus a 4K 60Hz HDMI output, for laptop, tablet and phone users who need more USB-A and USB-C sockets and an external monitor from a single cable.
It connects through a fixed USB-C cable of about 15 cm and offers three USB-A and three USB-C data ports at 10 Gbps, one more USB-C port that accepts a USB Power Delivery 3.0 charger of up to 90W to charge the host through the hub, and an HDMI port with HDCP 1.4. The housing is grey aluminium and the hub needs no power supply of its own for data use.
Before you order: The HDMI output only works if your device’s USB-C port supports DisplayPort Alt Mode or Thunderbolt 3/4. Many budget laptops and some USB-C ports are data-only — check before you order.
What's in the Box
- Delock 64323 USB-C hub
- User manual
- No USB-C charger is included
What It Means in Practice
- Add a 4K monitor, mouse, keyboard, USB stick and external SSD to a thin laptop with one cable.
- Plug your existing USB-C laptop charger (up to 90W) into the PD port and the laptop keeps charging while using the hub.
- Works with iPad Pro/Air, Surface Pro and Android 14+ devices with video-capable USB-C.
- Aluminium body handles heat better than plastic hubs.
What Will Not Work
- HDMI will not work on USB-C ports without DP Alt Mode.
- Only one external display is supported.
- No charger is included — without one the hub will not charge your laptop.
- All seven ports share the single 10 Gbps upstream link, so two fast SSDs at once will each slow down.
Key Features
USB 10 Gbps
Seven data ports at USB 10 Gbps.
4K 60Hz HDMI
Single external display with audio.
90W PD pass-through
Charge the host through the hub.
Wide OS support
Windows, macOS, Linux, ChromeOS, Android, iPadOS.
Technical Specifications
| Identification |
| Part Number |
64323 |
| EAN / GTIN |
4043619643233 |
| Brand |
Delock |
| Ports |
| Host connection |
USB 10 Gbps Type-C male, fixed cable approx. 15 cm |
| USB-A |
3 × USB 10 Gbps Type-A female |
| USB-C data |
3 × USB 10 Gbps Type-C female |
| USB-C PD |
1 × USB-C female, USB PD 3.0 input up to 90W |
| Video |
1 × HDMI, up to 3840 × 2160 @ 60Hz, HDCP 1.4 |
| Requirements |
| Host port |
USB-C with DisplayPort Alt Mode, or Thunderbolt 3/4 |
| Operating systems |
Windows 10/11, macOS 14.2.1+, Linux 6.2+, Chrome OS, Android 14+, iPadOS (iPad Pro 3rd gen+, iPad Air 4th gen+) |
| Physical |
| Housing |
Aluminium, grey |
| Dimensions |
Approx. 114 × 42 × 15 mm |
| Power |
Bus-powered (PD charger optional) |
| Warranty |
| Warranty |
1-Year Warranty (Singular) |
| Manufacturer Term |
Not published by Delock — claims handled through Singular |
Frequently Asked Questions
Will it charge my MacBook?
Yes, if you connect a USB-C PD charger (up to 90W) to the hub’s PD port; the hub passes power to the MacBook.
Can I run two monitors?
No. The hub has one HDMI output for one external display.
Does it work with an iPhone 15?
Delock lists iPhone 15 models with USB-C; video output needs a USB-C port that supports display output.
Singular Expert Insight · Buyer's Guide
A neat travel and desk hub when your laptop has only one or two USB-C ports. If you need two monitors, Ethernet or a dedicated power brick, a docking station is the better tool — see our
docking stations.
✓ Buy it if you need more 10 Gbps USB ports and one 4K screen from a single USB-C cable.
✕ Skip it if your USB-C port has no video support or you need two monitors or Ethernet.
→ Also consider a USB-C docking station with Ethernet and dual-display support.
Send us your laptop model and we will confirm DP Alt Mode and charging support before you order.
