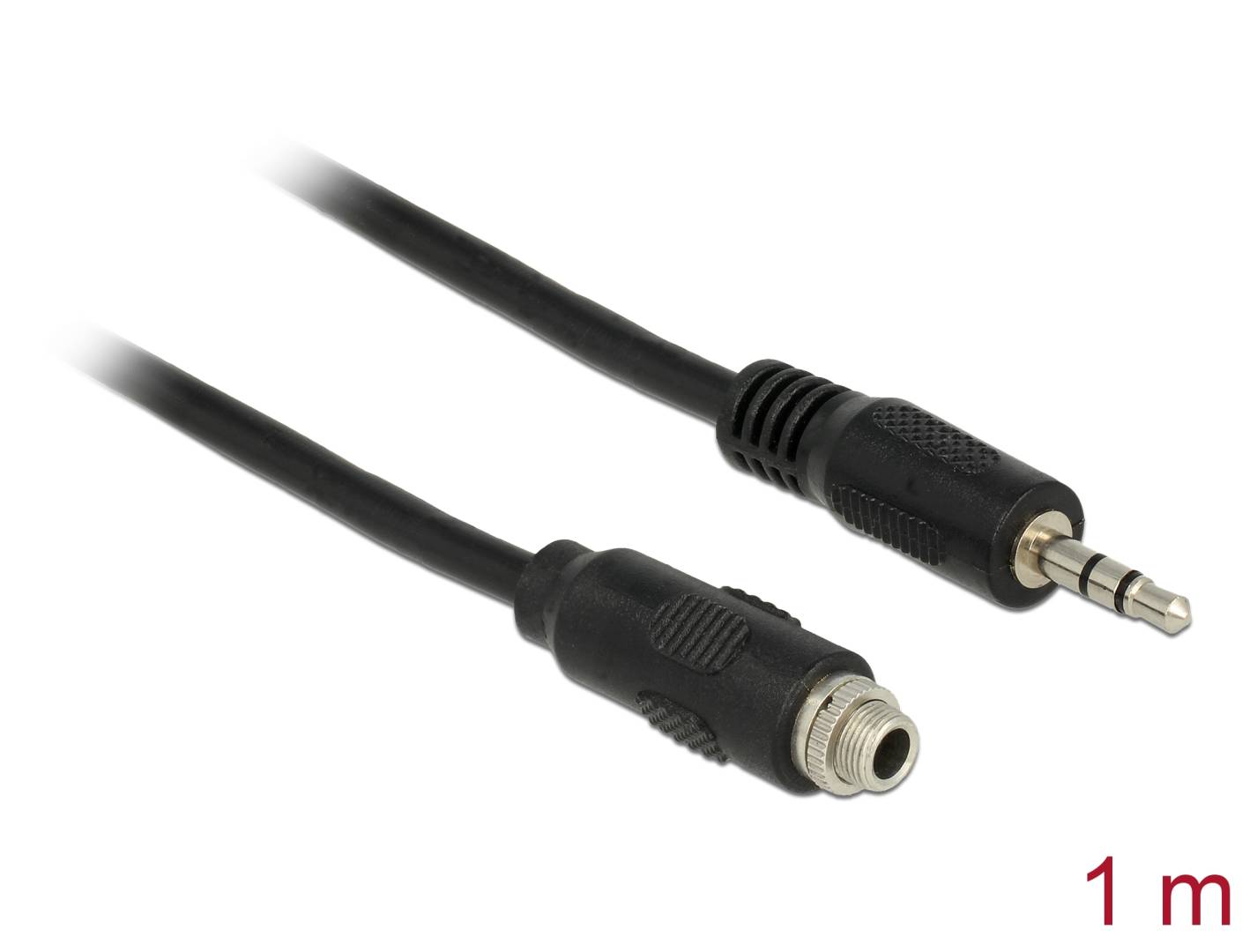

Delock Audio Cable 3.5 mm Stereo Jack Female Panel-Mount to 3.5 mm Stereo Jack Male, M6 Screw Nut, 1 m, Black

The Delock 3.5 mm panel-mount audio cable extends a stereo headphone or line port by 1 m and ends in a female 3.5 mm jack with a thread and screw nut, so you can mount the socket in a panel, an enclosure, a desk or a PC case front. The other end is a standard 3.5 mm stereo jack male.

The female end uses an M6 thread and needs a mounting hole of about 7 mm diameter. It is a 3-pin (stereo, TRS) cable with 28 AWG conductors, about 4 mm in diameter, colour black — useful for kiosks, custom cases, studio desks and equipment racks where the original port is hard to reach.

• 1 × Delock audio panel-mount cable, 3.5 mm female > 3.5 mm male, 1 m
• 1 × nut
• Supplied in a zip poly bag

• Drill a 7 mm hole, push the female jack through and fix it with the supplied nut.
• Plug the male end into the device's headphone or line output (or input) inside the case or behind the desk.
• Good for building an accessible headphone socket on a desk, a kiosk or an equipment front panel.
• Over 1 m of thin cable, line and headphone signals are unaffected for normal listening.

• It will not pass a headset microphone (TRRS 4-pin) — stereo audio only.
• It is not suitable for balanced XLR or 6.35 mm studio connections.
• It does not amplify the signal.
• The thread is M6 — it will not fit panels with smaller holes without drilling.
