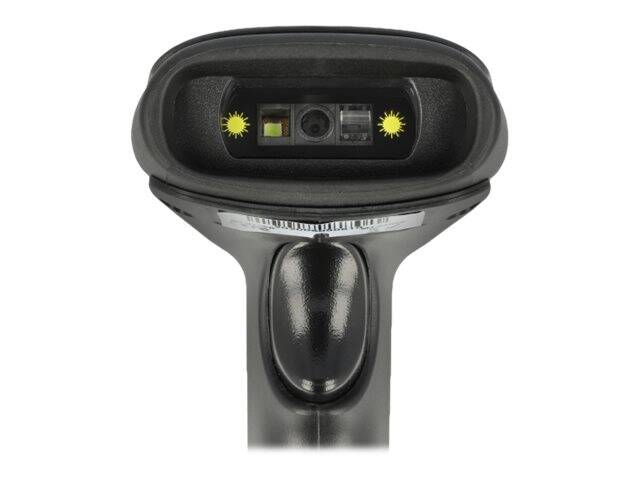

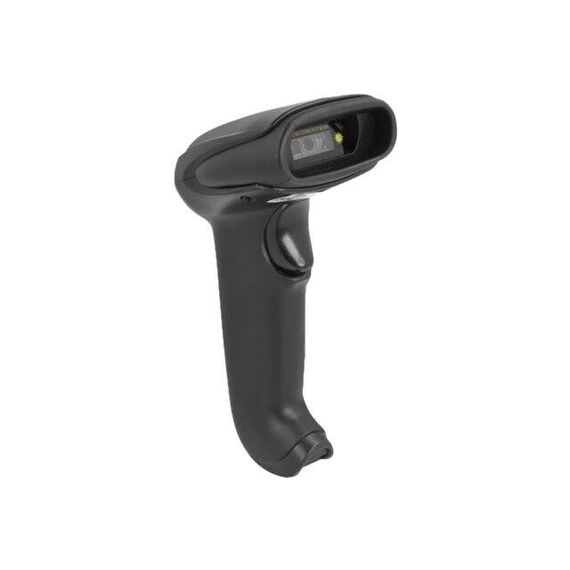

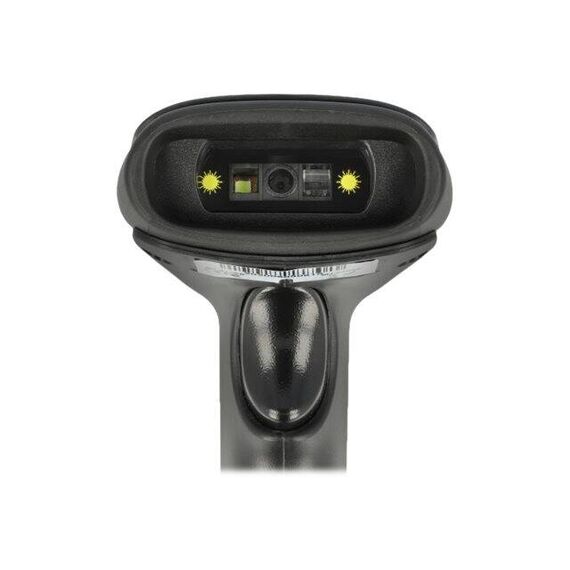

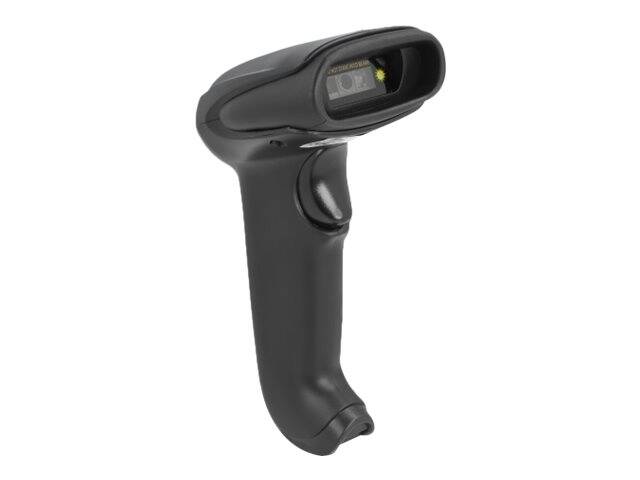

Delock 90562 Wireless 1D/2D Barcode Scanner, Bluetooth 4.0, 2.4GHz and USB, Black

Brand:
DeLOCK
Delock 90562 black wireless 1D/2D barcode scanner with USB dongle and cable
Delock 90562 Wireless 1D/2D Barcode Scanner, Bluetooth 4.0, 2.4GHz and USB, Black
€169.78 inc. VAT
Buy
90562
€142.67
€169.78 inc. VAT
Ships from EU stock: 13 item(s)
+ −
Add to wish list Ask a question
Product Code
04:409657
EAN Code
4043619905621
Manufacturer
DeLOCK
Features
Bluetooth, Wireless

Quick Specs

Reading
1D / 2D
Connections
Bluetooth 4.0 / 2.4 GHz / USB
Battery
1800 mAh Li-Polymer
Memory
16 MB
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

Three connection options, with receiver and cable included

Bluetooth 4.02.4 GHz dongleUSB-B port

The black Delock 90562 reads common 1D and 2D barcodes on paper and screens. Connect directly by Bluetooth, use the supplied 2.4 GHz USB dongle or work through the included USB cable. Its 1800 mAh battery and 16 MB internal memory distinguish its configuration from wired-only readers and dock-based kits.

Before you order:
Delock explicitly states that 90562 is not suitable for Swiss QR Codes. Its wireless range is listed up to 10 m, while the general barcode reading distance is approximately 60–300 mm; these describe different functions.

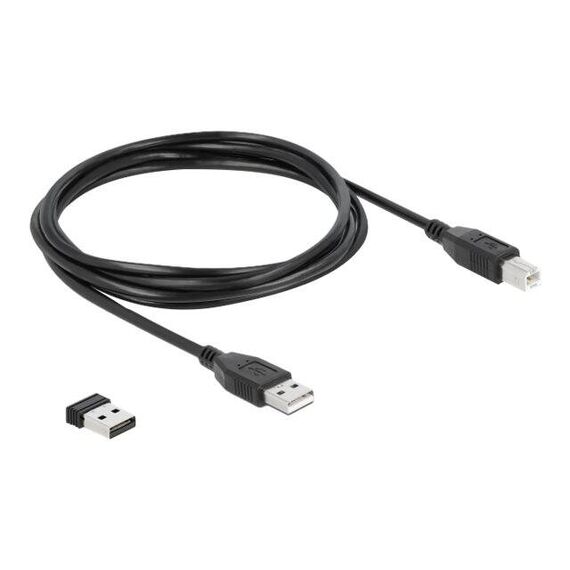

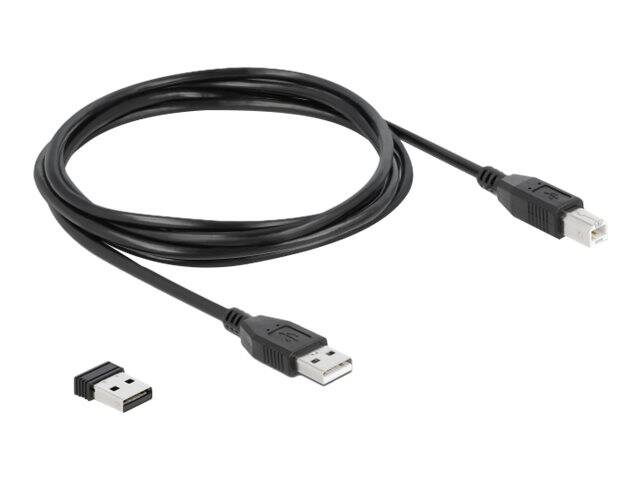

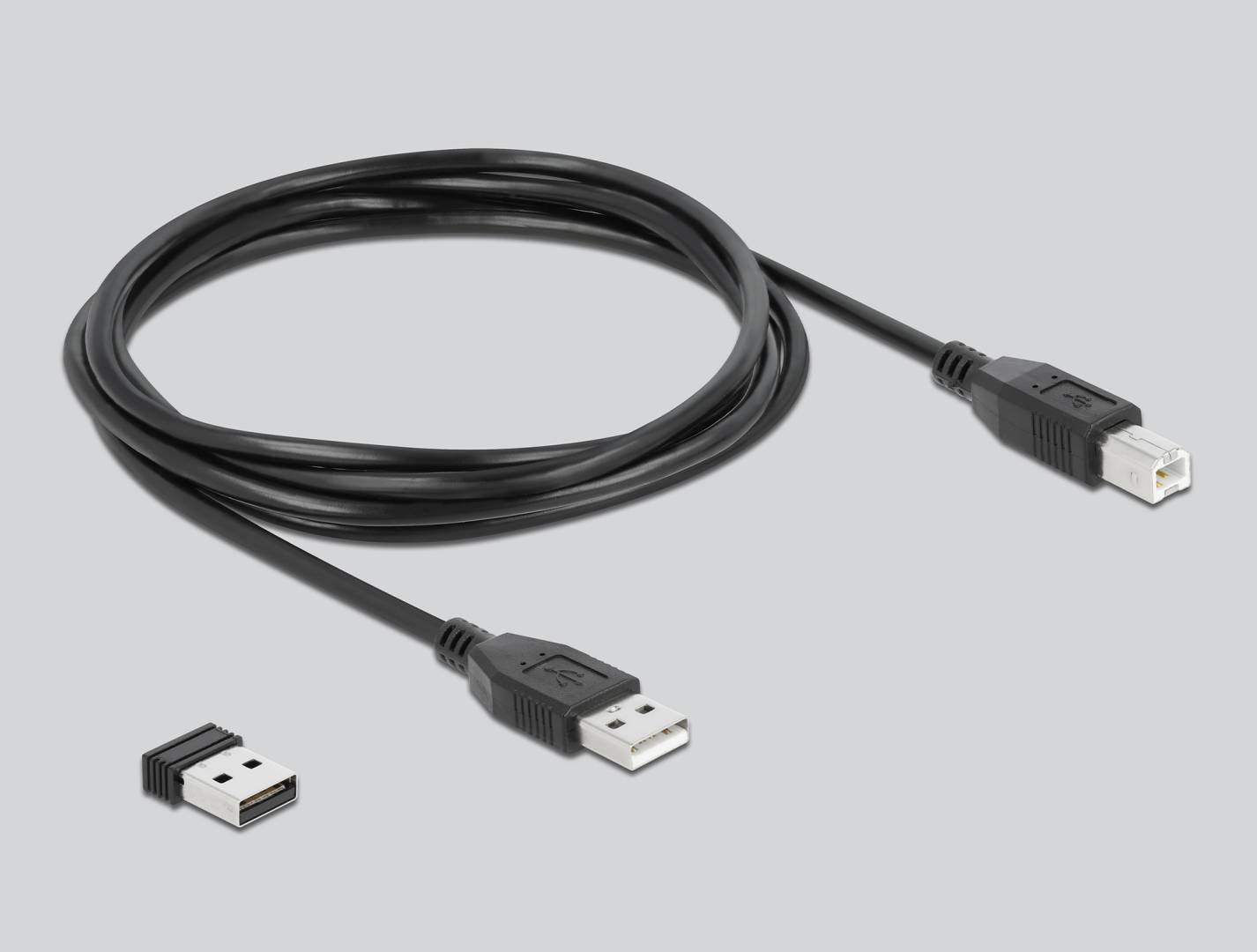

What's in the Box

  • 90562 barcode scanner
  • USB 2.4 GHz dongle
  • USB charging/connection cable
  • User manual

What It Means in Practice

  • Pair a suitable Bluetooth host without using the dongle.
  • Use the dongle with a free USB-A port on a PC or laptop.
  • Automatic brightness adaptation adds white LED illumination in dim conditions.

What Will Not Work

  • Not suitable for Swiss QR Codes.
  • No charging station or stand is listed in the package.
  • Compatibility is based on the listed host requirements; do not assume every iOS device is supported.

Key Features


1D and 2D from paper or screens
Supports QR, Micro QR, Data Matrix and PDF417 as well as listed linear formats. The manufacturer excludes Swiss QR Codes.

Bluetooth, dongle or cable
The reader has a USB 2.0 Type-B socket. The supplied USB-A/B cable and compact USB receiver provide clear alternatives to direct Bluetooth pairing.

Light adaptation
The scanner adjusts to ambient brightness and reaches up to 30 scans/s under optimal lighting. A white compensation LED supports dimmer environments.

Technical Specifications

Identification
Manufacturer SKU 90562
EAN / GTIN 4043619905621
Scanning
Sensor CMOS
Resolution 752 × 480 pixels
Decoder ARM Cortex 32 bit
Scan rate Up to 30 scans/s, optimal lighting
General reading distance Approx. 60–300 mm
Reading accuracy 5 mil
Scan angle 55°
Trigger Scan button
Light / compensation Red LED / white LED
Maximum ambient light 100000 lux
Listed codes Codabar, Code128, Code39, Interleaved2of5, EAN8/13, ISBN13, Data Matrix, MicroQR, PDF417, QR
Swiss QR Codes Not suitable
Connections and power

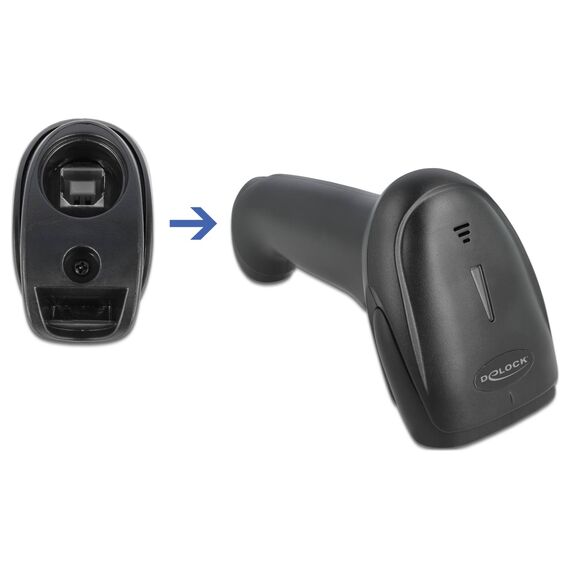

Scanner connector USB 2.0 Type-B female
Wireless Bluetooth 4.0 / 2.4 GHz
Wireless range Up to 10 m, environment-dependent
Internal memory 16 MB
Battery 1800 mAh Li-Polymer
Input voltage 5 V
Maximum operation / standby current 100 mA / 30 mA
Cable length excluding connectors Approx. 1.5 m
Listed host requirements
Android 9.0 or later
Apple iPad Pro (2018); Mac OS 10.15.6 or later
Windows 8.1 / 8.1-64 / 10 / 10-64 / 11
Host connection requirements Bluetooth 4.0 or later; free USB-A port for dongle
Physical and environmental
Colour Black
Weight Approx. 190 g
Dimensions L × W × H Approx. 170 × 90 × 70 mm
Operating temperature 0–50 °C
Storage temperature −10–50 °C
Relative humidity 20–85%, non-condensing

Frequently Asked Questions

Does it include a charging base?
No base is listed. The package includes the scanner, 2.4 GHz USB dongle, USB cable and manual.
Can I scan a Swiss QR payment code?
Delock explicitly says this model is not suitable for Swiss QR Codes. Choose a model that specifically confirms this workflow.
Which Apple devices are listed?
The manufacturer lists iPad Pro (2018) and Mac OS 10.15.6 or later. Other Apple hosts require compatibility checking.
Singular Expert Insight
Choose 90562 when you want direct Bluetooth and a supplied USB receiver in the same package. Compare the 10 m wireless range, USB-B connector and Swiss QR exclusion with your workflow before comparing peak scan rates alone. Compare barcode scanners

Buyer’s Guide

✓

Buy it if

 You need 1D/2D reading with Bluetooth, USB dongle and cable options.
✕

Skip it if

 You need Swiss QR support, an included charging dock or longer specified radio range.
→

Also consider

 Compare Delock dock kits and industrial models by exact battery, radio and package contents.
Tell us your POS model, application and barcode examples so we can check the connection requirements.

Features - DeLOCK - 90562

Colour
black
Interface
  • USB2.0,
  • Bluetooth
Length
1.5m
More Details
Product Code
04:409657
EAN Code
4043619905621
Manufacturer
DeLOCK
Technical specifications
Compatible Platforms
  • PC,
  • Android
