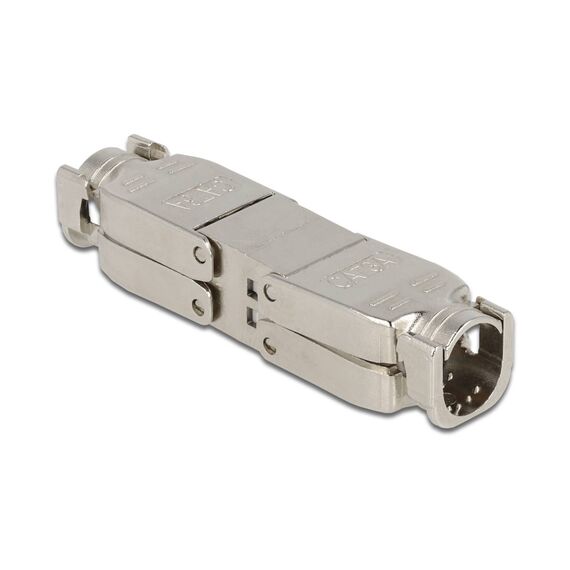

Delock Cable Coupler for Network Cable Cat.6A STP, Tool-Free LSA, 180° Inline Splice, 22-24 AWG, Zinc Die-Cast

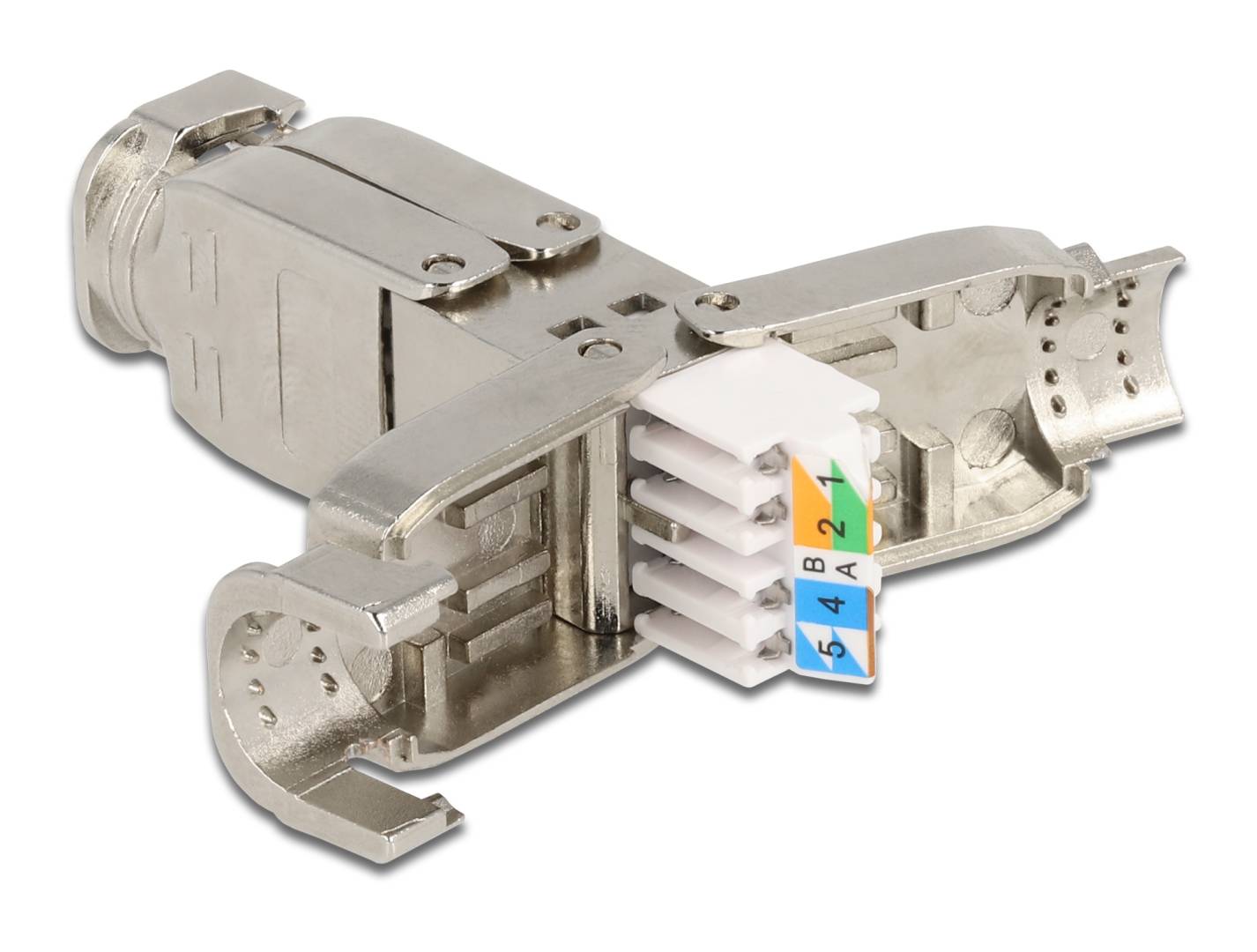

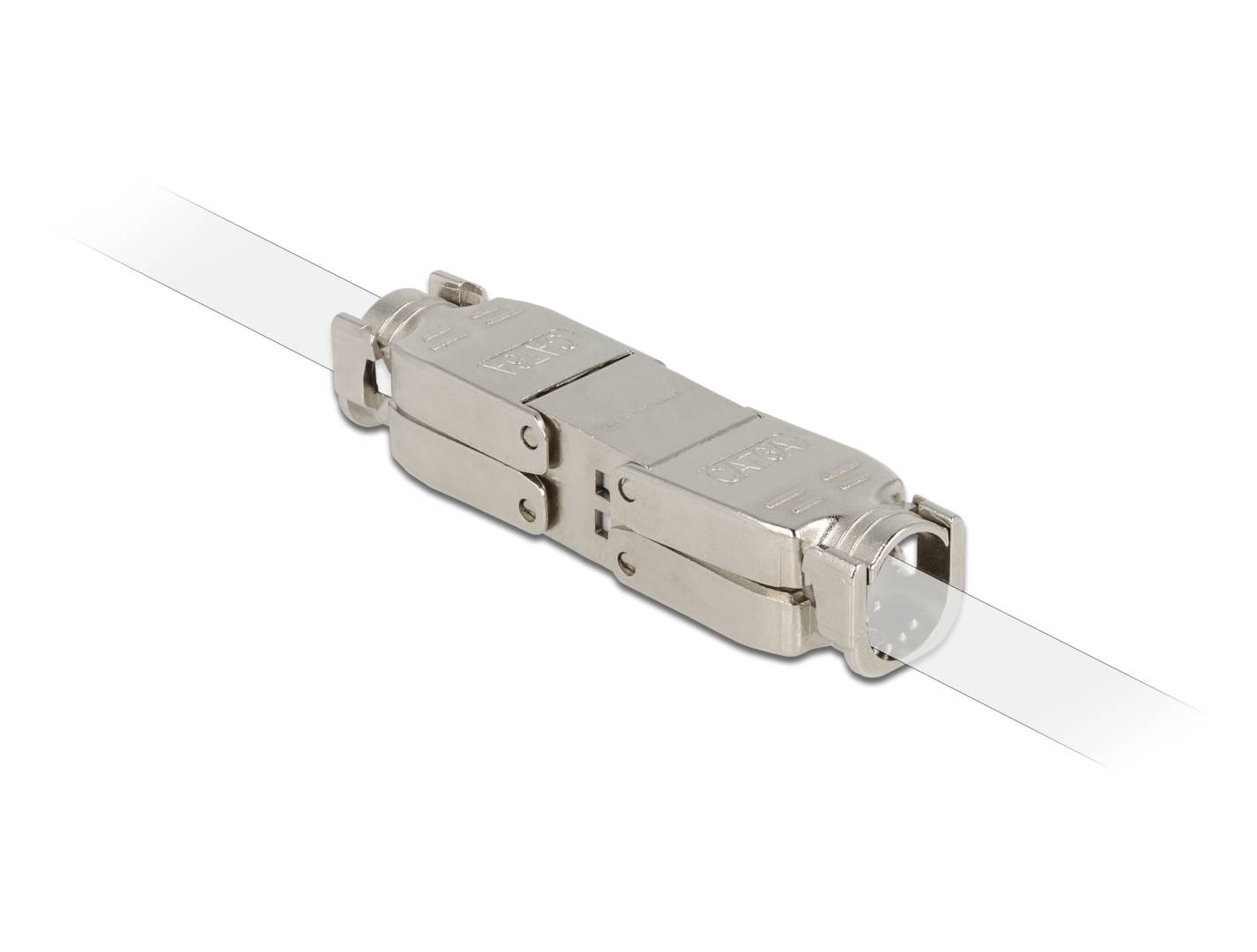

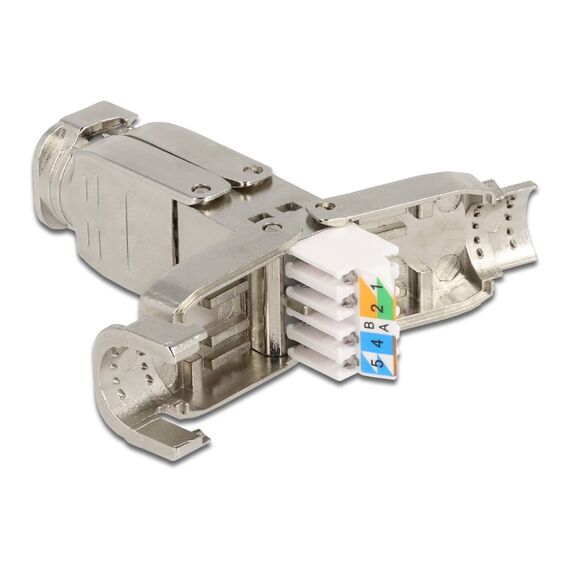

The Delock Cat.6A STP coupler joins two network cables that have no plugs — for example to extend or repair an installation cable that was cut too short or damaged inside a wall duct. Each cable end is terminated tool-free into an LSA block, and the two cables leave the housing in a straight 180° line.

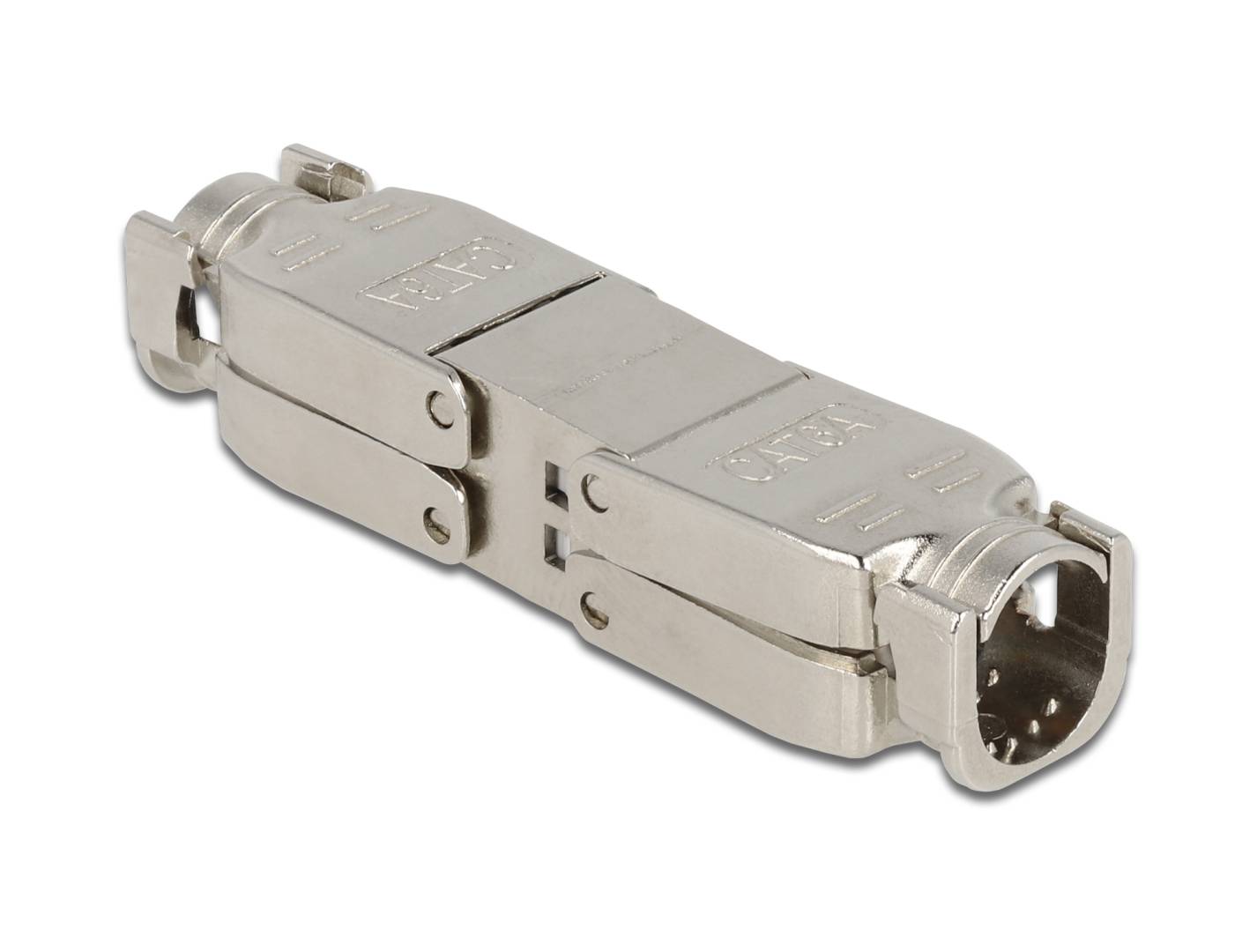

The housing is shielded zinc die-cast, about 59.8 × 12.8 × 10.6 mm, and supports TIA-568A and B pinouts. It accepts solid or stranded conductors from 22 to 24 AWG (up to 0.644 mm) and cable outer diameters from 6.0 to 8.5 mm.

• 1 × Delock coupler for network cable Cat.6A STP
• Supplied in a zip poly bag

• Strip each cable, lay the pairs into the LSA block according to the colour code (T568A or B) and close the cover — no punch-down tool needed.
• Typical use: repairing a damaged installation cable or extending a run to a relocated wall socket, camera or access point.
• The shielded housing keeps the screen continuous for STP/S/FTP cabling.
• Every splice adds a connection point; for 10 Gbps links keep the total channel within Cat.6A limits.

• It does not accept RJ45 plugs or patch cables.
• It does not work with cables thinner than 6.0 mm or thicker than 8.5 mm outer diameter.
• It does not accept conductors thicker than 22 AWG or thinner than 24 AWG (for example AWG 26 patch cable).
• It is not rated for outdoor or direct-burial use.
