Delock 89999 PCI Express Card 2x Gigabit LAN RJ45 Dual-Port Realtek RTL8111H PCIe x1 Low Profile Wake-on-LAN

Brand:
DeLOCK
Delock 89999 PCIe Card 2x Gigabit LAN Low Profile
Delock 89999 PCI Express Card 2x Gigabit LAN RJ45 Dual-Port Realtek RTL8111H PCIe x1 Low Profile Wake-on-LAN
€63.72 inc. VAT
Buy
89999
€53.55 €59.50
€63.72 inc. VAT
Ships from EU stock: 6 item(s)
+ −
Add to wish list Ask a question
Product Code
04:336673
EAN Code
4043619899999
Manufacturer
DeLOCK

Quick Specs

Interface
PCIe x1 (V1.1)
Ports
2× RJ45 1 Gbps
Controller
Realtek RTL8111H + ASMedia ASM1182e
Ports
2× RJ45 Gigabit
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

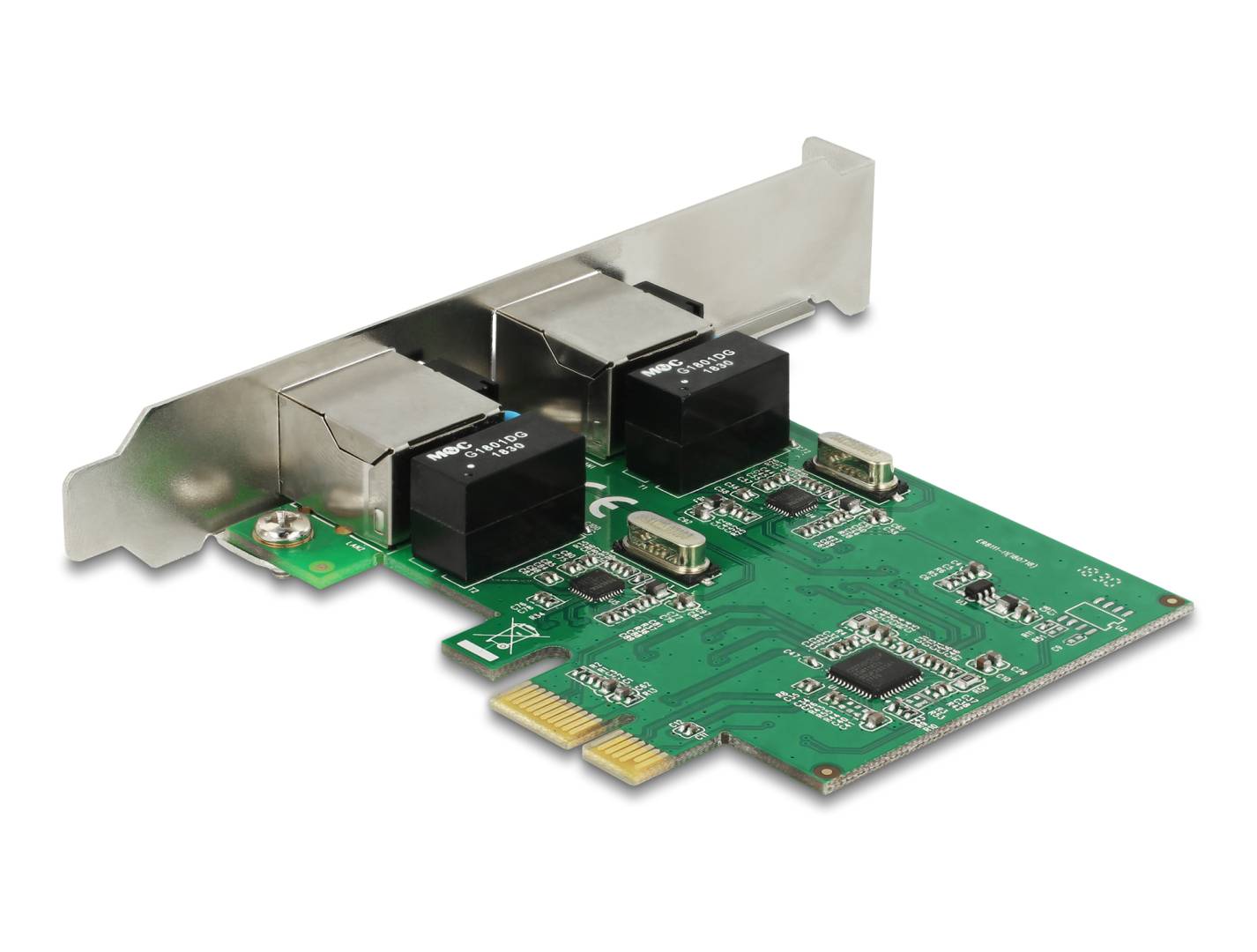

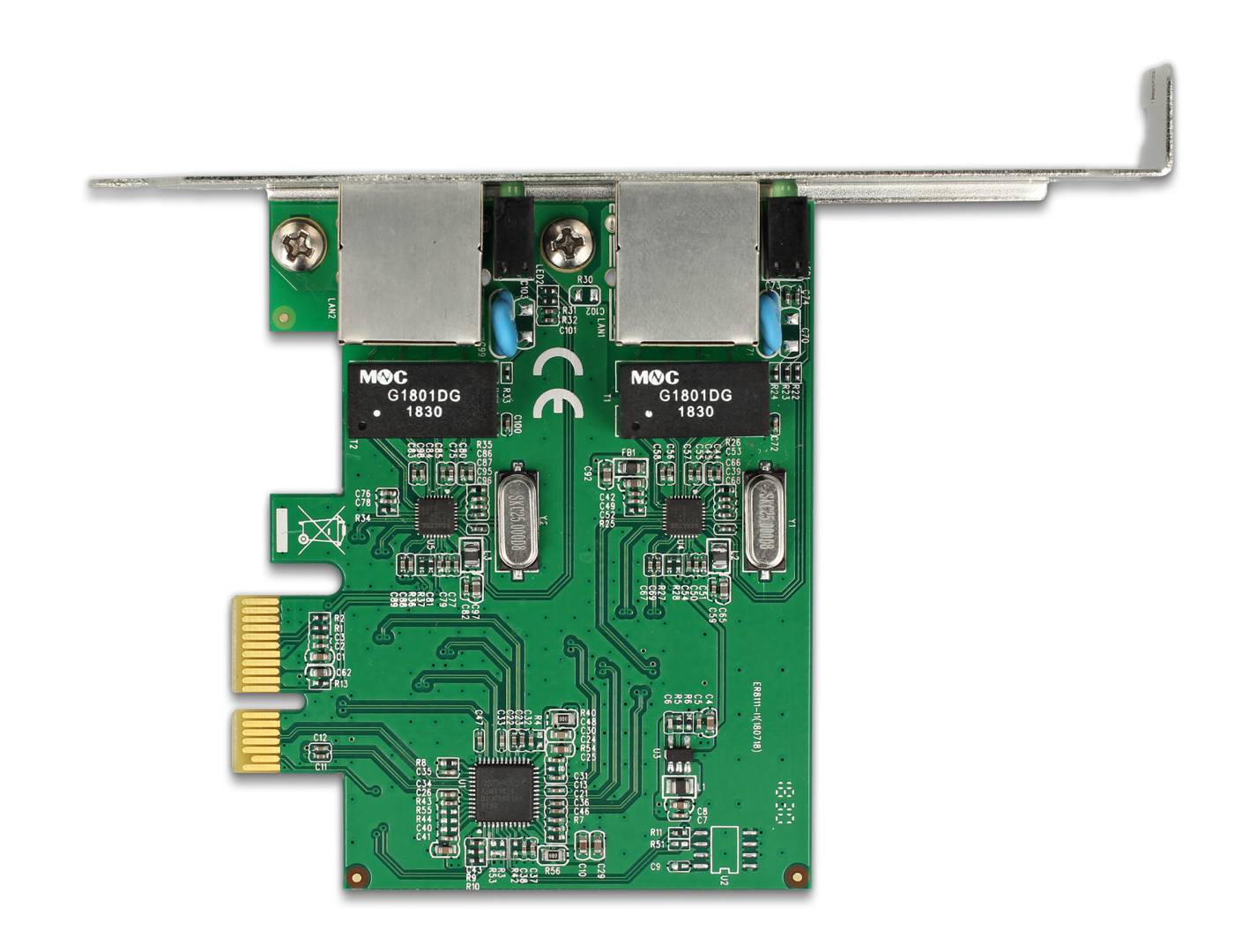

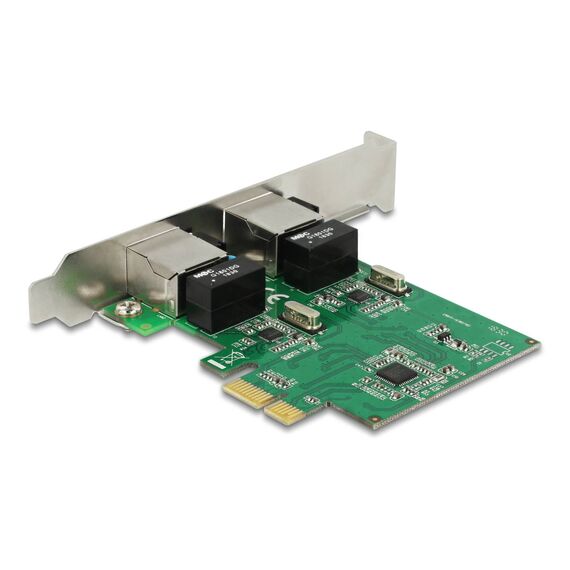

Delock 89999 — PCI Express Card with 2× Gigabit LAN

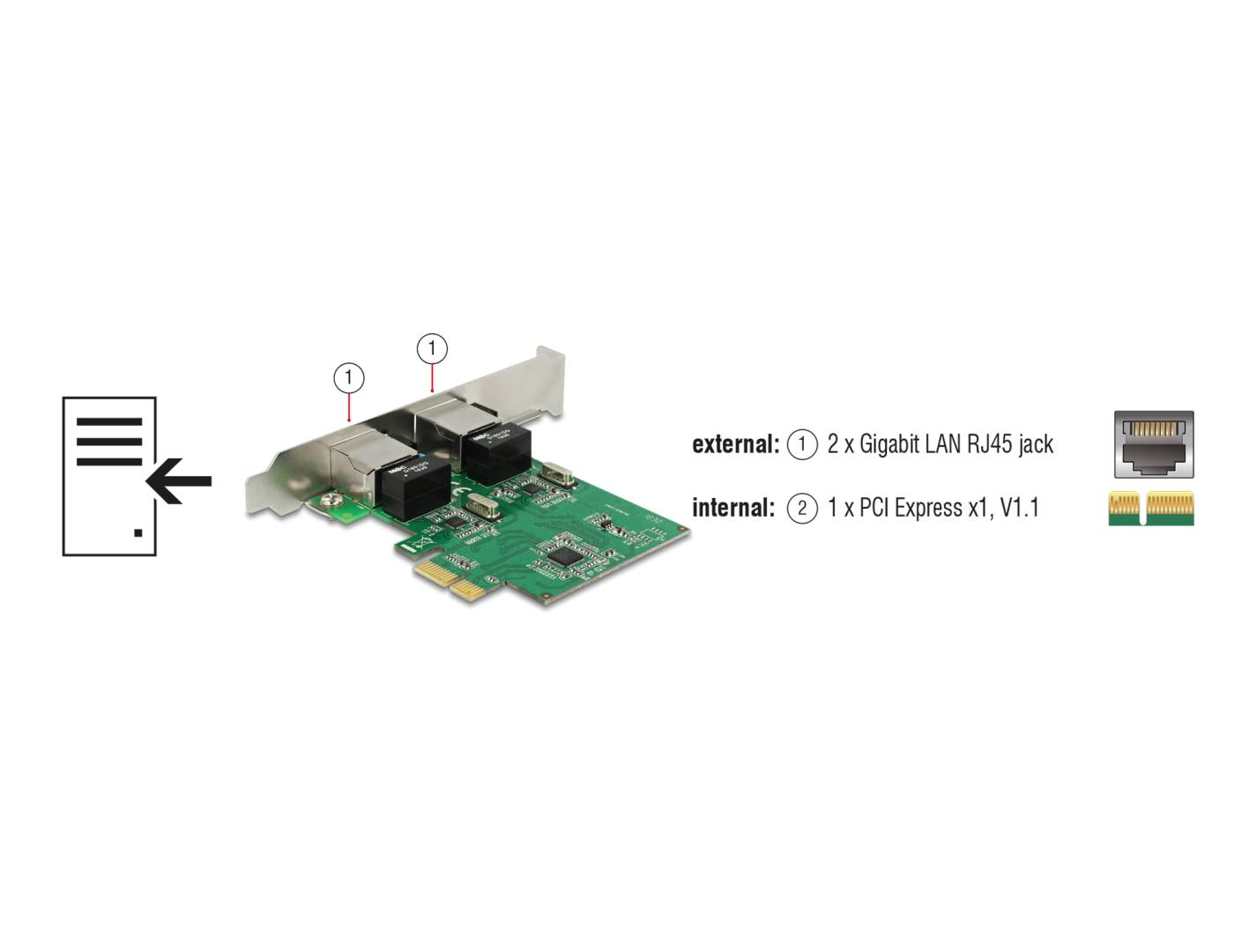

2× GigabitPCIe x1Realtek RTL8111HLow profile

The Delock 89999 is a dual-port Gigabit PCIe network card that adds 2 Gigabit RJ45 ports to a desktop PC, workstation or server through a PCIe x1 (V1.1) slot. It pairs two Realtek RTL8111H controllers through an ASMedia PCIe switch, giving two independent Gigabit ports from a single x1 slot. It uses the Realtek RTL8111H + ASMedia ASM1182e controller and connects at 10/100/1000 Mbps. Standard and low-profile brackets. Several ports on one card are the usual building block for firewalls, virtualisation hosts and servers that need separate networks for users, storage and management.

Compatibility — check before buying:
Check the slot: the card needs a free PCIe slot; as an x1 card it also fits x4, x8 and x16 slots. Both a full-height and a low-profile bracket are supplied, so it suits standard towers and slim (SFF) cases. Each port links at up to 1 Gbps with standard Cat5e cabling. Operating systems listed by Delock: Windows 8.1/10/11, macOS 10.5 or later, Linux kernel 3.10 or later. Send us the PC or server model and we confirm the fit.

Best For

✓ Firewall and router builds (pfSense, OPNsense)
✓ Virtualisation hosts
✓ Separate storage or management networks
✓ Link aggregation to a switch
✓ Small servers and NAS builds
✓ Lab and test benches

Key Features


2× Gigabit Ethernet
Up to 1000 Mbps full duplex per port with automatic fallback to 100/10 Mbps.

PCI Express PCIe x1 (V1.1)
Standard and low-profile brackets. Installs in a free PCIe slot of a desktop, workstation or server.

Network features
Supports Wake-on-LAN, 802.1Q VLAN, 802.1p priority, 802.3x flow control.

Two ports, one x1 slot
Two independent Gigabit ports from the smallest PCIe slot.

Technical Specifications

Identification
Brand Delock
Product Delock PCI Express Card to 2 x Gigabit LAN
Part Number 89999
EAN / GTIN 4043619899999
Item No. 89999
Network
Ports 2× RJ45 Gigabit Ethernet
Speeds 10/100/1000 Mbps
Controller Realtek RTL8111H + ASMedia ASM1182e
Features Wake-on-LAN, 802.1Q VLAN, 802.1p priority, 802.3x flow control
Host Interface
Bus PCIe x1 (V1.1)

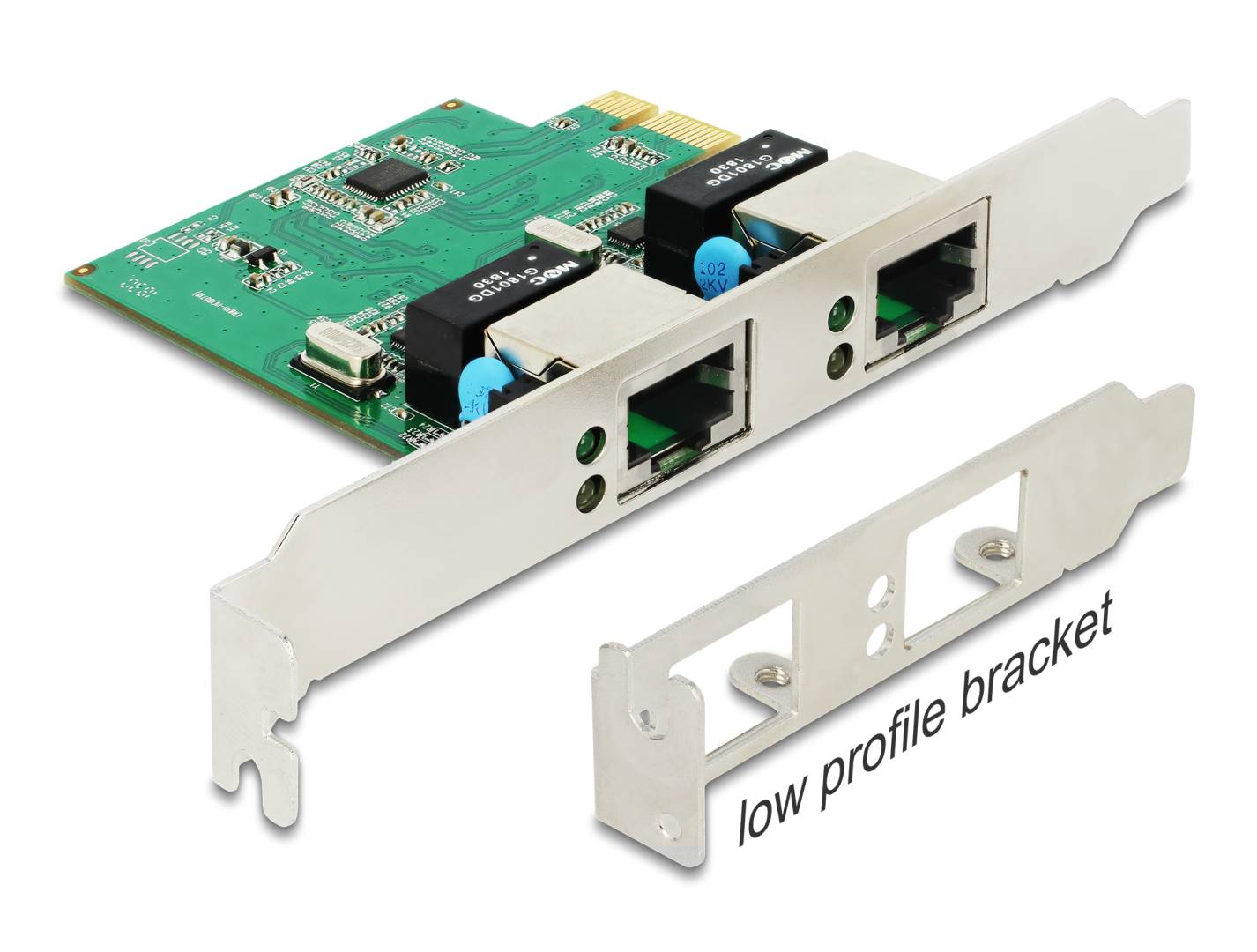

Brackets Standard and low-profile brackets
Compatibility
Operating Systems Windows 8.1/10/11, macOS 10.5 or later, Linux kernel 3.10 or later
Physical
In the Box
Included PCI Express card, low-profile bracket, driver CD, user manual
Not Included Network cable
Warranty
Warranty 1-Year Warranty (Singular)
Manufacturer Term Delock does not publish a warranty term for this model on its official product pages. Singular’s direct warranty is 1 year, and we support you locally for anything beyond it.

Frequently Asked Questions

Will it fit my computer?
It needs a free PCIe slot; as an x1 card it also fits x4, x8 and x16 slots. Full-height and low-profile brackets are supplied.
Is Gigabit fast enough?
For office work, internet, cameras and most small servers, yes. For multi-gig NAS transfers choose a 2.5G or 10G card.
Which operating systems are supported?
Delock lists: Windows 8.1/10/11, macOS 10.5 or later, Linux kernel 3.10 or later.
Can I keep using the onboard network port?
Yes. The card adds its own ports; the onboard port keeps working, so you can run separate networks or keep one as a backup.
Singular Expert Insight
We suggest the 89999 for small firewalls, home servers and PCs that need two separate Gigabit networks from one x1 slot. The Delock 89944 is the Intel-based dual-port alternative with PXE. Browse more network cards or network switches. Local support in Cyprus comes with every order.

Buyer’s Guide

Buy it if

You need two Gigabit ports on a budget.

Skip it if

You need PXE boot or Intel virtualisation features.

Also consider

Delock 89944 — 2× Gigabit, Intel 82576.
