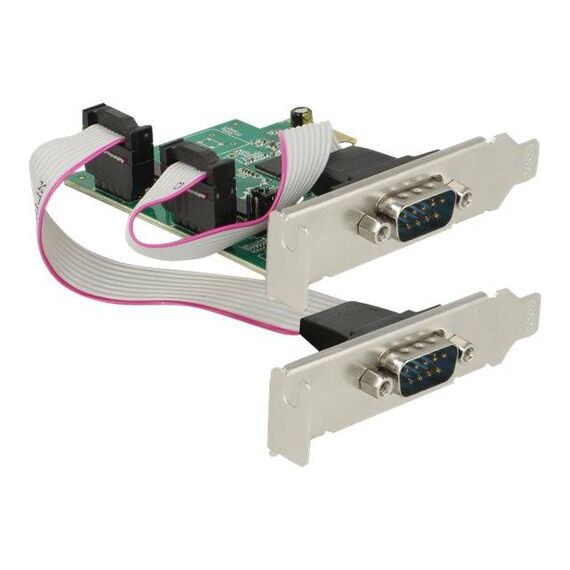

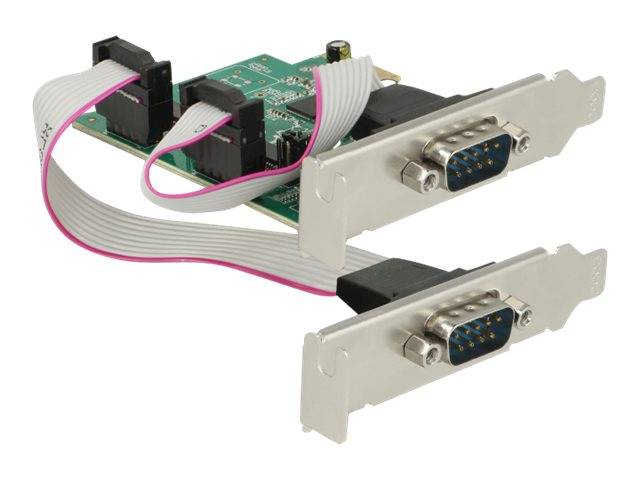

DeLock PCI Express Card / 2 x Serial RS-232 High Speed 921K with Voltage supply | 89641
Please sign in so that we can notify you about a reply
Special Features
- 15 kV ESD protection for all signals
- I/O address and IRQ assigned by the system
Product Specification
| Device Type | Serial adapter |
| Form Factor | Plug-in card |
| Interface (Bus) Type | PCI Express 2.0 x1 |
| PCI Specification Revision | PCIe 2.0 |
| Networking | Networking |
| Ports | RS-232 x 2 |
| Connectivity Technology | Wired |
| Data Link Protocol | RS-232 |
| Data Transfer Rate | 1 Mbps |
| Features | Flow control, Active State Power Management (ASPM) support, Direct Memory Access (DMA) support |
| Processor / Memory | Processor / Memory |
| Processor | 1 x ASIX AX99100 |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | 2 x RS-232 - 9 pin D-Sub (DB-9) |
| Miscellaneous | Miscellaneous |
| Included Accessories | 2 x low-profile bracket |
| Software / System Requirements | Software / System Requirements |
| Software Included | Drivers & Utilities |
| OS Required | Microsoft Windows 7 / 8 / 8.1 / 10 (32/64 bits) |
| Dimensions & Weight | Dimensions & Weight |
| Width | 1 cm |
| Depth | 7.2 cm |
| Height | 6.3 cm |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 70 °C |
Features - DeLOCK - 89641
More Details
Product Code
04:269898
EAN Code
4043619896417
Manufacturer
DeLOCK
