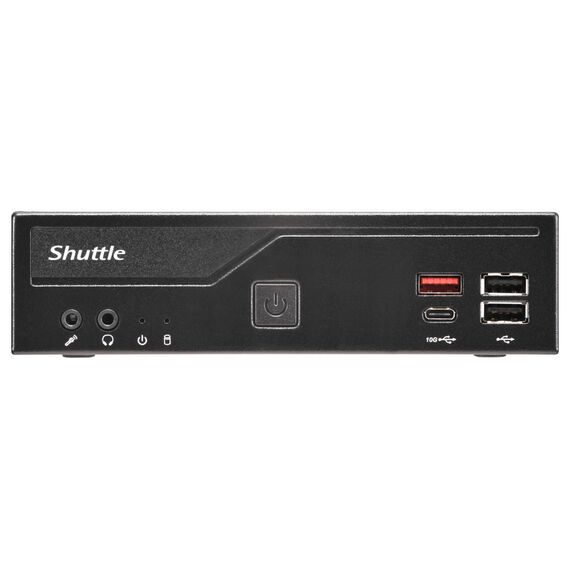

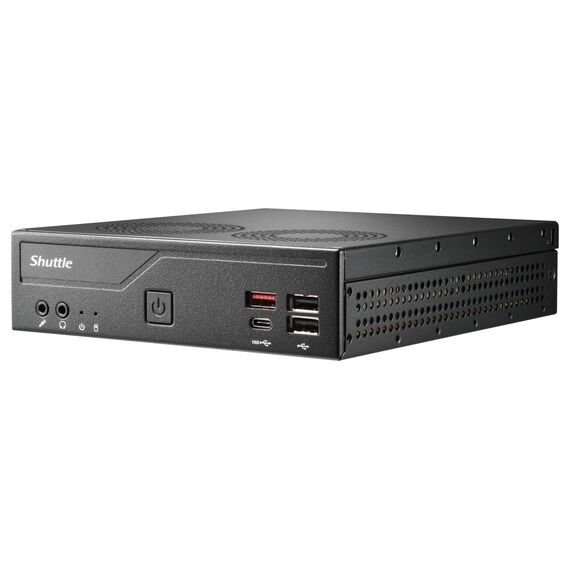

Name: Shuttle XPC slim DH810S Barebone Mini PC, H810, LGA1851, DDR5, 1GbE, 120W, Black
Brand: Shuttle
SKU: DH810S
Price: 390.99 EUR
Availability: InStock

CODE (SKU):

DH810S

€328.56

€390.99 inc. VAT

Ships from EU stock: 4 item(s)

+ −

Add to wish list Ask a question

Product Code

CS54003

EAN Code

0887993009247

Manufacturer

Shuttle

Intended Use

Digital Signage

Quick Specs

Processor platform

LGA1851 / H810, CPU separate

Memory support

DDR5 SO-DIMM, up to 96GB

Network / displays

1GbE, up to 3 displays

Power / mounting

120W adapter + VESA kit

Delivery

Order Today...

Ships...

Delivery...

ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.

Payment options

✓ Viva Wallet

✓ Revolut

✓ Bank Deposit

Secure checkout with flexible payment methods

Trusted Tech Choice

Buying Benefits Verified

Competitive EU pricing

Delivered to Cyprus from EU stock

Local warranty support

Shuttle DH810S: a configurable compact PC for multi-display installations

1.35-litre bareboneDDR5 SO-DIMMUp to 3 displaysVESA kit included

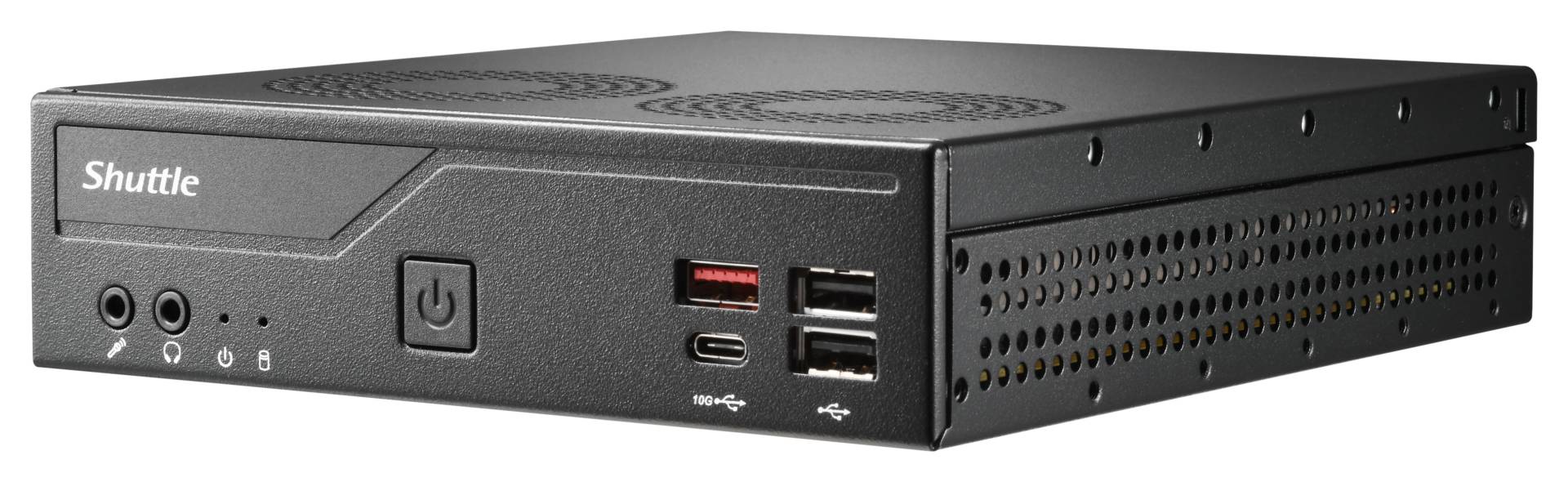

The Shuttle XPC slim DH810S is a black 1.35-litre barebone for office, signage, POS and equipment-control installations. It combines Intel H810, LGA1851, Gigabit LAN and RS232 and an included 120W adapter. Fit a supported processor with integrated graphics, memory, suitable storage and software to complete the PC.

Compatibility — check before buying:

Add a compatible LGA1851 CPU with integrated graphics and up to 65W base TDP, DDR5 SO-DIMM memory, storage and an OS. F-suffix CPUs, DDR4 and desktop DIMMs are unsuitable. Wi-Fi/Bluetooth are optional.

Best For

✓ Digital signage and information displays

✓ Office and multi-display workstations

✓ POS and serial equipment integration

Key Features

A compact platform you can configure

The black metal chassis occupies 1.35 litres. Intel H810 and LGA1851 support the verified processor family, while two DDR5 SO-DIMM sockets accept up to 96GB. CPU, RAM and storage are separate purchases.

Display and peripheral flexibility

Connect up to 3 independent screens through 1 × HDMI 2.1 + 2 × DisplayPort 1.4a. The platform provides Gigabit LAN and RS232. Display capability depends on the installed CPU and suitable cables.

Two storage formats

The M.2 2280 slot accepts PCIe 4.0 x4 NVMe or SATA SSDs, alongside one SATA 2.5-inch drive up to 12.5mm high. Optional WWN03 LTE hardware occupies the 2.5-inch bay, requiring storage on M.2.

Mounting and planned continuous use

The included VESA kit supports 75/100mm mounting. Dual 70mm fans and heatpipe cooling support manufacturer-approved 24/7 use within 0–50°C, with clear ventilation and appropriately rated components. Above 40°C, use the manufacturer-recommended temperature-rated SSD and memory.

Technical Specifications

Identity and supplied configuration
Brand / model	Shuttle XPC slim DH810S
Manufacturer SKU	DH810S
EAN / GTIN-13	0887993009247
Type / colour	1.35-litre slim barebone PC; black metal chassis
Included platform	Chassis, motherboard, CPU cooler and external power adapter; no CPU, RAM, storage or OS
Processor, chipset and memory
Processor socket	LGA1851
Supported processor family	Intel Core Ultra 200 series 9/7/5, Arrow Lake-S
CPU power limit	65W maximum base TDP; exact CPU must appear on Shuttle compatibility list
CPU graphics requirement	Integrated graphics required; F-suffix CPUs unsupported
CPU overclocking	Intel K-series unlock function not supported
CPU-dependent cores / NPU	Supported family offers up to 24 cores (8P + 16E) and an NPU up to 13 TOPS; CPU purchased separately
Chipset / motherboard	Intel H810; proprietary Shuttle motherboard with solid capacitors in sensitive areas
Memory sockets	2 × 262-pin DDR5 SO-DIMM; dual-channel support
Memory specification	DDR5-5600 (PC5-44800), 1.1V, unbuffered non-ECC; actual speed depends on CPU and modules
Maximum / included RAM	Up to 96GB (2 × 48GB); no RAM supplied
Display and audio
Graphics engine	CPU-integrated Intel Graphics with Xe cores; features depend on selected CPU
Standard video outputs	1 × HDMI 2.1 + 2 × DisplayPort 1.4a
Display output limits	HDMI 2.1: up to 7680 × 4320 at 60Hz; both DisplayPorts: up to 4096 × 2160 at 60Hz
Independent displays	Up to 3 with compatible CPU-integrated graphics
Audio codec	Realtek ALC888S High-Definition Audio
Analogue / digital audio	Front 3.5mm stereo line-out/headphones and microphone; multichannel digital audio via HDMI/DP
Storage and internal expansion
2.5-inch drive bay	1 × SATA HDD/SSD, maximum height 12.5mm
SATA connection	1 × SATA III 6Gb/s, with onboard power; data/power cable included
M.2 SSD slot	1 × M.2 2280 M-key (22 × 80mm); PCIe 4.0 x4 NVMe or SATA III 6Gb/s
SSD cooling kit	M.2-2280 heatsink with screws and thermal pads included
SATA RAID	Shuttle lists RAID 0/1 using a 2.5-inch SATA drive and M.2 SATA SSD; not an NVMe RAID promise
Storage included	No HDD or SSD
Wireless expansion	1 × M.2 2230 E-key, PCIe x1 and USB 2.0 / CNVi; optional wireless module, no Wi-Fi/Bluetooth supplied
LTE expansion option	WWN03 adapter kit, separate LTE M.2-3042 card and activated Nano SIM required; occupies 2.5-inch bay, use M.2 SSD storage
Discrete graphics expansion	No PCIe expansion-card slot for a desktop graphics card
Networking, USB and serial connections
Wired network ports	1 × RJ45 Gigabit, Intel i219, 10/100/1000Mb/s
Network boot / wake	PXE and Wake-on-LAN supported
Wake-on-LAN limitation	S5 wake supported after BIOS setup; after a power interruption, start the PC once before WOL works

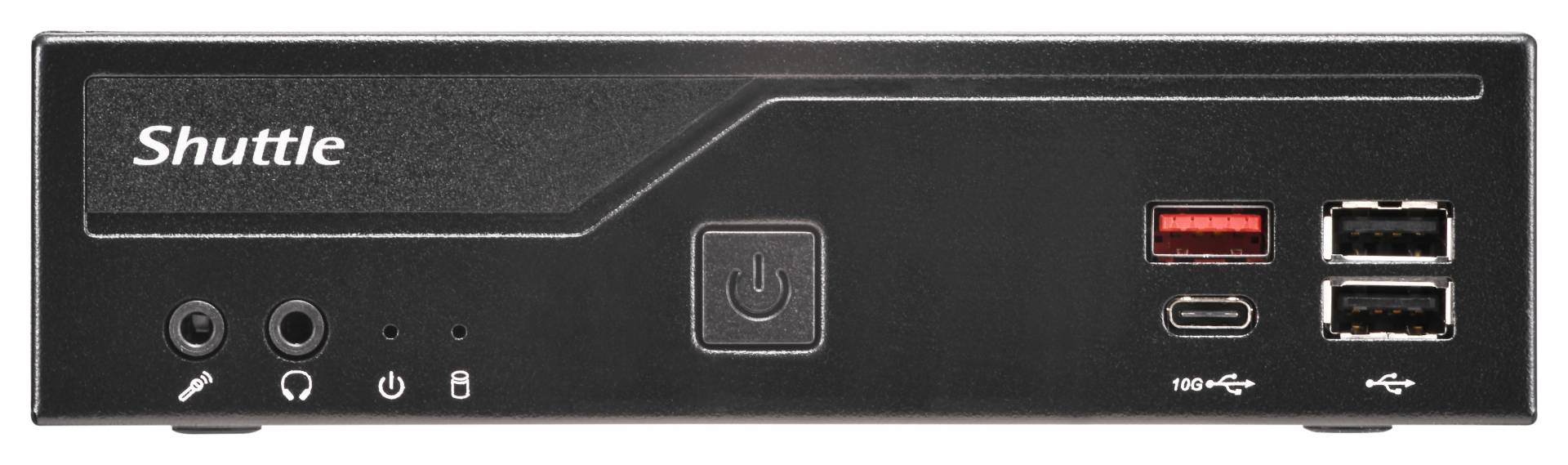

Front USB ports	1 × USB 3.2 Gen 2 Type-A + 1 × Type-C (10Gb/s each); 2 × USB 2.0 Type-A

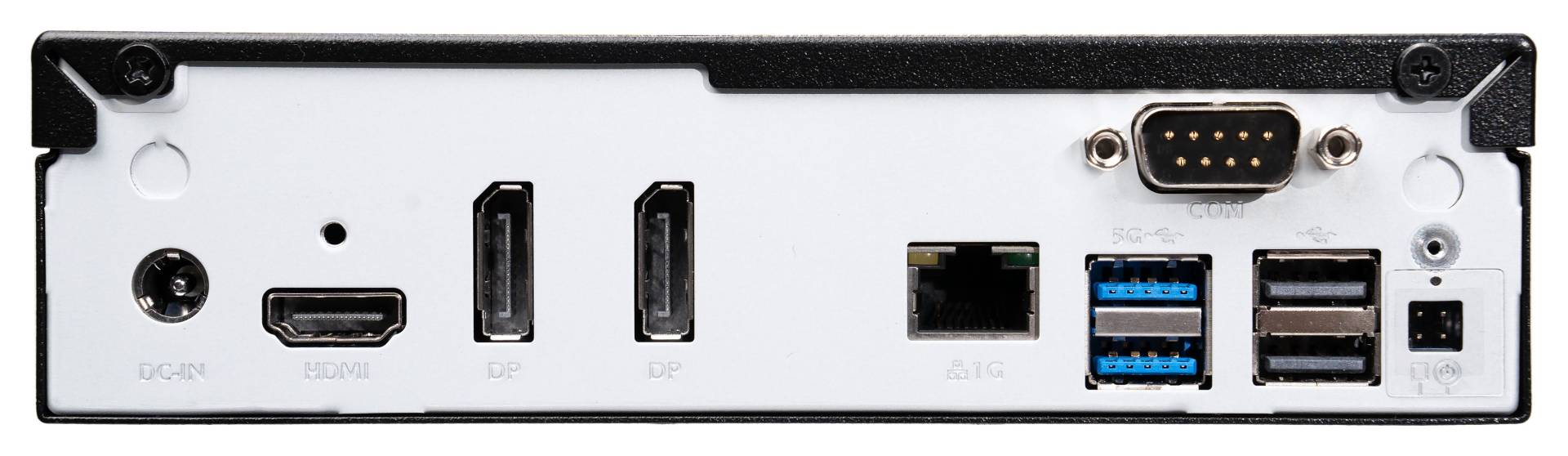

Rear USB ports	2 × USB 3.2 Gen 1 Type-A (5Gb/s); 2 × USB 2.0 Type-A
Total external USB	8 ports: 2 × 10Gb/s, 2 × 5Gb/s, 4 × USB 2.0
Front Type-C charging	Up to 3A peripheral charging
Serial COM ports	1 × RS232, 9-pin D-Sub
COM pin 9 options	RI or jumper-selectable +5V/+12V, maximum 500mA per connector
Remote control connector	Rear 4-pin, 2.54mm pitch: external power button, Clear CMOS, +5V DC; CXP01 cable optional
Other internal headers	USB 2.0 4-pin for optional LTE kit; occupied fan, COM and CMOS battery connections
Front controls / indicators	Power button; blue power LED; yellow drive activity LED
Firmware and operating systems
BIOS	AMI UEFI, SPI Flash-EEPROM 32MB
Management functions	Hardware monitoring, watchdog, USB boot and power-on-after-power-fail; hardware always-on jumper
Security	Firmware TPM 2.0; hardware TPM available only by factory arrangement
Operating systems	Windows 11 and Linux, 64-bit; no licence included
Power supply
Included external adapter	120W, fanless; 19V DC, up to 6.32A
Adapter AC input	100–240V AC, 50–60Hz
System DC input	12V ±5% or 19V ±5%; barrel plug 5.5mm outer / 2.5mm inner diameter
Supplied AC lead	Approximately 1.7m, earthed CEE 7/7 type E/F to IEC C5/C6 coupler; check local socket fit
Chassis, mounting and environment
Dimensions / volume	190 × 165 × 43mm (L × W × H); 1.35 litres
Weight	1.3kg net; 2.1kg gross
CPU cooling	Active heatpipe system with 2 × 70mm fans
Included mounting	VESA 75 × 75 / 100 × 100mm bracket kit and screws
Security / mounting provisions	2 × Kensington lock holes; M3 threaded side holes; 2 antenna mounting perforations
Operating limits	0–50°C; 10–90% RH, non-condensing
Continuous operation / high ambient	Manufacturer-approved 24/7; keep ventilation clear. Above 40°C, Shuttle recommends SSDs rated at least 70°C and rugged SO-DIMM rated up to 95°C
EMI / safety / other compliance	FCC, CE, BSMI, RCM, VCCI; ETL, CB, BSMI; RoHS, Energy Star, ErP; Class B ITE
RTC / CMOS battery	Built-in 3V CR2032 lithium button cell
Optional accessories	Wireless kit, WWN03 LTE adapter, PS02 stand, CXP01 remote cable, PRM01 rack plate and DIR01 DIN-rail kit
Package contents	DH810S barebone with motherboard and dual-fan heatpipe cooler; External 120W power adapter and earthed AC lead; VESA 75/100mm brackets and mounting screws; SATA data/power cable, drive and M.2 screws, CPU socket cap and heatsink compound; Multilingual user guide and 64-bit driver DVD; M.2 SSD heatsink kit with thermal pads and screws

What's in the Box

DH810S barebone with motherboard and dual-fan heatpipe cooler

External 120W power adapter and earthed AC lead

VESA 75/100mm brackets and mounting screws

SATA data/power cable, drive and M.2 screws, CPU socket cap and heatsink compound

Multilingual user guide and 64-bit driver DVD

M.2 SSD heatsink kit with thermal pads and screws

What Will Not Work

No CPU, RAM, SSD/HDD or operating-system licence is supplied.

F-suffix CPUs without integrated graphics and unsupported CPU power levels cannot be used.

DDR4, desktop DIMMs and a discrete PCIe graphics card are unsuitable.

Wireless networking, LTE hardware and optional mounting accessories are separate purchases.

Frequently Asked Questions

Is this ready to run with Windows?

No. Add a supported CPU, DDR5 SO-DIMM memory, storage and an operating system. The chassis, motherboard, cooling, power adapter and VESA kit are included.

Can I use 96GB with every supported CPU?

Two 48GB modules provide up to 96GB. Confirm the processor and module combination against the compatibility list.

Can I install Wi-Fi or LTE?

Wi-Fi/Bluetooth needs a compatible optional M.2 2230 kit. LTE needs WWN03, a separate M.2-3042 modem and an activated Nano SIM. LTE hardware occupies the 2.5-inch bay, so use M.2 SSD storage.

Singular Expert Insight

Choose DH810S around your actual screen count, serial peripherals and network needs. Confirm CPU compatibility, memory and SSD format first; budget for the missing components. For mounting behind a screen or inside equipment, leave the top fans and vents clear. Ask Singular to check your configuration

Buyer’s Guide

Buy it if

You need a small configurable PC for compatible office, signage or serial equipment.

Skip it if

You need a complete Windows PC, a discrete graphics-card slot or passive fanless cooling.

Also consider

A configured Mini PC for immediate use, or the compatible CPU, DDR5 SO-DIMMs, SSD and verified optional Shuttle accessories.
